1 / 6Optical Windows

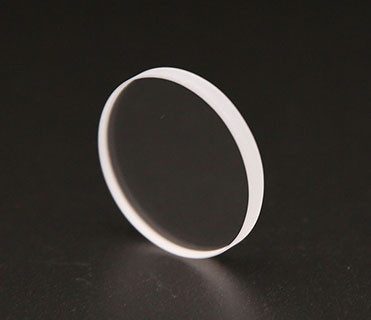

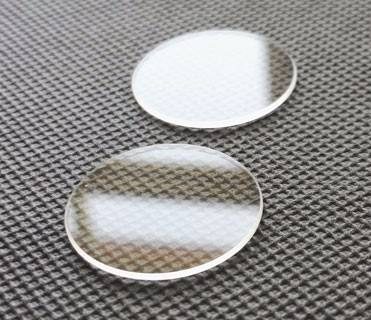

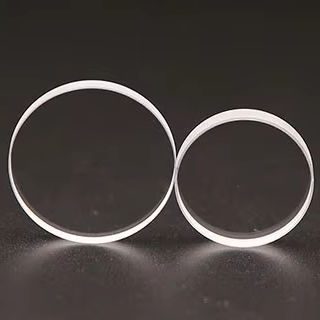

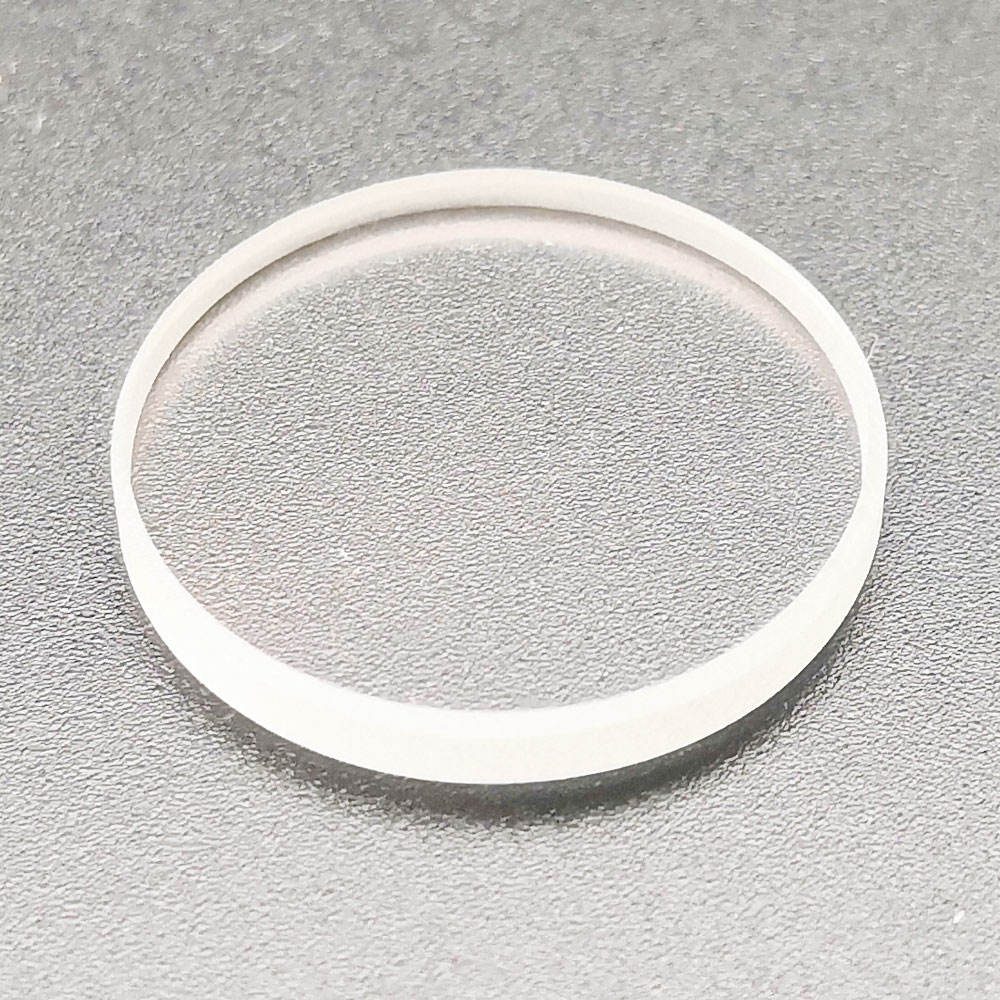

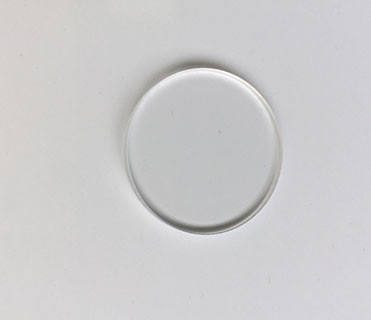

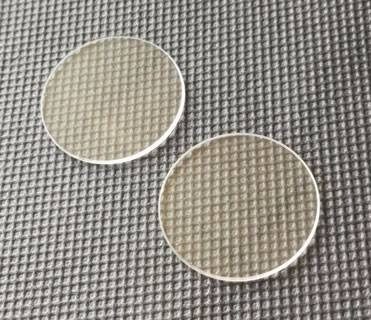

5x1 mm Fused Silica Round Optical Window, AR Coated
Fused Silica optical window for laser cutting and IR imaging, customizable sizes, high precision, and excellent performance across multiple wavelengths.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 5–500 mm
- Thickness
- 1–50 mm
- Coating
- ar, hr
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 5–500 mm
- Thickness
- 1–50 mm
- Coating
- ar, hr
Product description
This Fused Silica optical window is designed for applications in laser cutting and IR imaging, providing excellent performance across multiple wavelength bands, including 3-5 μm and 0.7-1.7 μm. Its robust construction ensures reliable operation in various environments, making it ideal for R&D and industrial applications. With customizable sizes and high precision, this optical window meets the stringent demands of modern optical systems.
Key Features
- Diameter options from 5.0 mm to 500.0 mm for versatile application fit.
- Thickness range from 1.0 mm to 50.0 mm allows for tailored solutions.
- Surface quality of 60/40 ensures adequate clarity and performance.
- Flatness options of L/2, L/4, L/8, and L/10 for precise optical alignment.
- Parallelism of < 3 arcmin for enhanced optical integrity.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 252.5 x 25.5 |
Applications
Laser Cutting
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 5 mm |
| Thickness | 1 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), high-reflective (HR) |
| Transmission bands | MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical window |
| Customized Support | OEM, ODM |
| Warranty | 6 months |
| Weight | 0.002g |
| Flatness | L/2, L/4, L/8, L/10 |
| Parallelism | < 3 arcmin |
| Bevel | 0.1-0.5mm*45° |
| Dimension Tolerance | ±0.1mm |
FAQ
Can I get custom sizes?
Yes, custom sizes are available, including diameter and thickness options.
What are the tolerances for dimensions?
The dimension tolerance is ±0.1 mm, ensuring high precision.
