1 / 6Optical Windows

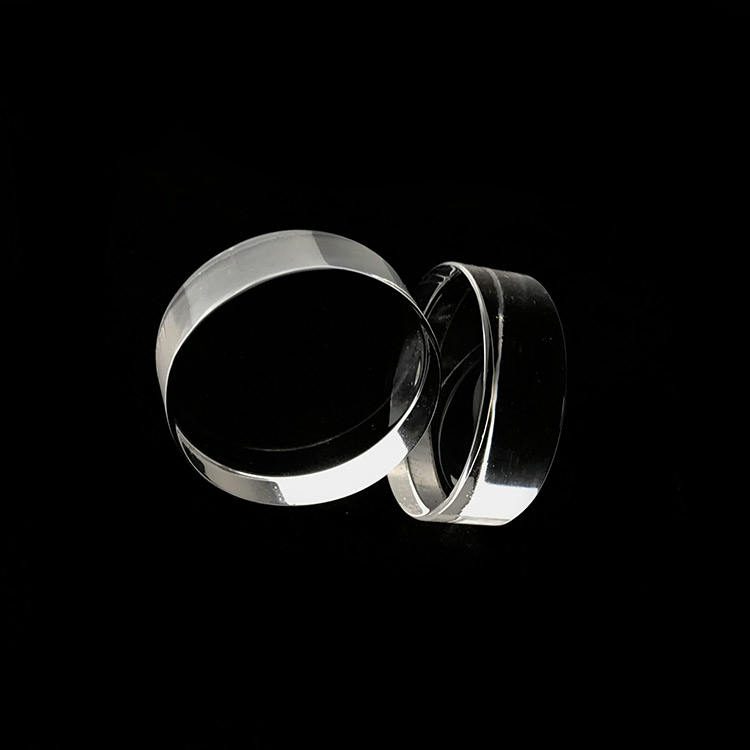

5x5 mm Fused Silica Round Optical Window
Round fused silica disc with high purity, temperature resistance, and customizable sizes for optical applications.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 5 mm
- Thickness
- 5–100 mm
- MOQ
- 10 Piece
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 5 mm
- Thickness
- 5–100 mm
- MOQ
- 10 Piece
Product description
This round fused silica disc is ideal for applications requiring high purity and excellent thermal stability. With a thickness range from 5.0 mm to 100.0 mm and a diameter of 5.0 mm, it is suitable for use in environments up to 1100°C. Its exceptional clarity and chemical resistance make it a reliable choice for optical applications, ensuring durability and performance in demanding conditions.
Key Features
- High purity SiO2 > 99.99% for superior optical clarity.
- Temperature resistance up to 1200°C for continuous use.
- Custom sizes available to meet specific application needs.
- Thickness tolerance of 0.02 mm ensures precision.
- Excellent electrical insulator, suitable for various applications.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 5 x 52.5 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 5 mm |
| Thickness | 5 mm |
| MOQ | 10 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Clarity Type | Clear Quartz Plate |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting, Moulding |
| Color | clear transparent |
| Package | wrapped with bubble film, then in carton, then in wooden box |
| Work Temperature | 1100 Degrees Celsius |
| Moq | 10 Piece |
| Soften Point | 1730℃ |
| Thickness Tolerance | 0.02mm |
FAQ
What is the minimum order quantity?
The minimum order quantity is 10 pieces.
Can I get custom sizes?
Yes, custom sizes can be accepted according to customer requirements.
