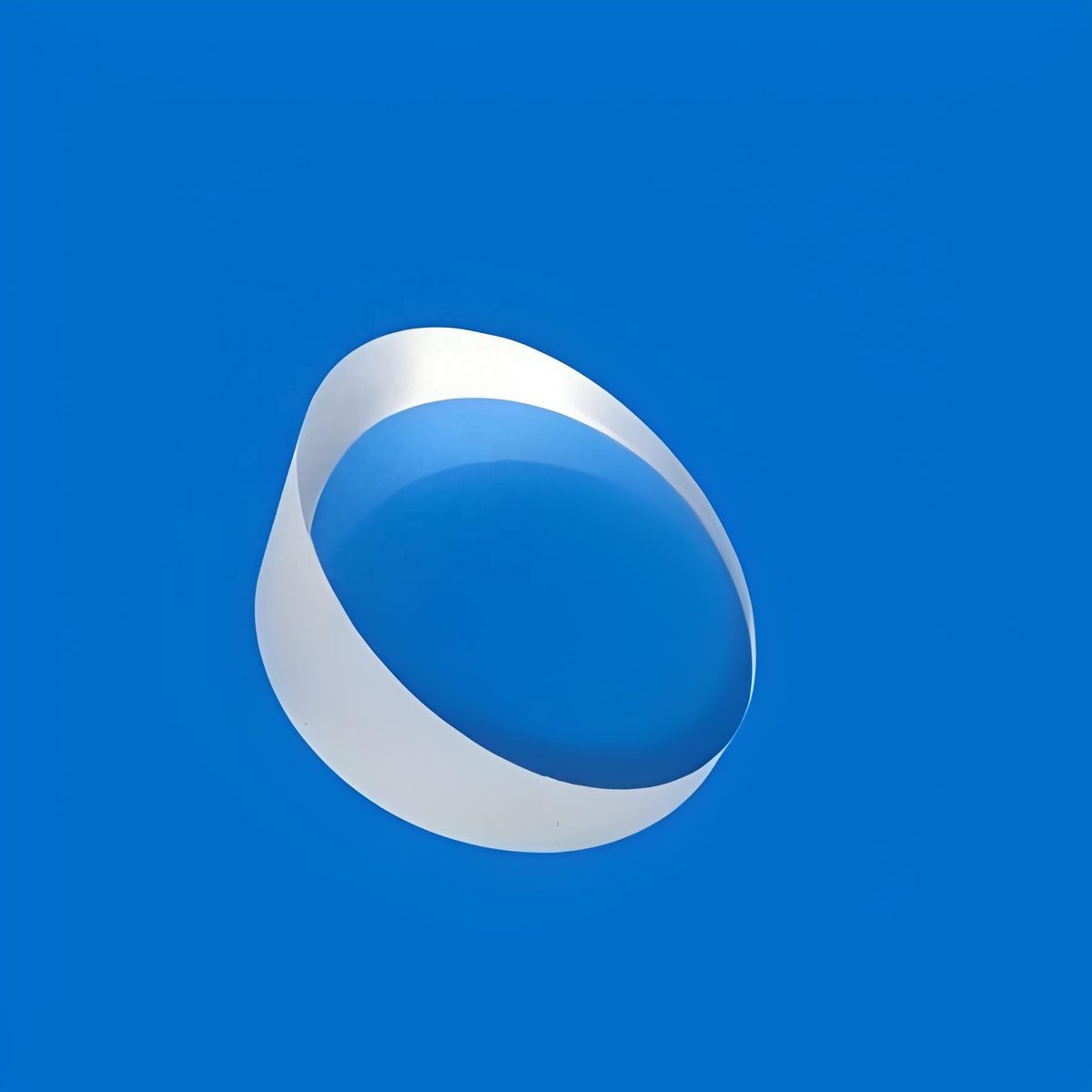

5 mm Fused Silica Round Optical Window, AR Coated

Product description

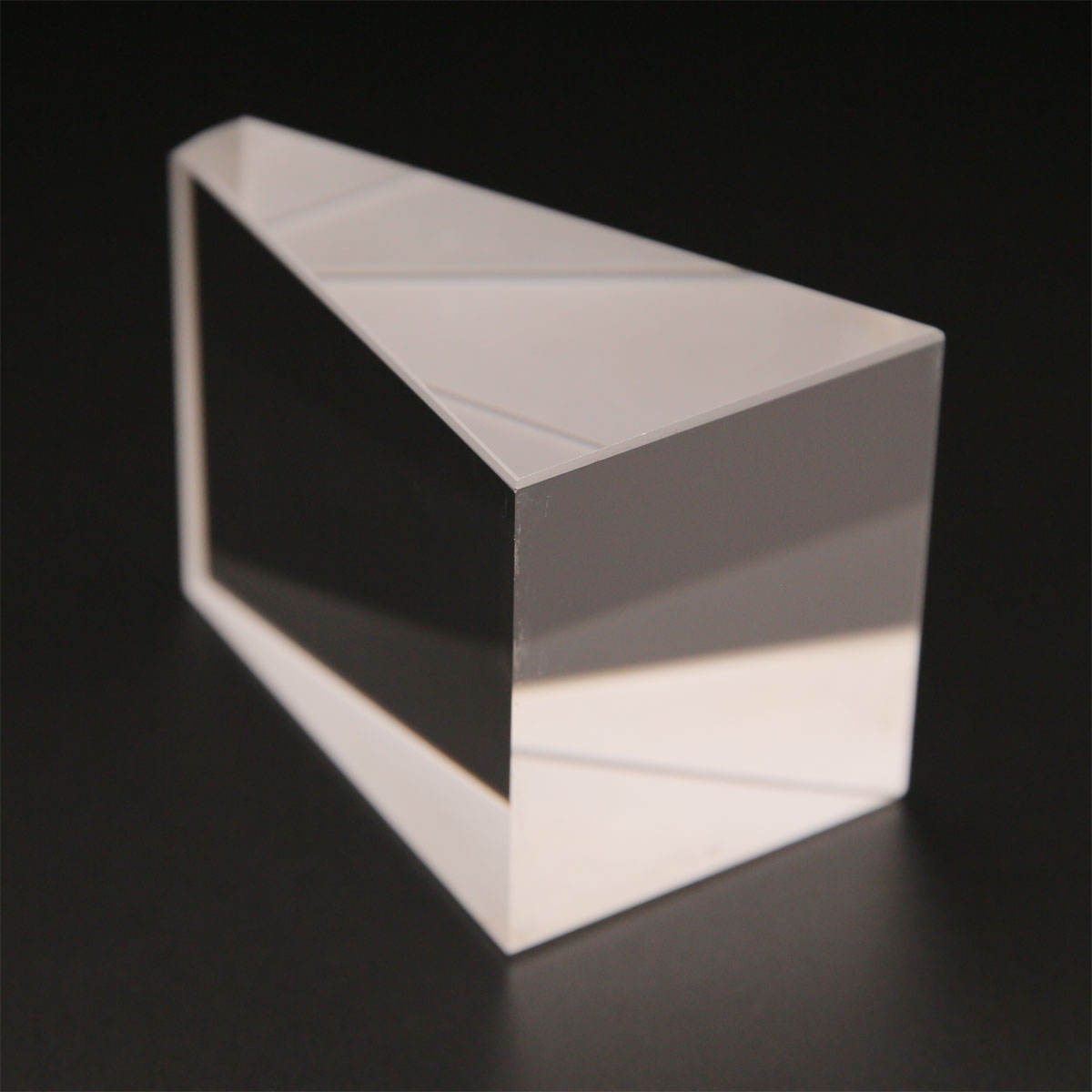

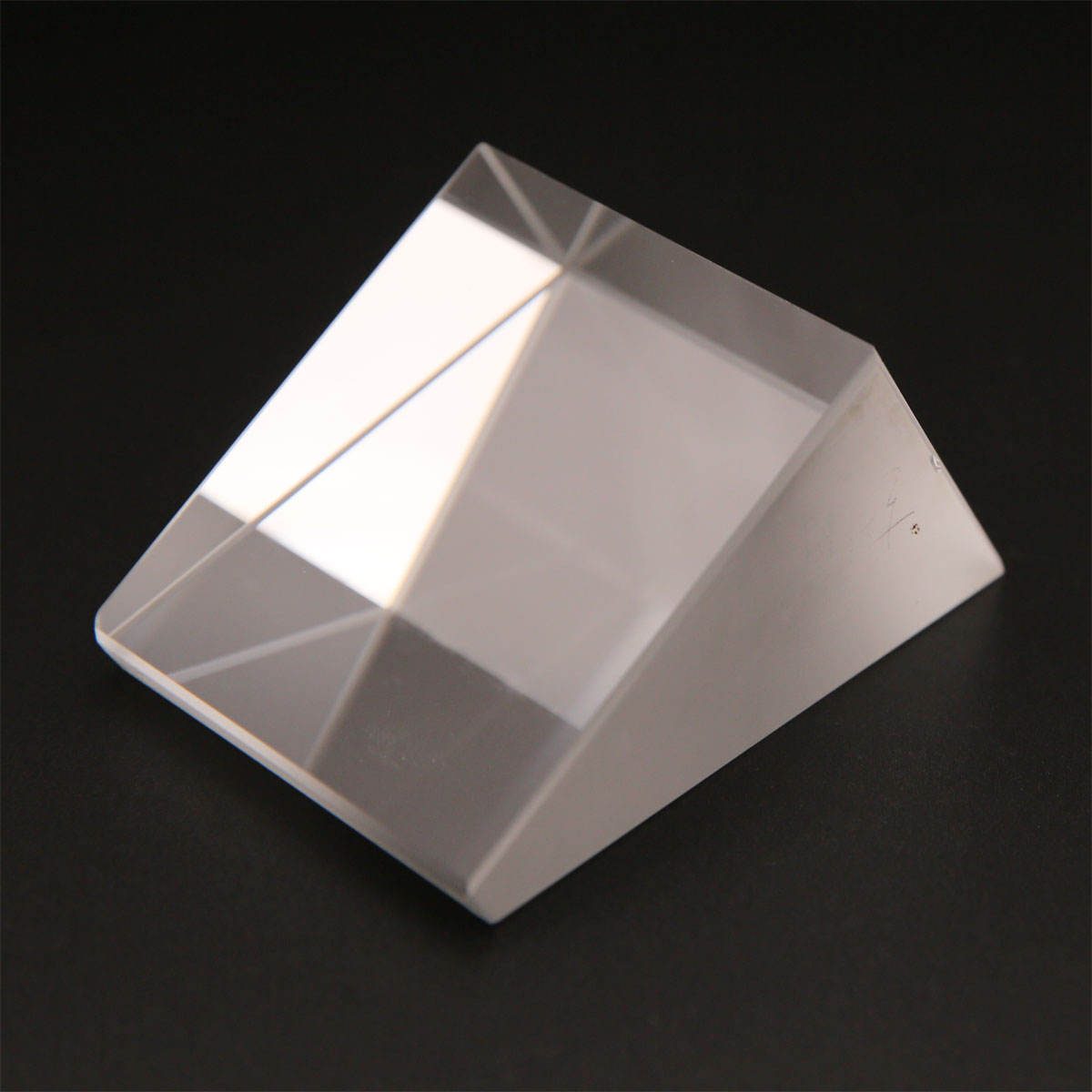

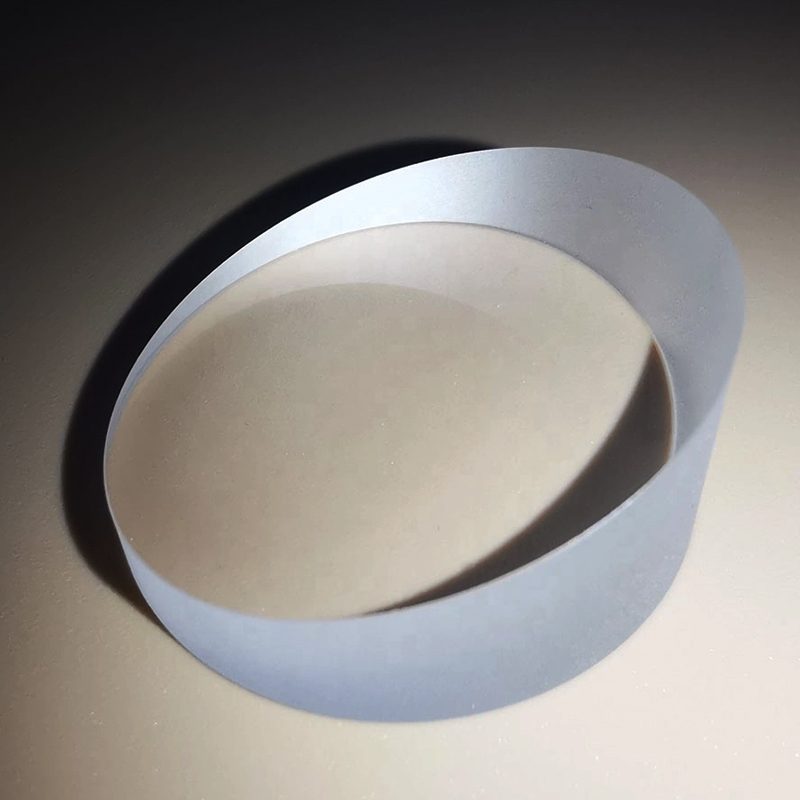

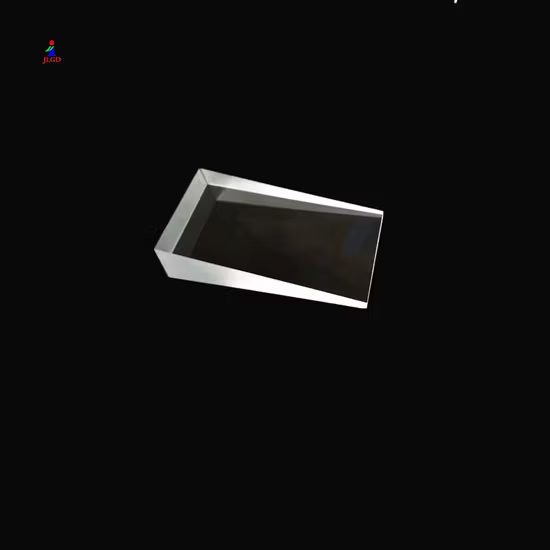

Wedge prisms made from fused silica are designed for thermal imaging applications within the 400-700 nm wavelength range. These prisms prevent laser instability and interference effects by introducing a controlled wedge in the optical path, ensuring precise light deflection. Available in diameters from 5 mm to 500 mm, they can be customized to meet specific requirements, making them suitable for various optical systems.

Key Features

Wavelength range: 400-700 nm for optimal thermal imaging performance.
Diameter options from 5 mm to 500 mm to fit diverse applications.
Surface quality of 60/40 ensures minimal distortion and high clarity.
Angular tolerance as strict as 3 arcsec for precise optical alignment.
Clear aperture greater than 90% for maximum light transmission.

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	5 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value

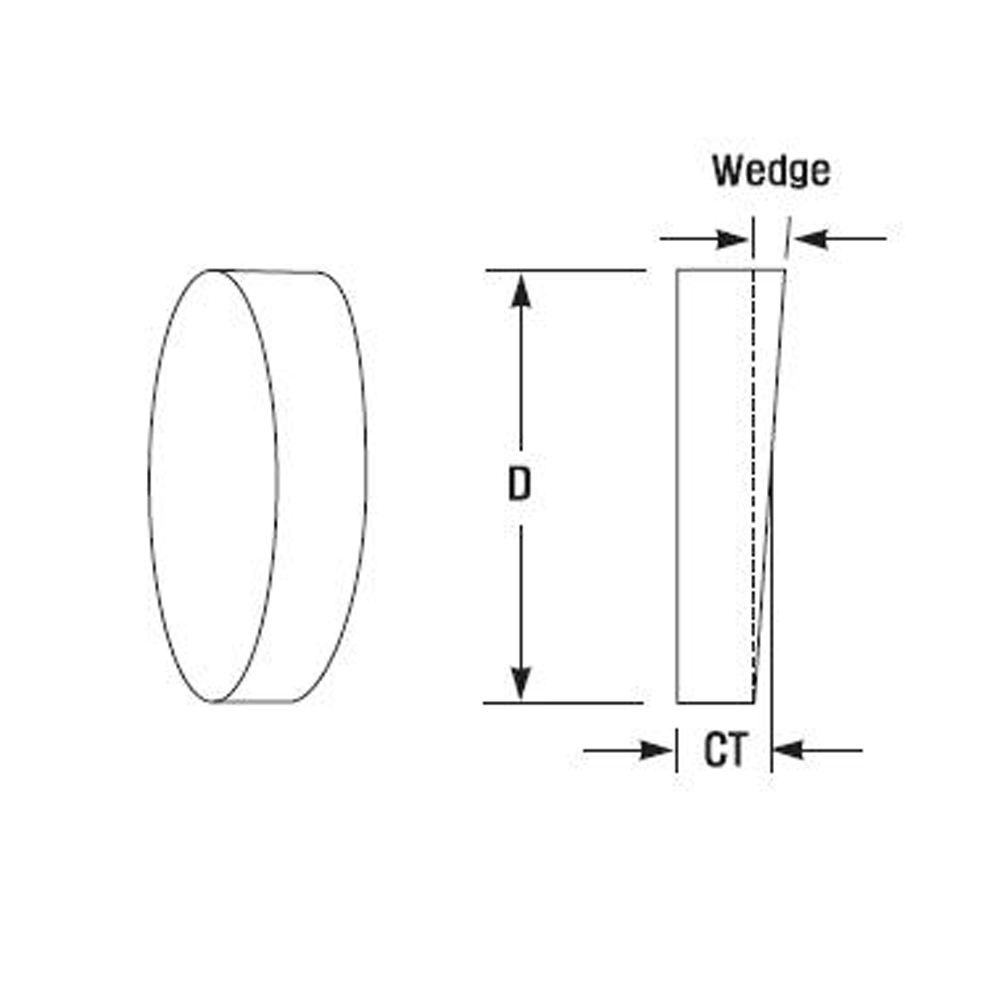

Type	Wedge
Customized Support	OEM, ODM, Upon requirements
Warranty	1 months
Weight	customize
Dimension	5-500 mm
Flatness	Lambda/2-Lambda/8 @633nm
Clear Aperture	>90%
Bevel	Protective Bevel

FAQ

Can I get custom sizes?

Yes, wedge prisms are available in diameters ranging from 5 mm to 500 mm and can be customized as per requirements.

What are the tolerances for dimensions?

Dimension tolerance is +0/-0.1 mm, ensuring high precision in manufacturing.
