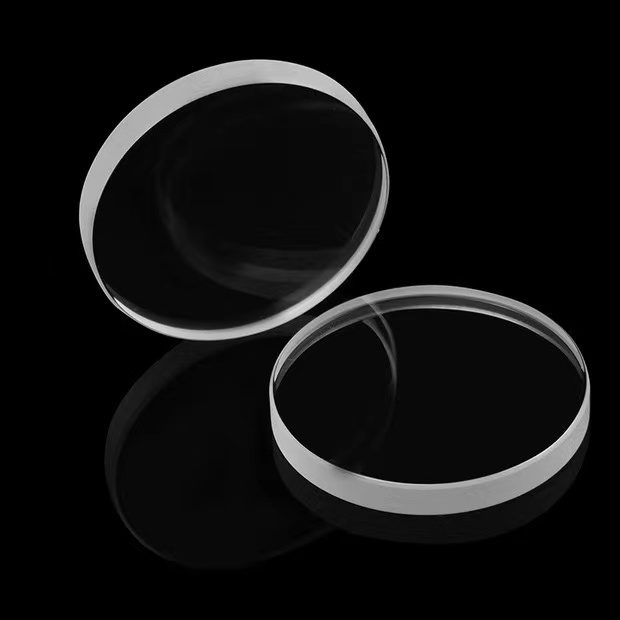

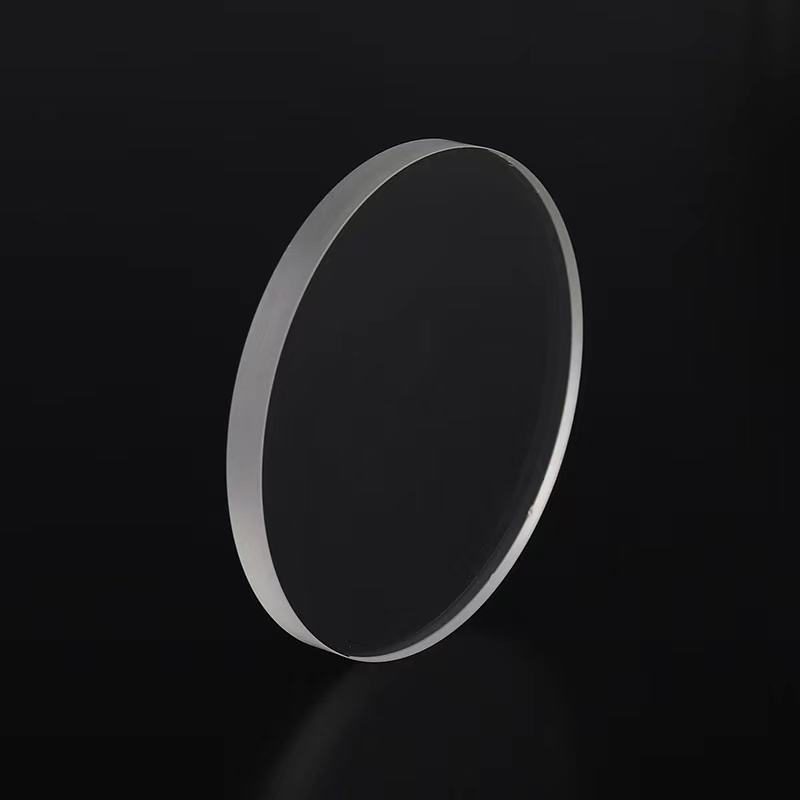

60 mm Fused Silica Round Optical Window

Product description

This round optical window made from fused silica is designed for various applications across multiple wavelength bands, including 400-700 nm and 1.7-3 μm. With a surface quality of 60/40 and a clear aperture greater than 98%, it ensures high transmittance and reliability. Ideal for use in optical assemblies, it can withstand harsh environmental conditions while providing consistent performance. Custom sizes are available to meet specific application needs.

Key Features

Diameter of 60 mm with a tolerance of +/-0.1 mm for precise fitting.
Surface quality of 60/40 ensures minimal distortion and high clarity.
Clear aperture greater than 98% maximizes light transmission.
OEM, ODM, and OBM support for tailored solutions.
Lightweight design at 0.5 kg for easy integration into systems.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	60 mm
Thickness	Custom
Surface Quality	60/40
Transmission bands	MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.5
Diameter Tolerance	+/-0.1
Clear Aperture	>98%

FAQ

Can I get custom sizes for this window?

Yes, custom sizes are available to meet specific application requirements.

What is the diameter tolerance for this optical window?

The diameter tolerance is +/-0.1 mm, ensuring precise fitting.
