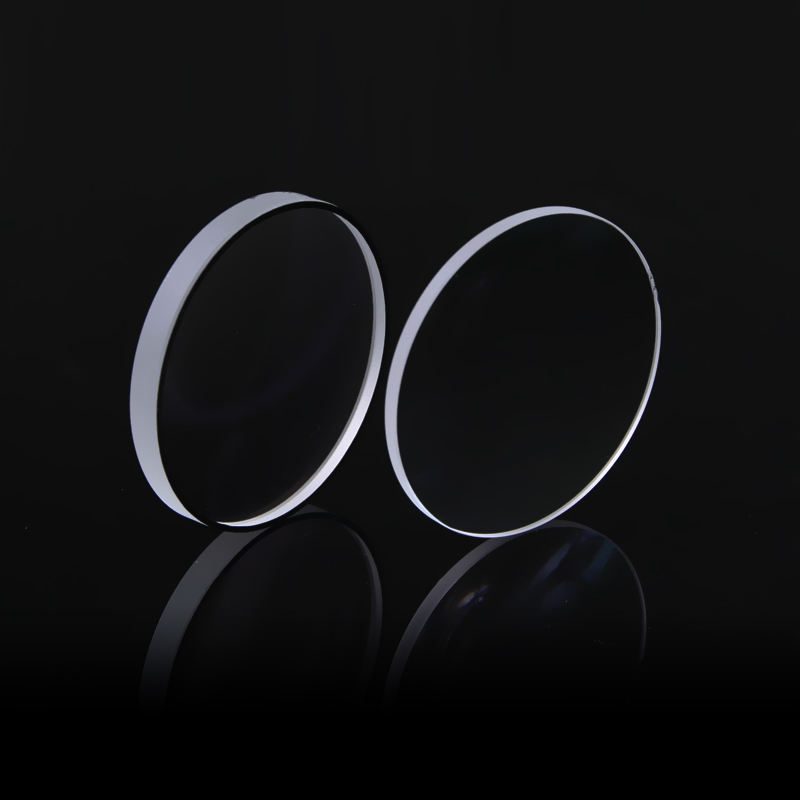

75 mm Fused Silica Round Optical Window, AR Coated
Fused Silica round window plate for medical applications, 75 mm diameter, high transmittance, customizable options available.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 75 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 75 mm
- Coating
- ar, uncoated
Product description
This round Fused Silica window plate is designed for applications in the medical field, offering high transmittance across multiple bands including 0.7-1.7 μm and 1.7-3 μm. Its optimized surface flatness and clear aperture ensure minimal distortion and maximum light transmission, making it ideal for sensitive optical systems. Sourced from Henan, this component is suitable for various optical applications requiring precise dimensions and reliable performance.
Key Features
- Diameter: 75 mm with a tolerance of +/-0.05 mm for precise fitting.
- Parallelism ≤10 arcsec ensures accurate alignment in optical systems.
- Clear aperture >95% maximizes light transmission for enhanced imaging.
- Customizable options available for OEM, ODM, and OBM support.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 75 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | window plate |
| Customized Support | ODM, OEM, OBM |
| Surface Flatness | Lambda/4 |
| Dimension Tolerance | +/-0.05mm |
| Parallelism | ≤10 arcsec |
| Clear Aperture | >95% |
| Bevel | <0.5mmx45 degree |
FAQ
Can I get custom sizes?
Yes, customizable options are available for OEM, ODM, and OBM support.
What are the tolerances for dimensions?
Diameter tolerance is +/-0.05 mm, ensuring precise fitting.
