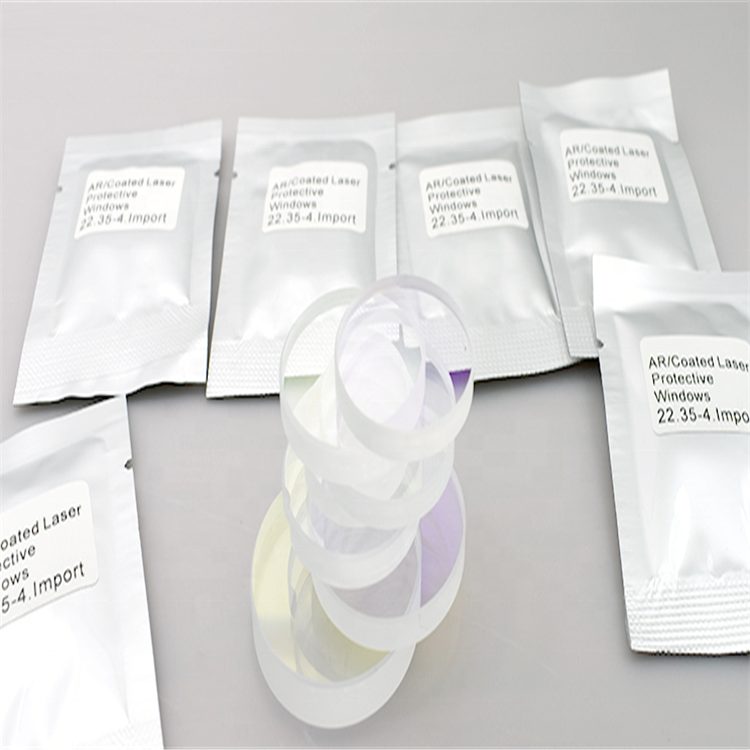

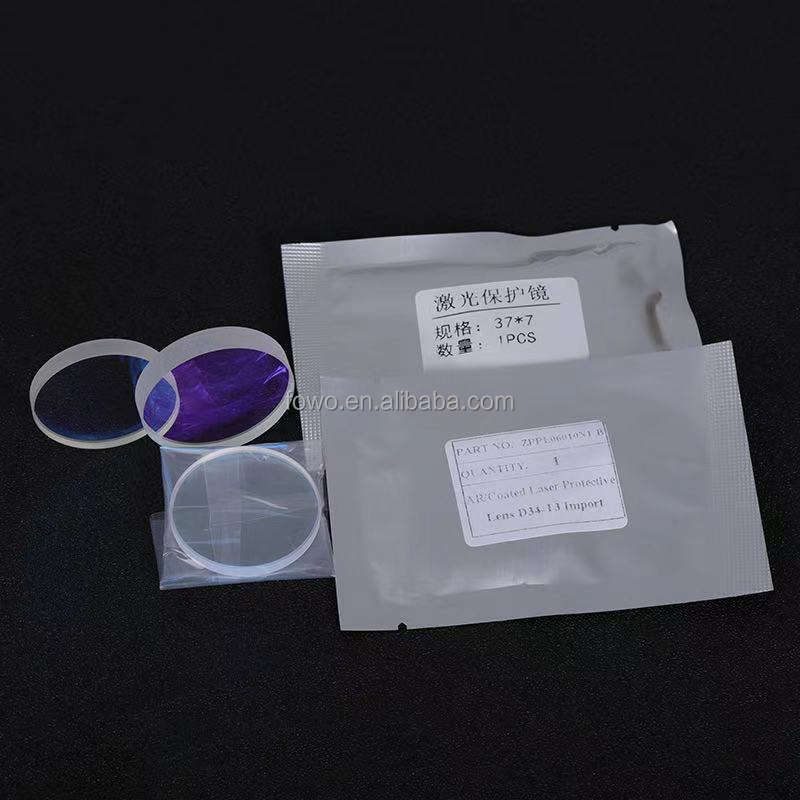

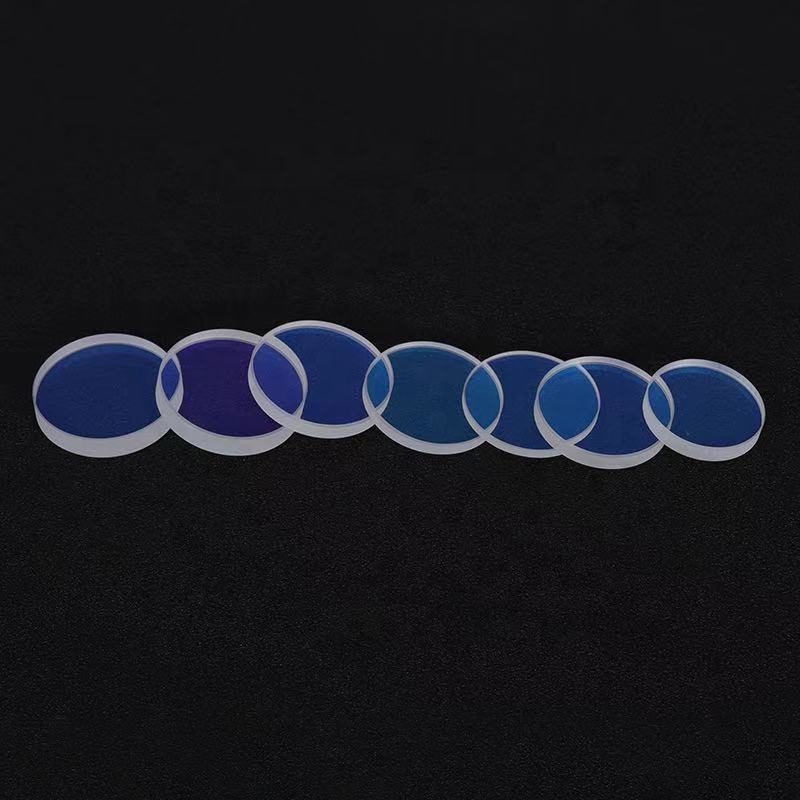

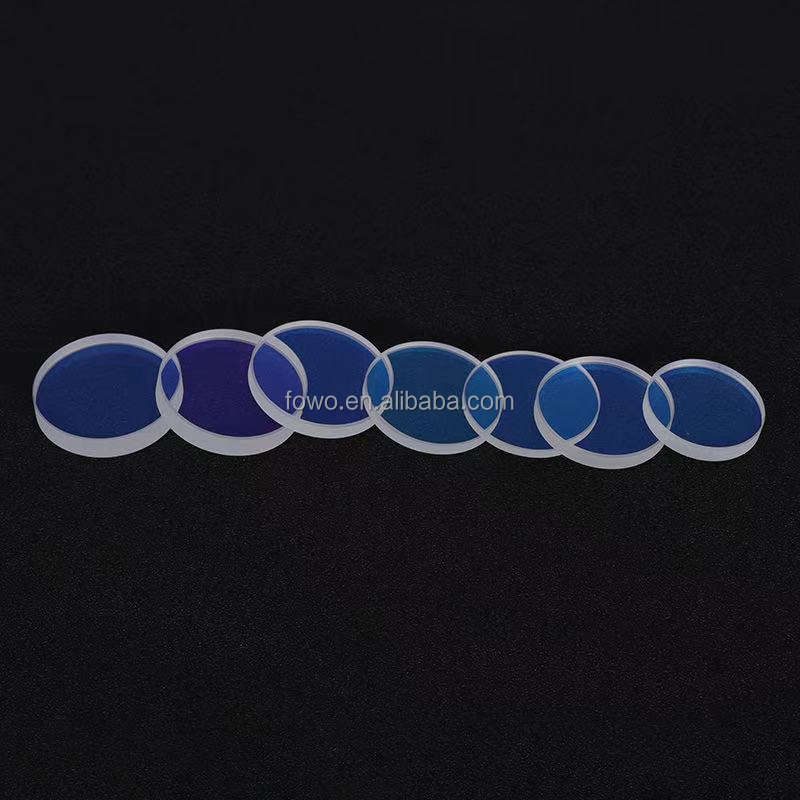

7x7 mm Fused Silica Round Optical Window

Product description

This round Fused Silica window is designed for high-performance applications within the 0.7-1.7 μm and 400-700 nm wavelength ranges. With a thickness and diameter of 7.0 mm, it offers exceptional clarity and durability, making it ideal for laser systems, optical instruments, and other demanding environments. The window’s high transmission rate of over 99.5% at 1064 nm ensures minimal loss of light, enhancing overall system efficiency.

Key Features

High transmission rate of >99.5% at 1064 nm for optimal performance.
Surface quality of 60/40 ensures clarity and minimal distortion.
Tolerance of +/-0.05 mm for precise fitting in applications.
Work temperature capability up to 1100°C for high-temperature environments.
Custom processing services available, including bending and cutting.

Available Sizes

Diameter x Thickness (mm)
7 x 7

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	7 mm
Thickness	7 mm
Surface Quality	60/40
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Clarity Type	Clear Quartz Plate
Processing Service	Bending, Welding, Punching, Decoiling, Cutting, Moulding
Tolerance	+/-0.05mm
Transmission	>99.5%@1064nm
Edge	chamfer as request
Work Temperature	1100 Degrees Celsius

FAQ

Is custom sizing available?

Custom sizes are available, with a standard variant size of 7.0 mm diameter and thickness.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible ordering options.
