1 / 6Optical Windows

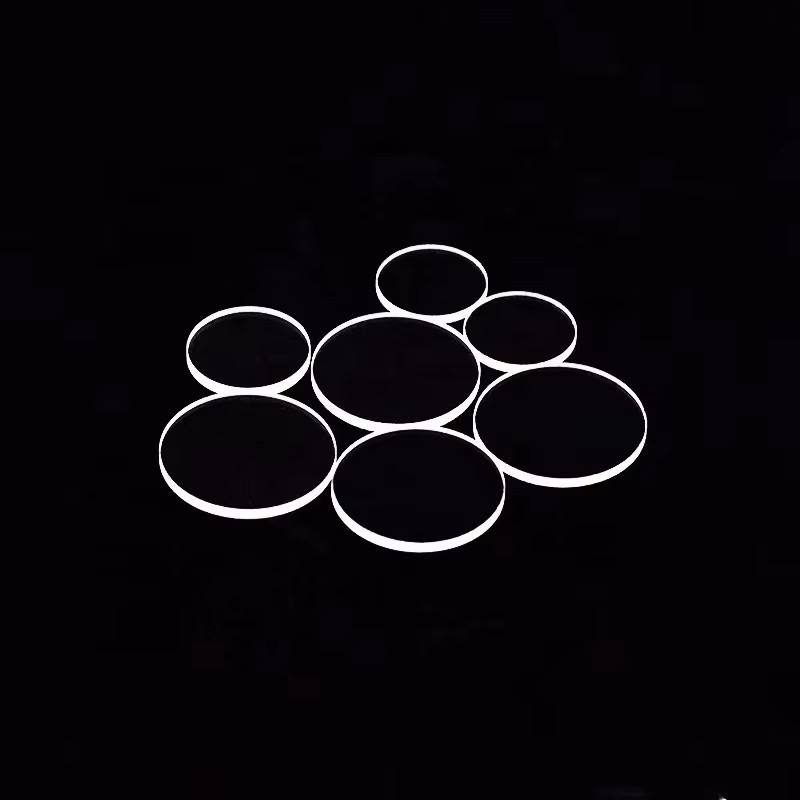

9x1 mm Fused Silica Round Optical Window
High-quality 9mm Fused Silica optical window plate with customizable options and excellent surface quality.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 9 mm
- Thickness
- 1 mm
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 9 mm
- Thickness
- 1 mm
Product description
This round Fused Silica optical window plate is designed for precision applications in IR imaging and optical equipment. With a diameter of 9 mm and a thickness of 1 mm, it ensures high clarity and a clear aperture greater than 98%, making it suitable for various optical systems. The surface quality of 60/40 guarantees minimal distortion, essential for accurate imaging and measurement tasks in demanding environments.
Key Features
- Diameter: 9 mm, ideal for compact optical applications.
- Thickness: 1 mm, suitable for lightweight designs.
- Surface quality of 60/40, ensuring minimal distortion in optical paths.
- Clear aperture greater than 98%, maximizing light transmission.
- Customizable options available for various optical configurations.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 9 x 1 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 9 mm |
| Thickness | 1 mm |
| Surface Quality | 60/40 |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.05 |
| Diameter Tolerance | +/-0.1 |
| Clear Aperture | >98% |
| Structure | Plano-Convex |
FAQ
Can I get custom sizes?
Yes, custom sizes and shapes are available upon request.
What is the diameter tolerance?
The diameter tolerance is +/-0.1 mm.
