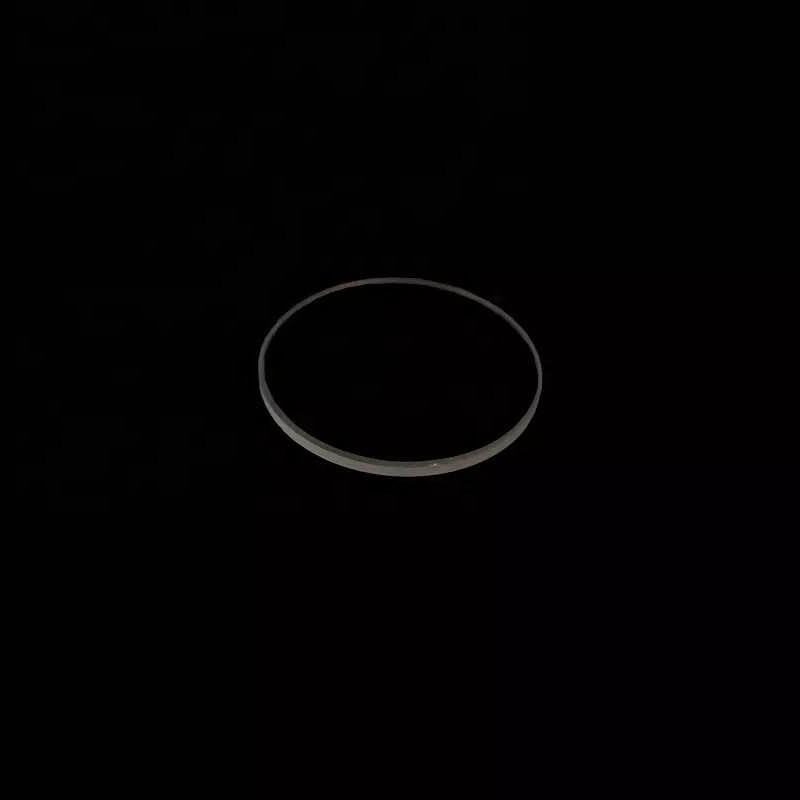

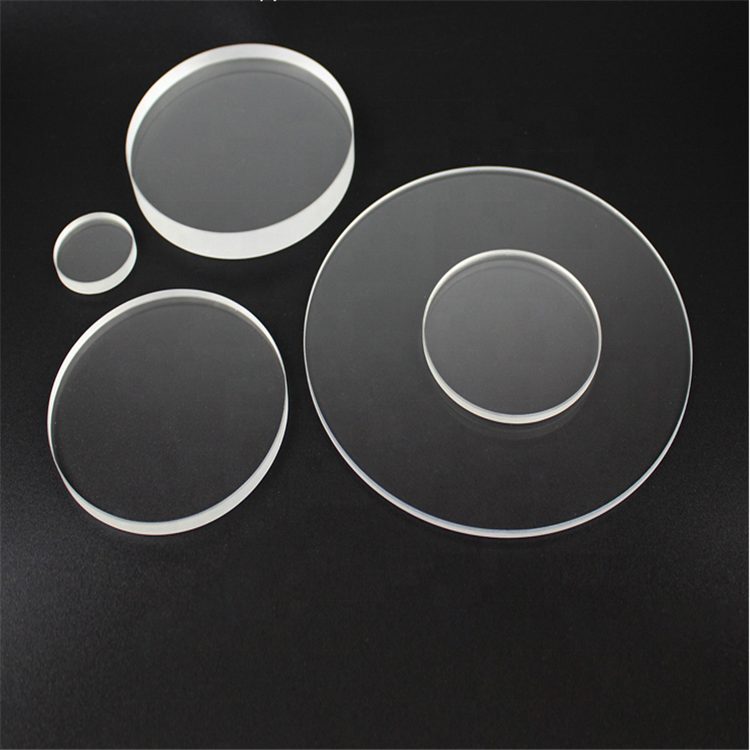

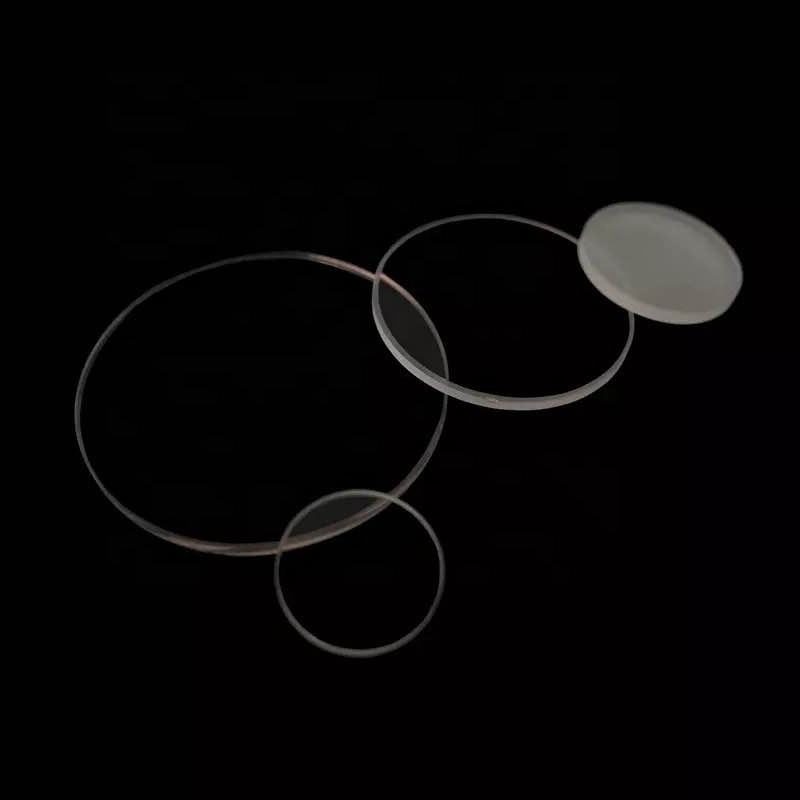

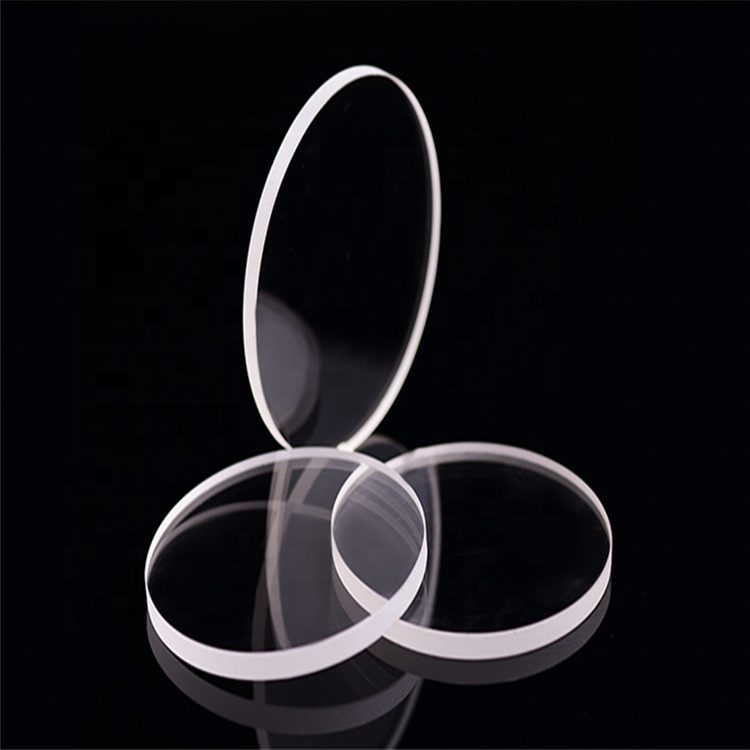

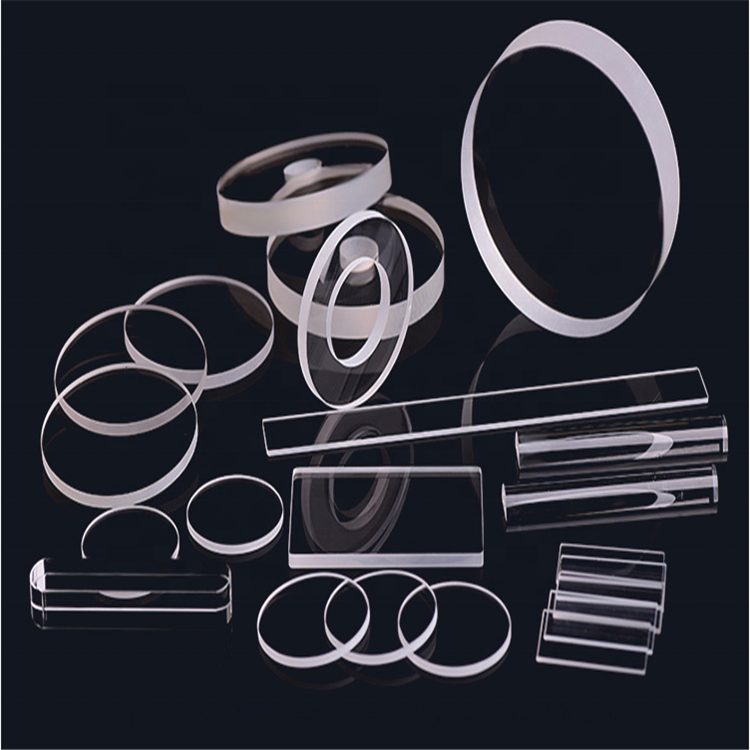

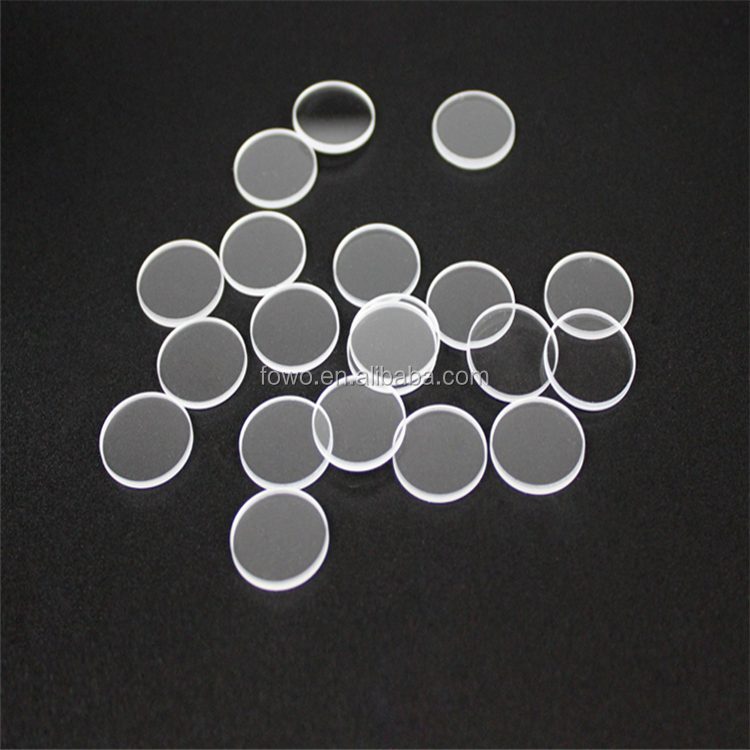

Custom Size Fused Silica Round Optical Window
JGS1 Round Fused Silica Discs offer high transmittance and customizable thickness for diverse optical applications.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Thickness
- 0.1–30 mm
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Thickness
- 0.1–30 mm
Product description
The JGS1 Round Fused Silica Discs are designed for applications requiring high transmittance and durability across a wide wavelength range of 190 nm to 2000 nm. With thickness options from 0.1 mm to 30 mm, these discs are ideal for use in IR imaging, LIDAR, and laser applications. Their clarity and processing capabilities ensure they meet the demanding requirements of R&D and procurement engineers in various fields.
Key Features
- Transmittance greater than 90% for optimal light transmission.
- Available thicknesses from 0.1 mm to 30 mm to fit diverse applications.
- Tolerance of +/-0.02 mm ensures precision for critical applications.
- Soften point of 1683°C provides excellent thermal stability.
- Density of 2.2 g/cm³ offers a robust and durable material choice.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | Custom |
| Thickness | 0.1 mm |
| Transmission bands | SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Clarity Type | Clear Quartz Plate |
| Processing Service | Cutting |
| Name | JGS1 Round Fused Silica Discs Quartz Plates For Window Lens Panel |
| Tolerance | +/-0.02mm |
| Transmission | >90% |
| Soften Point | 1683 Degree Celsius |
| Density | 2.2g/cm3 |
| Wavelength | 190nm-2000nm |
FAQ
What are the available thickness options?
Thickness options range from 0.1 mm to 30 mm.
What is the tolerance for these discs?
The tolerance for the JGS1 Round Fused Silica Discs is +/-0.02 mm.
