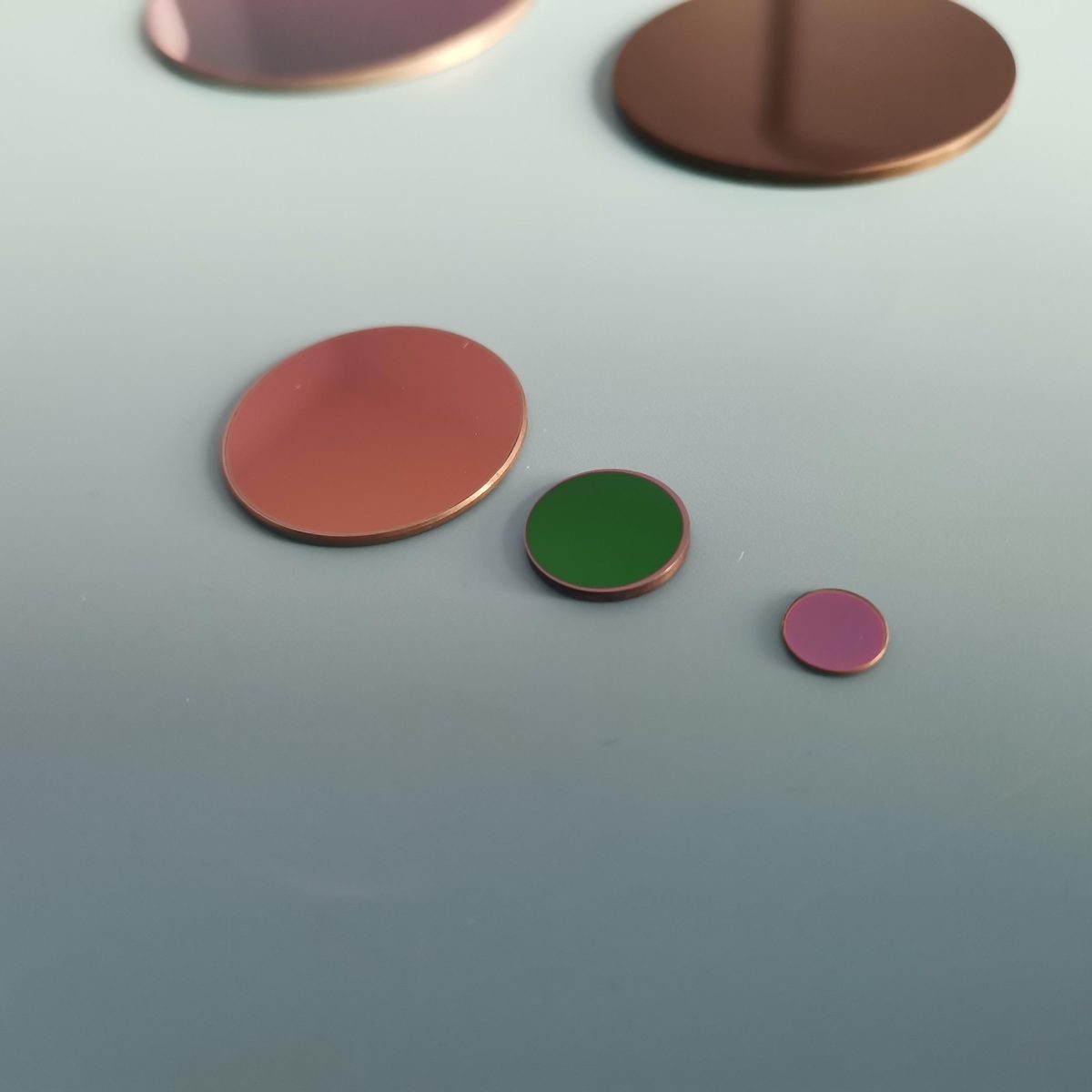

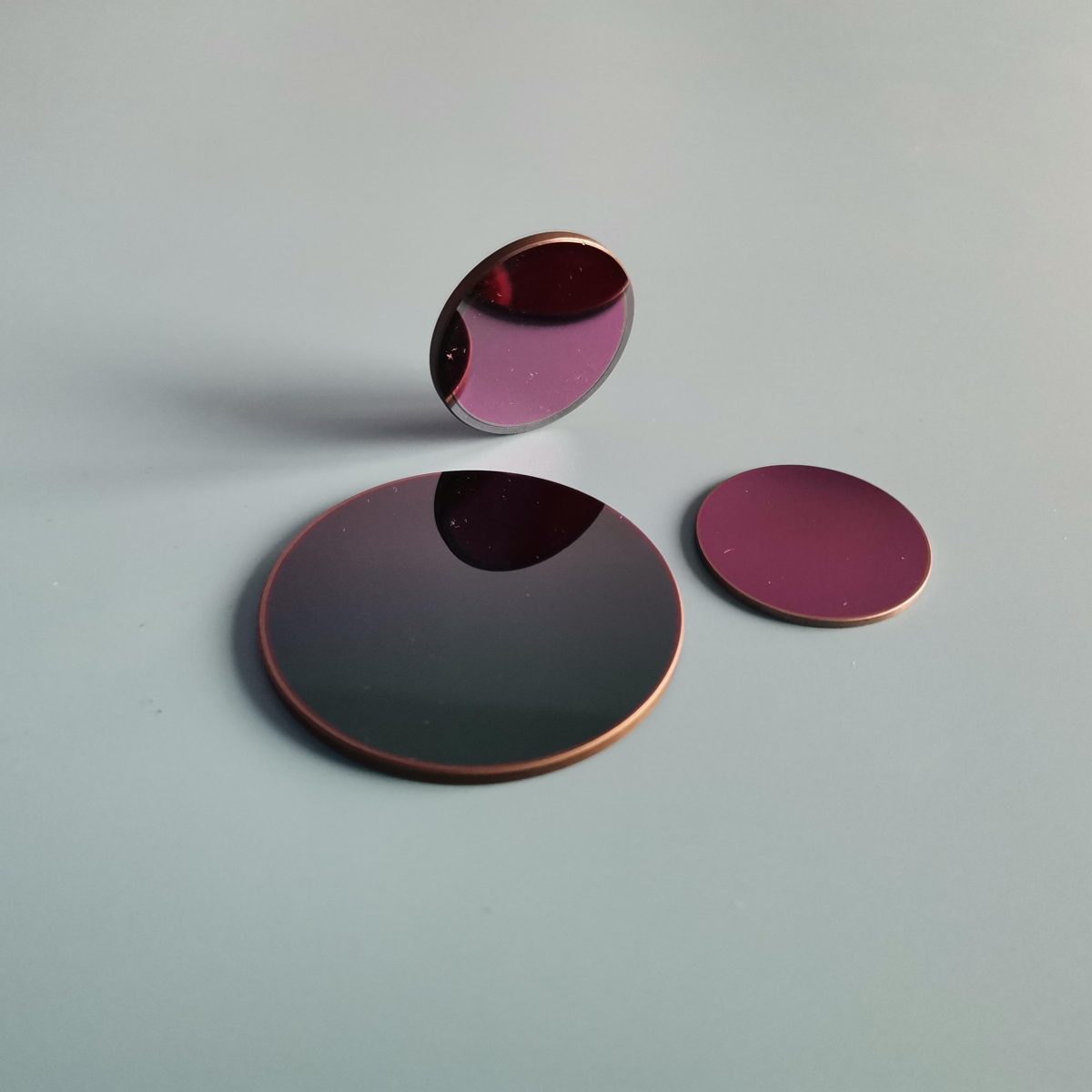

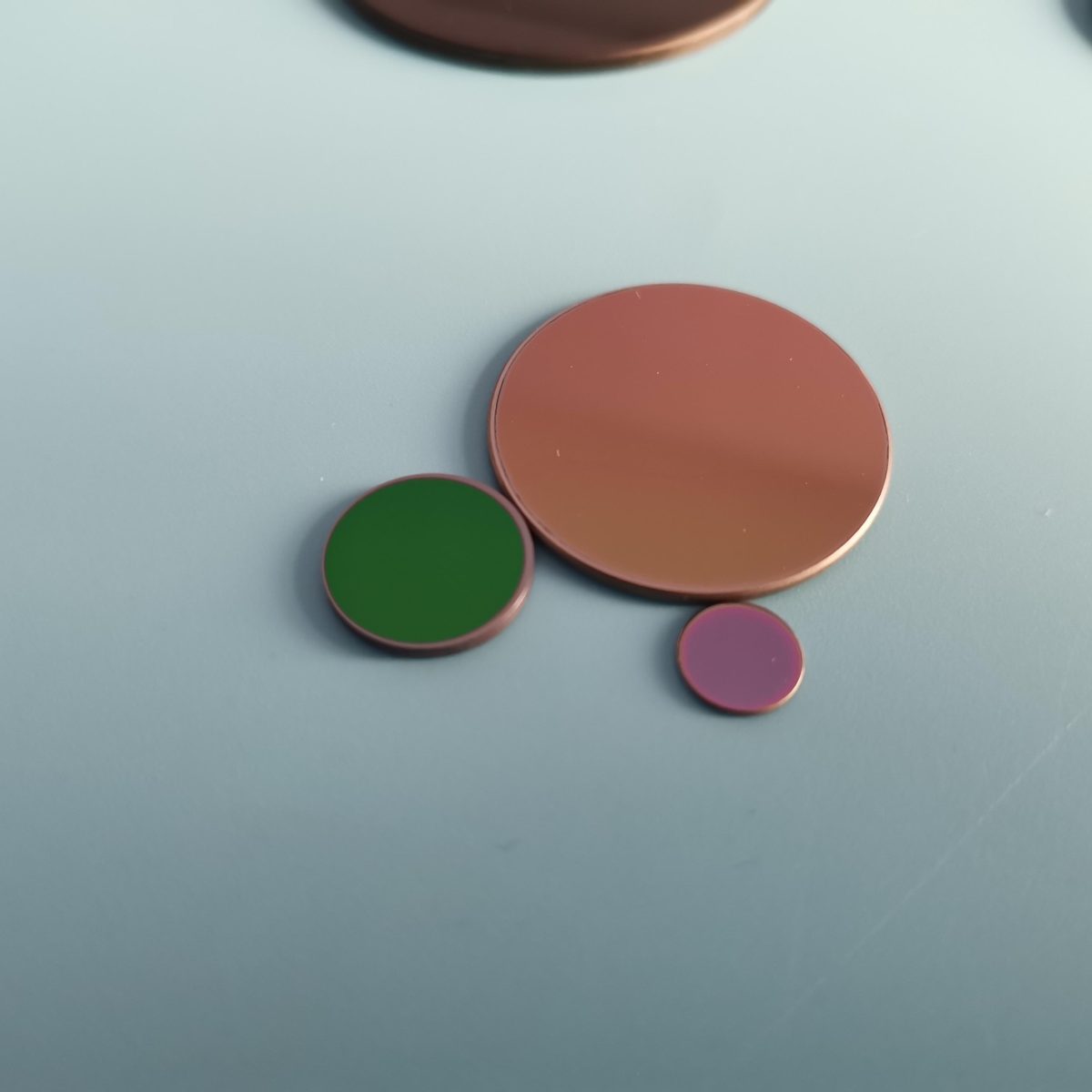

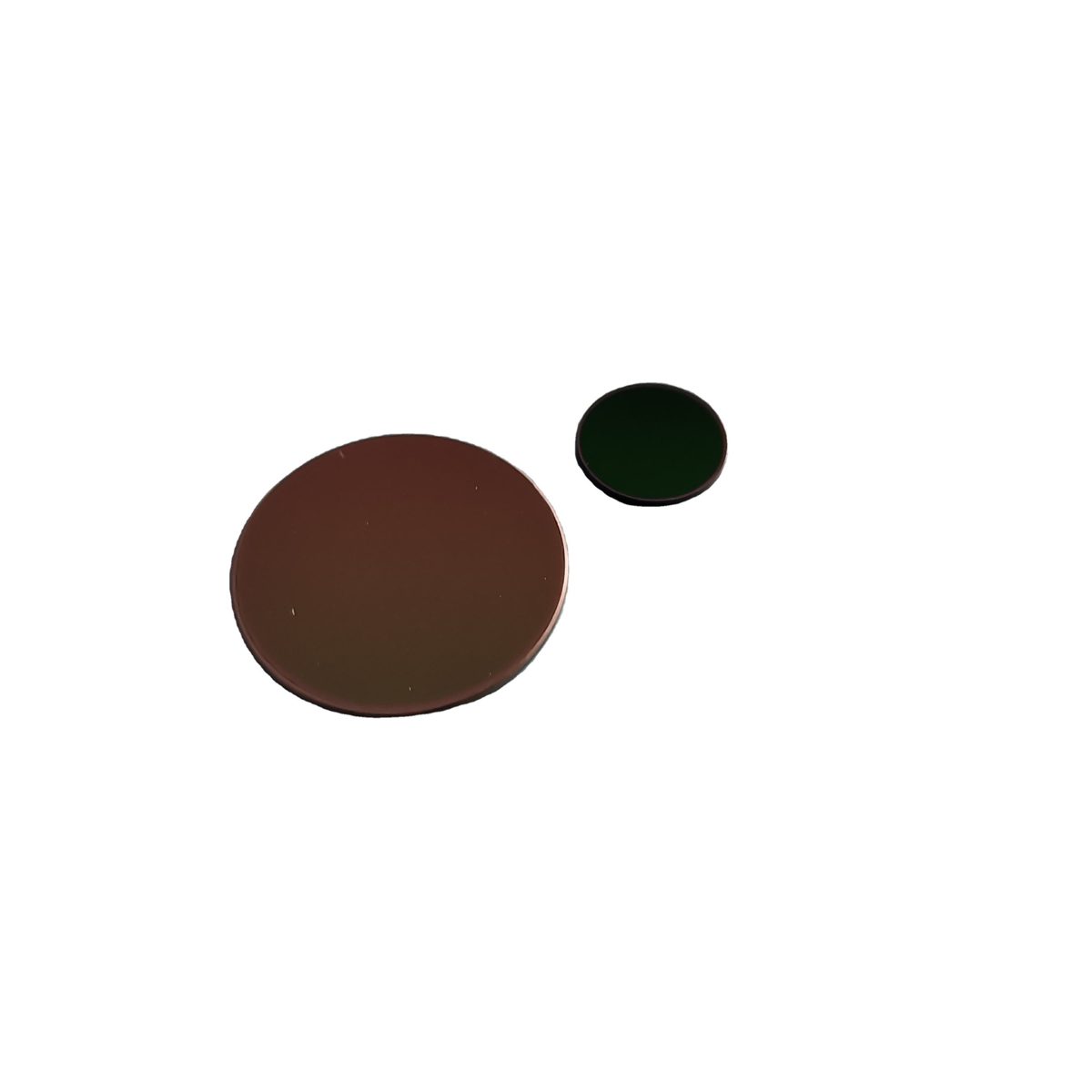

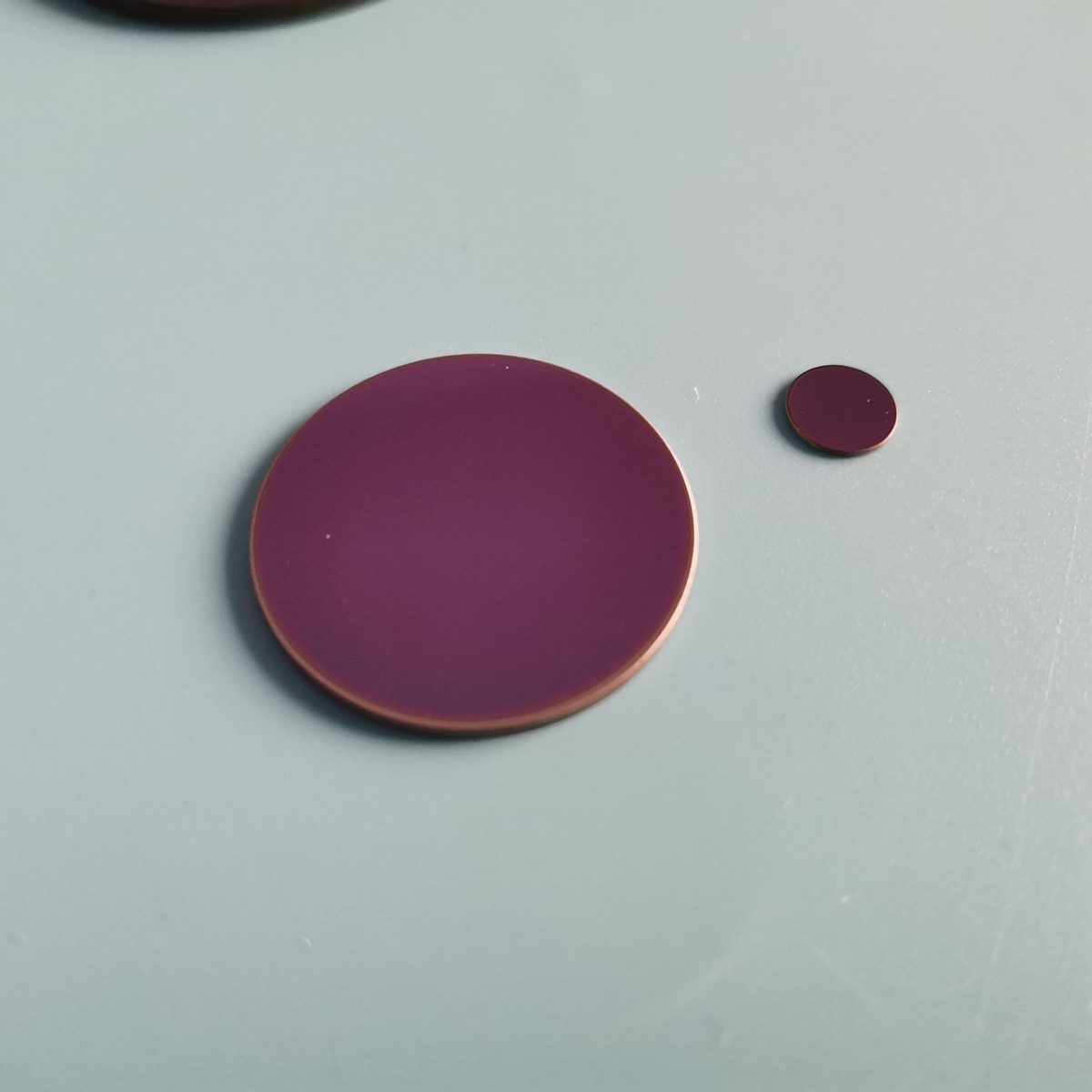

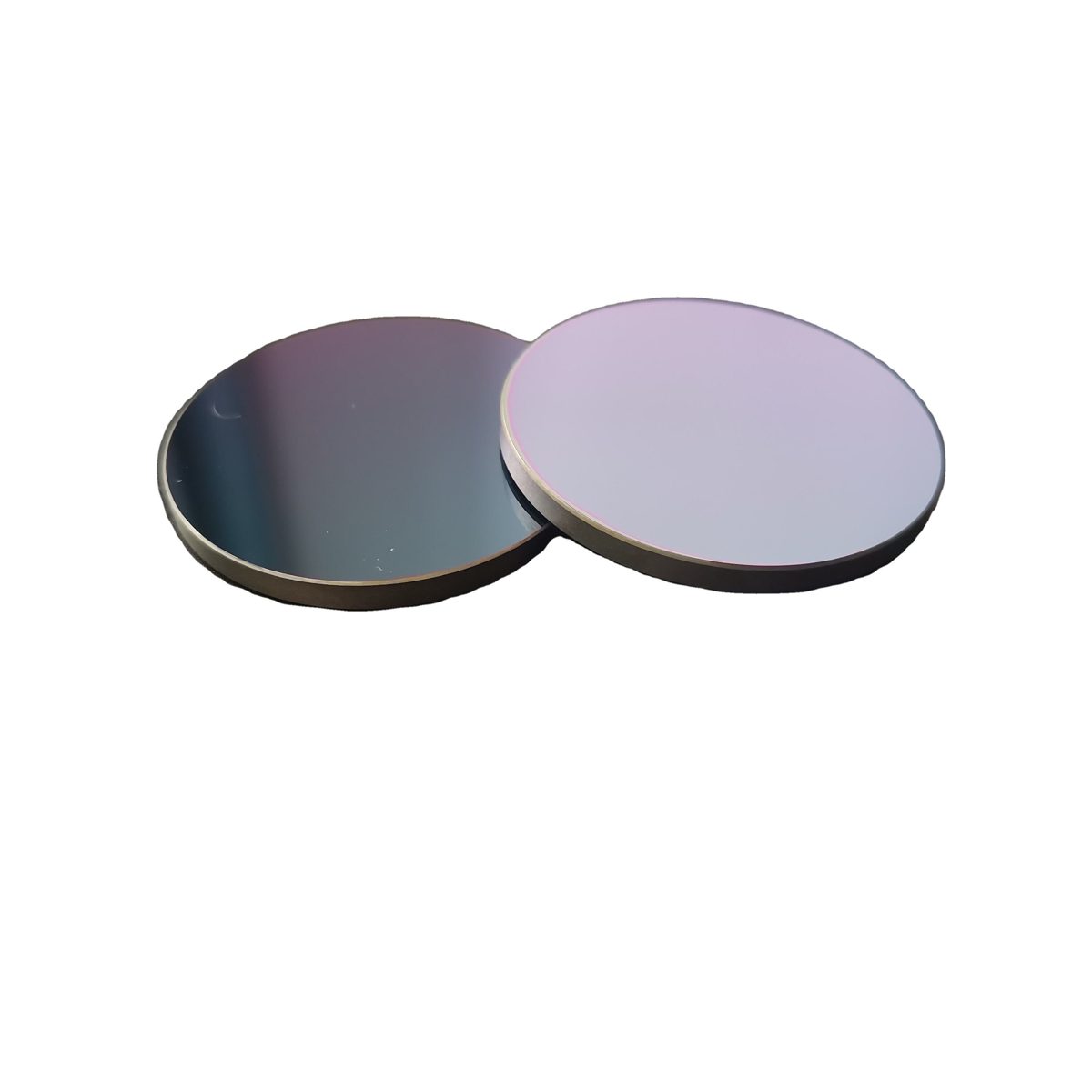

Custom Size Fused Silica Round Optical Window, AR Coated
Round fused silica optical window for medical applications, customizable sizes, AR and DLC coatings, ideal for LWIR wavelengths.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Thickness
- 0.5 mm
- Coating
- ar, dlc
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Thickness
- 0.5 mm
- Coating
- ar, dlc
Product description
This round optical window, made from fused silica, is designed for applications in the medical field, particularly in the LWIR band (8-14 μm). Its low thickness of 0.5 mm ensures minimal interference in optical systems, while its coatings (AR and DLC) enhance transmittance and durability. With a diameter range from 5 mm to 300 mm, it can be tailored to fit various device requirements, making it ideal for precision optics in sensitive environments.
Key Features
- Thickness of 0.5 mm for minimal optical interference.
- Diameter options from 5 mm to 300 mm for versatile applications.
- AR and DLC coatings for improved durability and transmittance.
- Flatness specifications ranging from L/2 to L/4 for high optical performance.
- Parallelism of 30 seconds ensuring precise alignment in optical systems.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | Custom |
| Thickness | 0.5 mm |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | / |
| Customized Support | OEM |
| Warranty | 1 month |
| Weight | / |
| Dimension | 5 mm - 300 mm |
| S/D | 60/40 - 40/20 |
| Flatness | L/2 - L/4 |
| Parallelism | 30secs |
| Wavelength | LWIR |
FAQ
What are the available custom sizes?
Custom sizes range from 5 mm to 300 mm in diameter.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
