1 / 6Optical Windows

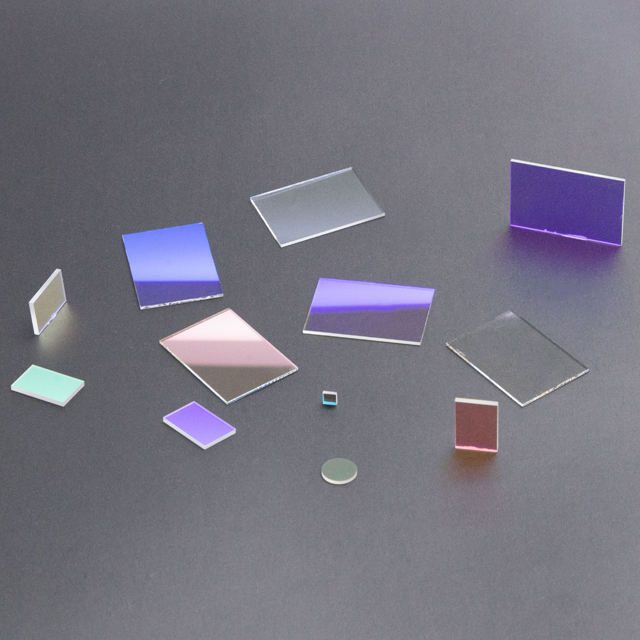

Custom Size Fused Silica Round Optical Window, AR Coated
Explore high-quality Fused Silica dichroic filters with 85% transmittance, customizable sizes, and reliable performance.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Thickness
- 0.3–5 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Thickness
- 0.3–5 mm
- Coating
- ar
Product description

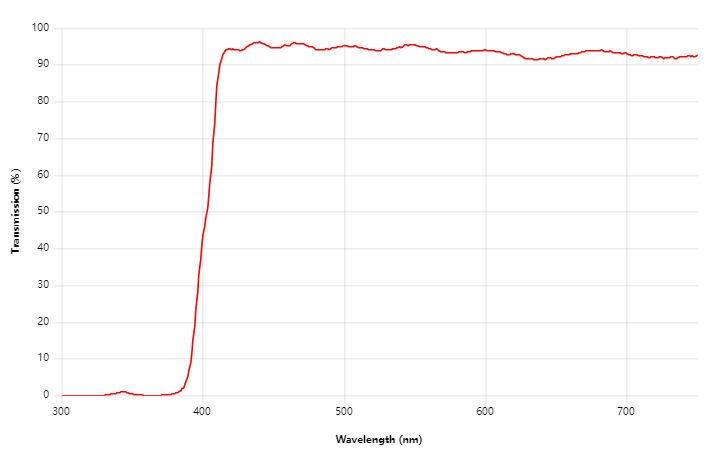

Dichroic filters made from Fused Silica provide high transmittance of 85% across multiple bands, including 400-700 nm and 1.7-3 μm. These filters are ideal for applications like fluorescence microscopy and flow cytometry, where selective wavelength transmission is critical. With a thickness range of 0.3 to 5.0 mm and a surface quality of 40/20, they ensure reliable performance in demanding environments. The filters can be customized for specific applications, enhancing their versatility.
Key Features
- Transmittance of 85% ensures efficient light transmission for various applications.
- Thickness options from 0.3 mm to 5.0 mm allow for tailored solutions.
- Surface quality rated at 40/20 guarantees minimal optical distortion.
- Custom OEM and ODM support available for specialized requirements.
- Tolerance of ± 0.10 mm ensures precise fit in optical assemblies.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
FAQ
Can I get custom sizes?
Yes, custom sizes are available upon request.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
