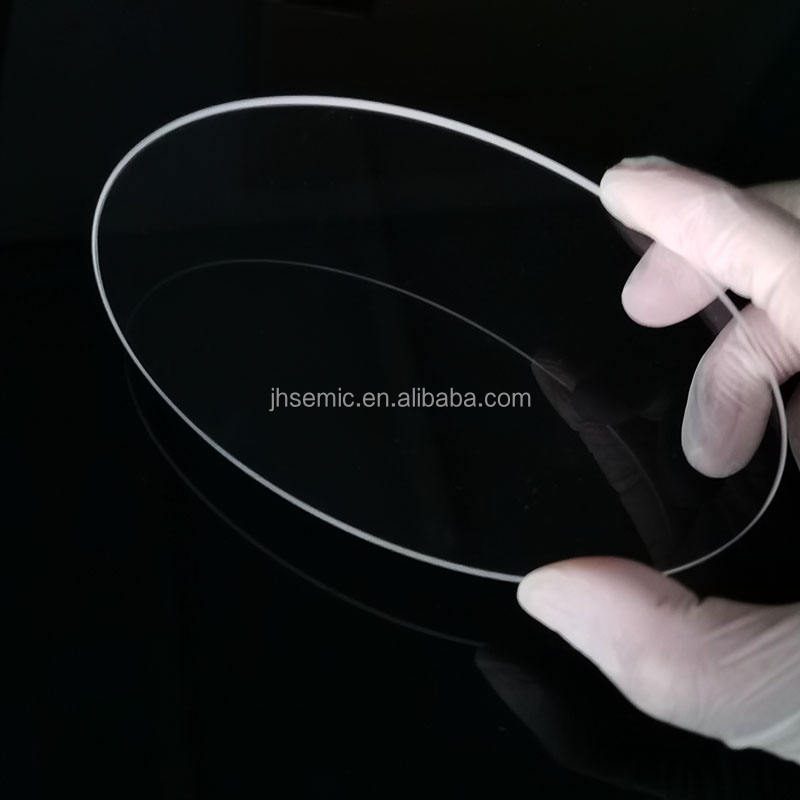

Custom Size Fused Silica Round Optical Window

Product description

This round fused silica window is ideal for applications in semiconductor and medical fields, particularly for wavelengths below 400 nm. Its high purity and excellent thermal stability make it suitable for high-temperature environments, ensuring reliable performance in demanding conditions. The window can be customized in thickness from 1.0 mm to 100.0 mm, accommodating various design requirements.

Key Features

High purity SiO2 > 99.99% for superior optical clarity.
Temperature resistance up to 1200°C for demanding applications.
Custom thickness options from 1.0 mm to 100.0 mm to fit specific needs.
Excellent chemical resistance, ensuring durability in harsh environments.
Clear transparent design for optimal light transmission.

Applications

Semiconductor, Medical

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	Custom
Thickness	1 mm
Transmission bands	UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Clarity Type	Clear Quartz Plate
Processing Service	Bending, Welding, Punching, Cutting
Color	Clear Transparent
Density	2.2g/cm3
Working Temparature	1150℃
Strain Point	1100℃
Annealing Point	1180℃
Hardness	Morse 6.5

FAQ

Can this window be customized in size?

Yes, this window can be customized in thickness from 1.0 mm to 100.0 mm.

What is the minimum order quantity?

The minimum order quantity is not specified; please inquire for details.
