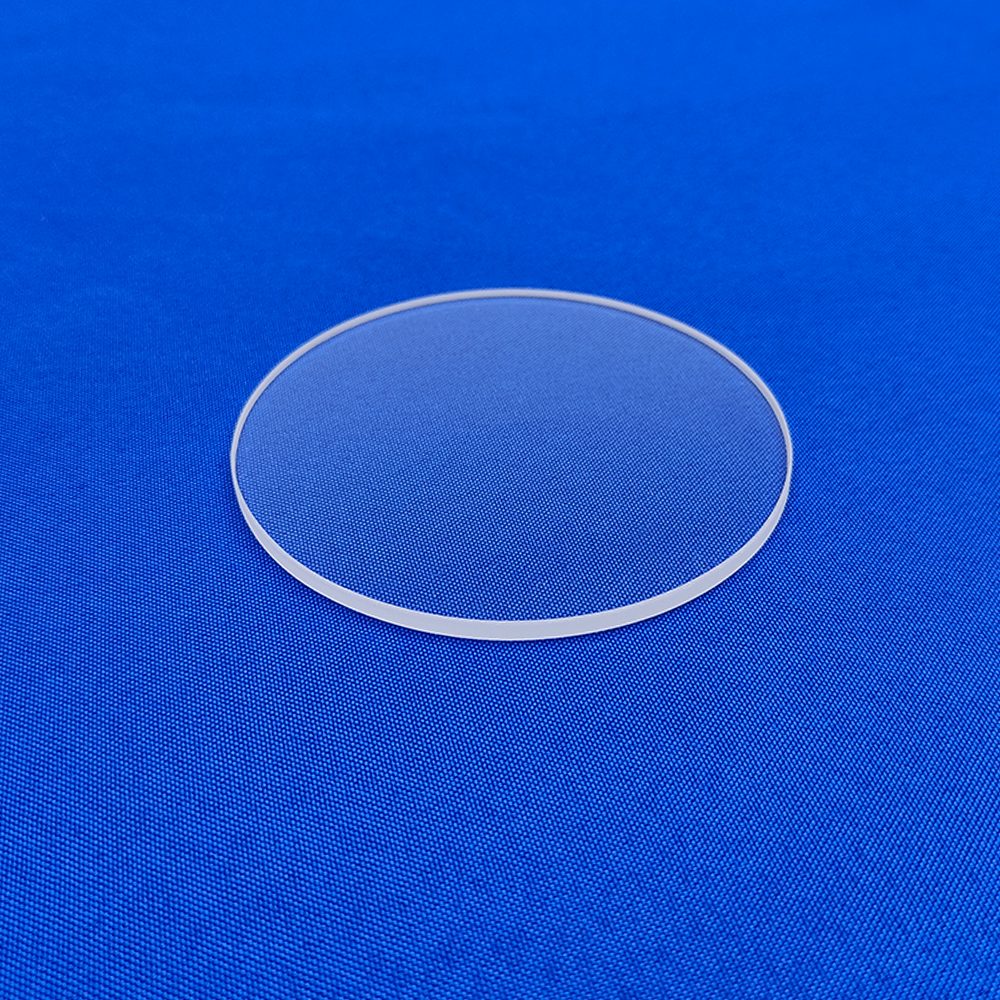

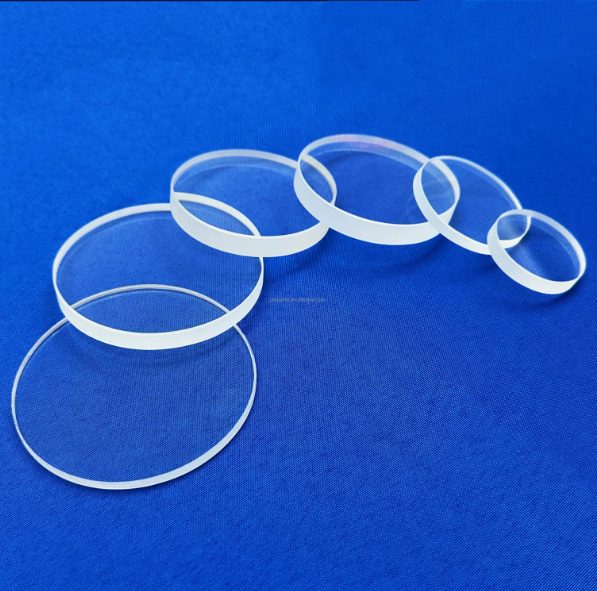

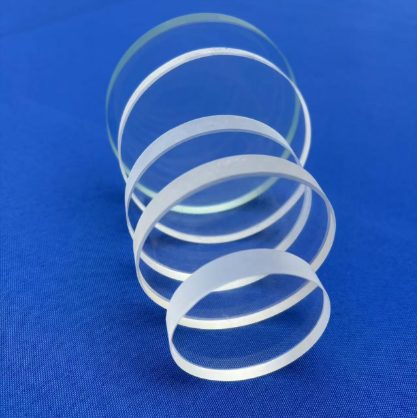

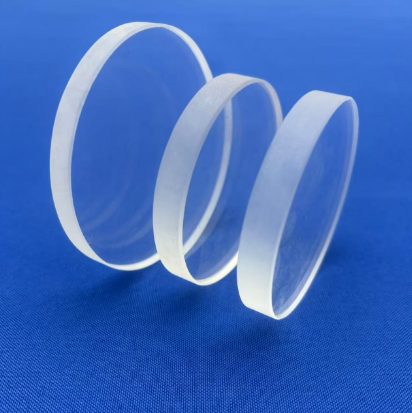

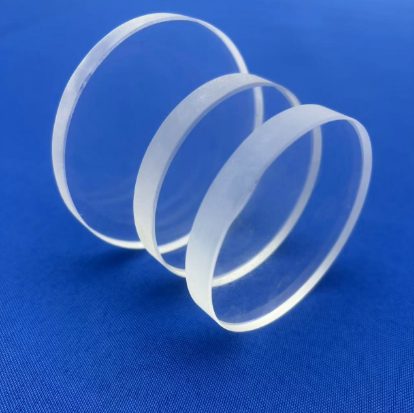

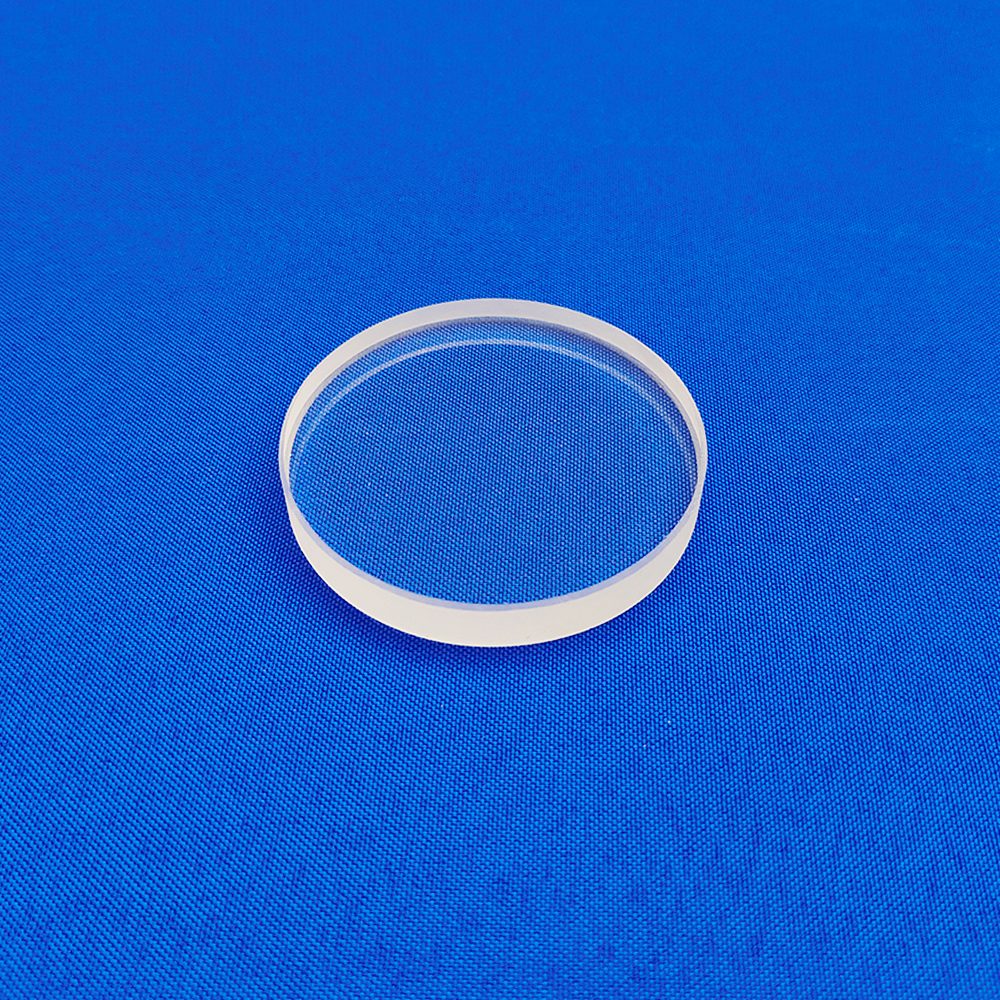

Custom Size Fused Silica Round Optical Window

Product description

This round fused silica window is designed for applications in the semiconductor and medical fields, particularly effective for wavelengths below 400 nm. With a thickness range from 1.0 mm to 600.0 mm, it offers high purity (SiO2 > 99.99%) and excellent thermal stability, making it suitable for high-temperature environments. Its clear quartz composition ensures optimal light transmission, crucial for precision optical applications.

Key Features

Thickness range: 1.0 mm to 600.0 mm for versatile application fit.
High purity (SiO2 > 99.99%) ensures minimal contamination.
Fine polished edges enhance optical clarity and performance.
Temperature resistance up to 1200°C for demanding environments.
Custom sizes available to meet specific project requirements.

Applications

Semiconductor, Medical

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	Custom
Thickness	1 mm
Surface Quality	60/40
Transmission bands	UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Clarity Type	Clear Quartz Plate
Processing Service	Welding
Work Temperature	1200 Degrees Celsius
Edges Treatment	Fine Polished Edge
Thickness Tolerance	0.02mm
Density	2.2g/cm3

FAQ

Can I get custom sizes?

Yes, custom sizes and thicknesses are accepted based on your specifications.

What is the thickness tolerance?

The thickness tolerance is ±0.02 mm, ensuring precision in manufacturing.
