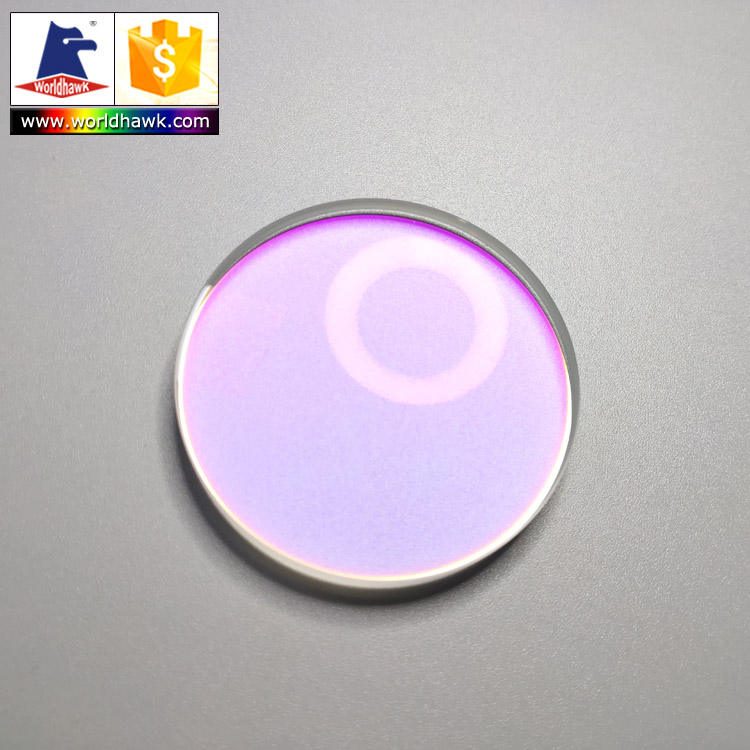

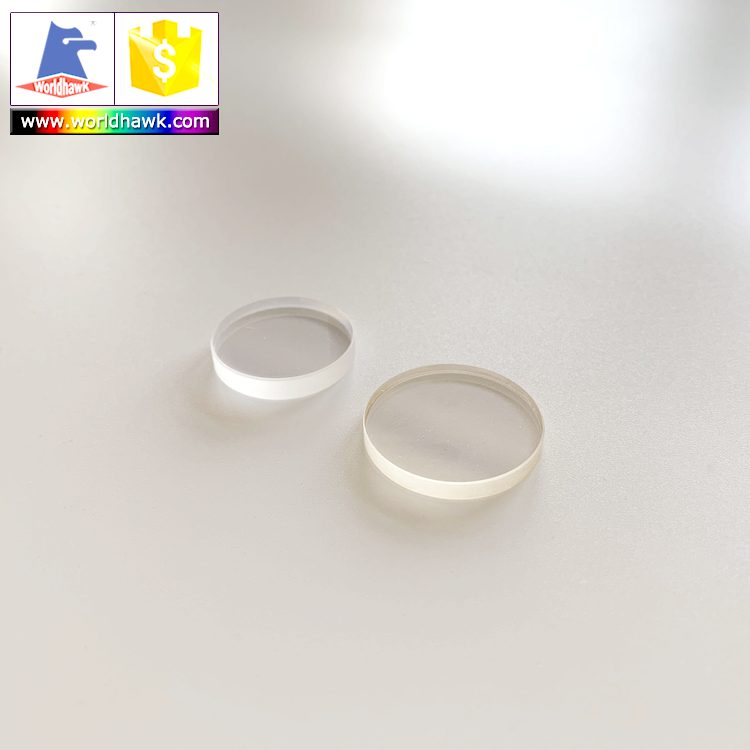

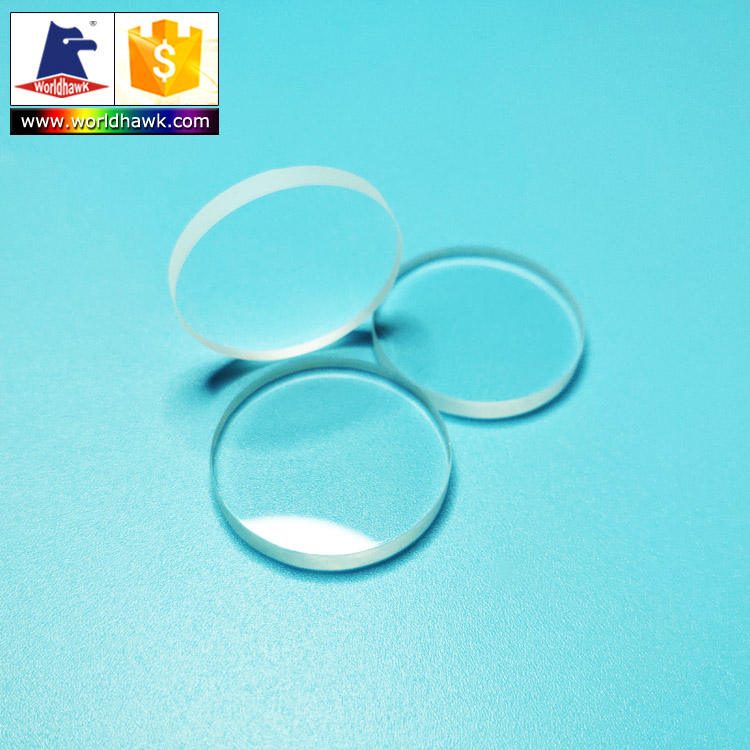

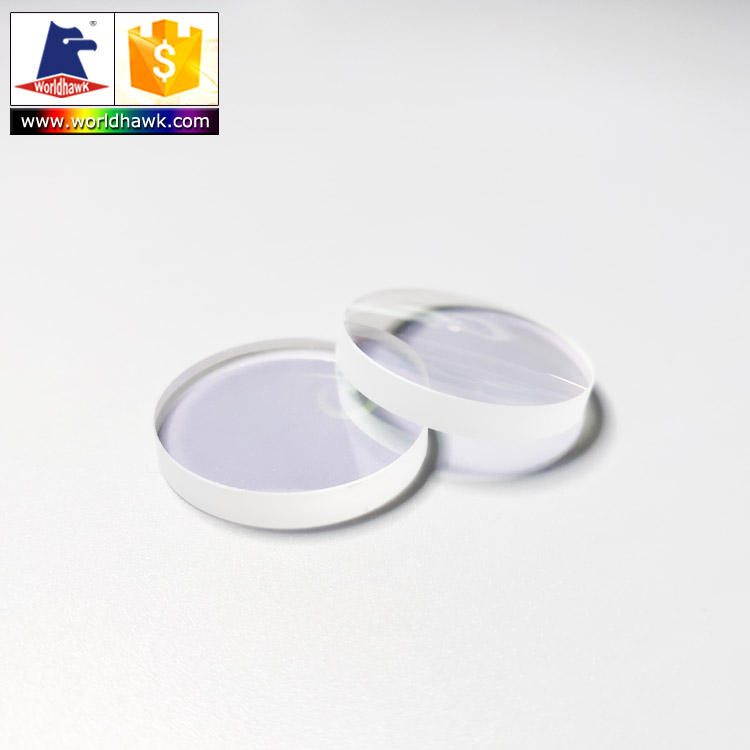

Custom Size Fused Silica Round Optical Window, AR Coated
Achromatic lens in fused silica, 10 mm thick, 60/40 surface quality, customizable sizes, ideal for laser and IR applications.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Thickness
- 10 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Thickness
- 10 mm
- Coating
- ar
Product description
This achromatic lens made from fused silica is ideal for applications requiring high optical performance, such as laser technology and IR detection. With a thickness of 10 mm and a surface quality of 60/40, it ensures effective light transmission while minimizing distortion. The lens features anti-reflection coatings to enhance performance across various wavelengths. Its robust design and customizable options make it suitable for diverse applications in research and medical devices.
Key Features
- Thickness of 10 mm provides stability for precision applications.
- Surface quality of 60/40 ensures minimal distortion and high clarity.
- Diameter tolerance of +/-0.1 mm or +/-0.02 mm for consistent performance.
- Clear aperture greater than 85% ensures effective light transmission.
- Custom sizes available to meet specific project requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | Custom |
| Thickness | 10 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM |
| Warranty | 3 Years |
| Logo/Graphic Design | No |
| Weight | 0.05 |
| Diameter Tolerance | +/-0.1mm or +/-0.02mm |
| Thickness Tolerance | +/-0.1mm or +/-0.02mm |
| Clear Aperture | >85%, >90% |
| Parallelism | +/-3’, +/-30'' |
| Bevel | 0.1~0.3mmx45 Degree |
FAQ
Can I get custom sizes for this lens?
Yes, custom sizes are available, with dimensions ranging from 0.2 to 300 mm.
What are the tolerances for thickness?
The thickness tolerance is +/-0.1 mm or +/-0.02 mm.
