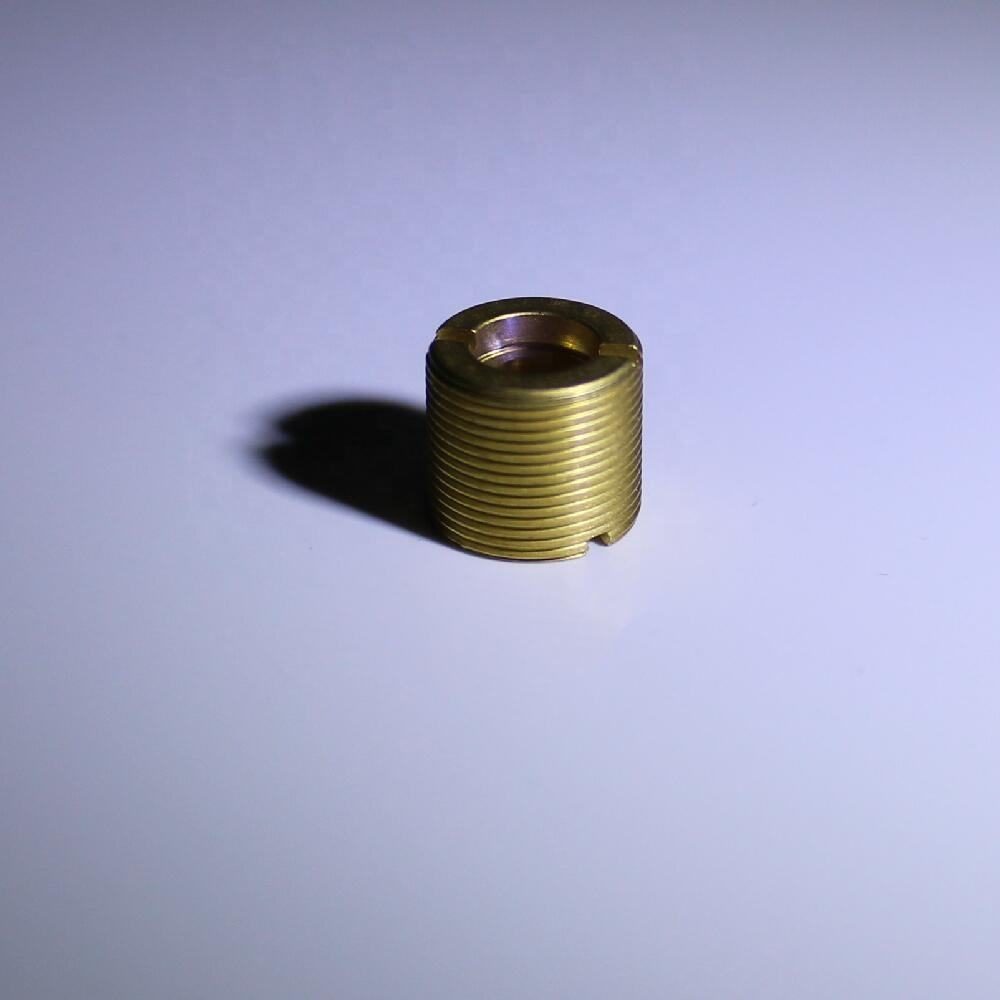

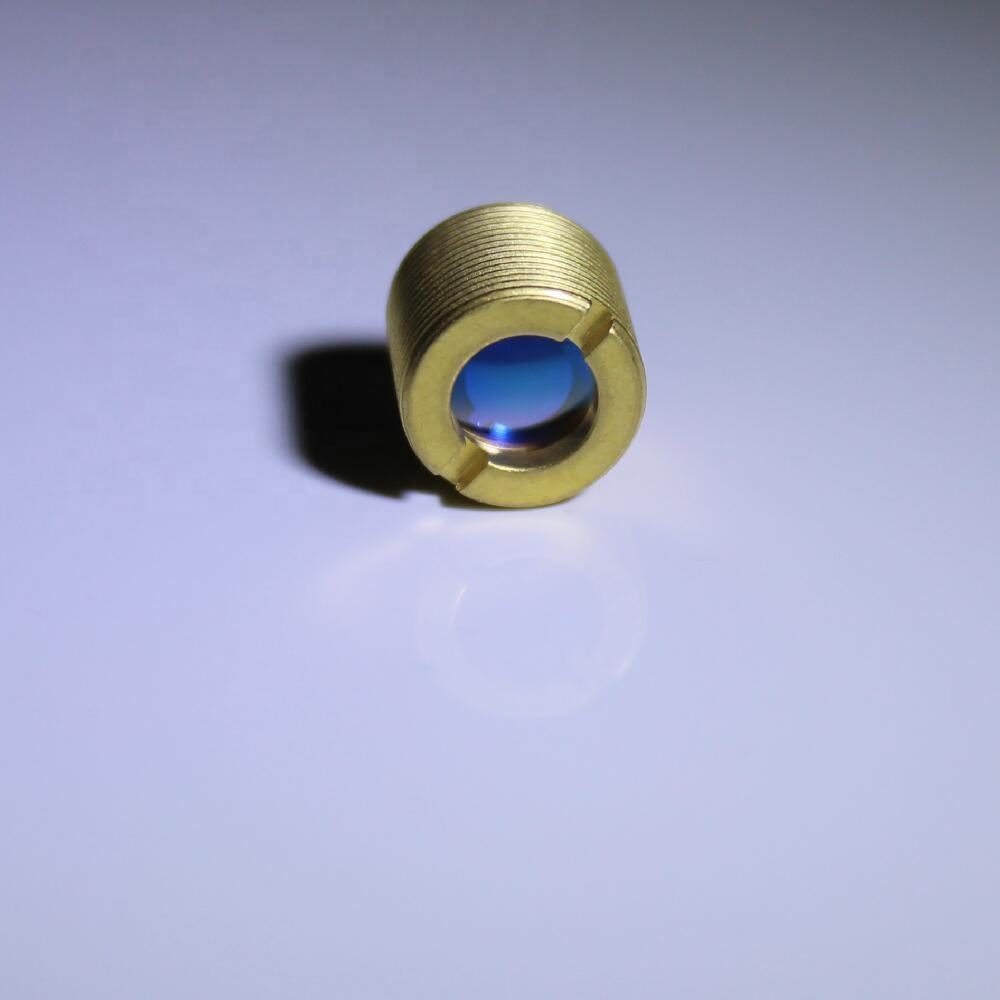

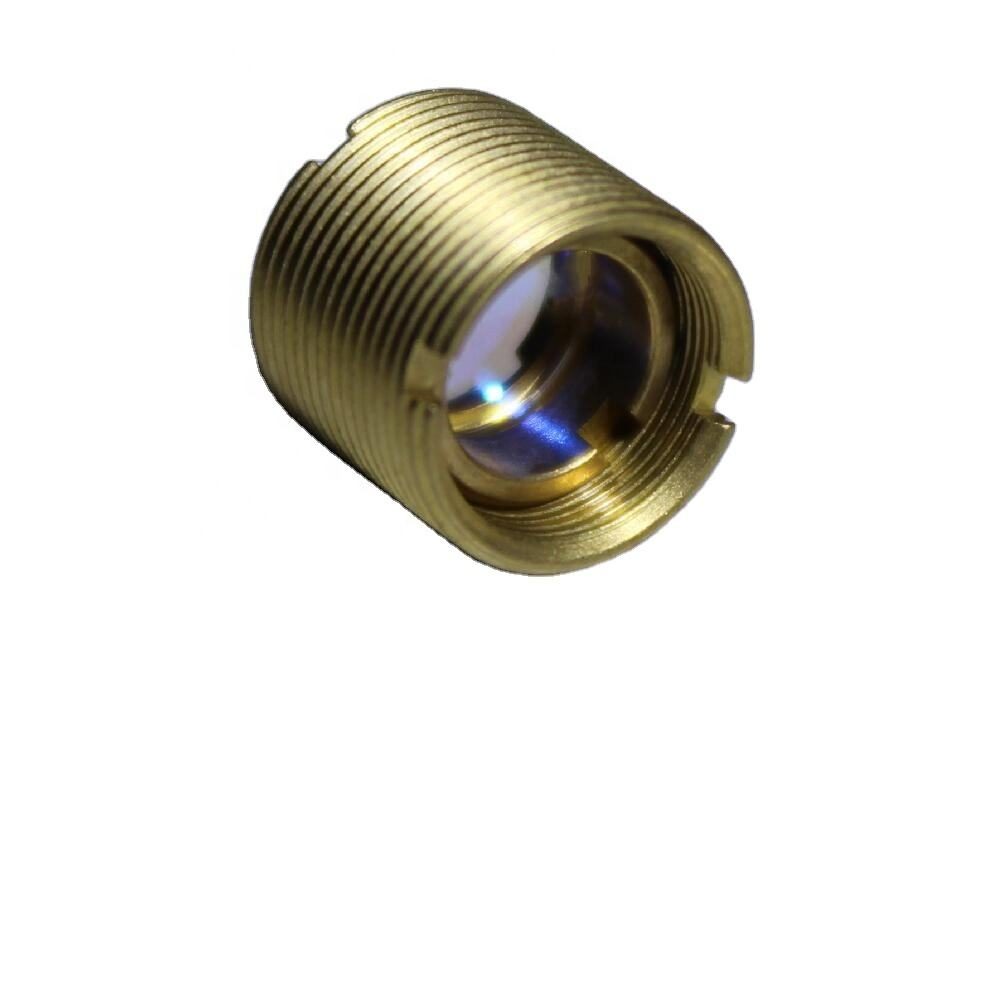

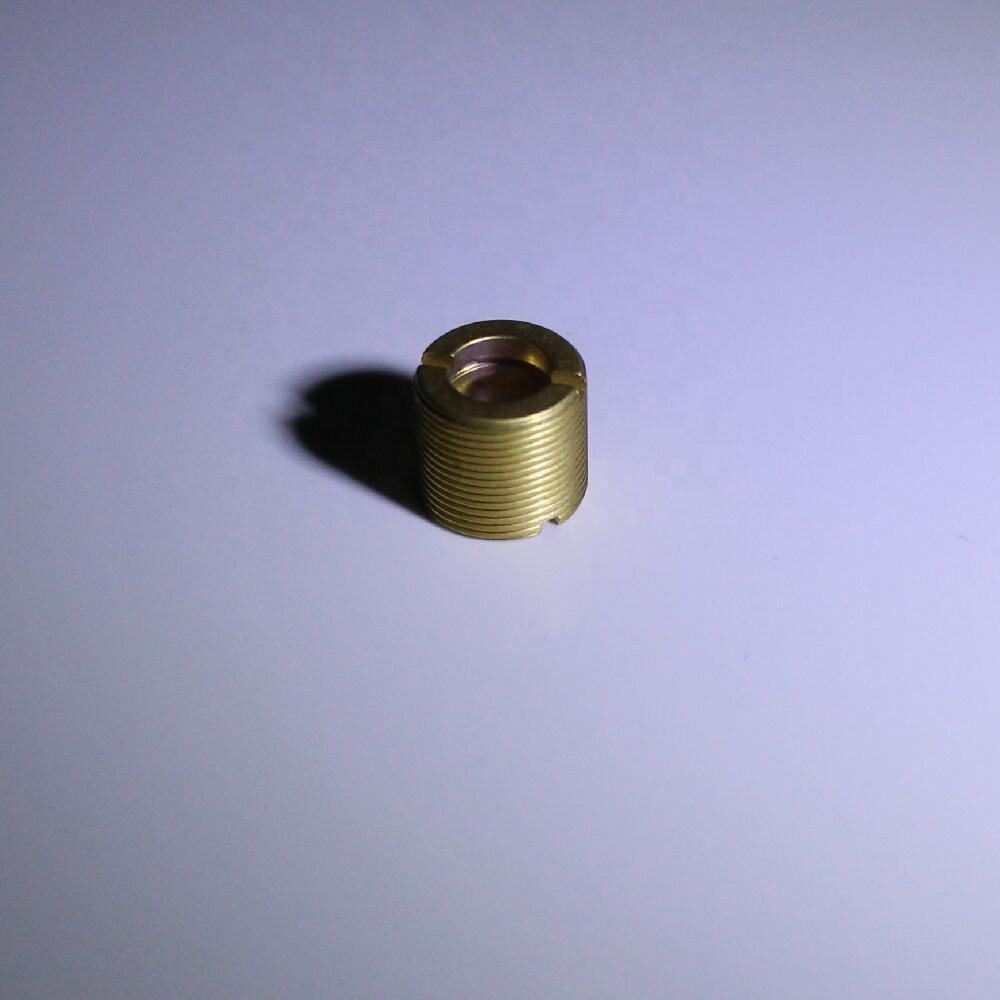

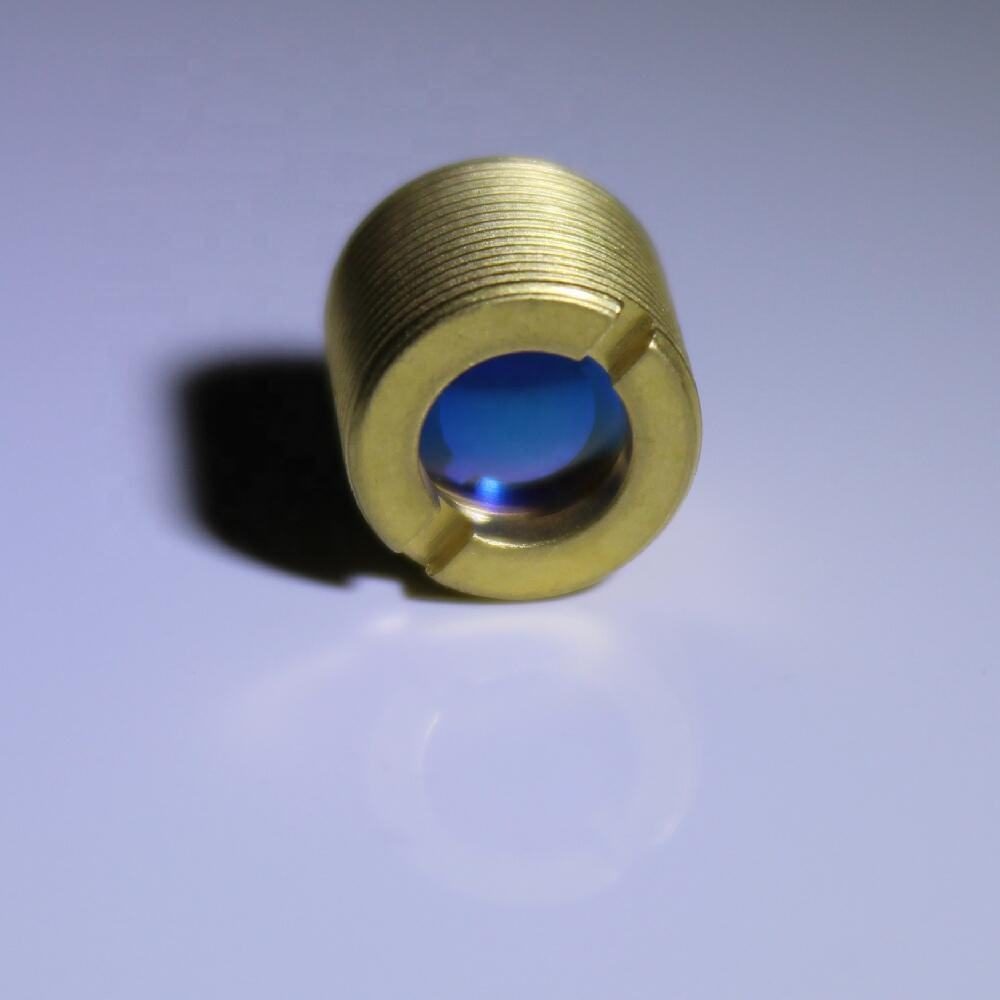

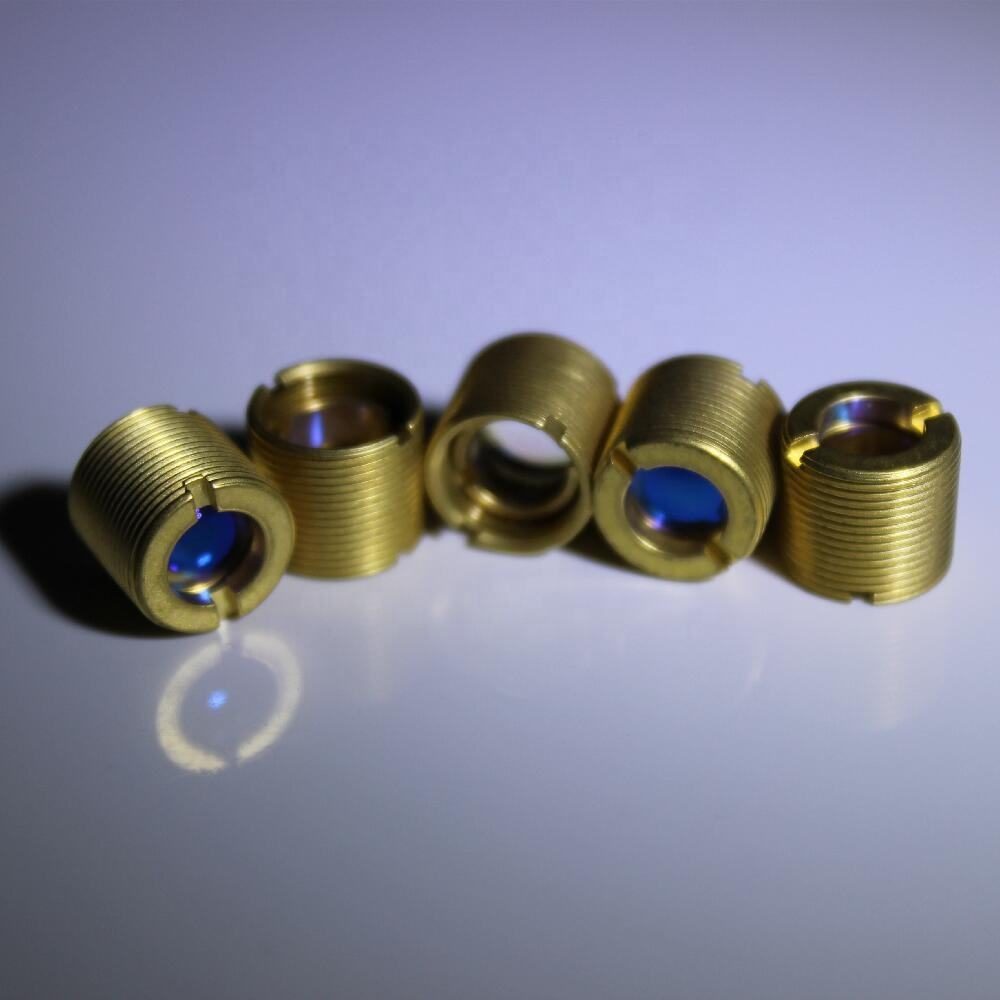

1 mm Fused Silica Spherical Lens, AR Coated
Fused Silica spherical lens for collimation with high surface quality and customizable options.
Core attributes
- Material
- Fused Silica
- Shape
- Spherical
- Diameter
- 1 mm
- Surface Quality
- 10/5
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Spherical
- Diameter
- 1 mm
- Surface Quality
- 10/5
- Coating
- anti-reflective (AR)
Product description
This spherical lens made from Fused Silica is designed specifically for collimation applications, ensuring high precision and efficiency in directing light. With a surface quality rating of 10/5 and a surface figure of λ/10, this lens meets stringent optical standards, making it ideal for use in various optical systems. Its clear aperture ranges from 85% to 95%, optimizing light transmission for enhanced performance.
Key Features
- Surface quality of 10/5 ensures minimal distortion, enhancing image clarity.
- Surface figure of λ/10 provides high precision for accurate light collimation.
- Diameter tolerance of +/-0.01mm guarantees consistency for reliable integration.
- Clear aperture of 85% to 95% maximizes light throughput for improved efficiency.
- Customizable options available for OEM and ODM projects to meet specific needs.
Applications
Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Spherical |
| Diameter | 1 mm |
| Surface Quality | 10/5 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | lens; spherical lens |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Weight | 0.2 |
| Diameter Tolerance | +/-0.01mm |
| Thickness Tolerance | +/-0.01mm |
| Surface Figure | Lamda/10 |
| Clear Aperture | 85% ~95% |
FAQ
What are the available custom sizes?
Custom sizes can be manufactured from 3mm to 500mm in diameter.
What are the tolerances for diameter and thickness?
Diameter and thickness tolerances are both +/-0.01mm.
