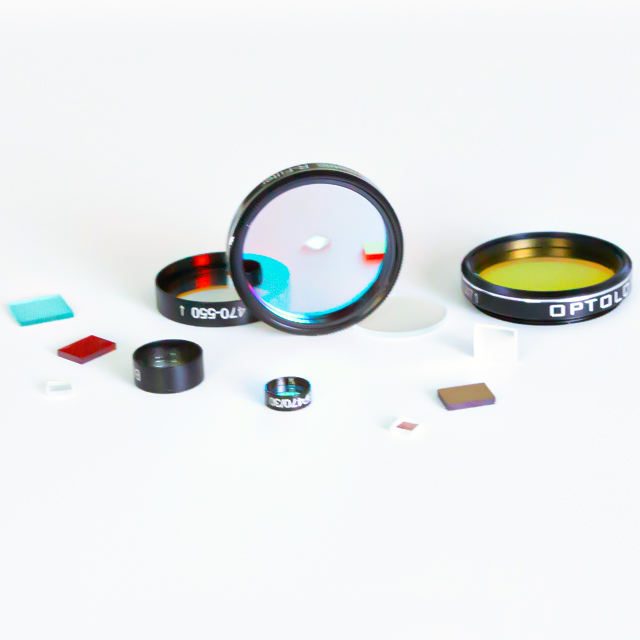

Custom Size Fused Silica Square Optical Filter
High-performance bandpass filter (400-700 nm) with 90% transmittance, customizable thickness, and durable fused silica material.
Core attributes
- Material
- Fused Silica
- Shape
- Square
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 650nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Square
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 650nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed to efficiently transmit wavelengths in the 400-700 nm range, with a center wavelength of 650 nm and a high transmittance of 90%. Ideal for applications in fluorescence microscopy and machine vision, it ensures optimal performance with minimal loss. The filter is made from durable fused silica and features advanced iad-pvd coatings for enhanced durability and performance. Its customizable thickness options from 0.3 mm to 5.0 mm allow for tailored solutions to fit specific application needs.
Key Features
- High transmittance of 90% ensures effective light transmission.
- Bandpass filter type is suitable for various optical applications.
- Available thickness options from 0.3 mm to 5.0 mm for custom requirements.
- Durable fused silica material enhances environmental resistance.
- Coating options include single-sided or double-sided for tailored performance.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Square |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 650nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; >80-95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Blocking Density | OD2-OD6 |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available custom sizes?
Thickness options range from 0.3 mm to 5.0 mm, allowing for customization.
What is the tolerance for this filter?
The tolerance for this filter is ± 0.10 mm.
What is the minimum order quantity?
Minimum order quantity information is not specified.
