1 / 6Optical Windows

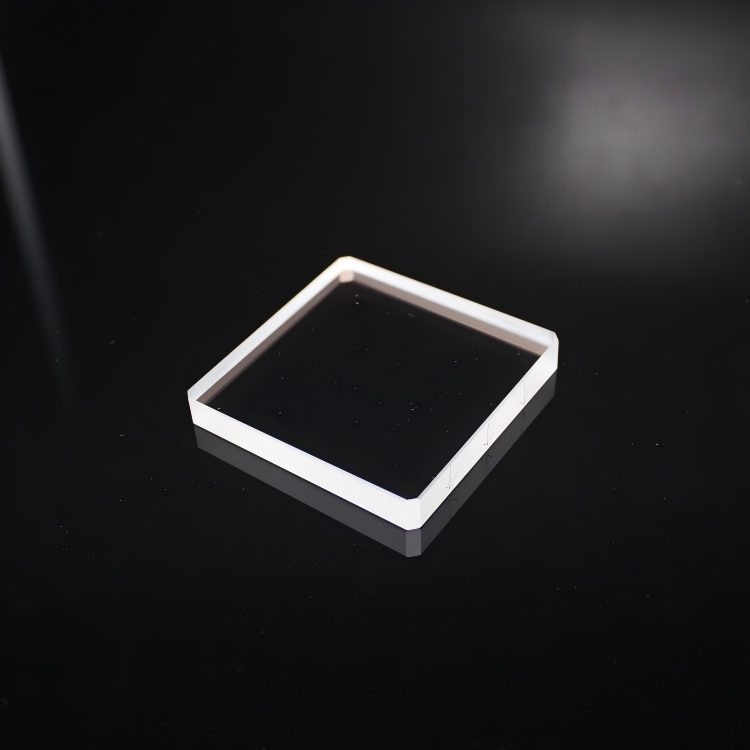

5 mm Fused Silica Square Optical Window, AR Coated
High-quality fused silica optical windows with customizable sizes and precise tolerances for various applications.
Core attributes
- Material
- Fused Silica
- Shape
- square
- Diameter range
- 5–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- square
- Diameter range
- 5–300 mm
- Coating
- ar
Product description
Fused silica optical windows are ideal for applications requiring high transmittance and durability across a wide range of wavelengths. With diameters from 5mm to 300mm and precise tolerances, these windows are suitable for IR imaging, LIDAR, and laser applications. Their exceptional surface flatness and parallelism ensure optimal performance in demanding environments.
Key Features
- Diameter range: 5mm to 300mm for versatile application fit.
- Surface flatness of 1/4 @ 632.8nm ensures high optical performance.
- Parallelism of 30 arc seconds for precise optical alignment.
- Clear aperture of 90% maximizes light transmission.
- OEM and ODM support available for custom designs.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Square |
| Diameter | 5 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | opticalwindows |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg(1.10lb) |
| Diameter Tolerance | 0.0-0.1mm |
| Surface Flatness | 1/4 @632.8nm |
| Parallelism | 30 Arc Sec |
| Clear Aperture | 90% |
FAQ
What is the diameter tolerance for these optical windows?
The diameter tolerance is 0.0-0.1mm.
Can I get custom sizes for these optical windows?
Yes, OEM and ODM support is available for custom designs.
