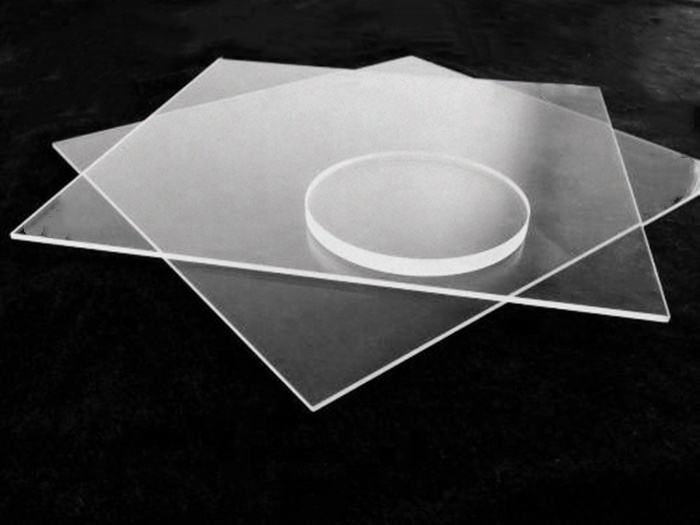

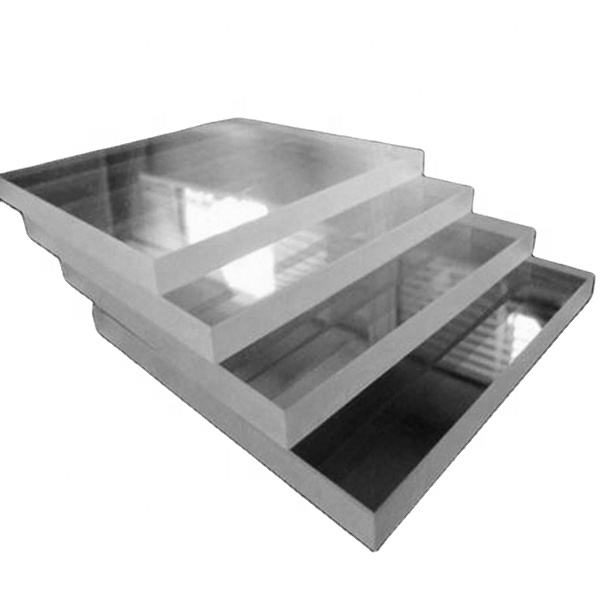

Custom Size Fused Silica Square Optical Window

Product description

The UV stop Quartz glass plate is designed for applications in the semiconductor industry, offering exceptional clarity and stability across a wide range of wavelengths, including 1.7-3 μm and 400-700 nm. With customizable thickness options from 0.1 to 20 mm, this fused silica window provides high purity and excellent chemical resistance, making it suitable for high-temperature environments and optical instruments. Its robust thermal properties ensure reliability in demanding applications.

Key Features

High purity SiO2 > 99.99% for superior optical clarity.
Customizable thickness from 0.1 mm to 20 mm to fit specific application needs.
Excellent thermal stability with a softening point of 1680℃.
Suitable for high-temperature applications up to 1250℃.
Optically stable with no air bubbles or inclusions.

Applications

Semiconductor

Specification Summary

Item	Value
Material	Fused Silica
Shape	Square
Diameter	Custom
Thickness	0.1 mm
Transmission bands	SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Clarity Type	Clear Quartz Plate
Processing Service	Bending, Welding, Cutting, Polishing

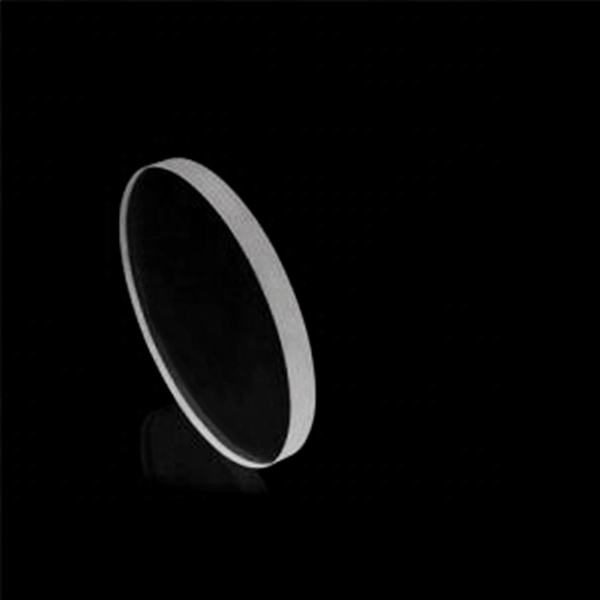

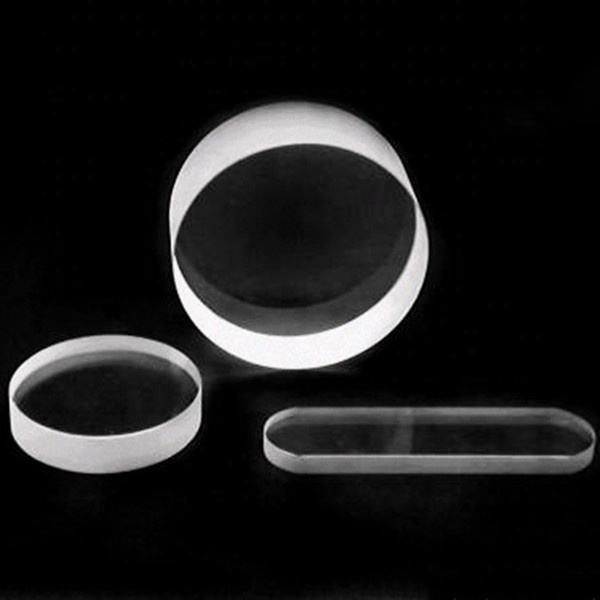

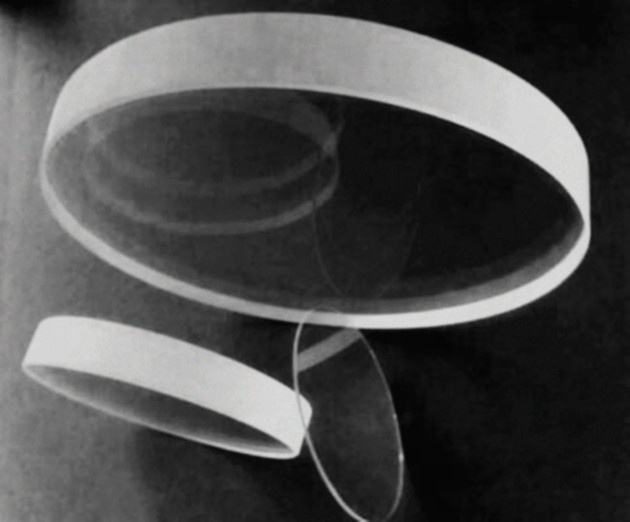

Name	UV stop Quartz glass plate/disc/window/sheet
Softening Point	1680℃
Annealing Point	1210℃
Density	2.2g/cm3
Strain Point	1120℃

FAQ

Can I get custom sizes for the quartz glass plate?

Yes, custom sizes can be designed according to specific diameter, thickness, and length requirements.

What is the minimum order quantity (MOQ) for this product?

The MOQ is not specified; please contact the supplier for details.
