Custom Size Fused Silica Square Optical Window, AR Coated
Optical wedge prism in Fused Silica for precise laser beam steering, custom sizes available, suitable for 400-700 nm wavelengths.
Core attributes
- Material
- Fused Silica
- Shape
- square
- Thickness
- 0.5–50 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- square
- Thickness
- 0.5–50 mm
- Coating
- ar
Product description

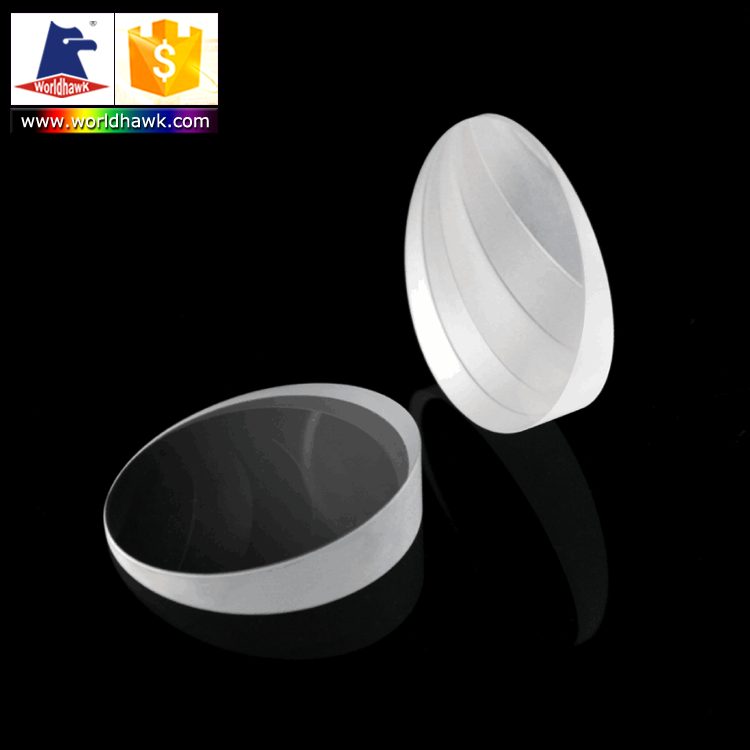

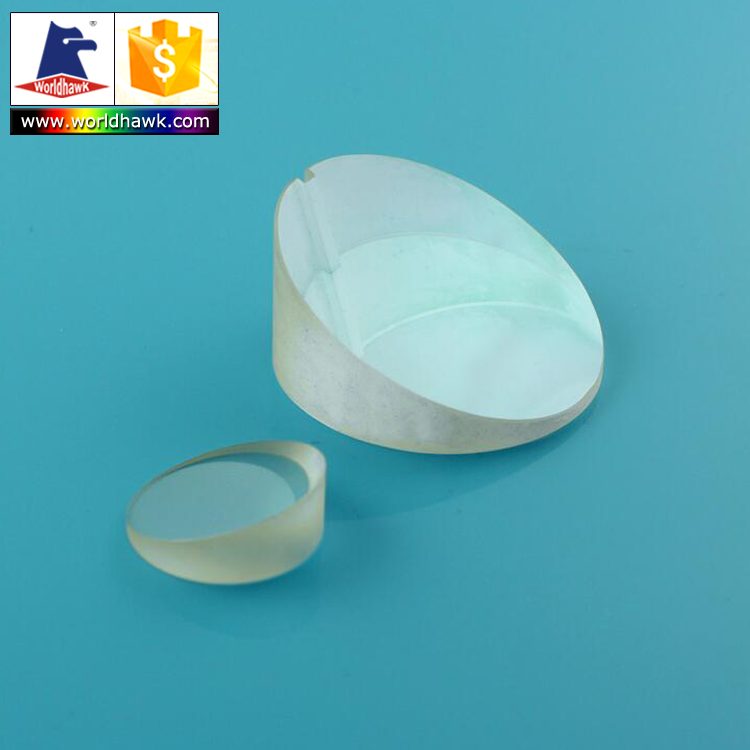

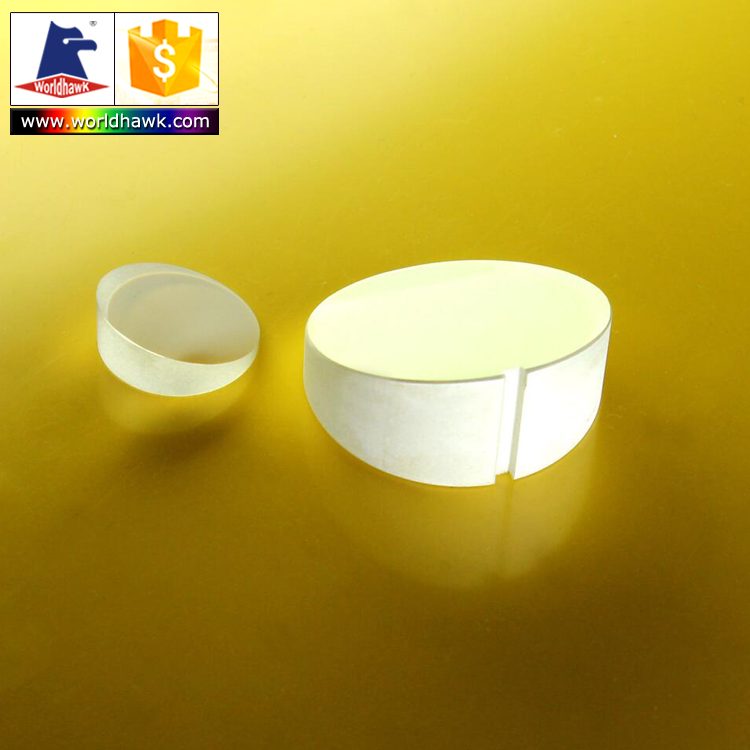

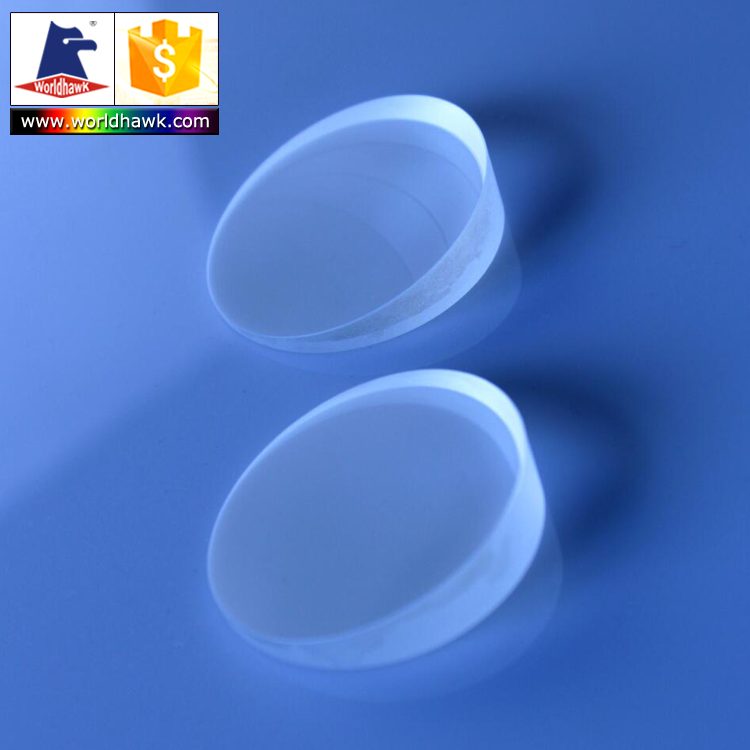

This optical wedge prism made from Fused Silica is ideal for laser beam steering applications. It deflects light toward its thicker portion, enabling precise beam direction adjustments. Suitable for wavelengths ranging from 400-700 nm and below 400 nm, this prism can achieve deviation angles from 1° to 10°, making it versatile for various optical systems. Custom solutions are available to meet specific project requirements, ensuring compatibility with your applications.
Key Features
- Custom sizes available to fit specific application needs.
- Achieves a flatness of lambda/2 for high precision.
- Bevel tolerance of 0.1-0.3mm at a 45-degree angle enhances beam manipulation.
- Designed for transmittance in the 400-700 nm and <400 nm bands.
- Supports OEM and ODM for tailored optical solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Square |
| Diameter | Custom |
| Thickness | 0.5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Warranty | 3 month |
| Flatness | lambda/2 |
| Bevel | 0.1~0.3mm@45 degree |
FAQ
Can I get custom sizes for this prism?
Yes, custom sizes are available to meet specific application needs.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible ordering.
