Custom Size Fused Silica Square Optical Window

Product description

This Fused Silica square window is ideal for applications requiring high thermal stability and excellent light transmittance across a wide wavelength range, from <400 nm to 5 μm. With a thickness range of 0.5 mm to 100 mm, it can accommodate various optical setups. Its robust properties make it suitable for high-temperature environments, ensuring reliability in demanding applications such as IR imaging, LIDAR, and medical devices.

Key Features

High thermal resistance: Operates effectively at temperatures up to 1200°C, ensuring durability in extreme conditions.

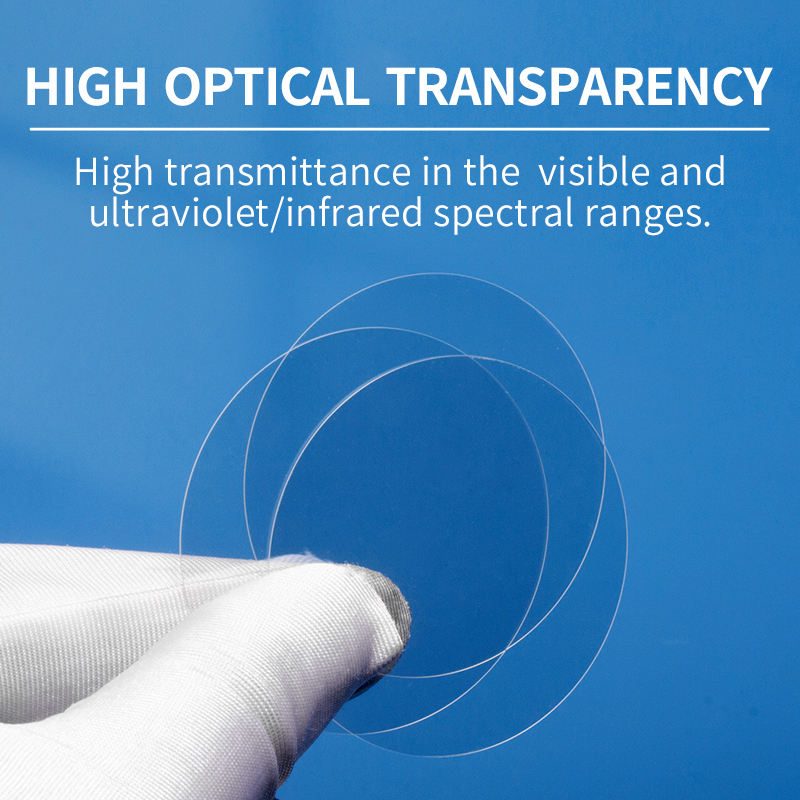

Excellent light transmittance: Provides >94% transmittance across multiple bands, enhancing optical performance.

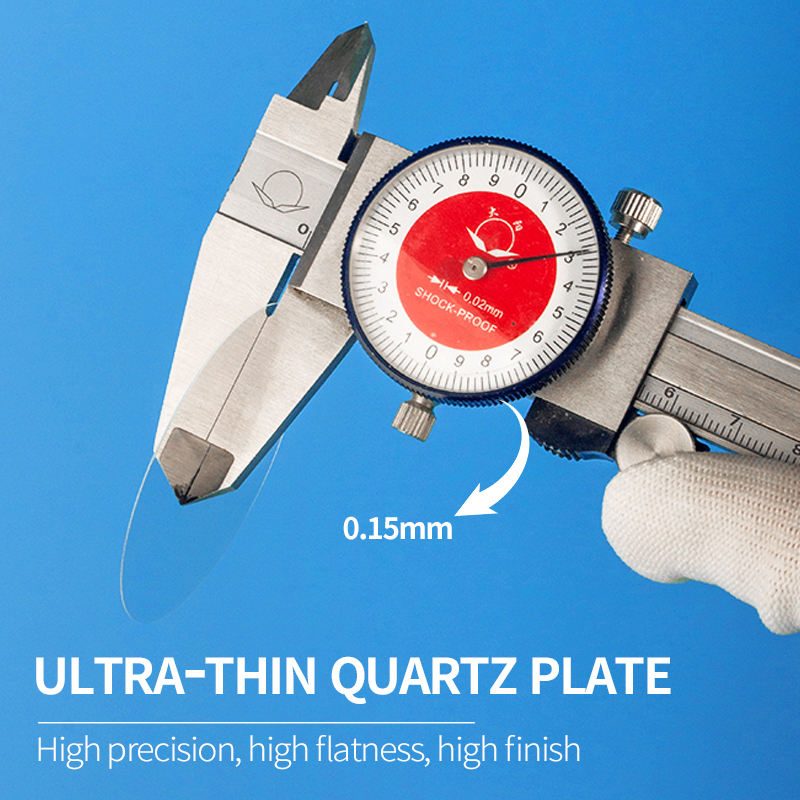

Customizable dimensions: Available in square shapes with thicknesses from 0.5 mm to 100 mm, catering to specific application needs.
Strong electrical insulation: Offers a resistance value equivalent to 10,000 times that of ordinary glass, ensuring safety and reliability.
Superior clarity: Made from 99.99% SiO2, ensuring high purity and optical clarity.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Square
Diameter	Custom
Thickness	0.5 mm
Transmission bands	MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Clarity Type	Clear Quartz Plate
Processing Service	Bending, Welding, Punching, Decoiling, Cutting
Color	Transparent/clear
Work Temperature	1200℃(2192°F)
Soften Point	1730°C (3146°F)
Surface	Polished Treatment

FAQ

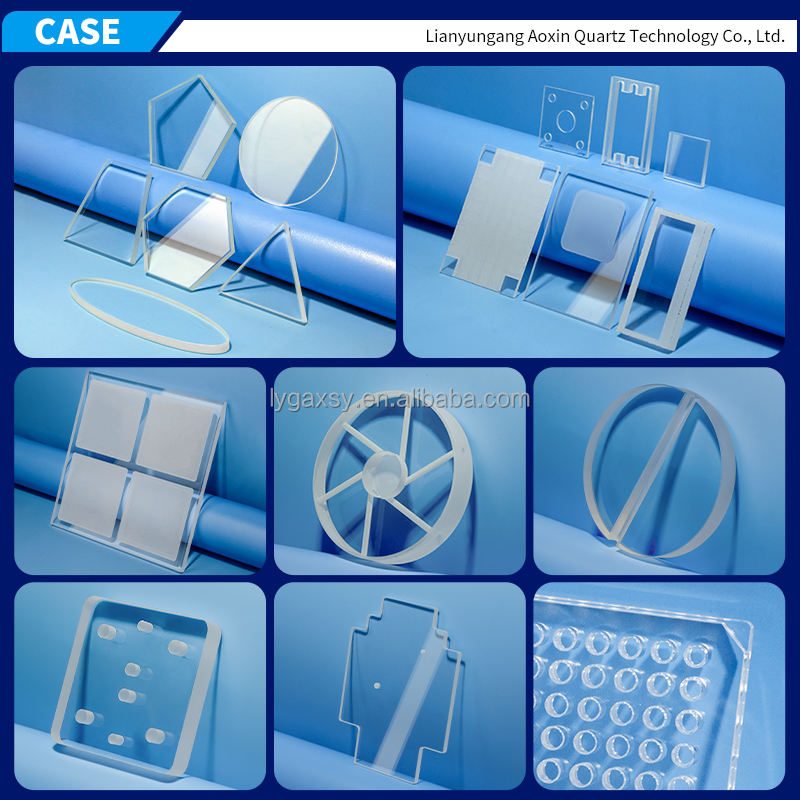

Can I get custom sizes for the square window?

Yes, the square quartz glass plates can be customized with lengths from 10 mm to 800 mm and widths from 10 mm to 600 mm.

What is the minimum order quantity (MOQ) for this product?

The MOQ is not specified, allowing for flexibility in ordering quantities.
