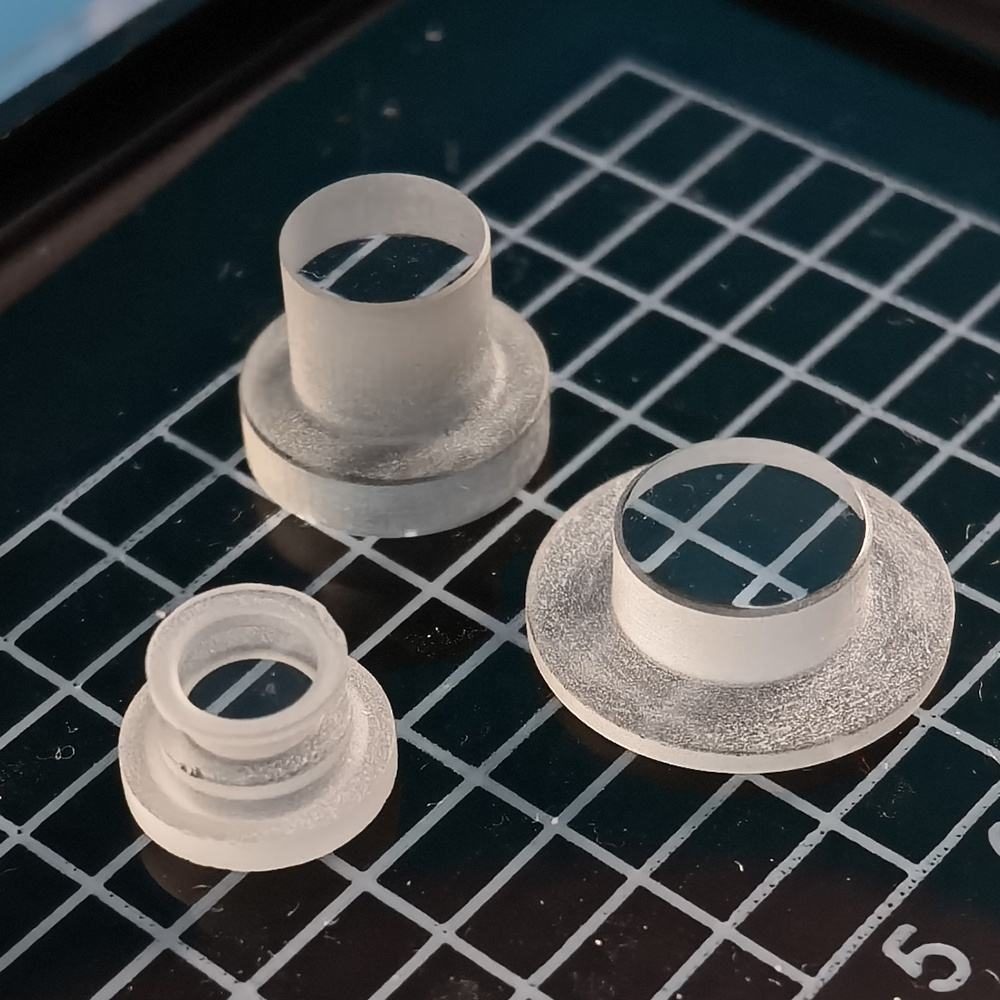

3 mm Fused Silica Step Optical Window, AR Coated

Product description

The Sapphire Crystal Step Lens, crafted from fused silica, is ideal for medical applications requiring spectral isolation. Its step shape and high surface quality (60/40) make it suitable for precise optical setups. With options for anti-reflective (AR) coatings, this lens ensures optimal performance across various wavelengths, enhancing imaging and detection capabilities in critical medical environments.

Key Features

Diameter: 3.0 mm, ensuring compatibility with standard optical systems.
Surface quality of 60/40, providing reliable optical performance.
Flatness of L/4 @ 632.8 nm, enhancing image clarity.
Parallelism of <10 arc seconds, ensuring accurate alignment in optical applications.
Custom OEM support available for tailored solutions.

Applications

Medical

Specification Summary

Item	Value
Material	Fused Silica
Shape	Step
Diameter	3 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated
MOQ	—

Full Specifications

Parameter	Value
Type	step
Customized Support	OEM
Warranty	2months
Weight	0.01kg
Name	Sapphire Crystal Step Lens
Flatness	L/4 @632.8nm
Parallelism	<10 arc seconds
Chamfer	standard bevel

FAQ

Is custom sizing available?

Yes, the Sapphire Crystal Step Lens can be custom made according to customer requirements.

What are the tolerances for diameter?

The diameter tolerance is +0.1, -0.1 mm.
