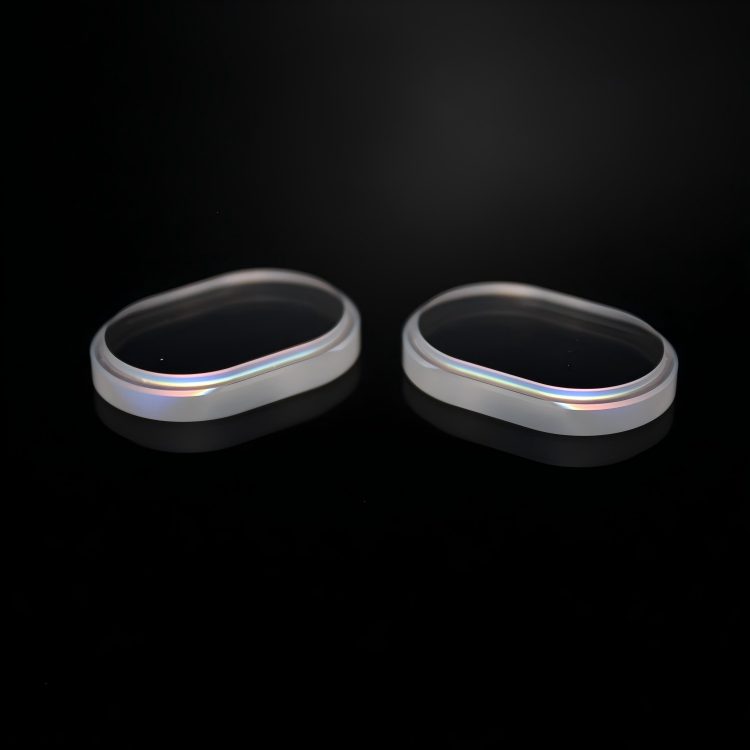

5 mm Fused Silica Step Optical Window, AR Coated

Product description

This optical window, made from high-quality Fused Silica, is ideal for medical applications requiring precise optical performance. With a diameter range of 5.0 to 300.0 mm and superior surface quality of 60/40, it effectively meets the demanding specifications of various optical systems. The AR coating enhances transmittance, ensuring optimal performance in critical environments.

Key Features

Diameter range from 5.0 mm to 300.0 mm for versatile application fit.
Surface quality rated at 60/40 ensures reliable optical performance.
Parallelism of 30 Arc Sec for precise alignment in optical systems.
Clear aperture of 95% maximizes light transmission efficiency.
Custom OEM and ODM support available for tailored solutions.

Applications

Medical

Specification Summary

Item	Value
Material	Fused Silica
Shape	Step
Diameter	5 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	opticalwindows
Customized Support	OEM, ODM
Warranty	3 Years
Weight	0.5kg(1.10lb)
Diameter Tolerance	0.0-0.1mm
Surface Flatness	1Lambda - Lambda/10 @632.8nm
Parallelism	30 Arc Sec
Clear Aperture	95%

FAQ

What is the diameter tolerance for these optical windows?

The diameter tolerance is 0.0-0.1 mm, ensuring precise fitting.

Can I get custom sizes for the optical windows?

Yes, the optical windows are available in a diameter range of 5.0 mm to 300.0 mm, with custom sizing options.
