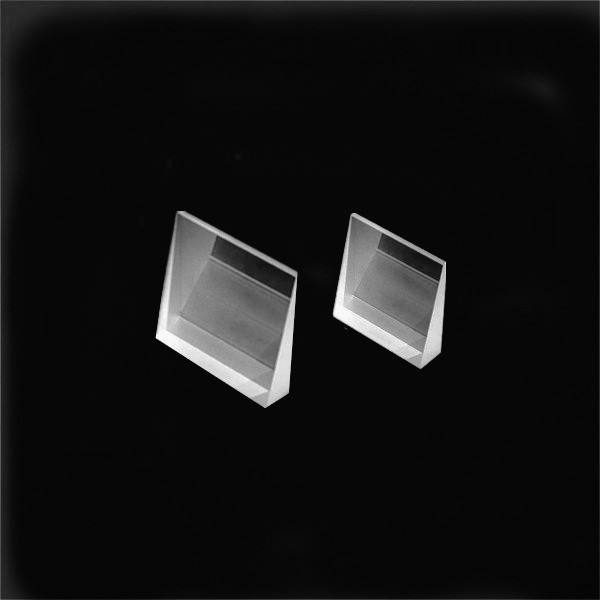

1 mm Fused Silica Wedge Optical Prism, AR Coated
Fused Silica Wedge Prism for spectroscopy with AR coating, high clear aperture, and precise alignment.
Core attributes
- Material
- Fused Silica
- Shape
- Wedge
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Wedge
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product description
The Fused Silica Wedge Prism is designed for spectroscopy applications, providing optimal light transmission and precise alignment. With a high clear aperture of over 90%, it minimizes reflections through its AR coating, ensuring high accuracy in light handling. This prism geometry is ideal for applications requiring precise beam deviation and alignment, making it a reliable choice for R&D and procurement engineers.
Key Features
- High Clear Aperture (>90%): Ensures optimal light transmission for precise alignment.
- AR Coated: Reduces reflections, enhancing light transmission for high accuracy.
- Dimension Tolerance (+0.0/-0.1mm): Provides consistent sizing for reliable integration.
- Ideal for Spectroscopy: Designed specifically for applications requiring precise light manipulation.
- Fused Silica Material: Offers high transmission efficiency and durability.
Applications
Spectroscopy
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Wedge |
| Size | 1 mm |
| Thickness | Custom |
| Surface Quality | 1/4 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Dispersing Prisms |
| Dimension | 1.0mm-200.0 mm |
| Dimension Tolerance | +0.0/-0.1mm |
| Clear Aperture | >90% |
FAQ
What is the dimension tolerance for this prism?
The dimension tolerance is +0.0/-0.1mm.
Can I get custom sizes for this prism?
The prism is available in dimensions ranging from 1.0mm to 200.0mm.
