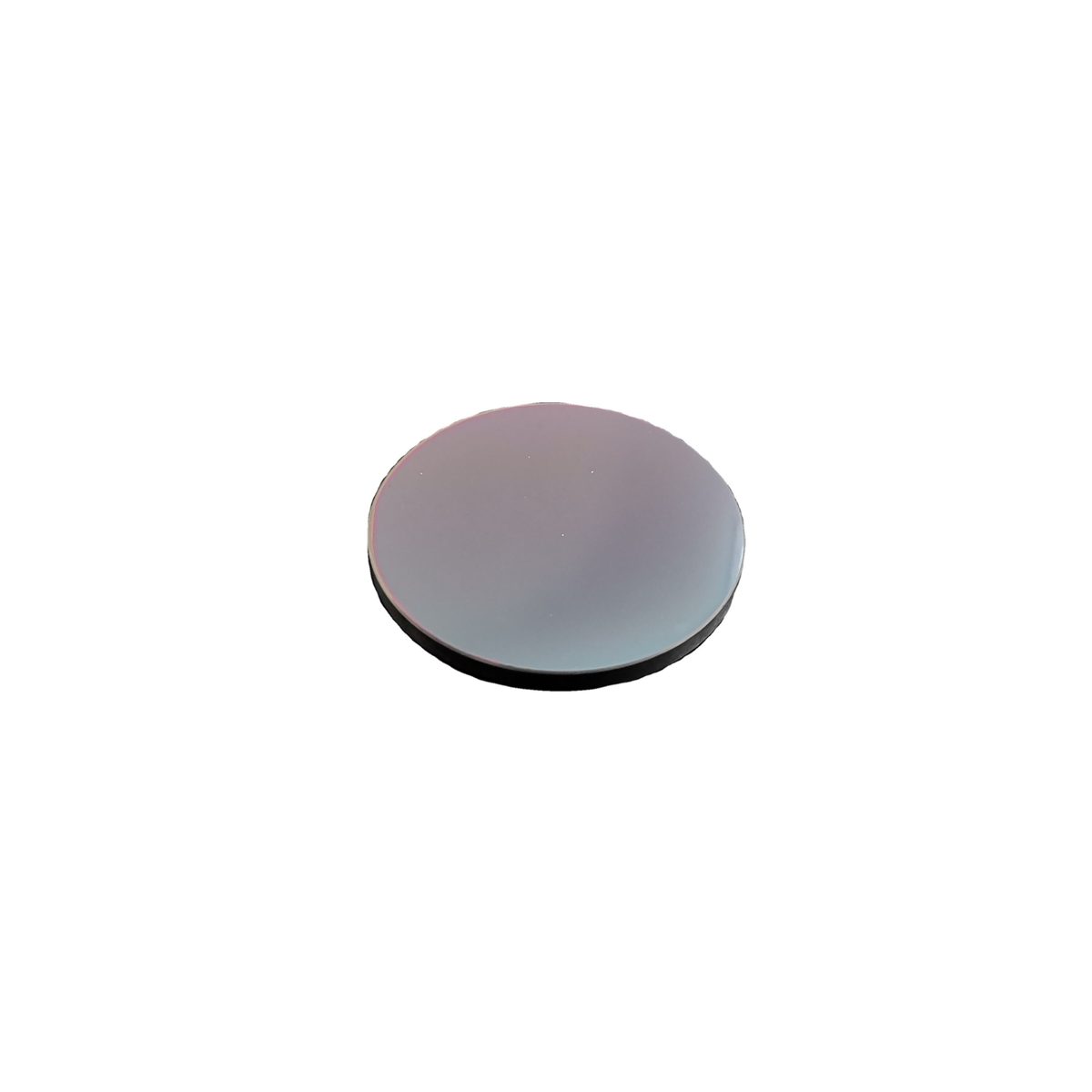

5 mm Germanium Aspheric Lens, AR Coated
Explore our Germanium aspheric lens for thermal imaging and medical applications, customizable and reliable for diverse optical needs.
Core attributes
- Material
- Germanium
- Shape
- Aspheric
- Diameter
- 5 mm
- Thickness
- 0.5 mm
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Germanium
- Shape
- Aspheric
- Diameter
- 5 mm
- Thickness
- 0.5 mm
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm)
Product description
The Germanium aspheric lens is designed for applications in thermal imaging, medical devices, and imaging systems, providing a broad transmission range of 2.0 - 16 µm. Its unique properties make it ideal for IR laser applications, ensuring high performance in demanding environments. With options for anti-reflection and DLC coatings, this lens offers versatility across various wavelengths, including the LWIR band, making it suitable for advanced imaging technologies.
Key Features
- Broad transmission range of 2.0 - 16 µm, ideal for thermal imaging and IR applications.
- Customizable dimensions from 5 mm to 300 mm, accommodating diverse project needs.
- DLC and AR coatings enhance performance, improving durability and transmittance.
- High parallelism of 30 seconds ensures precise alignment in optical systems.
- Lightweight design (10-500g) suitable for various applications and setups.
Applications
Thermal Imaging, Medical, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Aspheric |
| Diameter | 5 mm |
| Thickness | 0.5 mm |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM |
| Warranty | 1 month |
| Weight | 10-500g |
| Dimension | 5 mm - 300 mm |
| S/D | 60/40 - 40/20 |
| Flatness | L/2 - L/4 |
| Parallelism | 30secs |
| Wavelength | LWIR |
FAQ
Can I get custom sizes for this lens?
Yes, the lens is customizable with dimensions ranging from 5 mm to 300 mm.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing flexibility for smaller orders.
