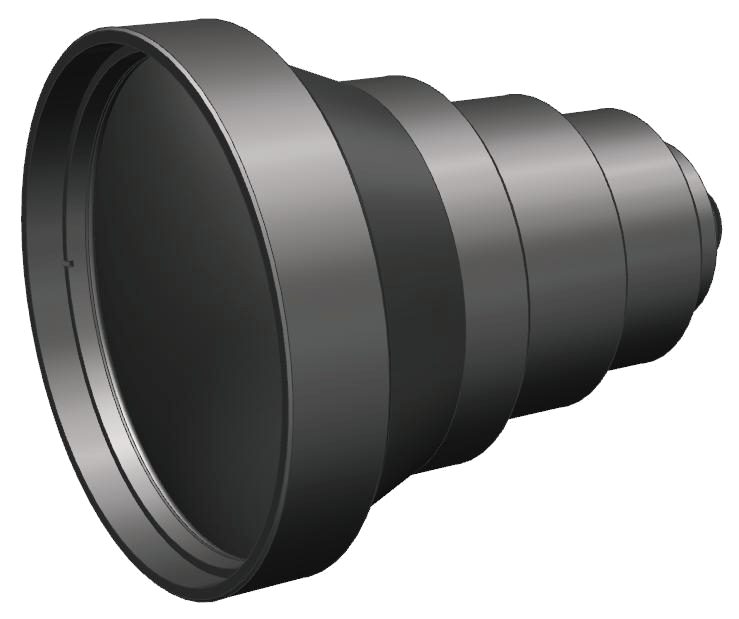

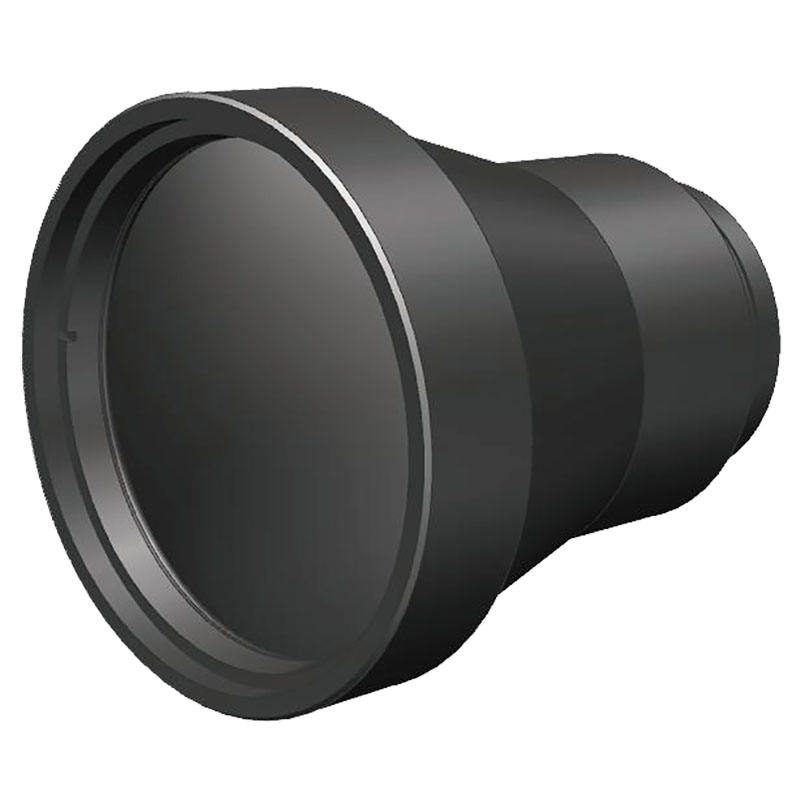

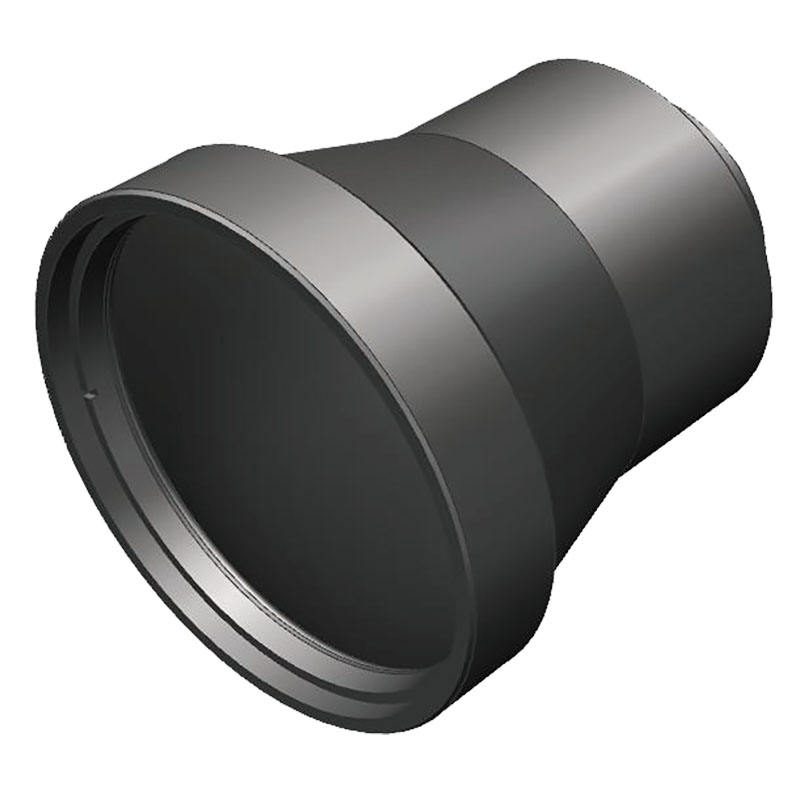

Custom Size Germanium Aspheric Lens, AR Coated

Product description

This aspheric lens made from Germanium is specifically designed for applications in thermal imaging, security, and imaging within the 8-14 μm spectral range. With a focal length of 100 mm and an average transmission greater than 86%, it ensures high performance in uncooled VOx detectors. The fixed focus mechanism and optimized design make it ideal for precise imaging tasks in demanding environments.

Key Features

Focal length of 100 mm for optimal thermal imaging performance.
Average transmission exceeding 86% enhances image clarity.
Fixed focus mechanism simplifies integration into systems.
Lightweight design at 473g aids in versatile applications.
Designed for 8-14 μm spectral range, ideal for thermal and security applications.

Applications

Thermal Imaging, Security, Imaging

Specification Summary

Item	Value
Material	Germanium
Shape	Aspheric
Focal Length	100 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm)

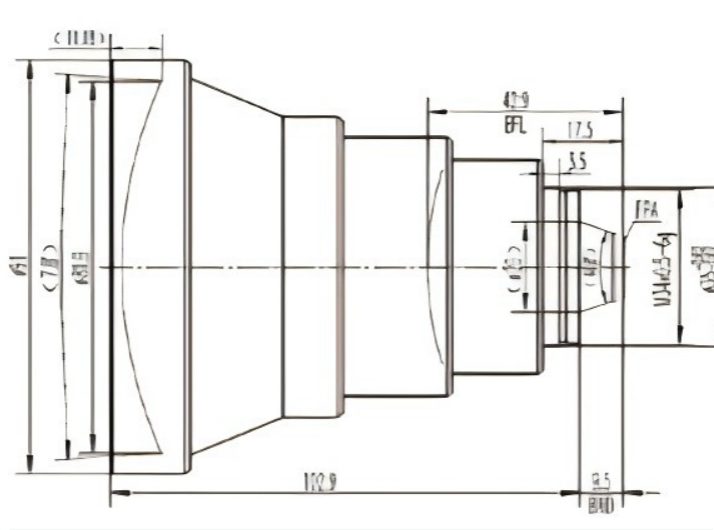

Full Specifications

Parameter	Value
Type	Aspherical Lens
Weight	2; 473g
Back Focal Length	42.9mm
Focus Mechanism	Fixed focus

FAQ

Is custom sizing available for this lens?

Custom sizing options are not specified; please inquire for details.

What is the minimum order quantity (MOQ) for this lens?

The minimum order quantity is not provided; please contact for specifics.
