Custom Size Germanium Aspheric Lens, AR Coated
Aspheric Germanium lens for thermal imaging with >86% transmission, IP67 sealing, and customizable options.
Core attributes
- Material
- Germanium
- Shape
- Aspheric
- Focal Length
- 19 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Germanium
- Shape
- Aspheric
- Focal Length
- 19 mm
- Coating
- anti-reflective (AR)
Product description

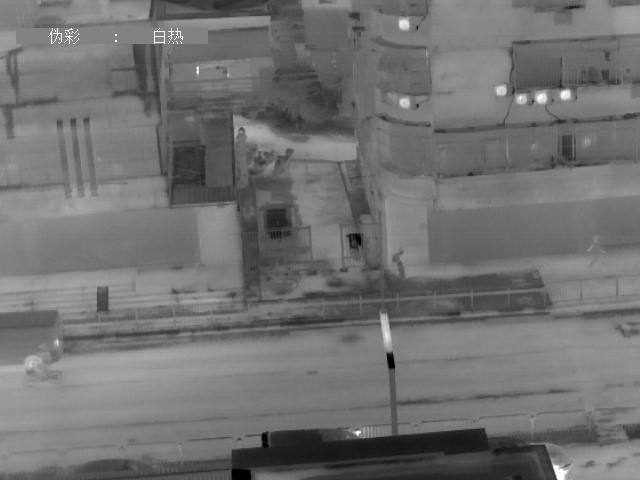

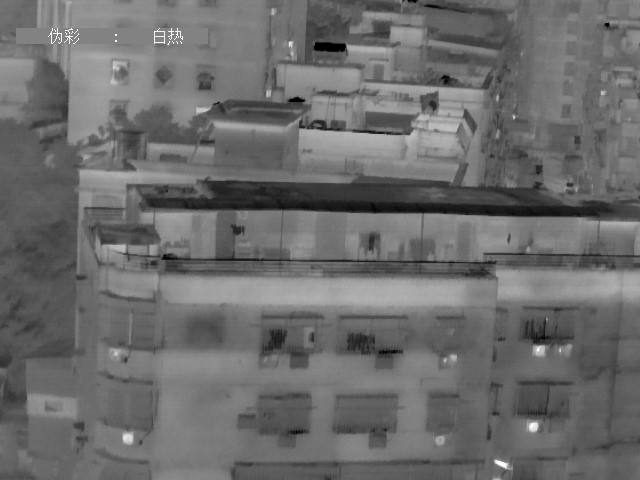

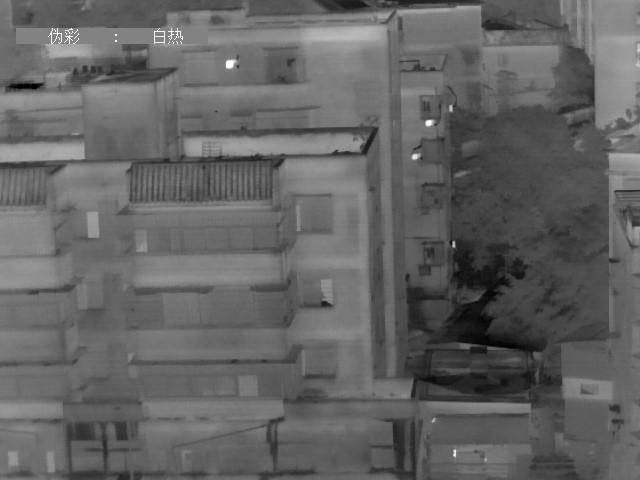

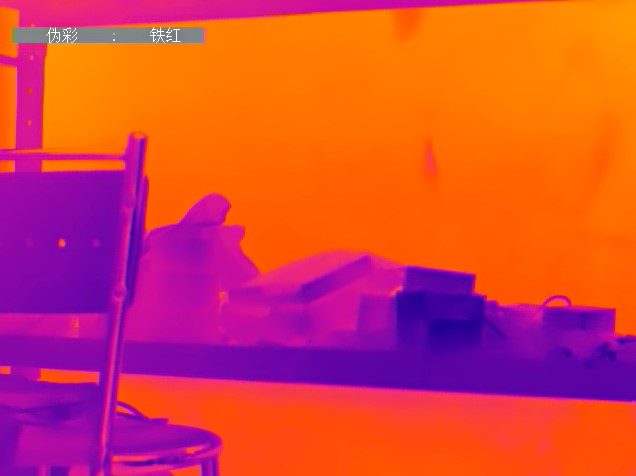

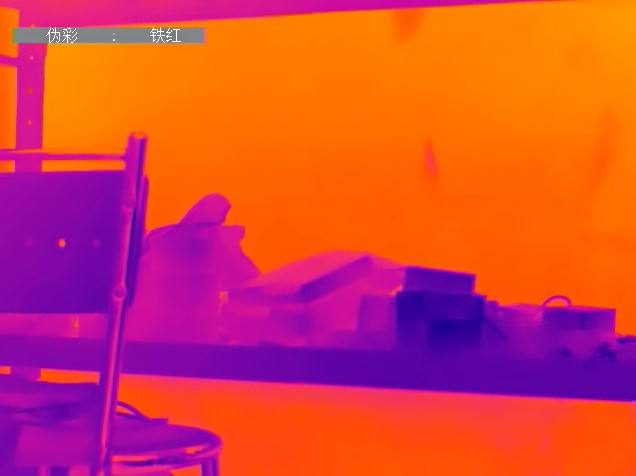

This aspheric Germanium lens is designed for applications in thermal imaging, security, and general imaging. With a fixed focal length of 19.0 mm and an average transmission of over 86% in the 8-12 µm range, it effectively enhances image clarity and detail in critical environments. The lens features high-efficiency anti-reflective coatings, ensuring optimal performance across various temperatures, making it ideal for demanding applications.
Key Features
- Fixed focal length of 19.0 mm for consistent imaging performance.
- Average transmission greater than 86% in the 8-12 µm range enhances thermal imaging quality.
- IP67 sealing for protection against dust and water, ensuring reliability in harsh conditions.
- High-efficiency AR coating improves light transmission and image quality.
- Operating temperature range of -40°C to +80°C for versatile application use.
Applications
Thermal Imaging, Security, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Aspheric |
| Focal Length | 19 mm |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Aspherical Lens |
| Customized Support | OEM |
| Warranty | 1 year |
| Weight | 100g(3.53oz) |
| Average Transmission(8~12Μm) | >86% |
| Focus Mechanism | Fixed focus |
| Back Focal Length | 9.34mm |
| Sealing | IP67-Front lens only |
| External Coating | High Efficiency AR |
| Operating Temperature | 40°C ~ +80°C |
| Storage Temperature | 50°C ~ +80°C |
| Mechanical Interface | M34 x 0.5 |
FAQ
Is custom sizing available?
Custom sizes are supported through OEM services.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please contact for details.
