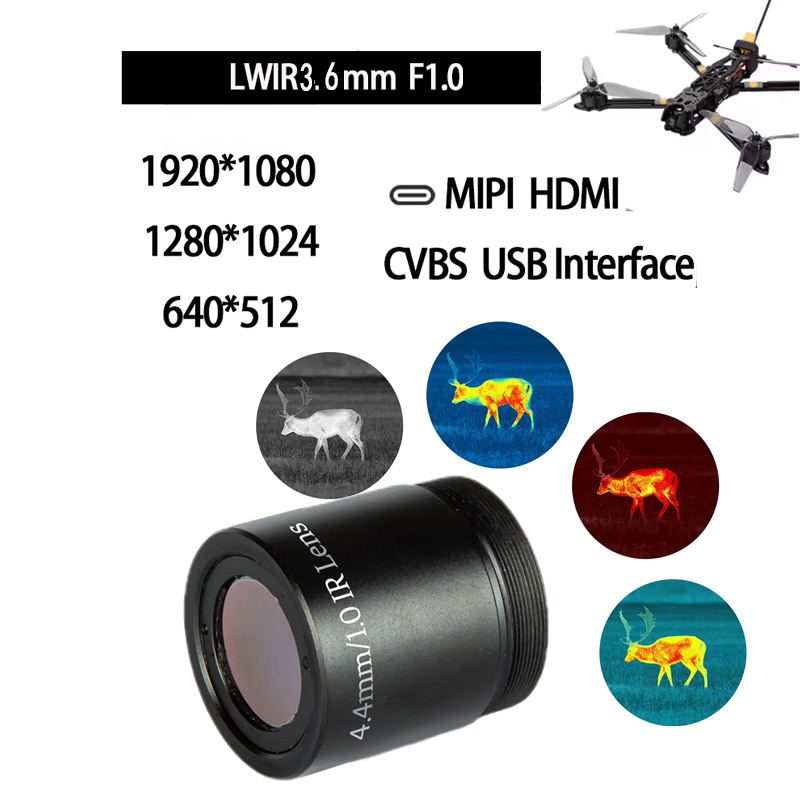

Custom Size Germanium Aspheric Lens, AR Coated
Aspheric Germanium lens for thermal imaging with >86% transmission, IP67 sealing, and OEM customization support.
Core attributes
- Material
- Germanium
- Shape
- Aspheric
- Focal Length
- 3.6 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Germanium
- Shape
- Aspheric
- Focal Length
- 3.6 mm
- Coating
- anti-reflective (AR)
Product description
This aspheric lens made from Germanium is designed for thermal imaging and general imaging applications, providing high efficiency with over 86% average transmission in the 8-12 µm range. Its fixed focus mechanism and robust IP67 sealing ensure reliable performance in demanding environments, making it ideal for use in thermal cameras and other imaging systems. The lens operates effectively across a temperature range of -40°C to +80°C, suitable for various industrial applications.
Key Features
- Average transmission >86% in the 8-12 µm range for superior imaging quality.
- Fixed focus design ensures consistent performance in thermal imaging applications.
- IP67 sealing for protection against dust and water, enhancing durability.
- Operating temperature range of -40°C to +80°C for versatile application use.
- OEM customization support available for tailored solutions.
Applications
Thermal Imaging, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Aspheric |
| Focal Length | 3.6 mm |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Aspherical Lens |
| Customized Support | OEM |
| Warranty | 1 year |
| Weight | 100g(3.53oz) |
| Average Transmission(8~12Μm) | >86% |
| Focus Mechanism | Fixed focus |
| Back Focal Length | 31.36mm |
| Sealing | IP67-Front lens only |
| External Coating | High Efficiency AR |
| Operating Temperature | 40°C ~ +80°C |
| Storage Temperature | 50°C ~ +80°C |
| Mechanical Interface | M34 x 0.5 |
FAQ
Can this lens be customized?
Yes, OEM customization support is available for tailored solutions.
What is the weight of the lens?
The lens weighs 100g (3.53 oz).
