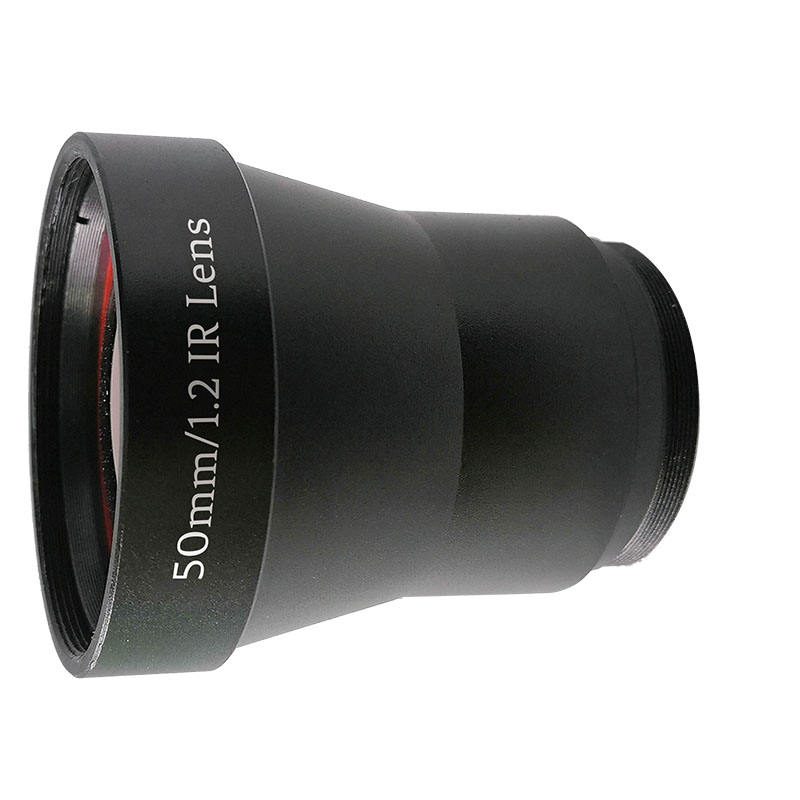

Custom Size Germanium Aspheric Lens, AR Coated
Aspheric Germanium lens for thermal imaging with >86% transmission, IP67 sealing, and custom OEM support.
Core attributes
- Material
- Germanium
- Shape
- Aspheric
- Focal Length
- 9 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Germanium
- Shape
- Aspheric
- Focal Length
- 9 mm
- Coating
- anti-reflective (AR)
Product description
This aspheric Germanium lens is designed for applications in thermal imaging, security, and advanced imaging systems. With a focal length range of 9.0 to 300.0 mm and an average transmission of over 86% in the 8-12 μm range, it effectively captures infrared light for enhanced imaging performance. The lens features a fixed focus mechanism and is sealed to IP67 standards, making it suitable for demanding environments. Its high-efficiency AR coating further enhances transmittance, ensuring optimal performance in various applications.
Key Features
- Focal length range: 9.0 to 300.0 mm for versatile application use.
- Average transmission >86% (8-12 μm) for superior infrared light capture.
- IP67 sealing (front lens only) for protection in harsh environments.
- Fixed focus mechanism ensures stable imaging performance.
- Custom OEM support available for tailored solutions.
Applications
Thermal Imaging, Security, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Aspheric |
| Focal Length | 9 mm |
| Coating | anti-reflective (AR) |

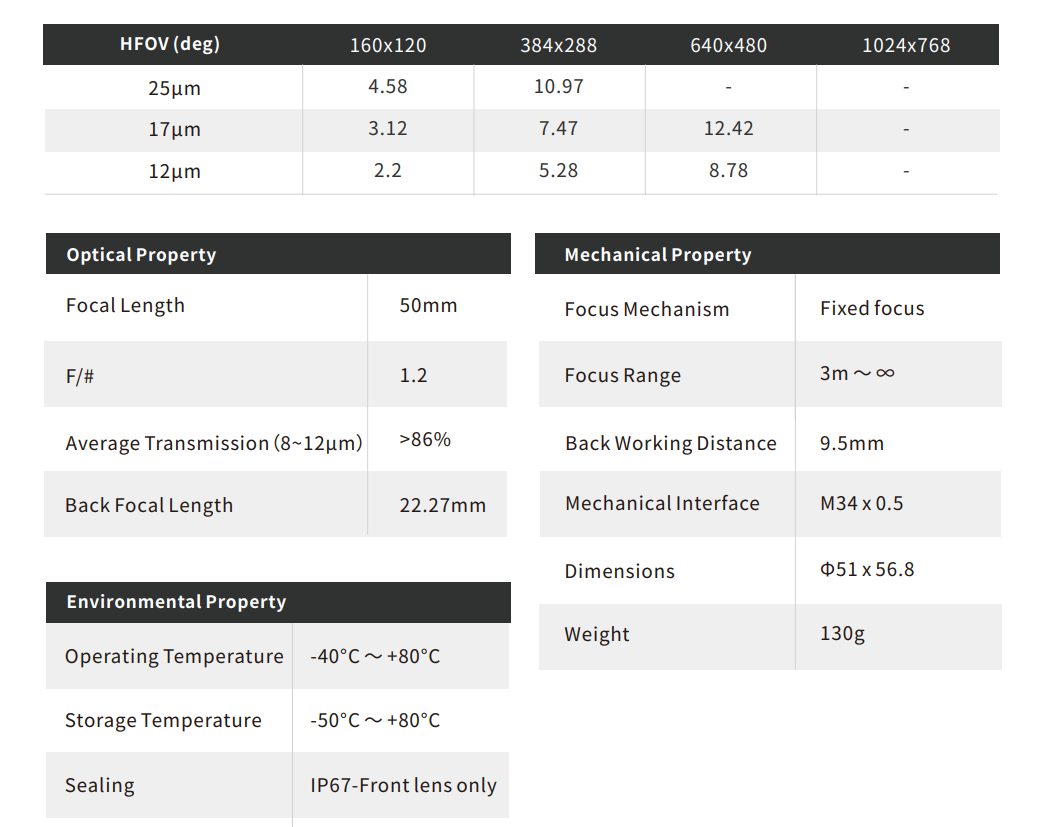

Full Specifications
| Parameter | Value |
|---|---|
| Type | Aspherical Lens |
| Customized Support | OEM |
| Warranty | 1 year |
| Logo/Graphic Design | Digital Printing |
| Weight | 180G(6.35oz) |
| Average Transmission(8~12Μm) | >86% |
| Focus Mechanism | Fixed focus |

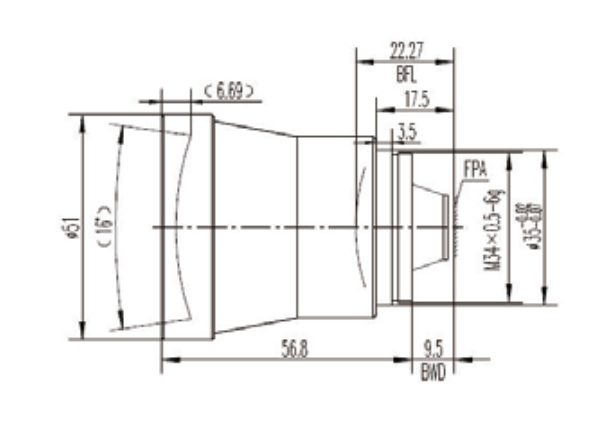

| Back Focal Length | 22.27mm |
| Sealing | IP67-Front lens only |
| External Coating | High Efficiency AR |
| Operating Temperature | 40°C ~ +80°C |
| Storage Temperature | 50°C ~ +80°C |
| Mechanical Interface | M34 x 0.5 |
FAQ
Is custom sizing available?
Custom OEM support is available for tailored solutions.
What is the operating temperature range?
The lens operates effectively between -40°C and +80°C.
