Custom Size Germanium Aspheric Lens, AR Coated
Aspherical Germanium lens for thermal imaging and security applications with high transmission and IP67 sealing.
Core attributes
- Material
- Germanium
- Shape
- Aspheric
- Focal Length
- 9 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Germanium
- Shape
- Aspheric
- Focal Length
- 9 mm
- Coating
- anti-reflective (AR)
Product description
This aspherical Germanium lens is designed for applications in thermal imaging, security, and general imaging. With a focal length range of 9.0 to 25.0 mm and an average transmission of over 87% in the 8-12 µm range, it effectively captures infrared light for enhanced image clarity. The lens features a fixed focus mechanism and is sealed to IP67 standards, making it suitable for demanding environments. Its high-efficiency anti-reflective coating further optimizes performance, ensuring reliable operation across various applications.
Key Features

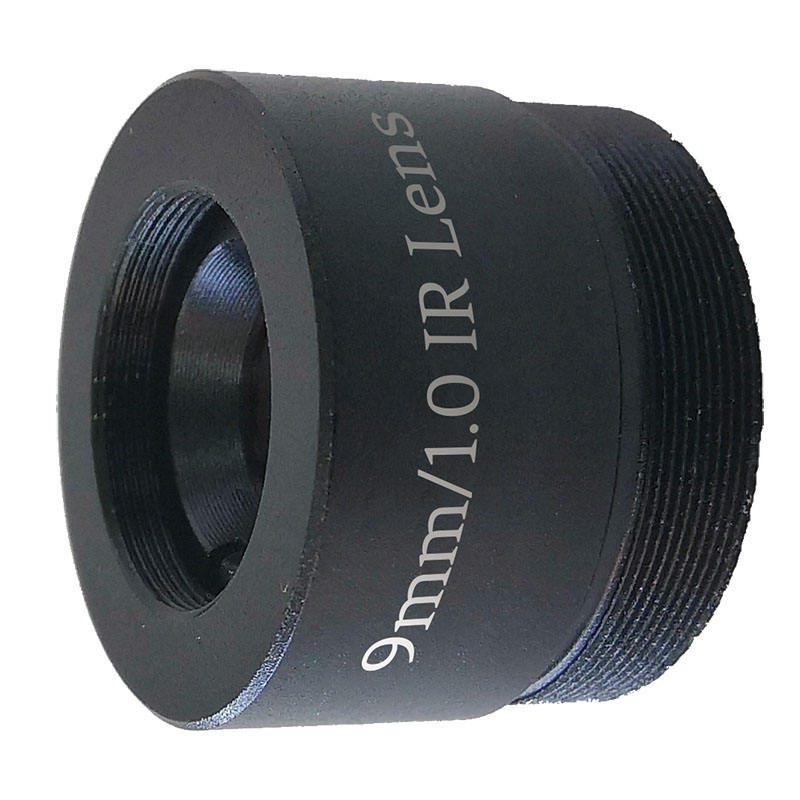

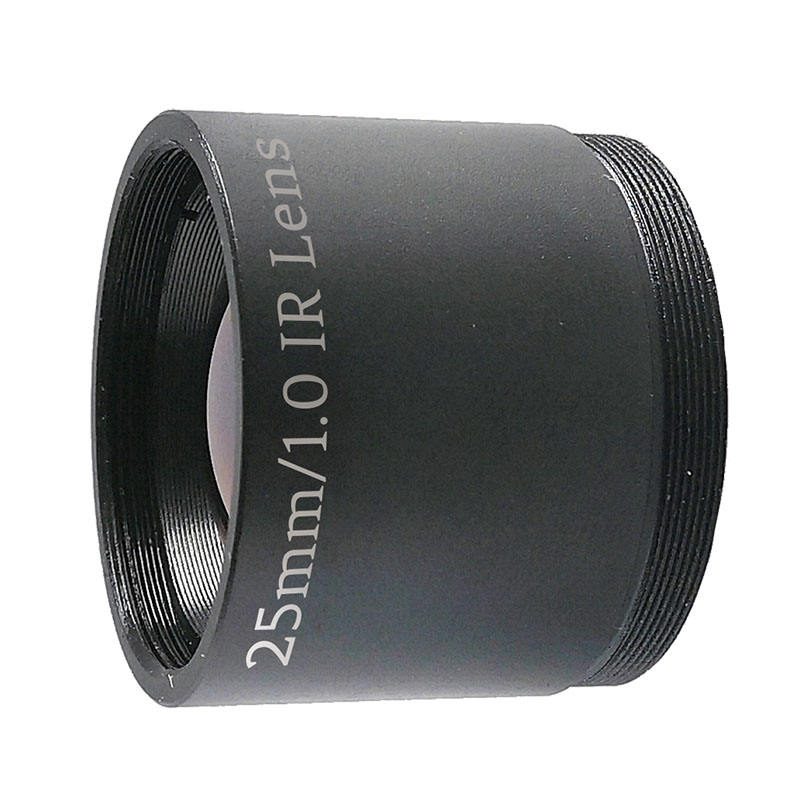

- Focal length options: 9.0 mm and 25.0 mm for versatile application fit.
- Average transmission >87% (8-12 µm) enhances infrared imaging quality.
- IP67 sealing ensures durability in harsh environments.
- High-efficiency AR coating maximizes light transmission.
- Fixed focus mechanism simplifies integration into imaging systems.
Applications
Thermal Imaging, Security, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Aspheric |
| Focal Length | 9 mm |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Aspherical Lens |
| Customized Support | OEM |
| Warranty | 1 year |
| Weight | 100g |
| Average Transmission(8~12Μm) | >87% |
| Focus Mechanism | Fixed focus |
| Back Focal Length | 10.87mm |
| Sealing | IP67-Front lens only |
| External Coating | High Efficiency AR |
| Operating Temperature | 40°C ~ +80°C |
| Storage Temperature | 50°C ~ +80°C |
| Mechanical Interface | M34 x 0.5 |
FAQ
Is custom sizing available?
Custom sizing options are supported through OEM services.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please contact for details.
