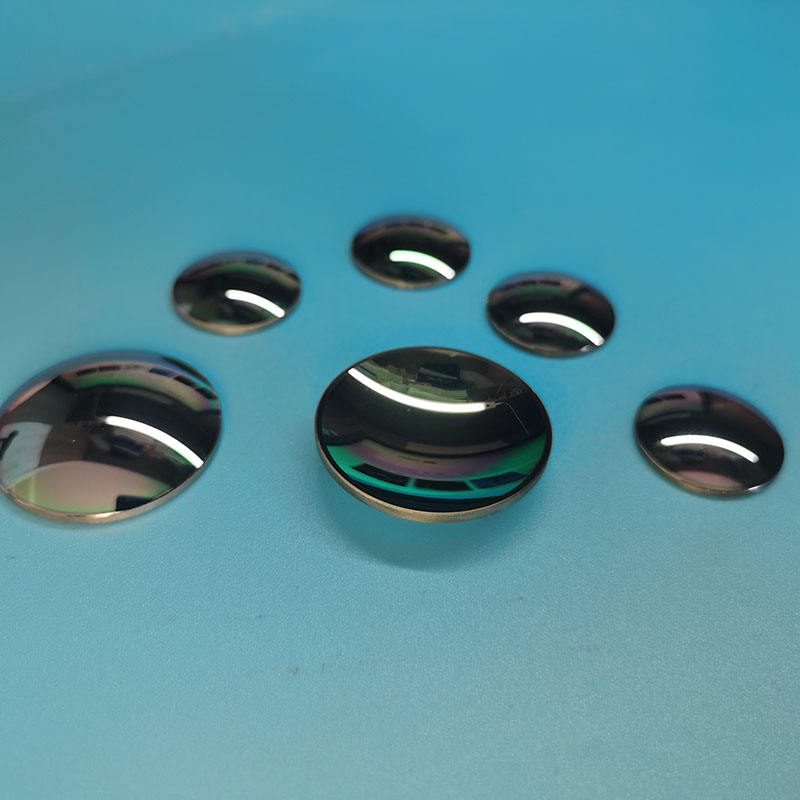

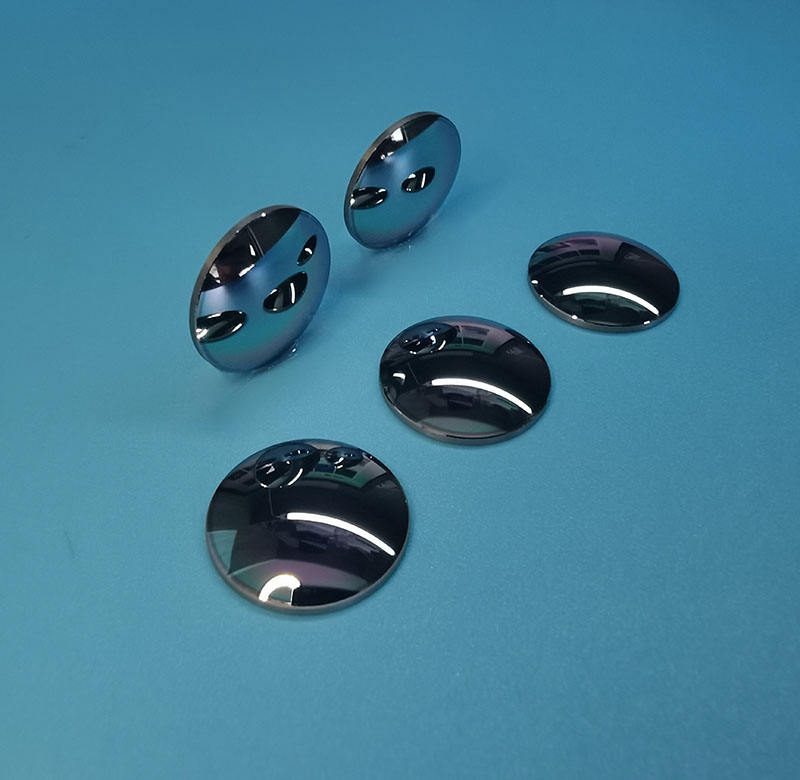

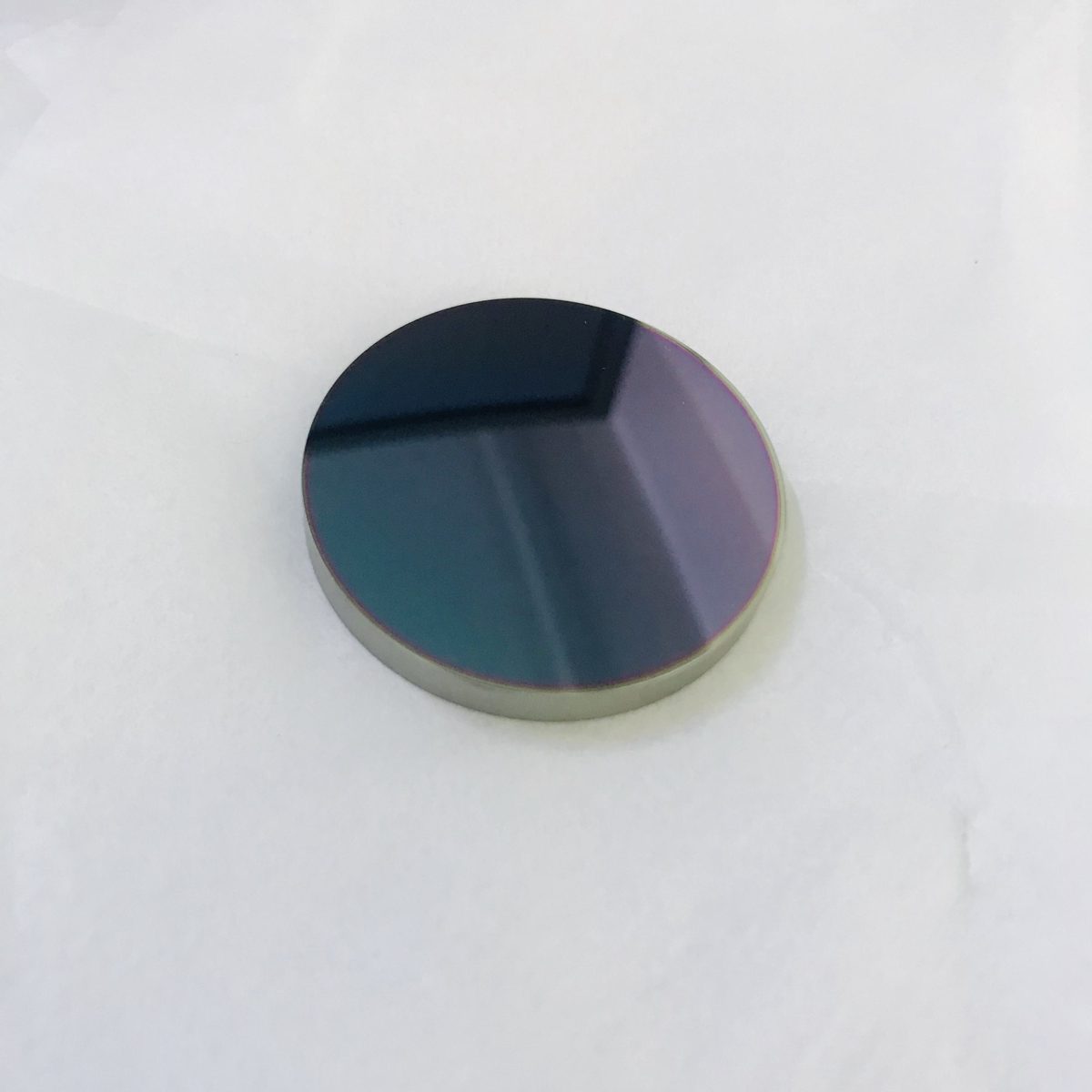

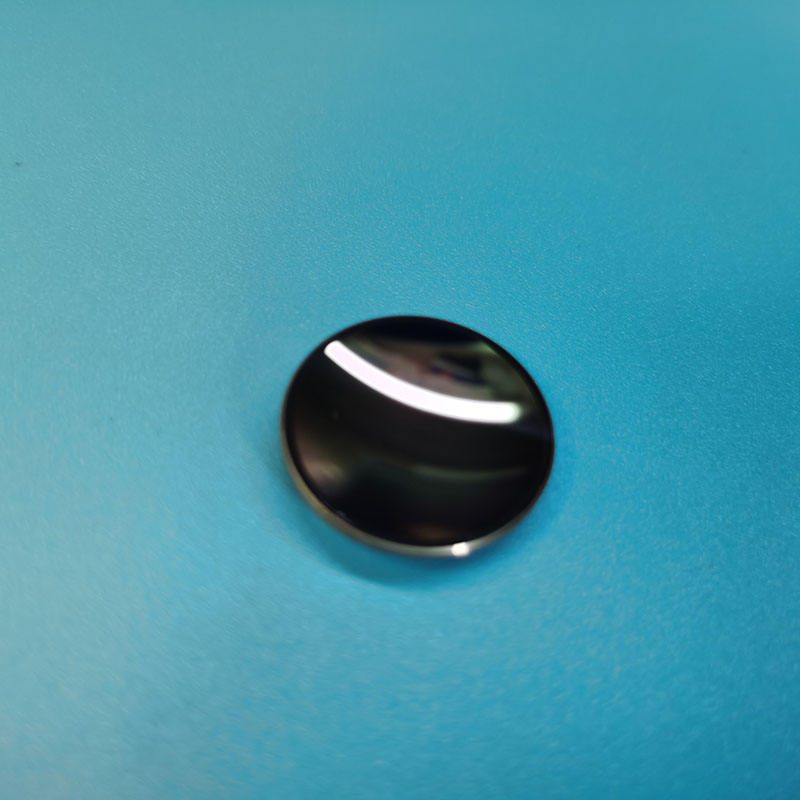

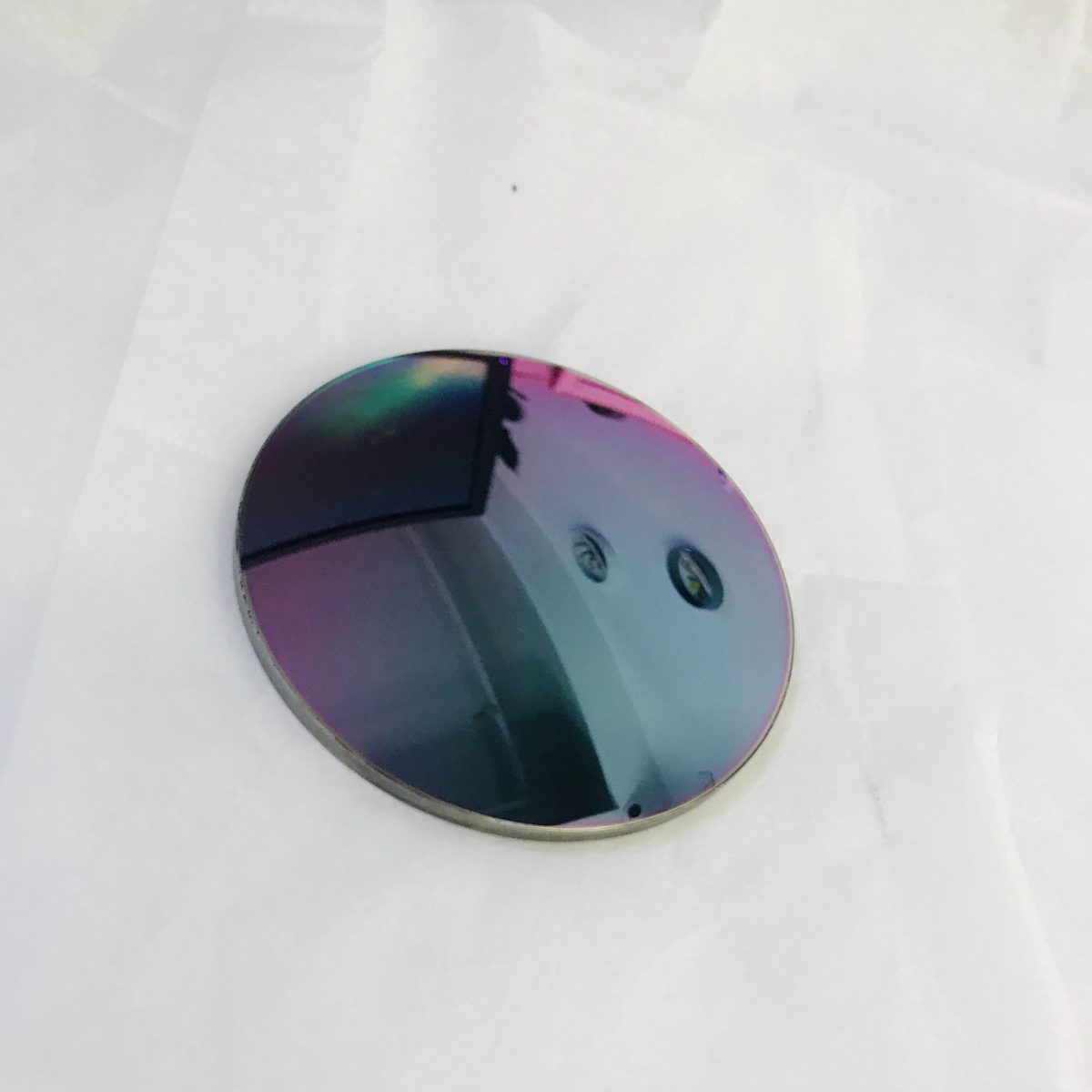

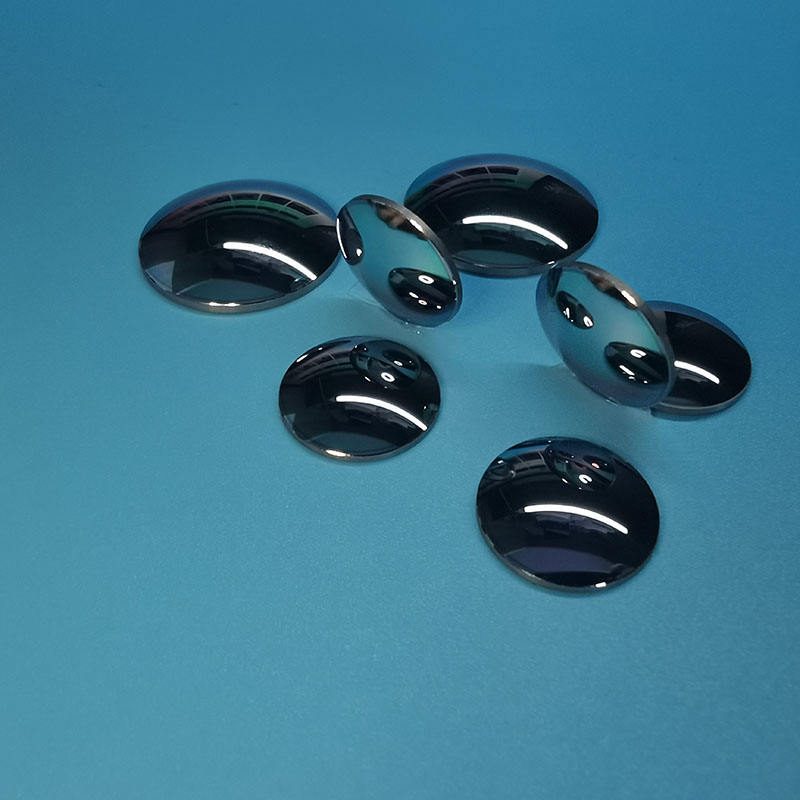

3 mm Germanium Biconvex Lens, AR Coated
Explore Germanium biconvex lenses for thermal imaging with high performance and custom sizing options.
Core attributes
- Material
- Germanium
- Shape
- Biconvex
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm)
- MOQ
- 1 piece
Product facts
Key attributes
- Material
- Germanium
- Shape
- Biconvex
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm)
- MOQ
- 1 piece
Product description
Germanium biconvex lenses are designed for applications in thermal imaging and other infrared technologies, effectively transmitting across multiple bands including 1.7-3 μm, 3-5 μm, and 8-14 μm. With a surface quality of 20/10 and a clear aperture greater than 90%, these lenses ensure high performance in demanding environments. They are suitable for use in harsh conditions due to their rugged construction and resistance to corrosion.
Key Features
- Transmits effectively in the 1.7-3 μm, 3-5 μm, and 8-14 μm bands, ensuring compatibility with various IR applications.
- Surface quality rated at 20/10, providing excellent optical clarity and performance.
- Clear aperture greater than 90%, maximizing light transmission for enhanced imaging.
- Low minimum order quantity of 1 piece, allowing for flexible prototyping and small-scale projects.
- Custom sizes and coatings available, accommodating specific application requirements.
Applications
Thermal Imaging, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Biconvex |
| Diameter | 3 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm) |
| MOQ | 1 piece |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Fresnel Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano… |
| Weight | 0.1 |
| Parallelism | 30 arc sec |
| Clear Aperture | >90% |
| Moq | 1 piece |
| Bevelling | 0.1-0.5mm |
FAQ
What is the minimum order quantity for these lenses?
The minimum order quantity is 1 piece.
Are custom sizes available for these lenses?
Yes, custom sizes and configurations can be accommodated.
