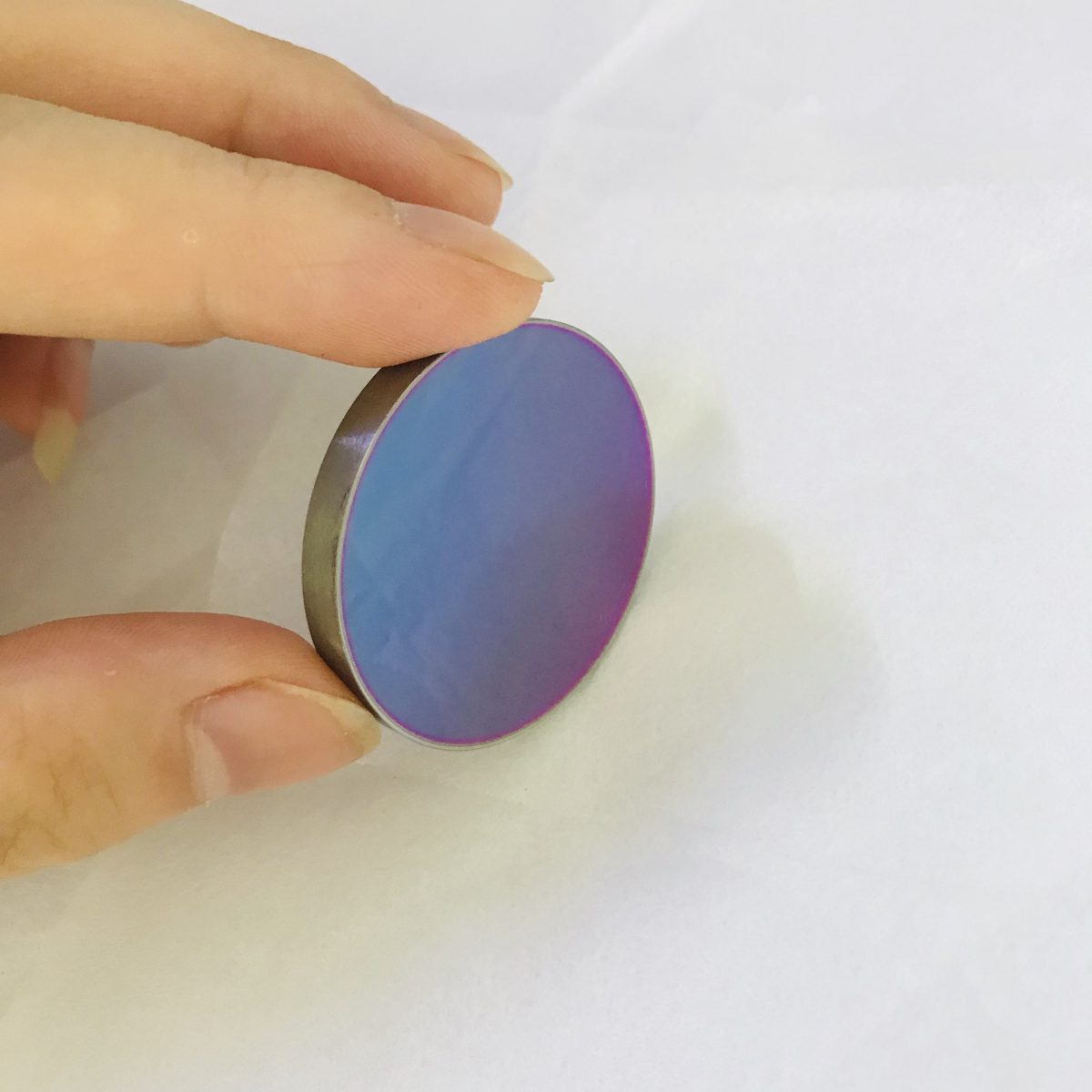

3 mm Germanium Meniscus Lens, AR Coated
Explore high-quality Germanium lenses for thermal imaging and more, with custom sizes and low MOQ.
Core attributes
- Material
- Germanium
- Shape
- Meniscus
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm)
- MOQ
- 1 piece
Product facts
Key attributes
- Material
- Germanium
- Shape
- Meniscus
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm)
- MOQ
- 1 piece
Product description
Germanium lenses are essential for applications in thermal imaging and imaging systems, particularly within the 1.7-14 μm wavelength range. These rugged lenses are resistant to corrosion, making them ideal for harsh environments. With a diameter of 3.0 mm and a surface quality rating of 20/10, they ensure high optical performance. Custom sizes are available, accommodating specific project requirements, while a low minimum order quantity of just 1 piece supports prototyping and small-scale production.
Key Features
- Diameter: 3.0 mm for compact integration in systems.
- Surface quality of 20/10 ensures minimal distortion for clear imaging.
- Clear aperture greater than 90% maximizes light transmission.
- Parallelism of 30 arc seconds enhances alignment precision.
- Low MOQ of 1 piece allows for easy prototyping and testing.
Applications
Thermal Imaging, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Meniscus |
| Diameter | 3 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm) |
| MOQ | 1 piece |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Fresnel Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano… |
| Weight | 0.1 |
| Parallelism | 30 arc sec |
| Clear Aperture | >90% |
| Moq | 1 piece |
| Bevelling | 0.1-0.5mm |
FAQ
Can I order custom sizes?
Yes, custom germanium lenses are available in various sizes and configurations.
What is the tolerance for diameter?
The diameter tolerance is +/-0.2 mm.
