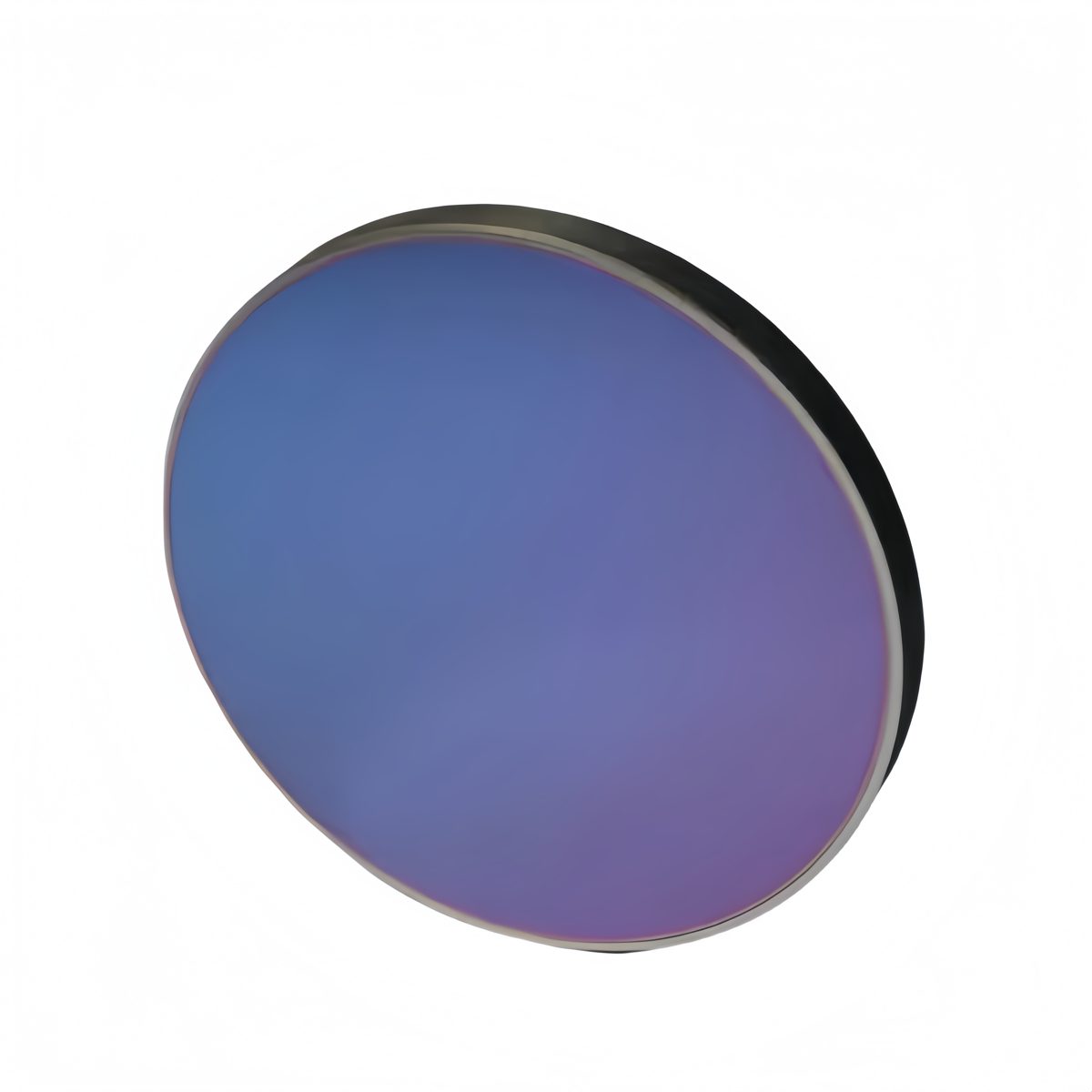

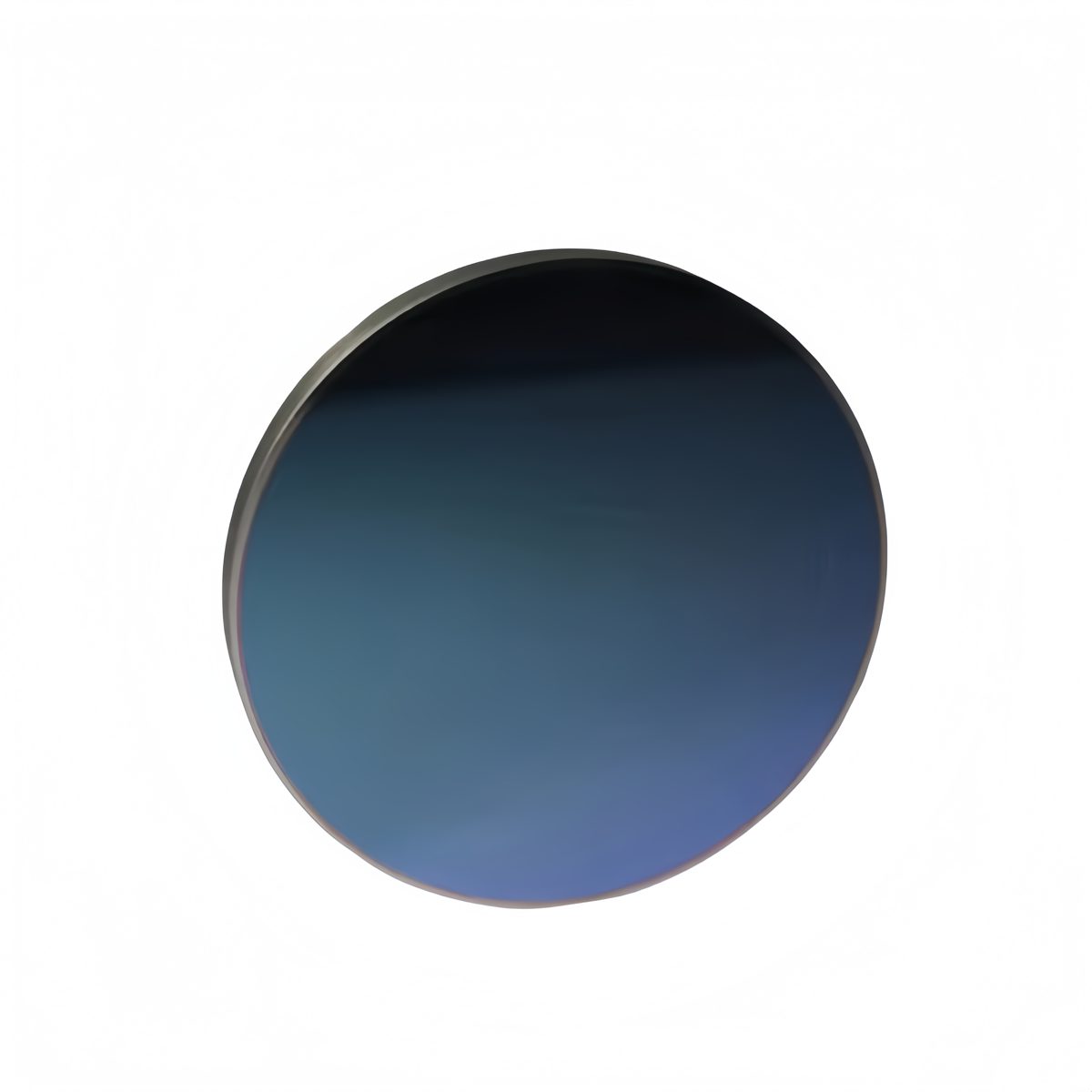

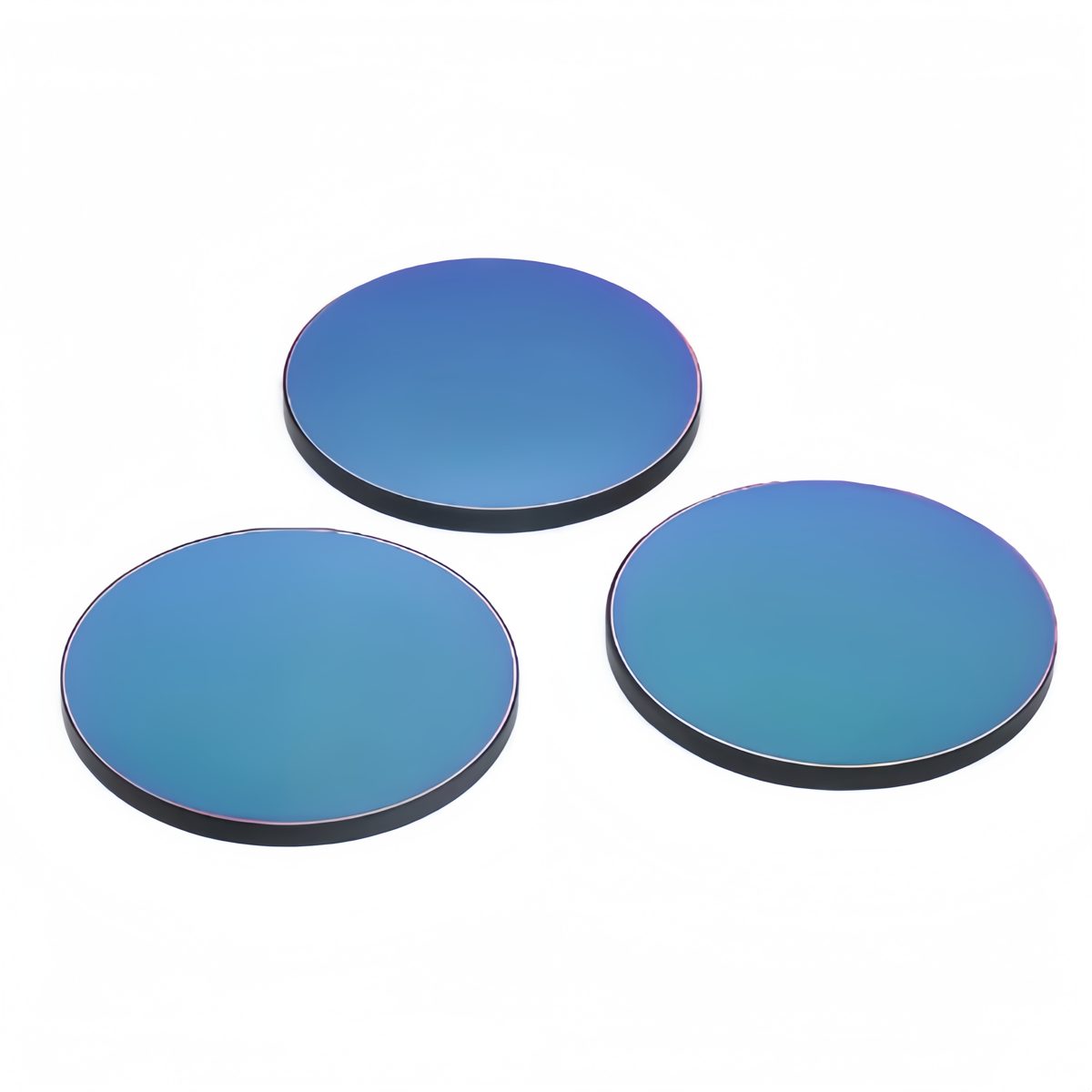

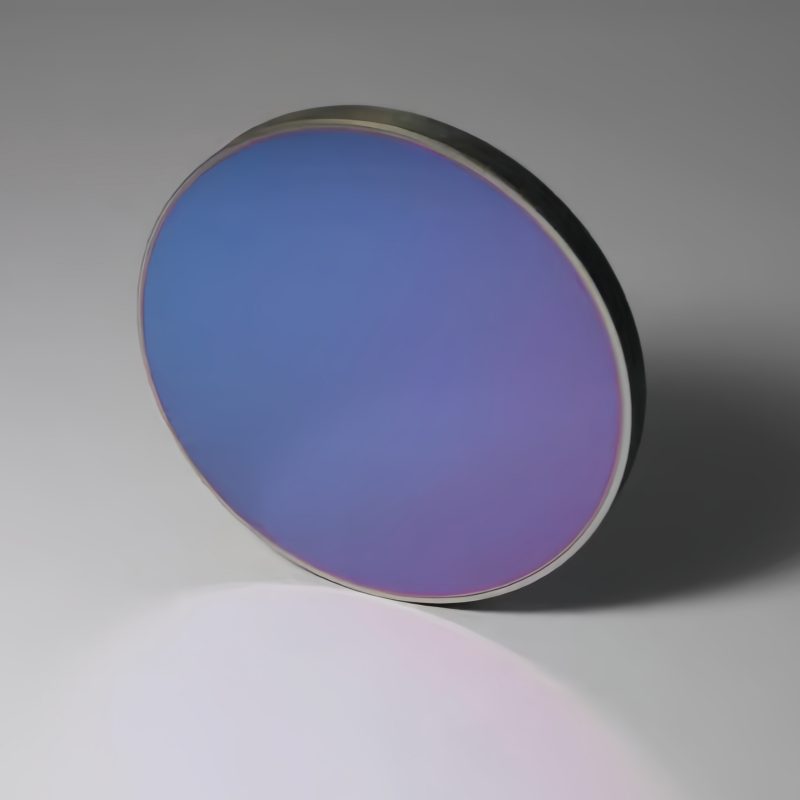

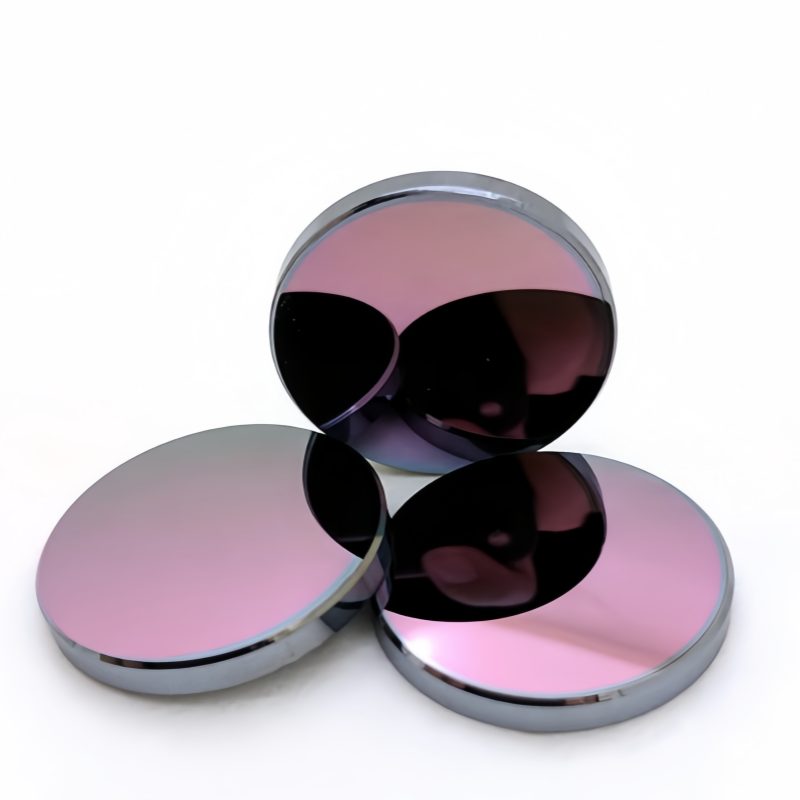

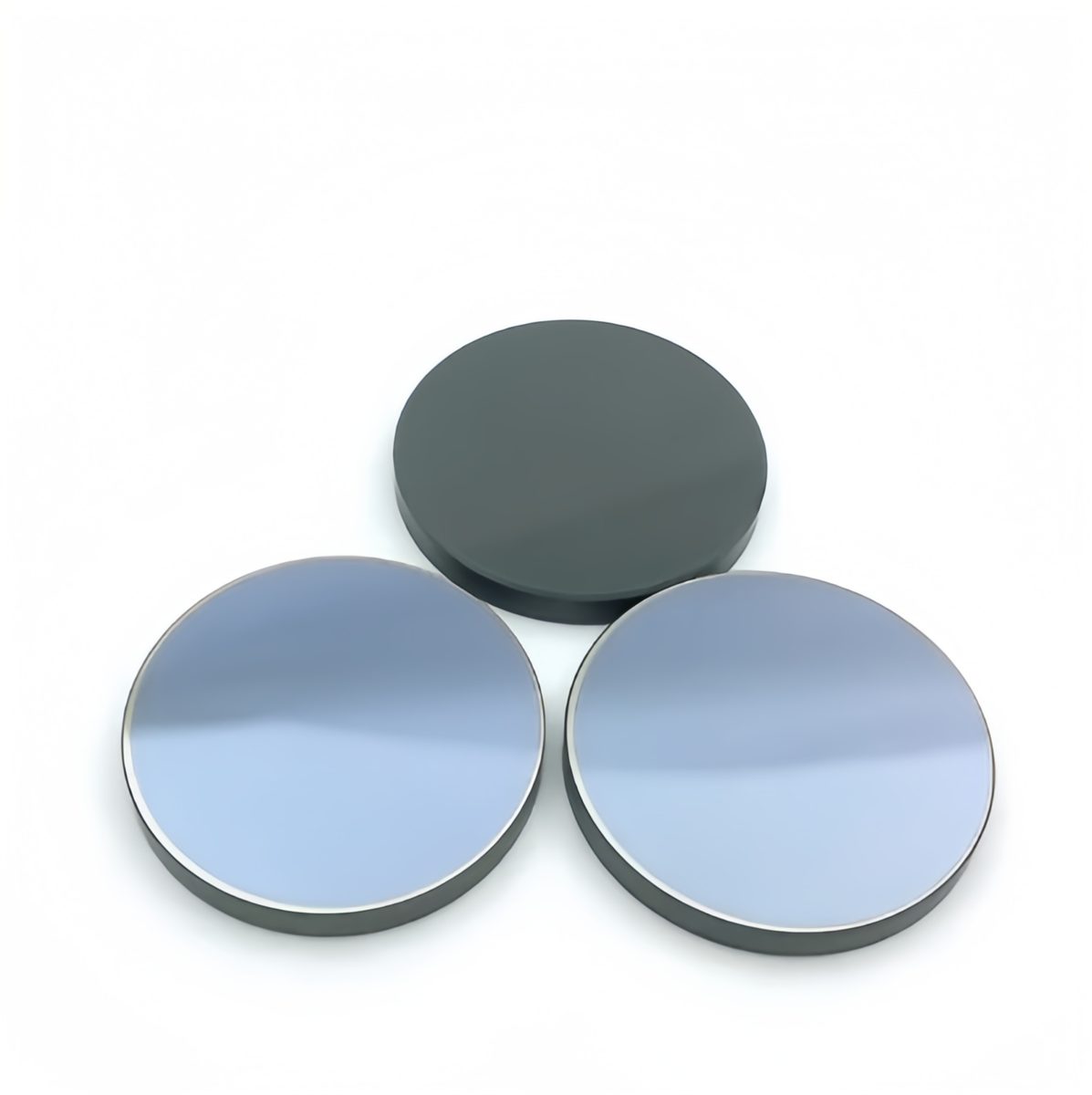

100 mm Germanium Optical Window, AR Coated
Germanium optical window for medical applications, customizable sizes, AR coatings, 100 mm diameter with precise tolerances.
Core attributes
- Material
- Germanium
- Diameter range
- 100 mm
- Coating
- ar, dlc
Product facts
Key attributes
- Material
- Germanium
- Diameter range
- 100 mm
- Coating
- ar, dlc
Product description
This Germanium optical window is designed for applications in the medical field, particularly effective in the 8-14 μm and 0.7-1.7 μm wavelength bands. Its robust construction and anti-reflective (AR) coatings ensure high transmittance and reliability in critical optical systems. The window features a diameter of 100 mm, making it suitable for various optical instruments, while its customizable options cater to specific project needs.
Key Features
- Material: Germanium for superior optical performance in IR applications.
- Diameter: 100 mm with a tolerance of ±0.01mm~±0.1mm for precise fitting.
- Coatings: Anti-reflective (AR) and DLC coatings enhance transmittance.
- Surface Finish Options: Available in 20/10, 40/20, 60/40 for different application requirements.
- Customized Support: OEM, ODM, and OBM options available for tailored solutions.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Diameter | 100 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical windows |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Weight | 100 |
| Diameter Tolerance | ±0.01mm~±0.1mm |
| Thickness Tolerance | ±0.01mm |
| Surface Finish | 20/10 40/20 60/40 |
FAQ
What are the diameter tolerances for this optical window?
The diameter tolerance is ±0.01mm~±0.1mm.
Can I get custom sizes for this optical window?
Yes, custom diameters from 1-500 mm can be accommodated.
