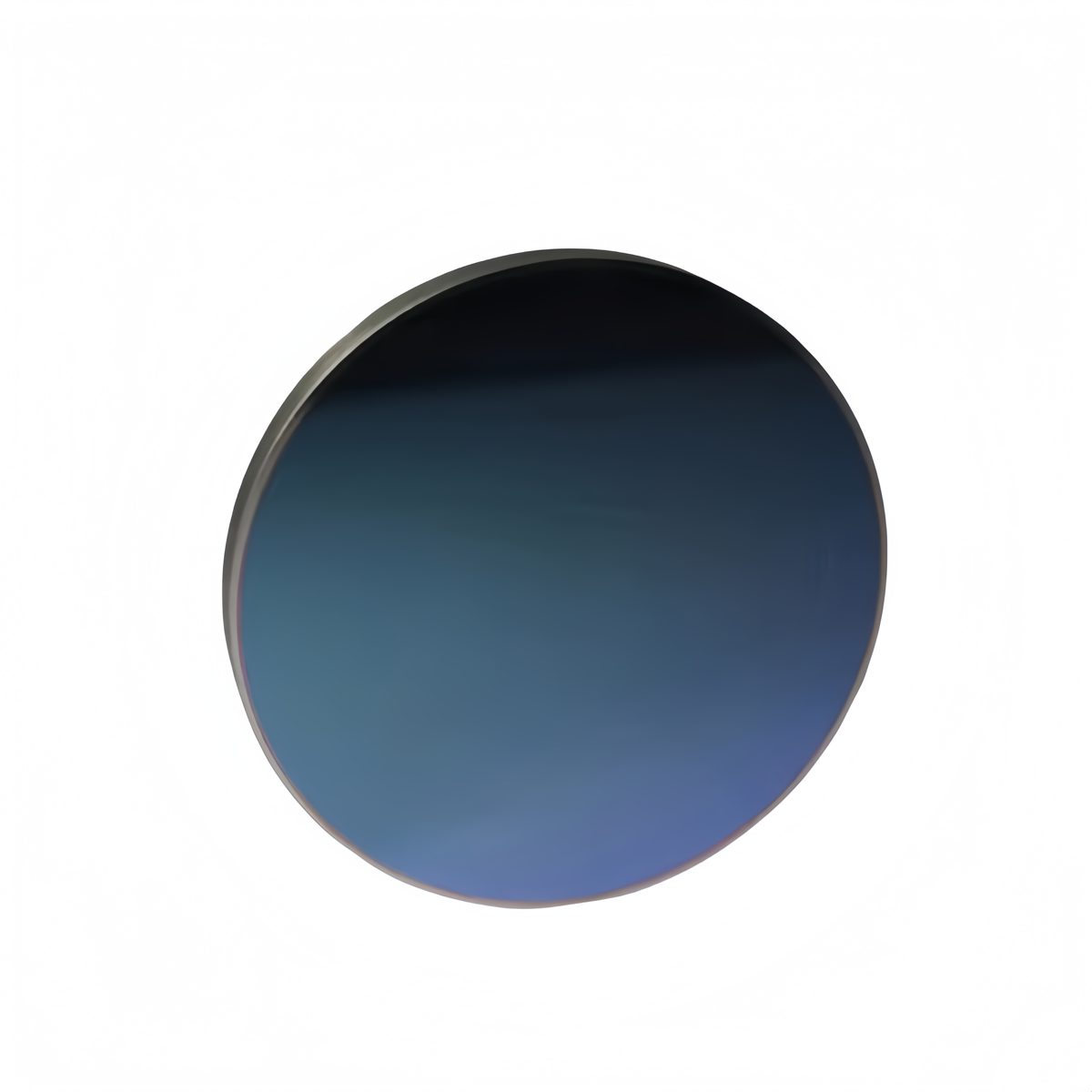

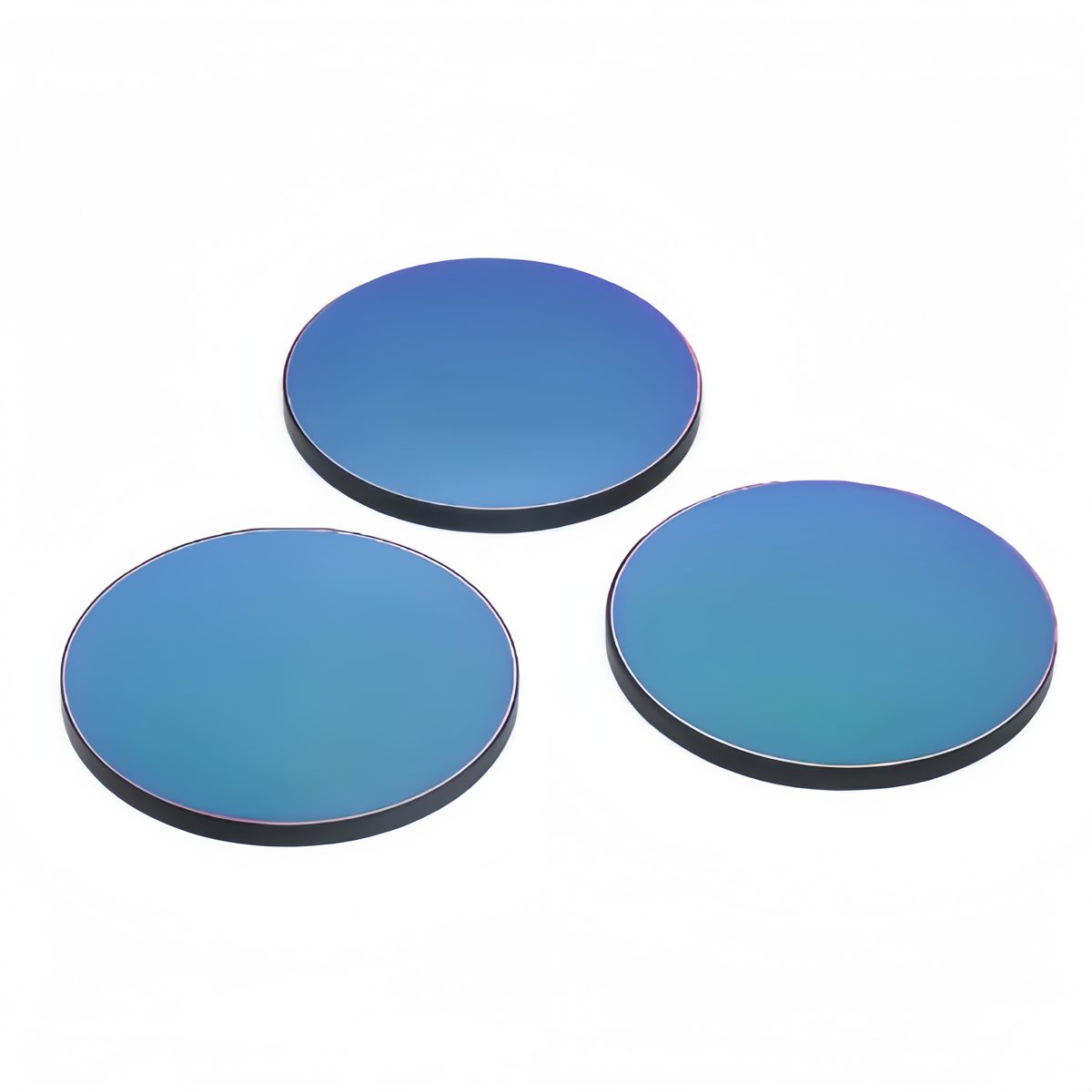

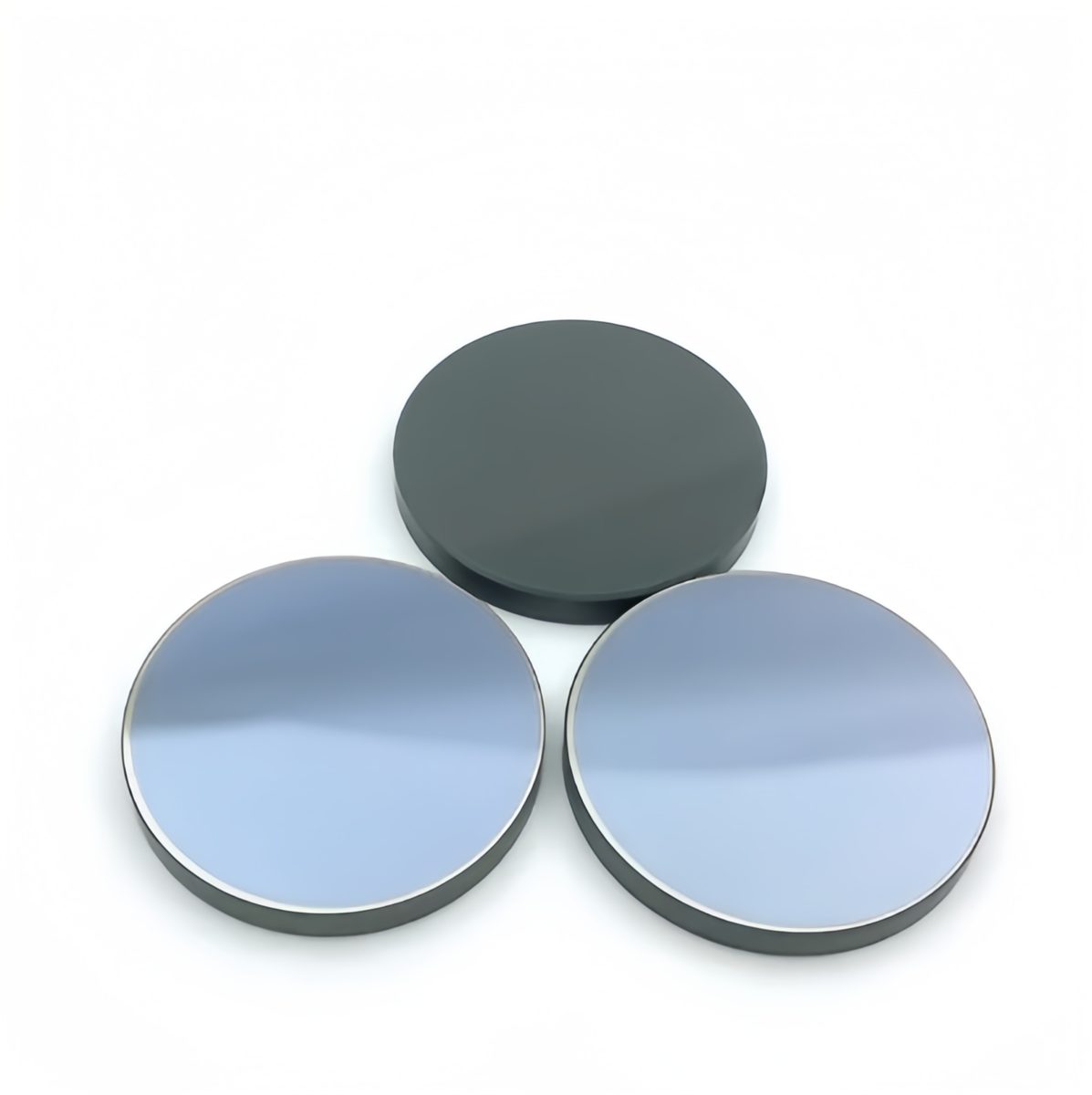

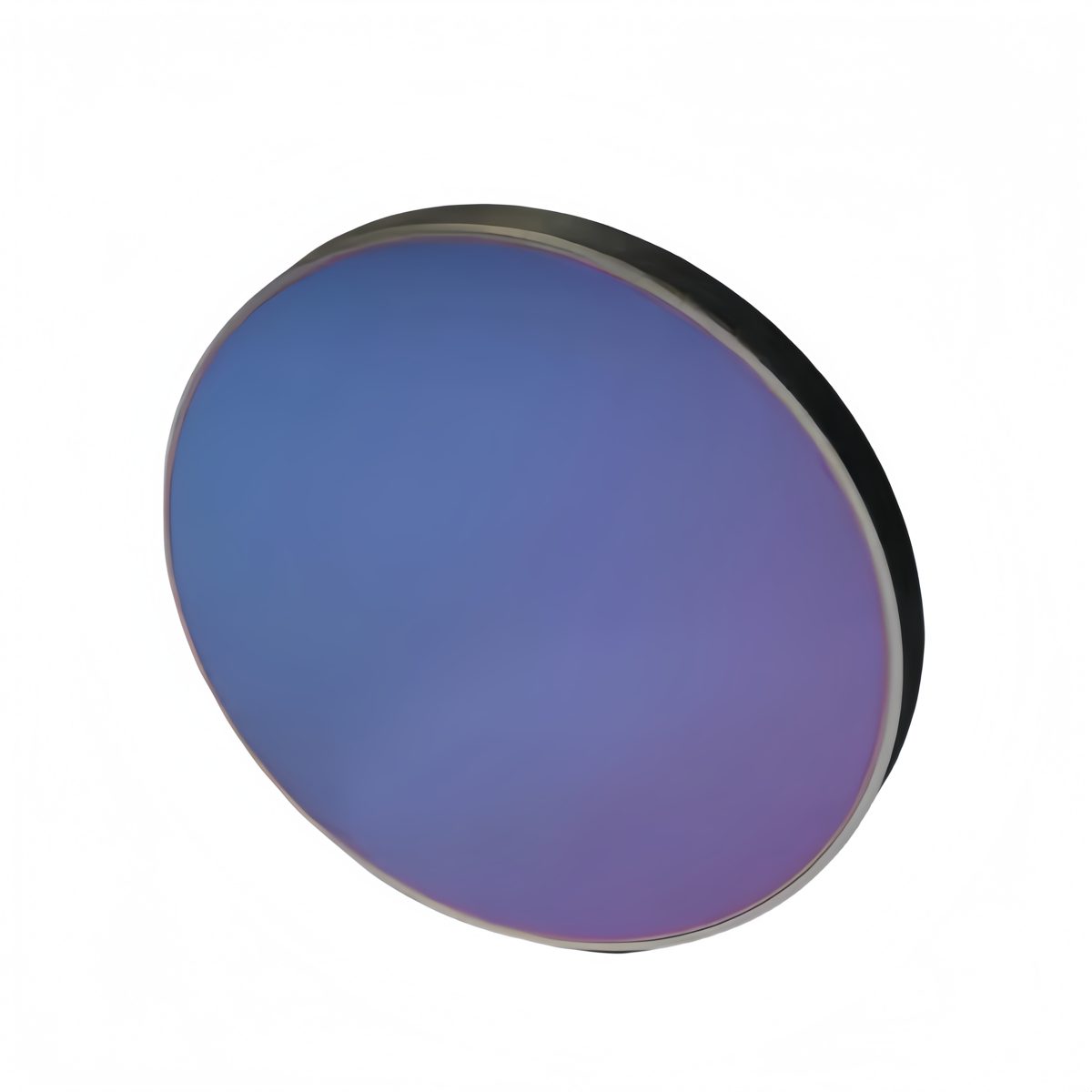

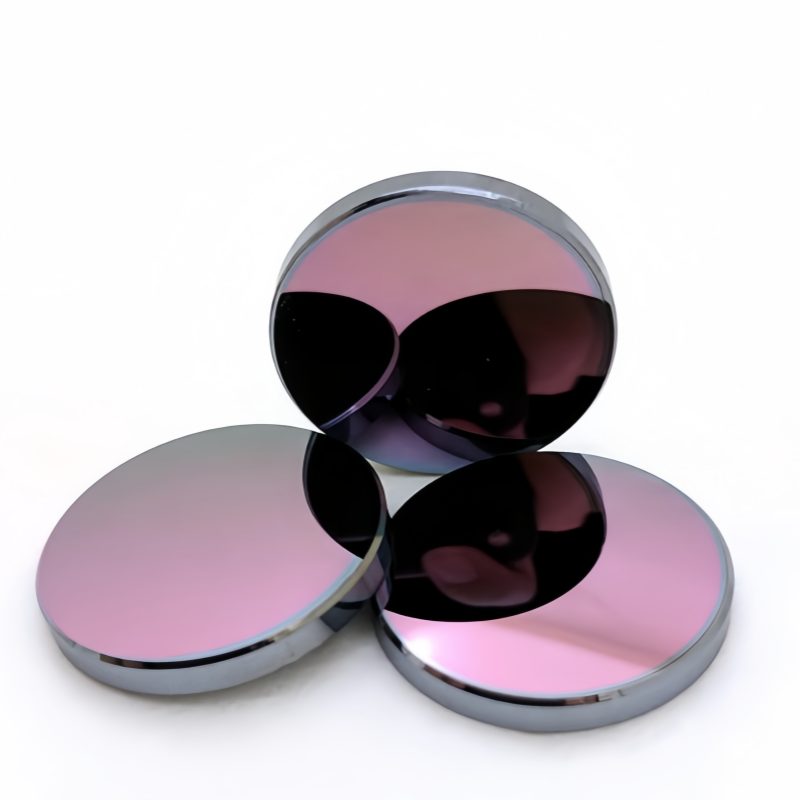

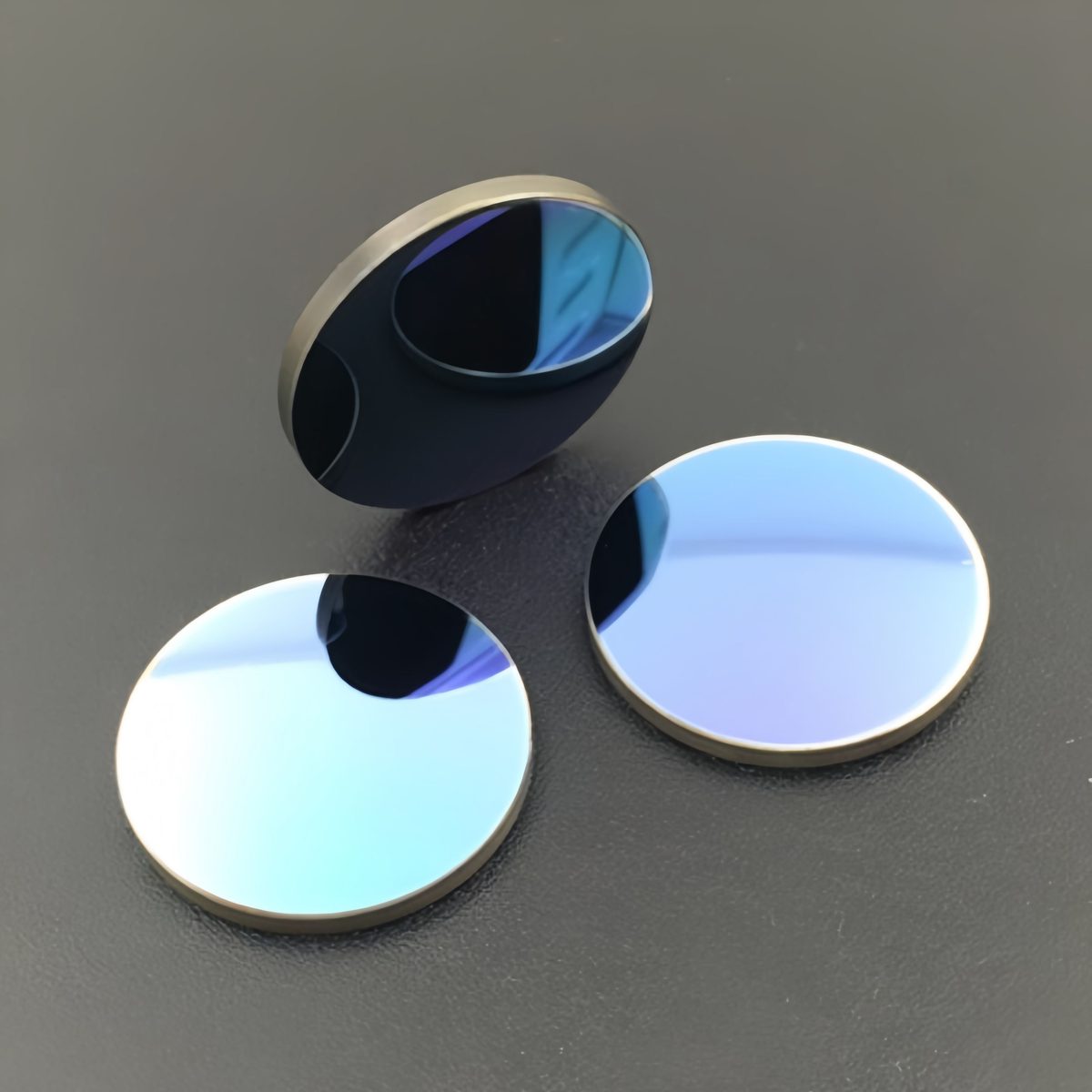

100 mm Germanium Optical Window, AR Coated

Product description

This Germanium optical window is designed for applications in the medical field, providing reliable performance across multiple wavelength bands including 0.7-1.7 μm, 400-700 nm, and <400 nm. With a diameter of 100 mm and customizable features, it meets the stringent requirements of various optical systems. Its anti-reflective coating enhances transmittance, making it suitable for critical imaging applications.

Key Features

Diameter of 100 mm with a tolerance of ±0.01mm~±0.1mm for precise fitting.
Wavelength coverage from 0.7-1.7 μm, ideal for medical and optical applications.
Surface finish options of 20/10, 40/20, and 60/40 to meet specific optical quality needs.
Customizable support available for OEM, ODM, and OBM projects.
Lightweight design at 100 grams for easy integration into various systems.

Applications

Medical

Specification Summary

Item	Value
Material	Germanium
Diameter	100 mm
Thickness	Custom
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	Optical windows
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	100
Diameter Tolerance	±0.01mm~±0.1mm
Thickness Tolerance	±0.01mm
Surface Finish	20/10 40/20 60/40

FAQ

Can I get custom sizes for this optical window?

Yes, the optical window can be customized in diameter from 1 to 500 mm.

What are the tolerances for diameter and thickness?

Diameter tolerance is ±0.01mm~±0.1mm, and thickness tolerance is ±0.01mm.
