1 / 6Optical Windows

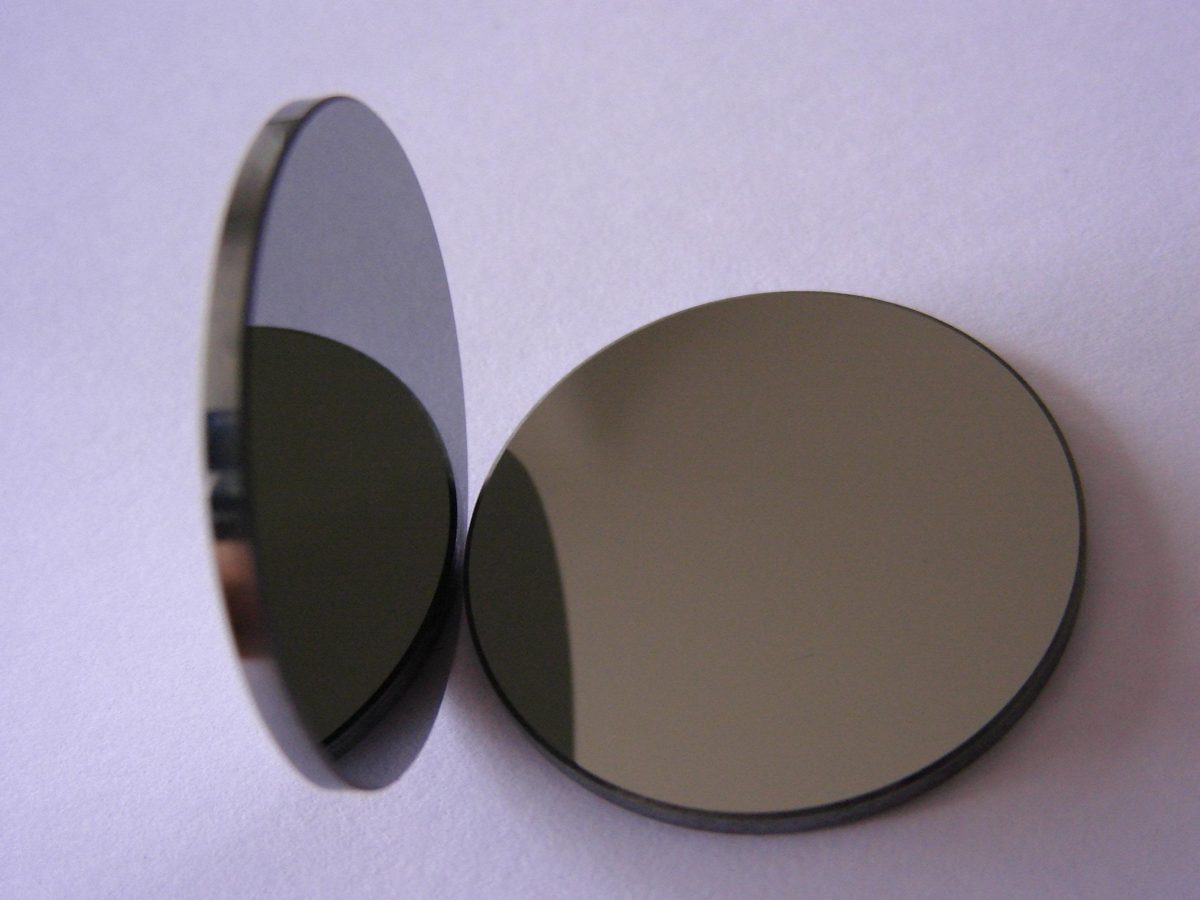

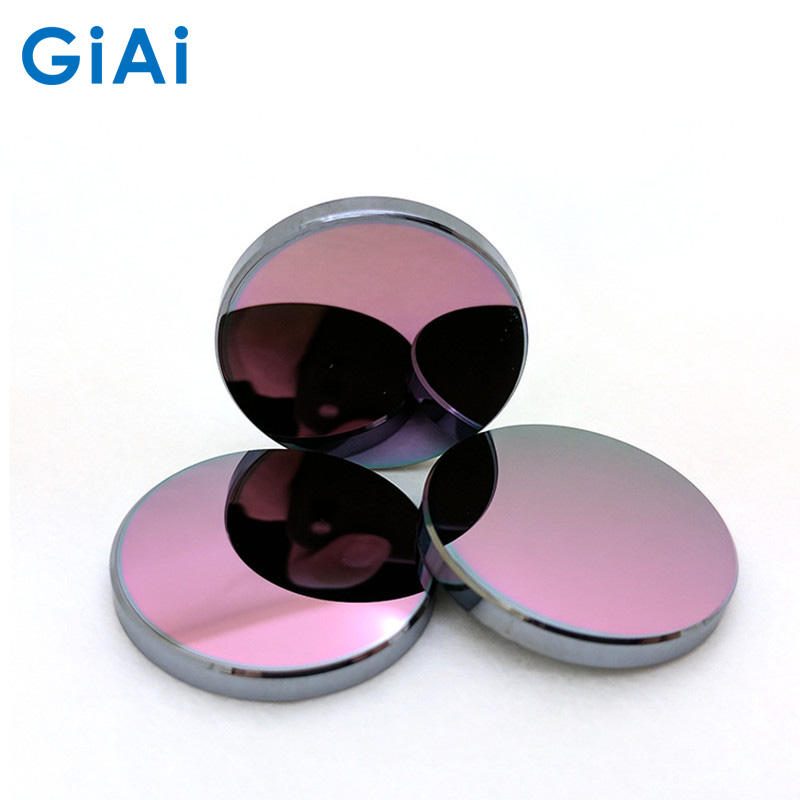

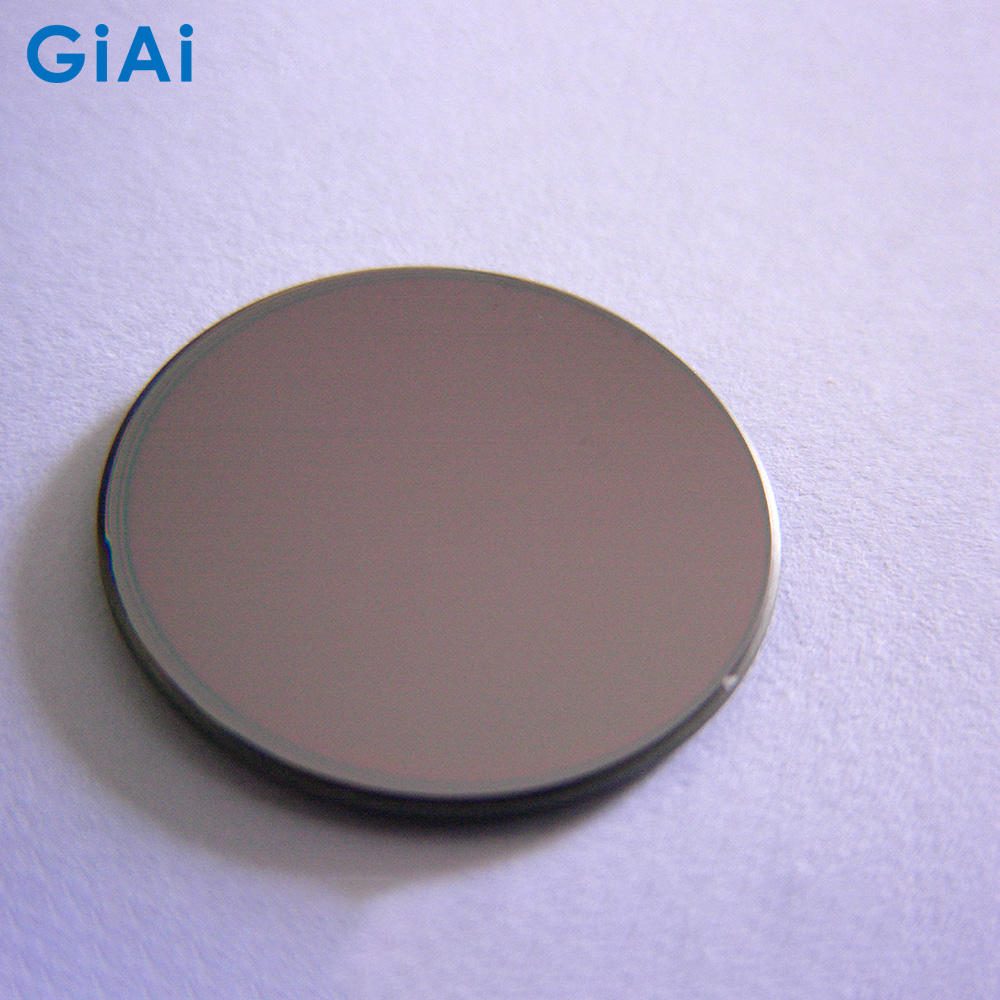

10 mm Germanium Optical Window, AR Coated

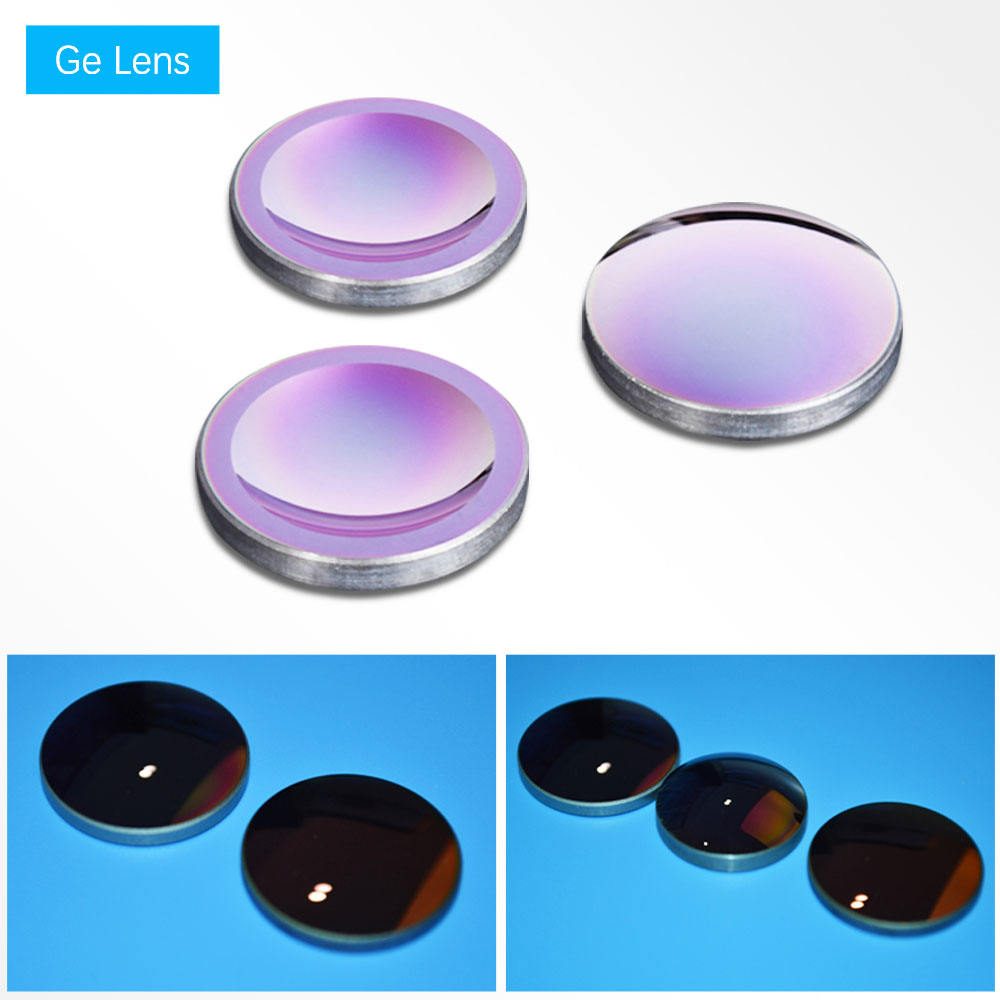

Infrared germanium lens for 8-14 μm, 3-5 μm, and 1.7-3 μm applications, customizable with AR coatings.
Core attributes
- Material
- Germanium
- Diameter range
- 10 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Germanium
- Diameter range
- 10 mm
- Coating
- ar
Product description
This infrared germanium lens is designed for applications in the 8-14 μm, 3-5 μm, and 1.7-3 μm wavelength ranges, making it ideal for IR imaging, LIDAR, and medical devices. With options for anti-reflective (AR) coatings, it enhances transmittance in the specified bands. The lens is available in a standard diameter of 10 mm, ensuring compatibility with various optical systems while maintaining high performance.
Key Features

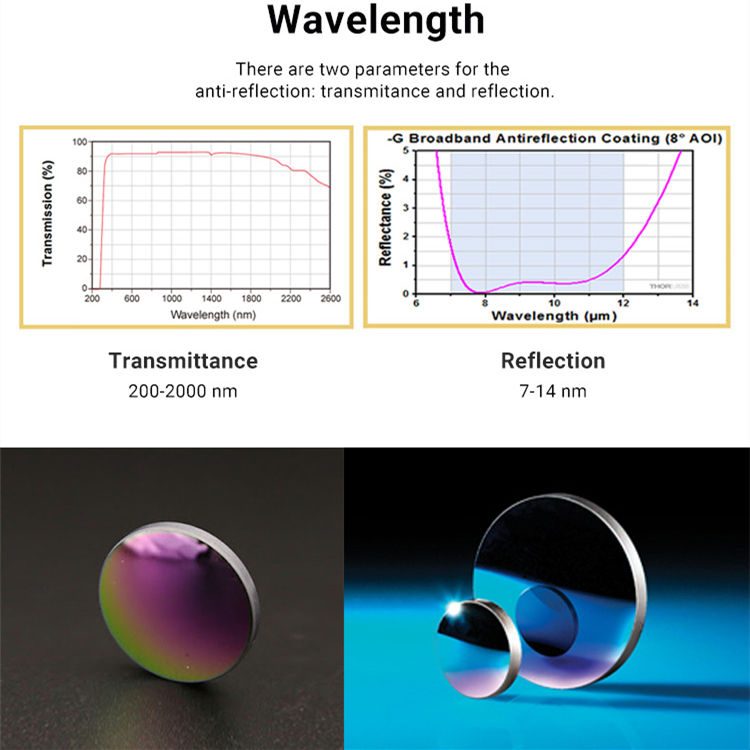

- Wavelength range: 2000-20000 nm (no coating) / 7-14 μm (AR coated) for versatile applications.
- Diameter of 10 mm provides compatibility with standard optical setups.
- Customizable options available through OEM and ODM support for tailored solutions.
- Lightweight design at 0.5 kg for easy integration into systems.
- High density of 5.33 g/cm³ ensures durability and stability.
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Diameter | 10 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | lens; no coated / AR coated |
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Weight | 0.5kg |
| Density | 5.33 g/cm3 |
| Wavelength | 2000-20000 nm (no coated)/7-14 um ( AR coated) |
FAQ
What custom sizes are available?
Standard diameters include 10 mm, with additional options of 15 mm, 20 mm, 25 mm, and 30 mm.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
