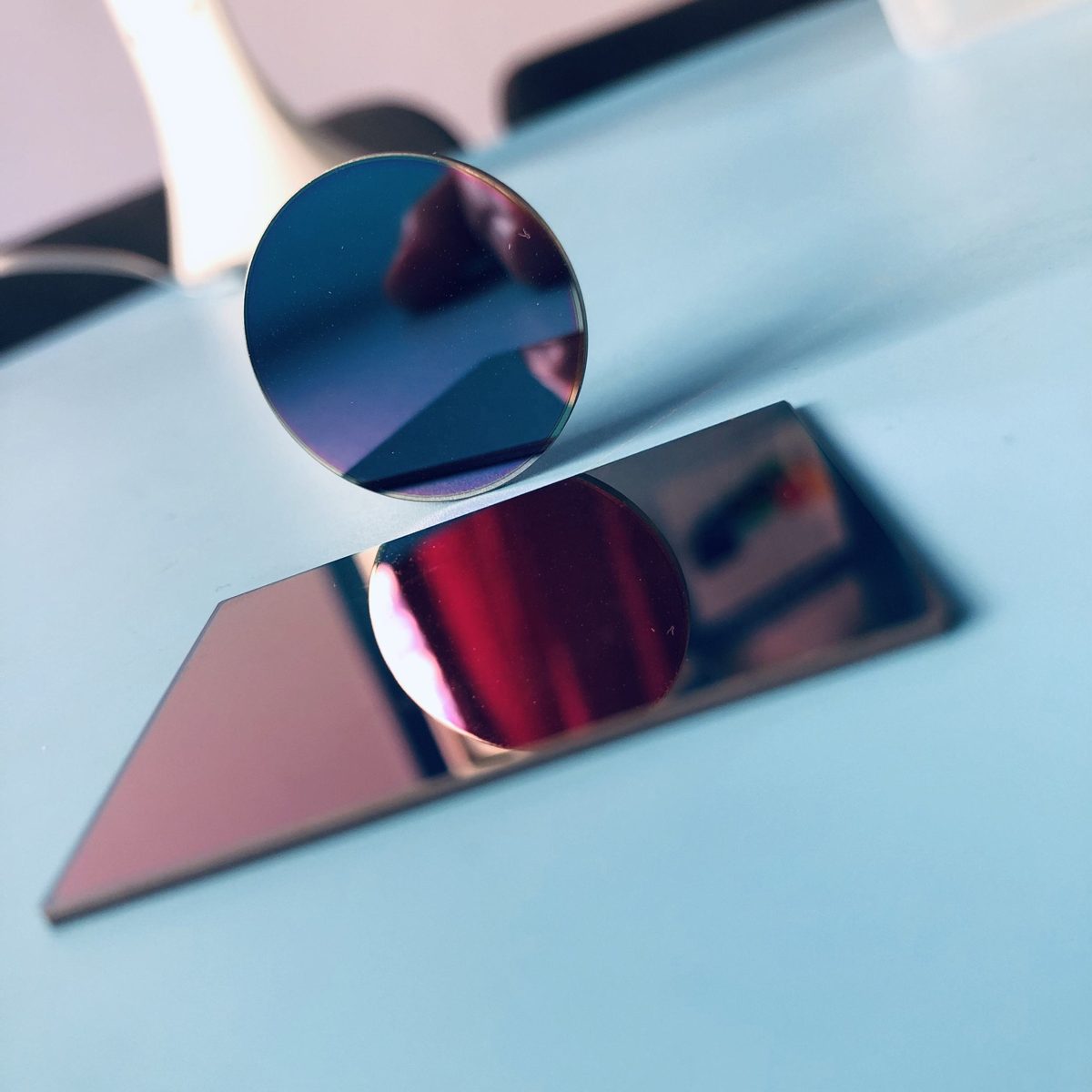

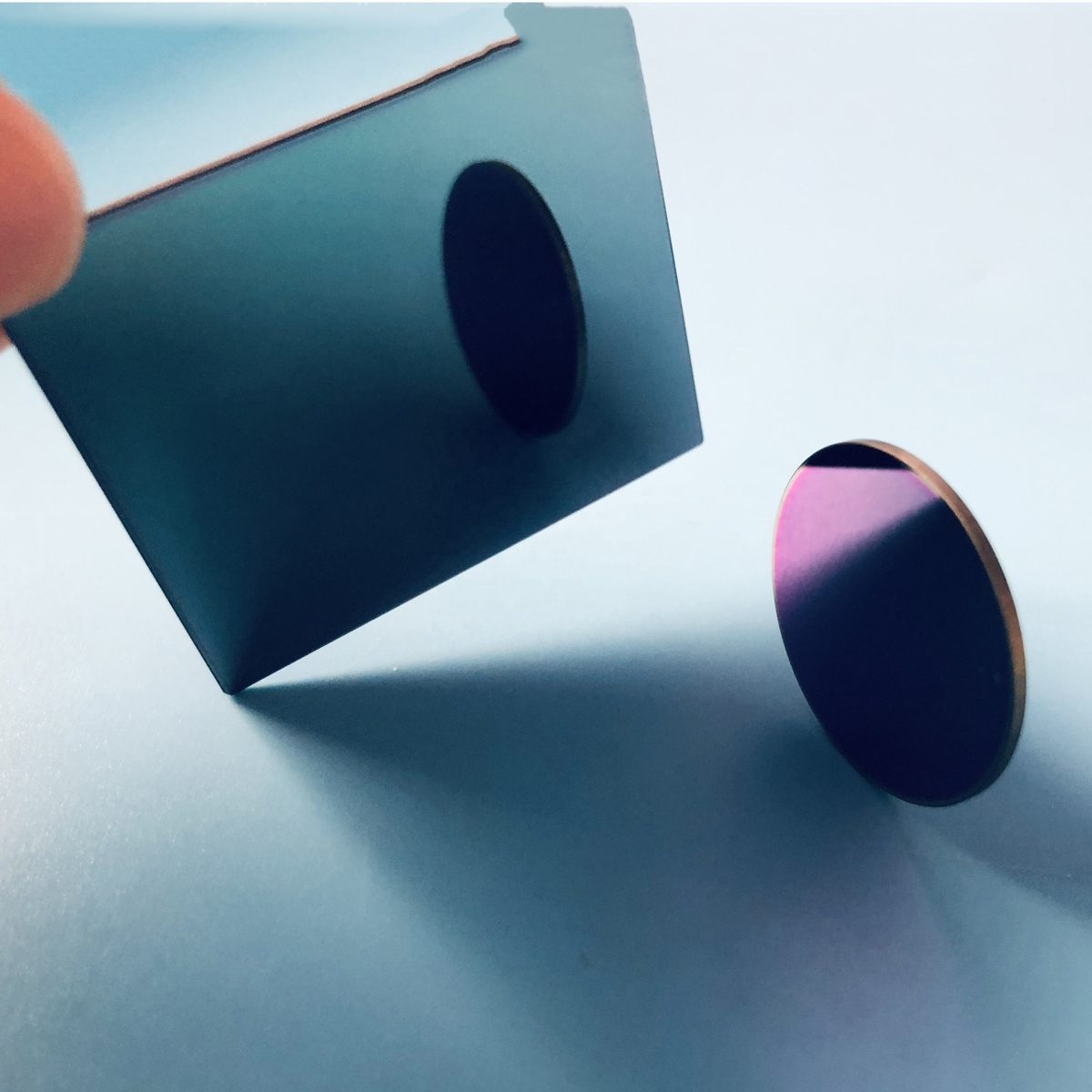

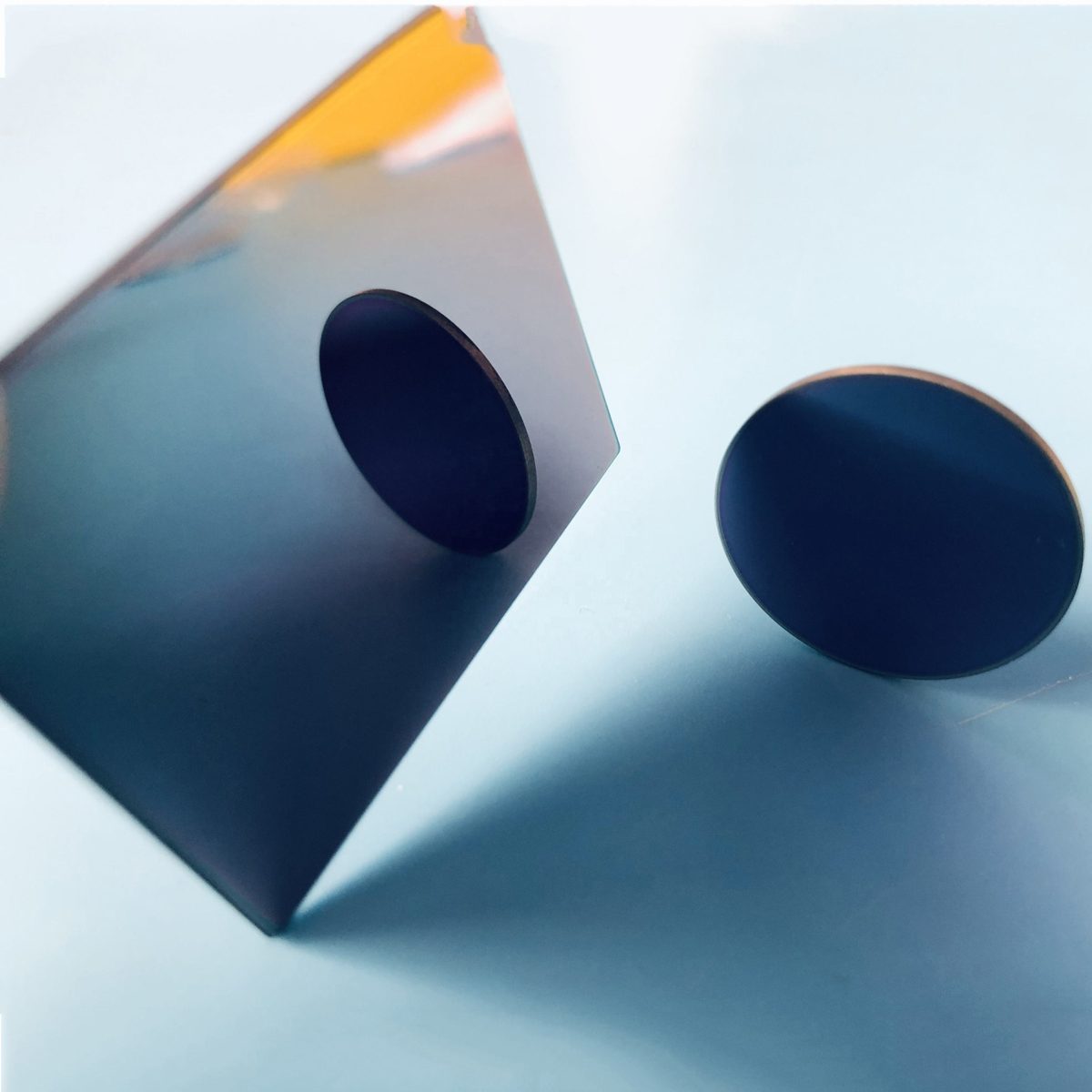

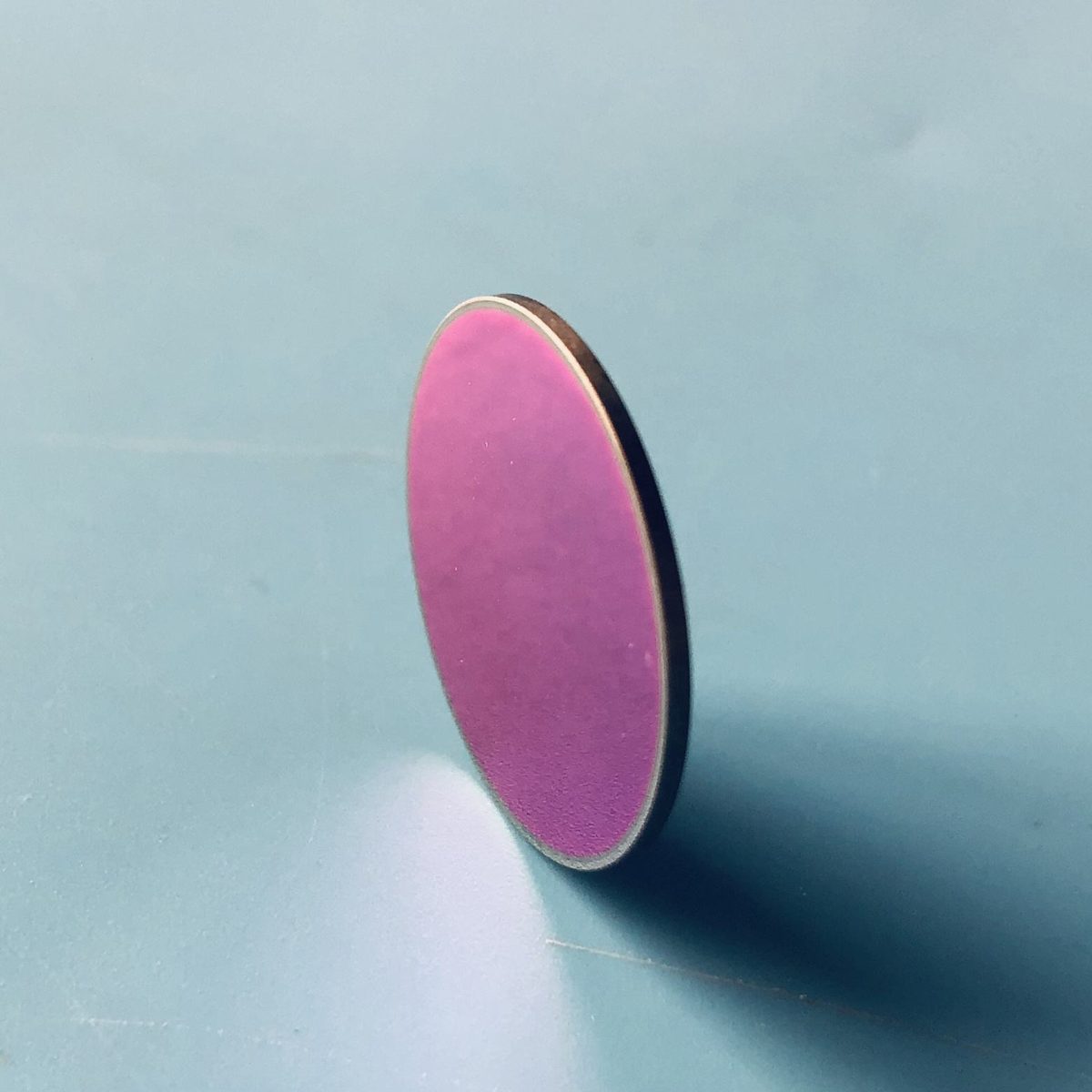

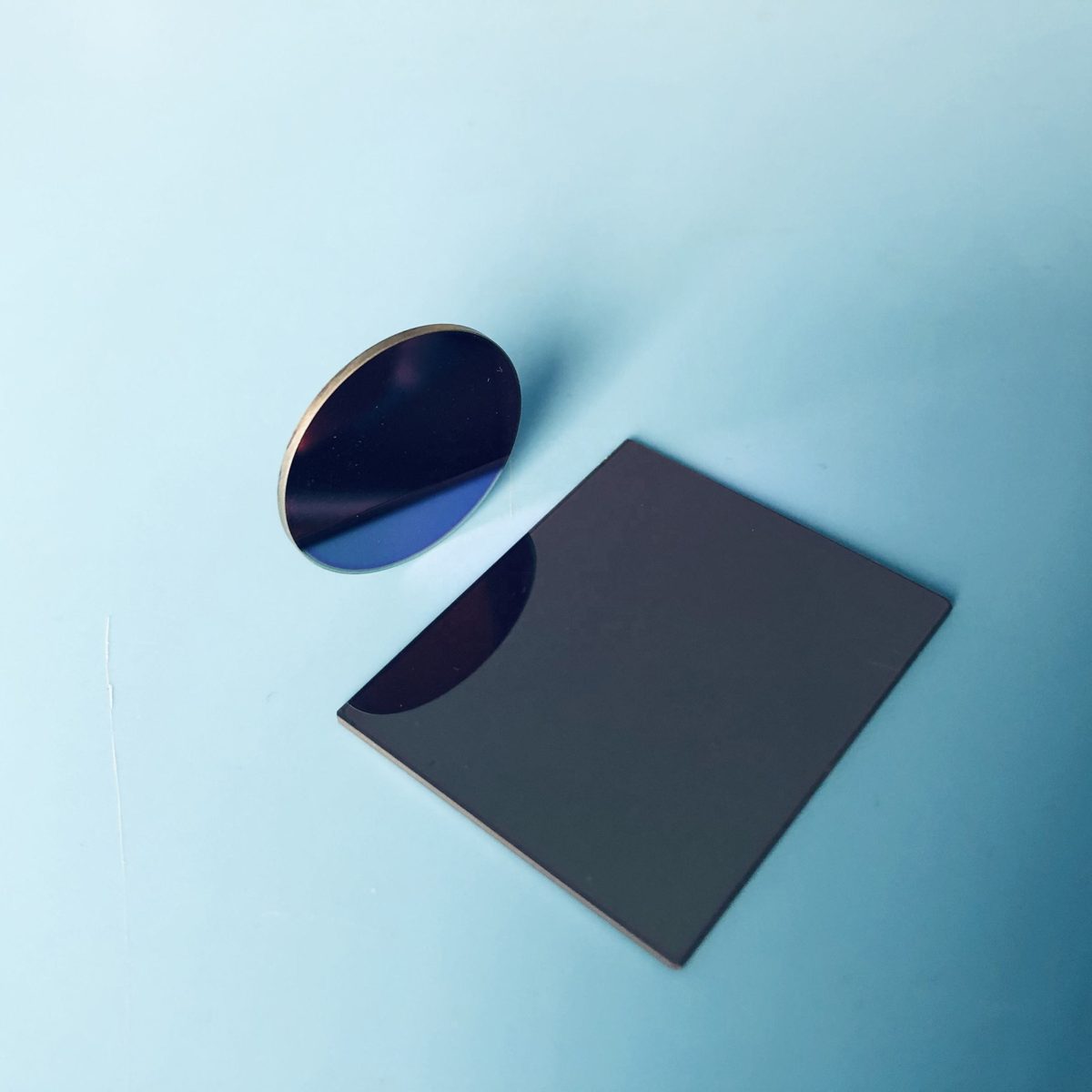

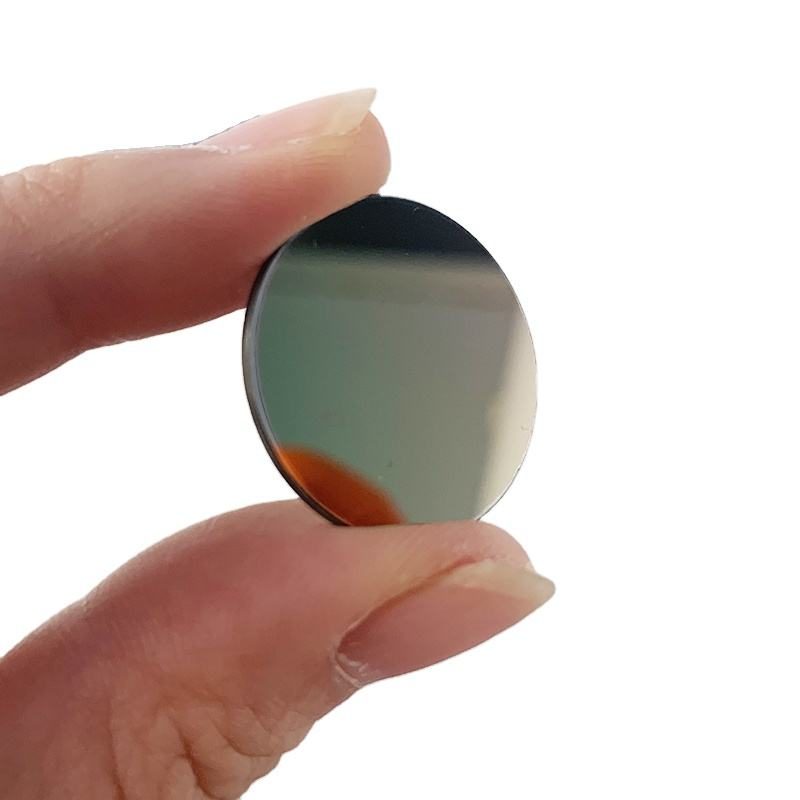

10 mm Germanium Optical Window, DLC Coated
Explore high-performance germanium optical windows for IR applications, featuring durable coatings and precise specifications.
Core attributes
- Material
- Germanium
- Diameter range
- 10 mm
- Coating
- dlc, ar
Product facts
Key attributes
- Material
- Germanium
- Diameter range
- 10 mm
- Coating
- dlc, ar
Product description
Germanium optical windows are essential for IR applications, especially in thermal imaging and medical devices, due to their broad transmission range from 1.7 to 14 μm. With a high index of refraction and low dispersion, these windows ensure effective performance in IR imaging systems. Coated with durable DLC and AR coatings, they provide enhanced toughness and optimal transmittance in the LWIR and MWIR ranges, making them ideal for demanding environments.
Key Features
- Broad transmission range: 1.7-14 μm, suitable for various IR applications.
- High durability: DLC coating enhances toughness for rugged use.
- Clear aperture > 85%, ensuring minimal light loss.
- Diameter tolerance of +/-0.1 mm for precise fit in applications.
- Surface quality rated at 60/40 for reliable performance.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Diameter | 10 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | diamond-like carbon (DLC), anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Warranty | 3 months |
| Customized Support | OEM |
| Diameter Tolerance | +/-0.1mm |
| Clear Aperture | > 85% |
| Flatness | L/4 |
| Bevel | 0.25 mm*45° |
FAQ
Can I get custom sizes for the germanium windows?
Custom sizes are available through OEM support.
What is the minimum order quantity (MOQ) for these windows?
The minimum order quantity is not specified.
