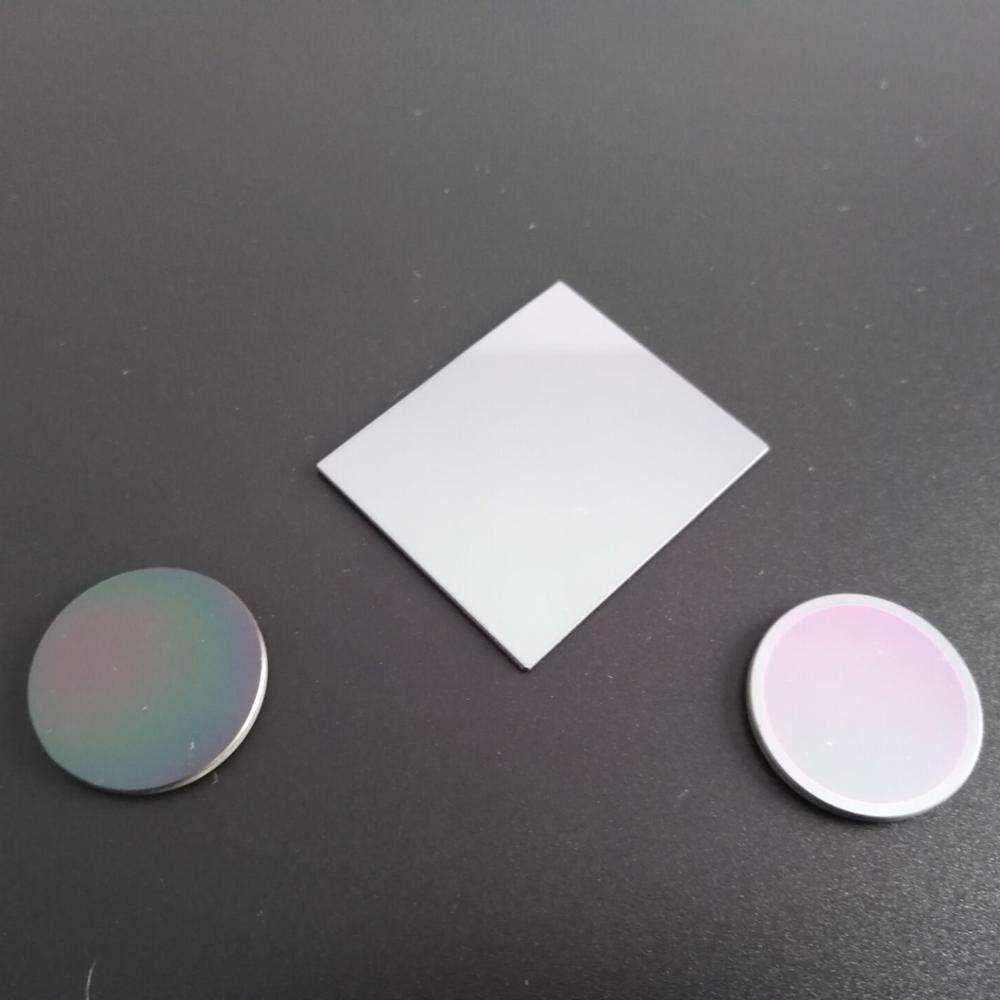

1 mm Germanium Optical Window

Product description

Germanium windows are essential for IR applications, particularly in thermal imaging and medical devices, due to their broad transmission range from 1.7 to 14 μm. With high durability and low dispersion characteristics, these windows are suitable for various infrared imaging systems. The material’s suitability for LWIR and MWIR applications makes it a reliable choice for engineers seeking consistent performance in demanding environments.

Key Features

Diameter options from 1.0 mm to 250.0 mm, accommodating various application needs.
Diameter tolerance of +/-0.1 mm ensures precision for critical optical setups.
Clear aperture greater than 85% maximizes light transmission for enhanced imaging.
Surface quality of 60/40 provides reliable performance in demanding conditions.
Flatness of λ/4 supports high-quality optical performance across applications.

Applications

Thermal Imaging, Medical

Specification Summary

Item	Value
Material	Germanium
Diameter	1 mm
Thickness	Custom
Surface Quality	60/40
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Diameter Tolerance	+/-0.1mm
Clear Aperture	> 85%
Flatness	L/4
Bevel	0.25 mm*45°

FAQ

Can I get custom sizes for Germanium windows?

Diameter options range from 1.0 mm to 250.0 mm, allowing for various custom size requirements.

What is the minimum order quantity (MOQ) for these windows?

The data does not specify a minimum order quantity (MOQ) for the Germanium windows.
