1 / 6Optical Windows

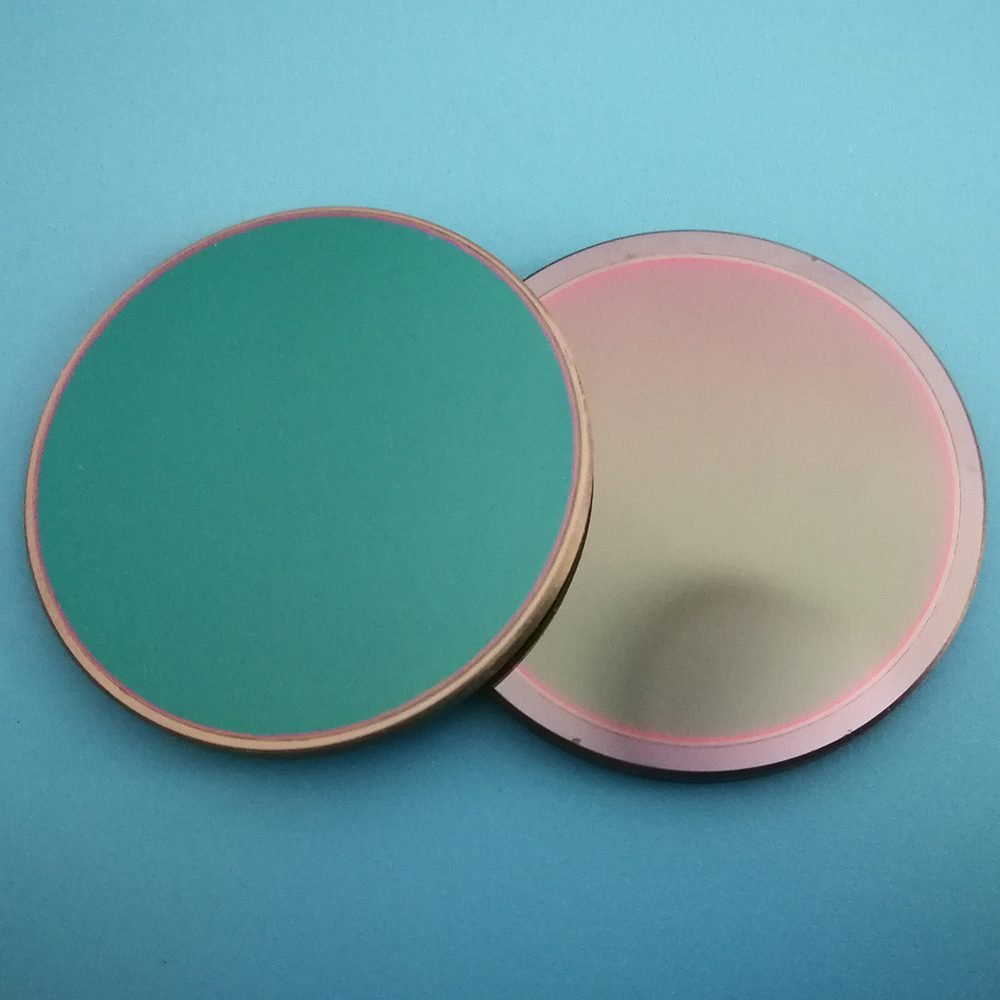

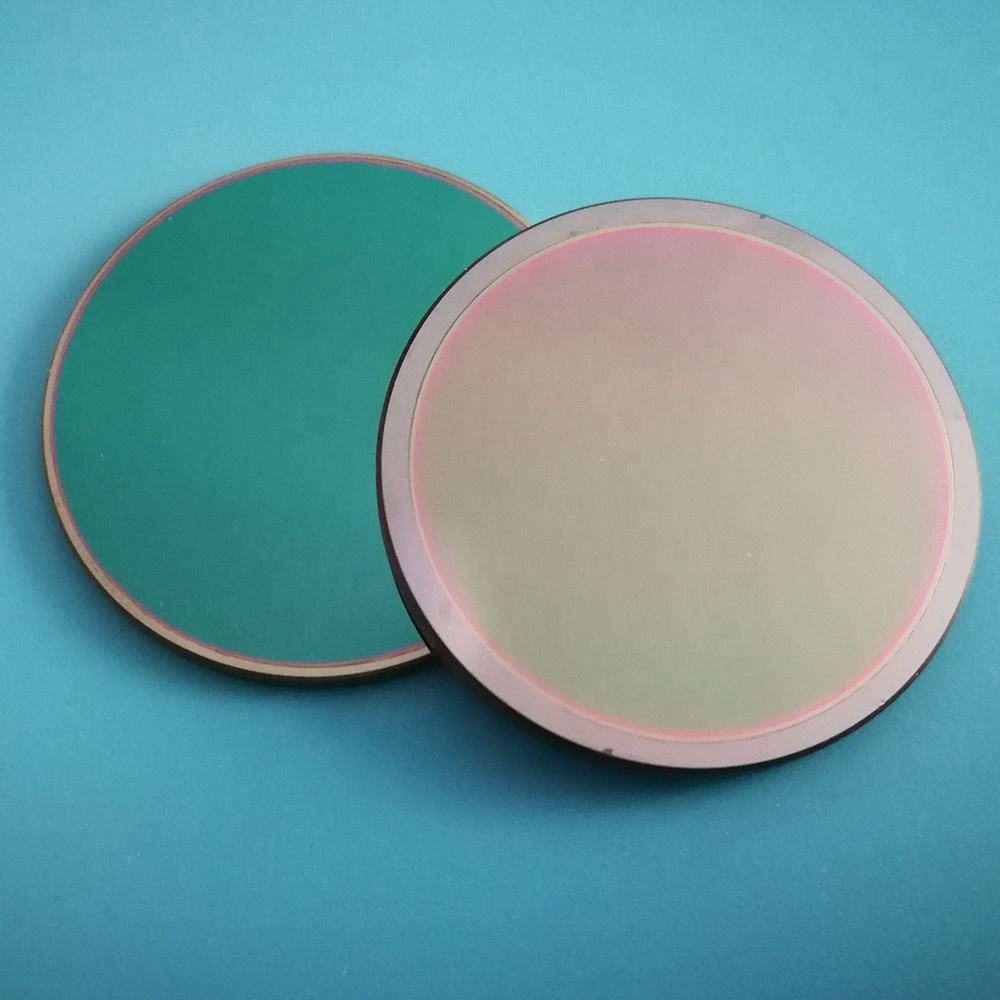

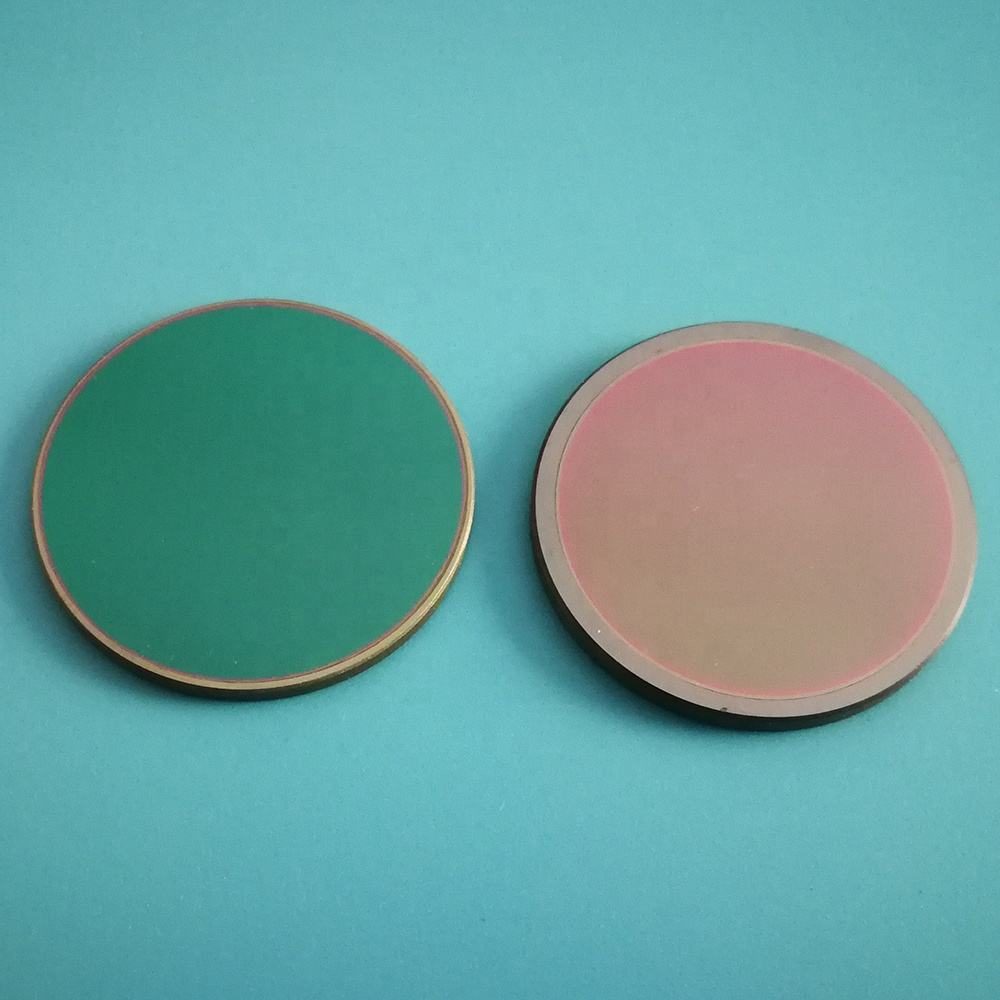

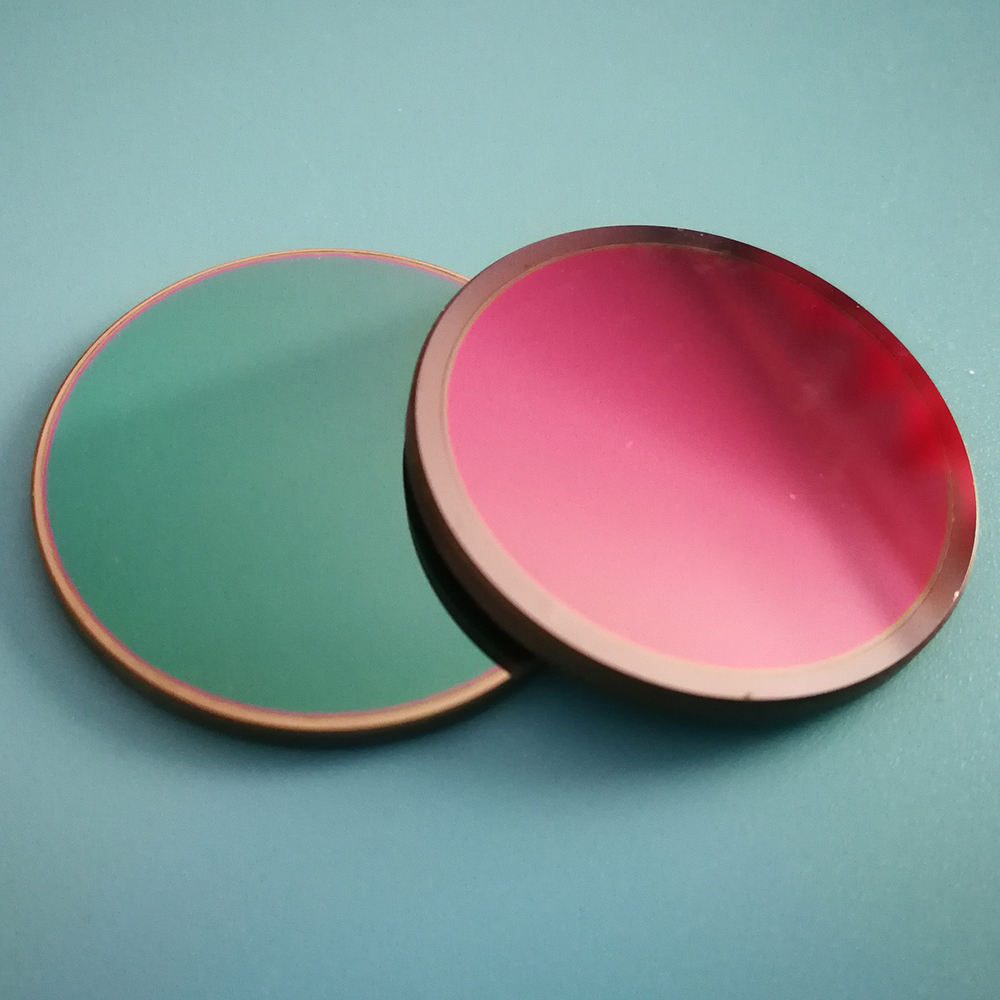

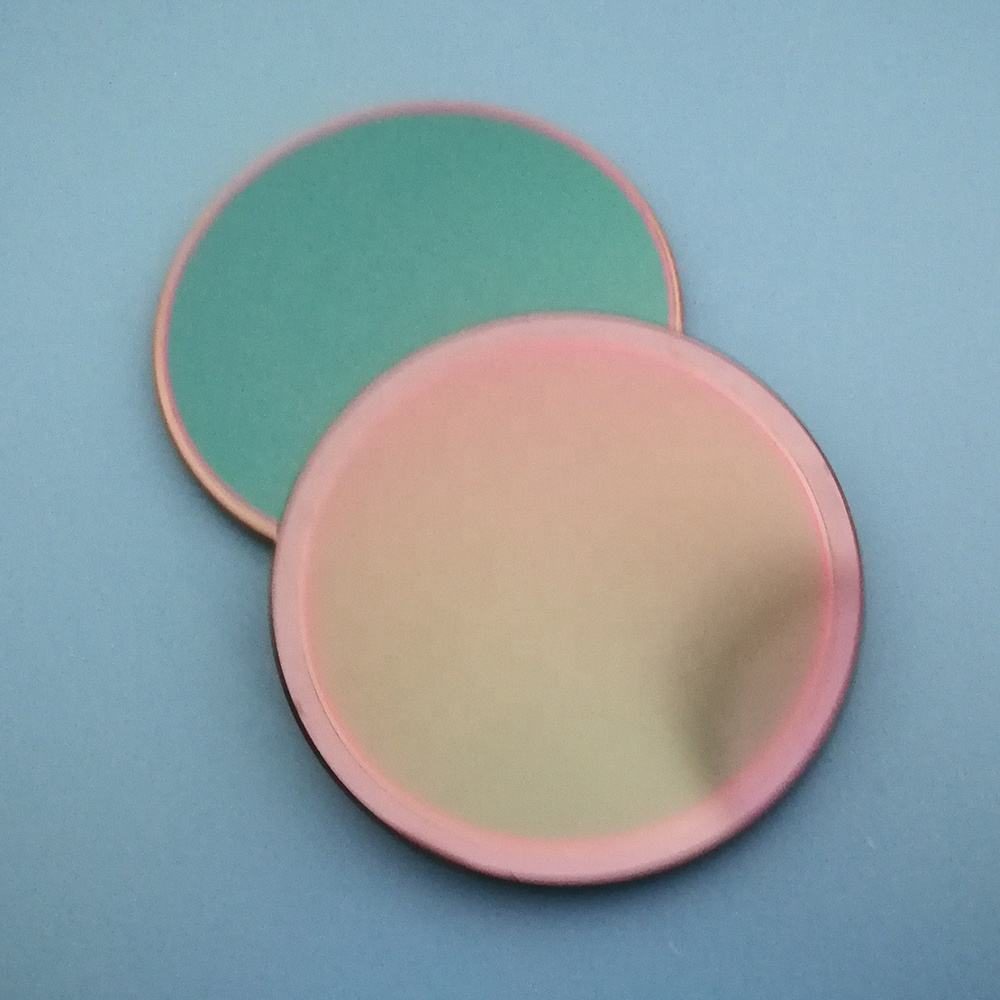

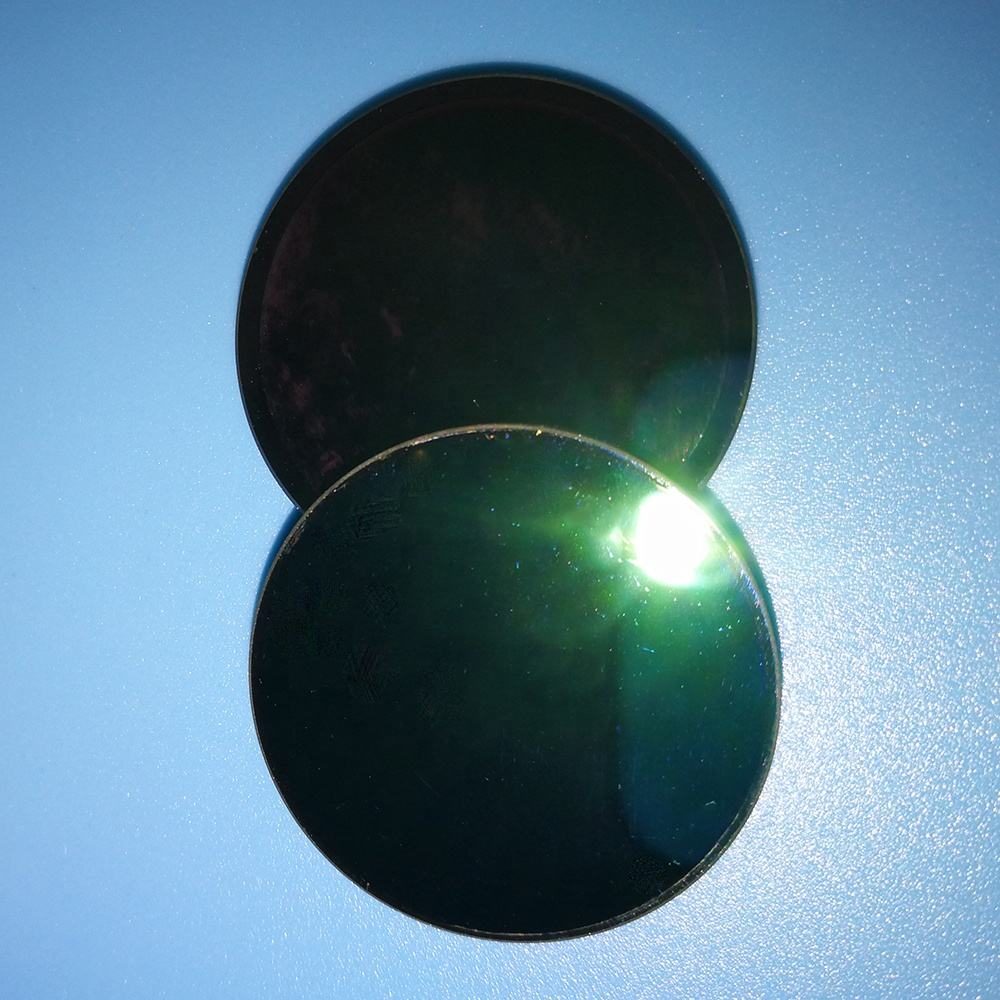

20x2 mm Germanium Optical Window, AR Coated
Explore the Germanium IR Window for medical applications, optimized for 8-14 μm wavelengths with AR coatings.
Core attributes
- Material
- Germanium
- Diameter range
- 20 mm
- Thickness
- 2 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Germanium
- Diameter range
- 20 mm
- Thickness
- 2 mm
- Coating
- ar
Product description
The Germanium IR Window is designed for applications in the medical field, specifically within the 8-14 μm wavelength range. Its flat design and AR coatings enhance performance by minimizing reflection losses, making it ideal for IR imaging and other optical applications. With a diameter of 20 mm and a thickness of 2 mm, this window offers reliable performance in demanding environments.
Key Features
- Wavelength range: 8-14 μm for optimal IR imaging applications.
- Diameter: 20 mm with a tolerance of ±0.1 mm for precise fitting.
- Thickness: 2 mm, ensuring durability and stability.
- AR coatings on both surfaces to enhance transmittance and reduce reflections.
- OEM support available for custom solutions and modifications.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 20 x 2 |
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Diameter | 20 mm |
| Thickness | 2 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Flat |
| Customized Support | OEM |
| Warranty | 2 MONTHS |
| Weight | 0.1 |
| Diameter Tolerance | +-0.1mm |
| Wavelength | 8-12um |
| Keywords | GE WINDOW/IR WINDOW |
FAQ
Can I get custom sizes for the Germanium window?
Yes, OEM support is available for customized sizes and modifications.
What is the diameter tolerance for this window?
The diameter tolerance is ±0.1 mm.
