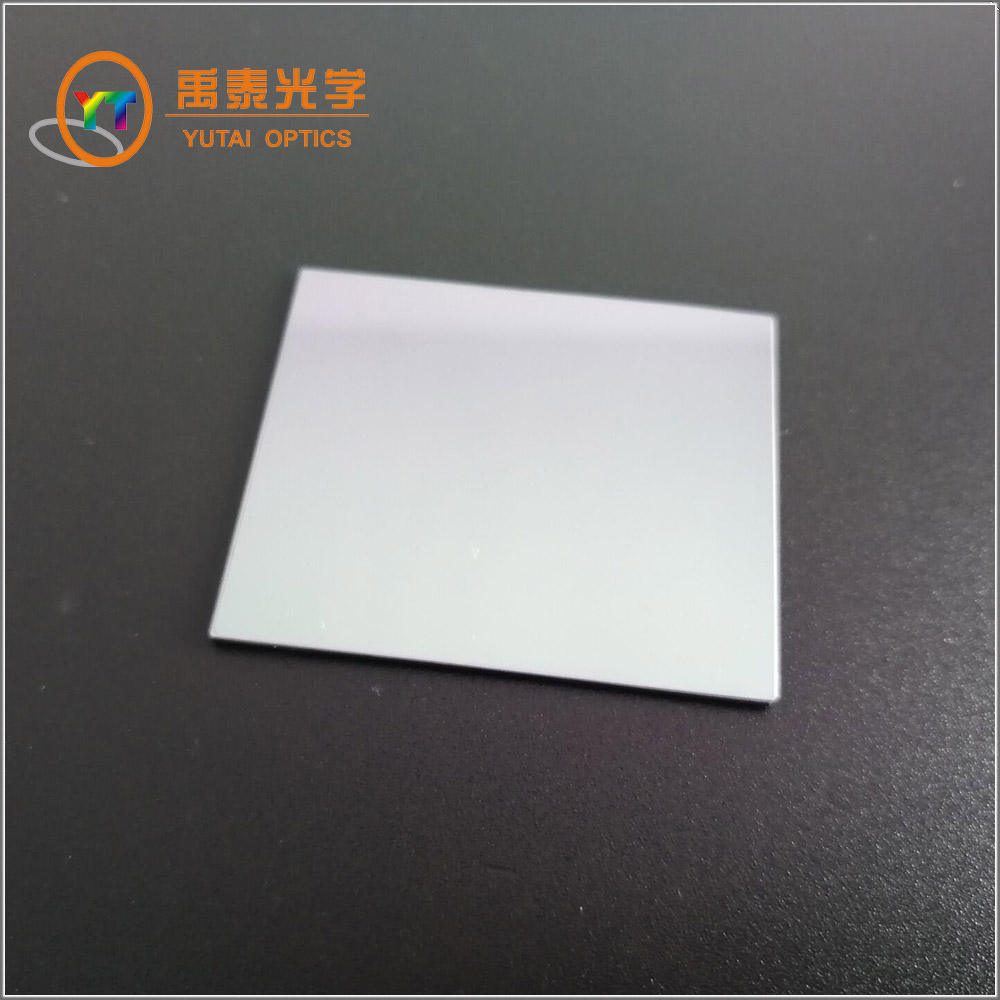

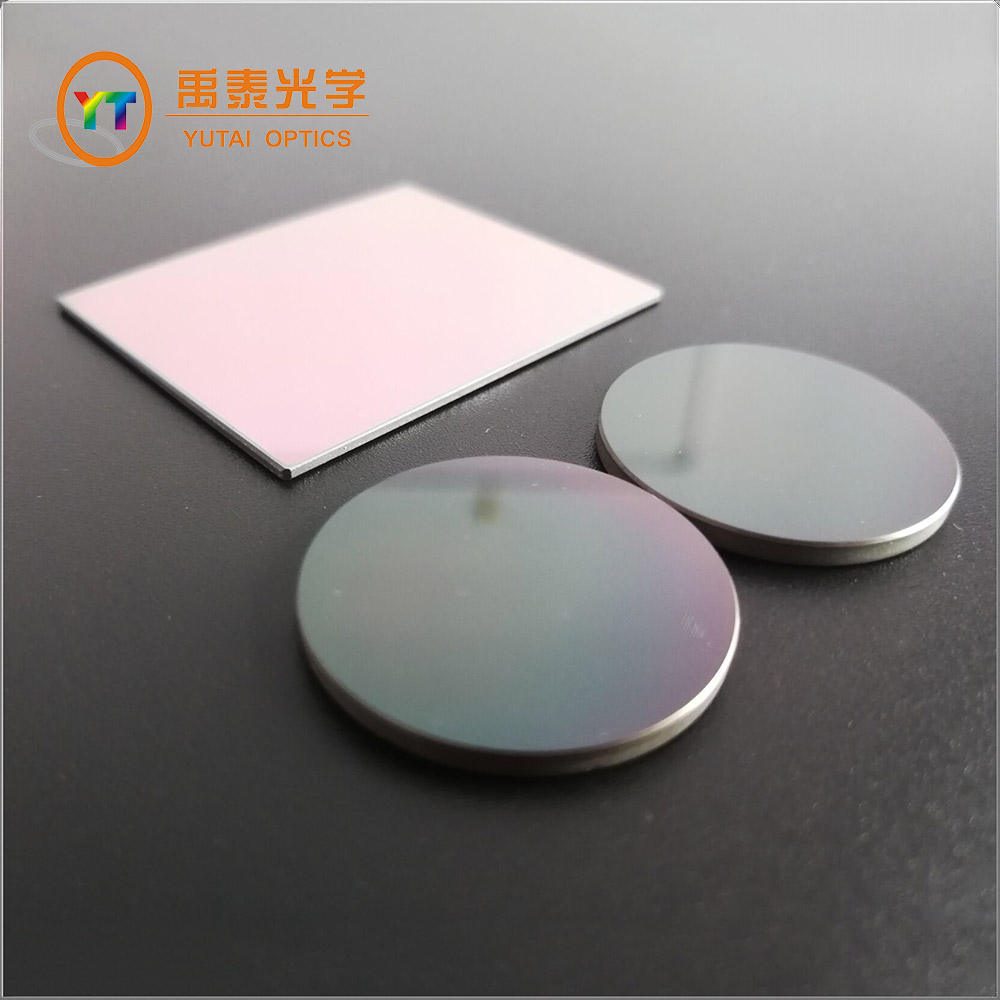

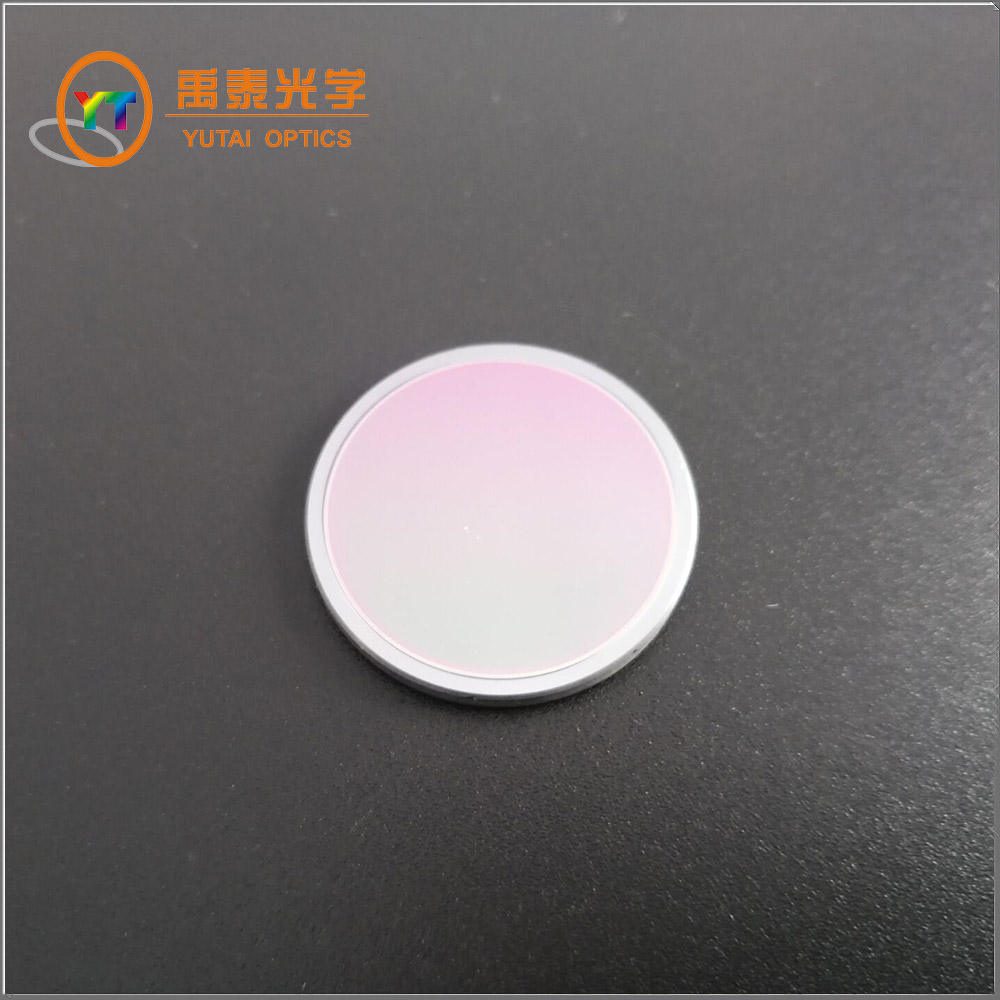

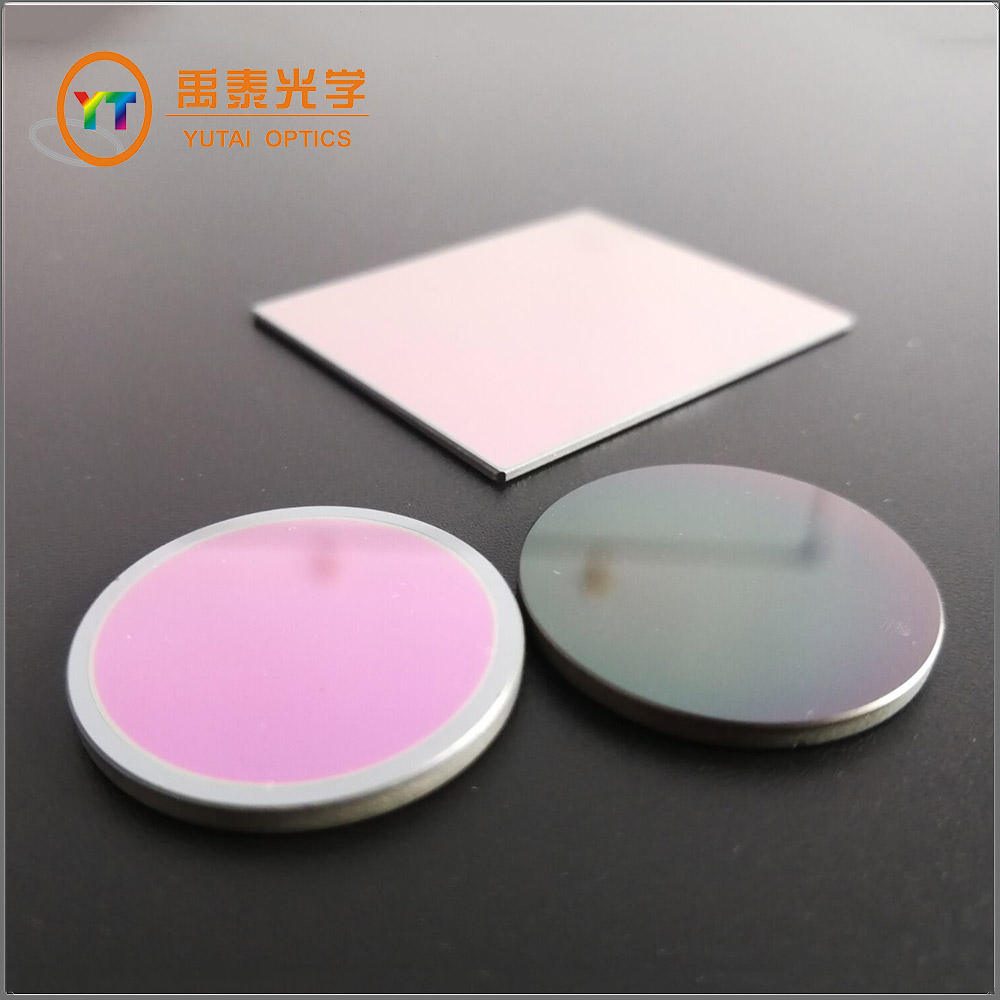

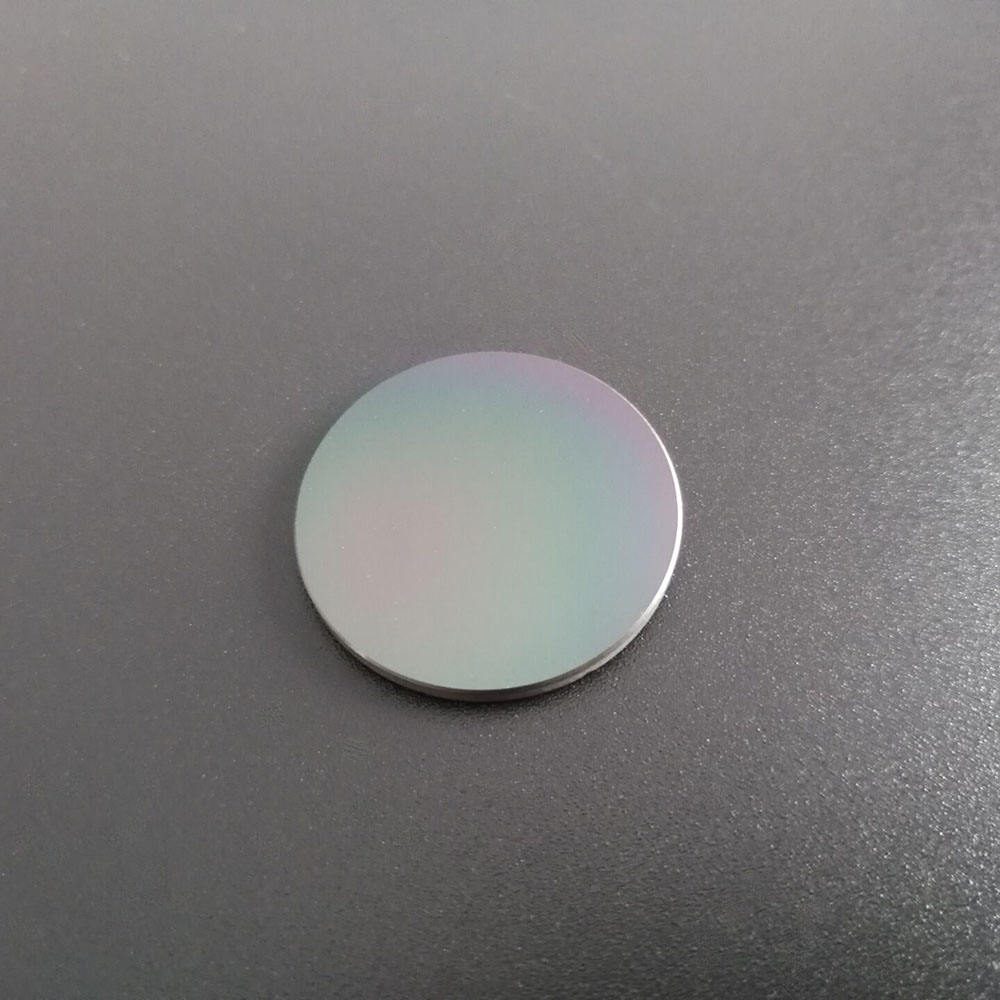

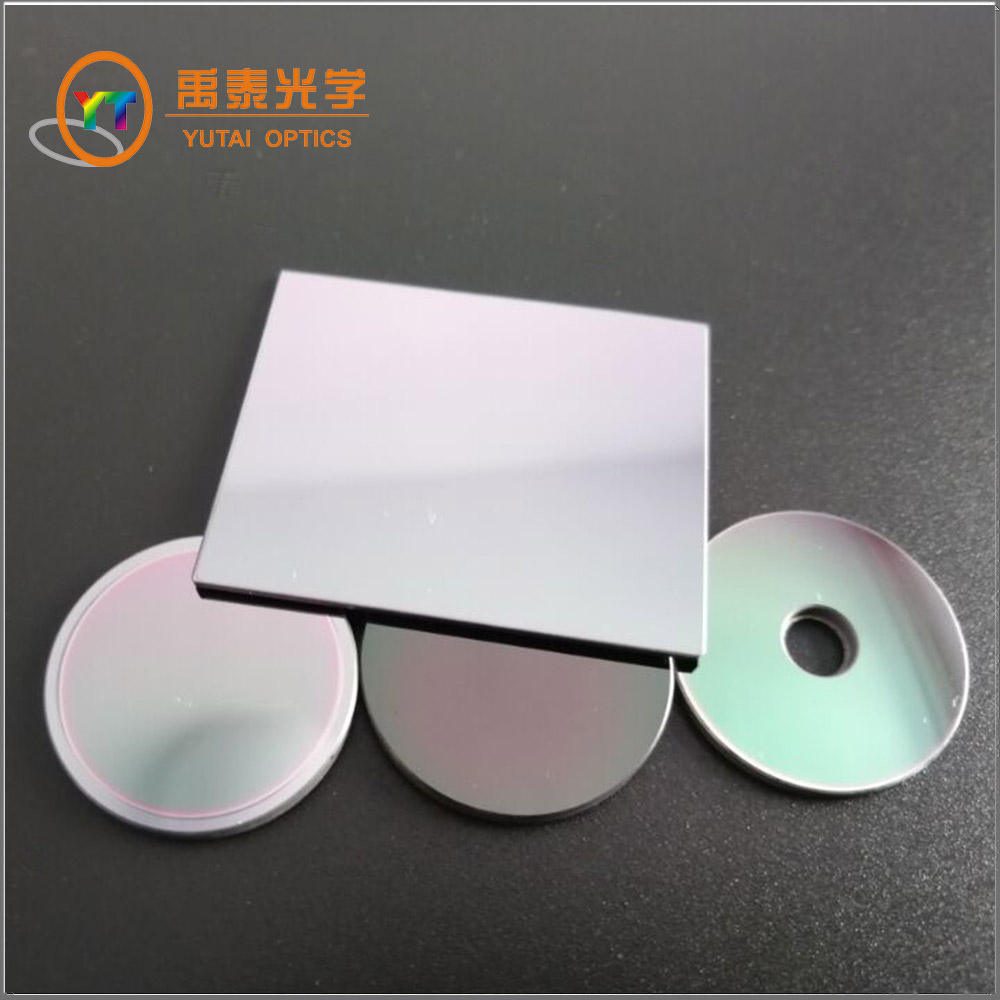

3 mm Germanium Optical Window, AR Coated
Explore Germanium Windows with AR/DLC Coating for thermal imaging and medical applications. Custom sizes available.
Core attributes
- Material
- Germanium
- Diameter range
- 3–200 mm
- Coating
- ar, dlc
Product facts
Key attributes
- Material
- Germanium
- Diameter range
- 3–200 mm
- Coating
- ar, dlc
Product description
Germanium Windows with AR/DLC Coating are essential for applications in thermal imaging and medical devices. With a wide transmission range of 1.7-14 μm and high surface quality (40/20), these windows provide optimal performance for infrared lasers and optical systems. Their design flexibility allows for custom dimensions, making them suitable for various applications while ensuring high transmittance and minimal surface curvature.
Key Features
- Transmission range: 1.7-14 μm, ideal for infrared applications.
- Surface quality of 40/20 ensures minimal distortion for clear imaging.
- Custom dimensions available with a tolerance of +0.0,-0.1mm.
- Clear aperture greater than 90% for maximum light throughput.
- Parallelism of 3 arc enhances optical performance.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Diameter | 3 mm |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | FLAT |
| Customized Support | OEM |
| Warranty | 2 months |
| Weight | 0.02KG |
| Name | Germanium Windows with AR/DLC Coating Ge Window for laser |
| Dimension | as design |
| Dimension Tolerance | +0.0,-0.1mm |
| Thickness Tolerance | +0.0,-0.1mm |
| Clear Aperture | >90% |
| Parallelism | 3 arc |
| Flatness | L/4 |
FAQ
Can I get custom sizes for the Germanium windows?
Yes, custom dimensions are available with a tolerance of +0.0,-0.1mm.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexibility in ordering.
