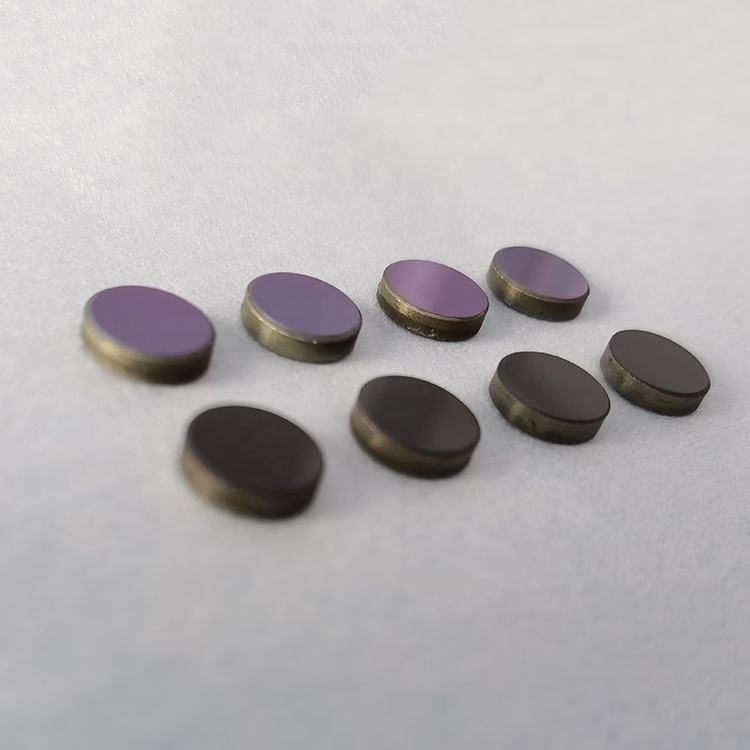

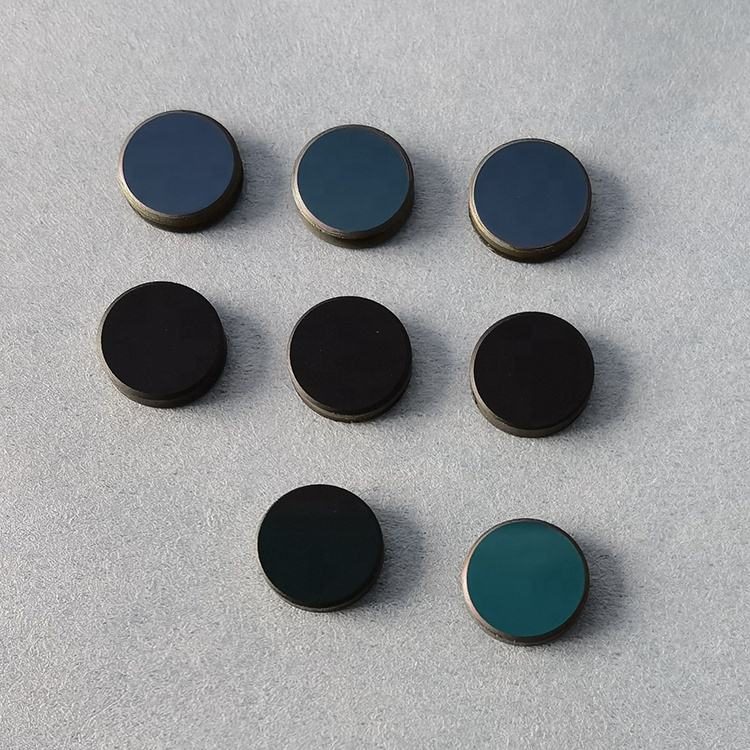

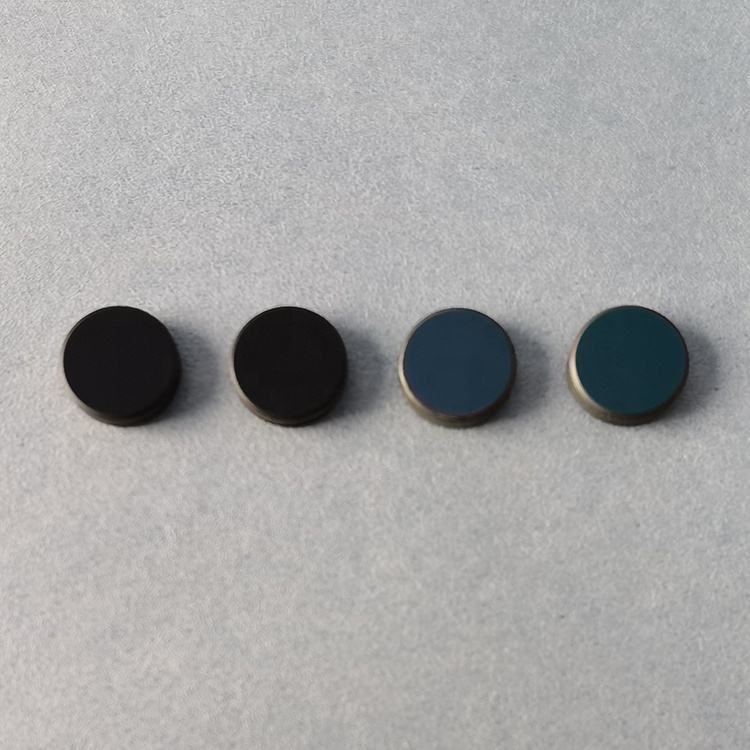

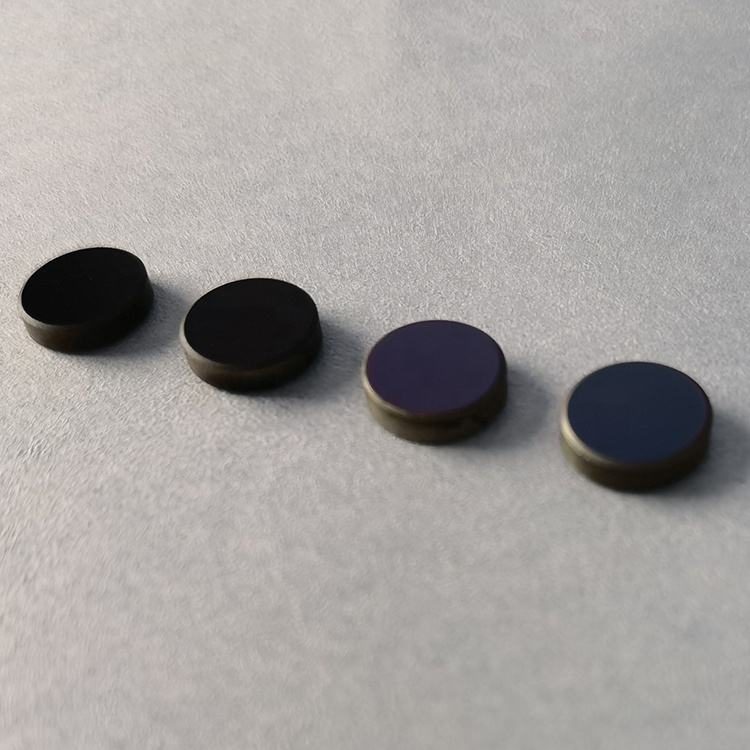

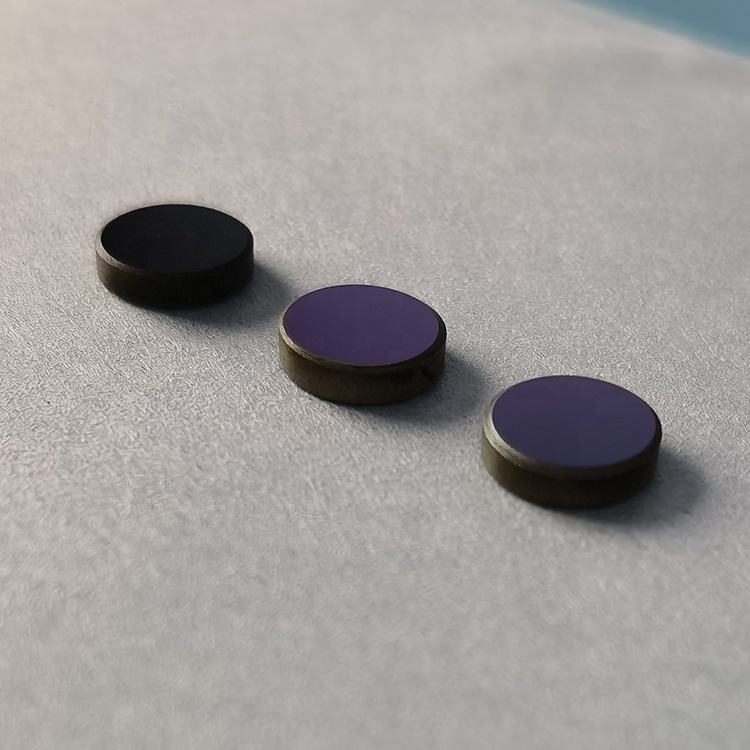

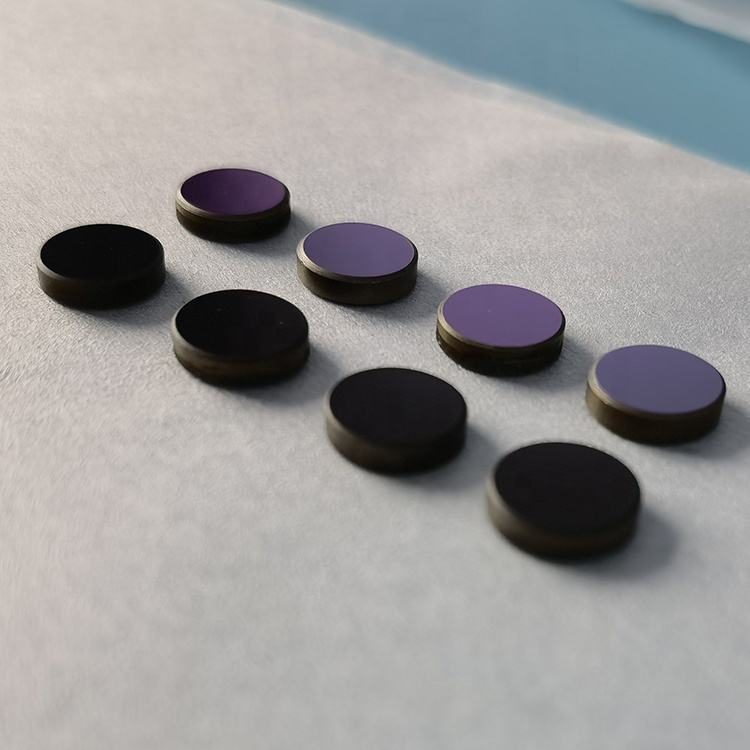

3 mm Germanium Optical Window, DLC Coated
Explore the Germanium IR Window Lens for thermal imaging and medical applications, featuring AR/DLC coatings and customizable options.
Core attributes
- Material
- Germanium
- Diameter range
- 3 mm
- Coating
- dlc, ar
Product facts
Key attributes
- Material
- Germanium
- Diameter range
- 3 mm
- Coating
- dlc, ar
Product description
The Germanium IR Window Lens is designed for applications in thermal imaging and medical devices, offering optimal performance across a wide wavelength range of 0.7-14 μm. With its high refractive index and minimal surface curvature, this lens is ideal for infrared lasers and imaging systems. The lens features AR/DLC coatings, enhancing durability and transmission efficiency, making it suitable for both indoor and outdoor applications.
Key Features
- Wavelength compatibility: 0.7-14 μm for diverse applications.
- Surface quality: 80/50 ensures high clarity and minimal distortion.
- Custom OEM support available for tailored solutions.
- Standard bevel design for easy integration into existing systems.
- Tolerance of ±0.1 mm for precise fitting.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Diameter | 3 mm |
| Thickness | Custom |
| Surface Quality | 80/50 |
| Coating | diamond-like carbon (DLC), anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | FLAT |
| Customized Support | OEM |
| Warranty | 2 MONTHS |
| Weight | 0.01 |
| Name | 8-14um/2-5um AR/DLC Ge Window Lens Germanium IR Window |
| Tolerance | +-0.1mm |
| Flatness | 3(0.5) |
| Bevel | standard bevel |
FAQ
Can I get custom sizes?
Custom sizes are available upon request, supported by OEM capabilities.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
