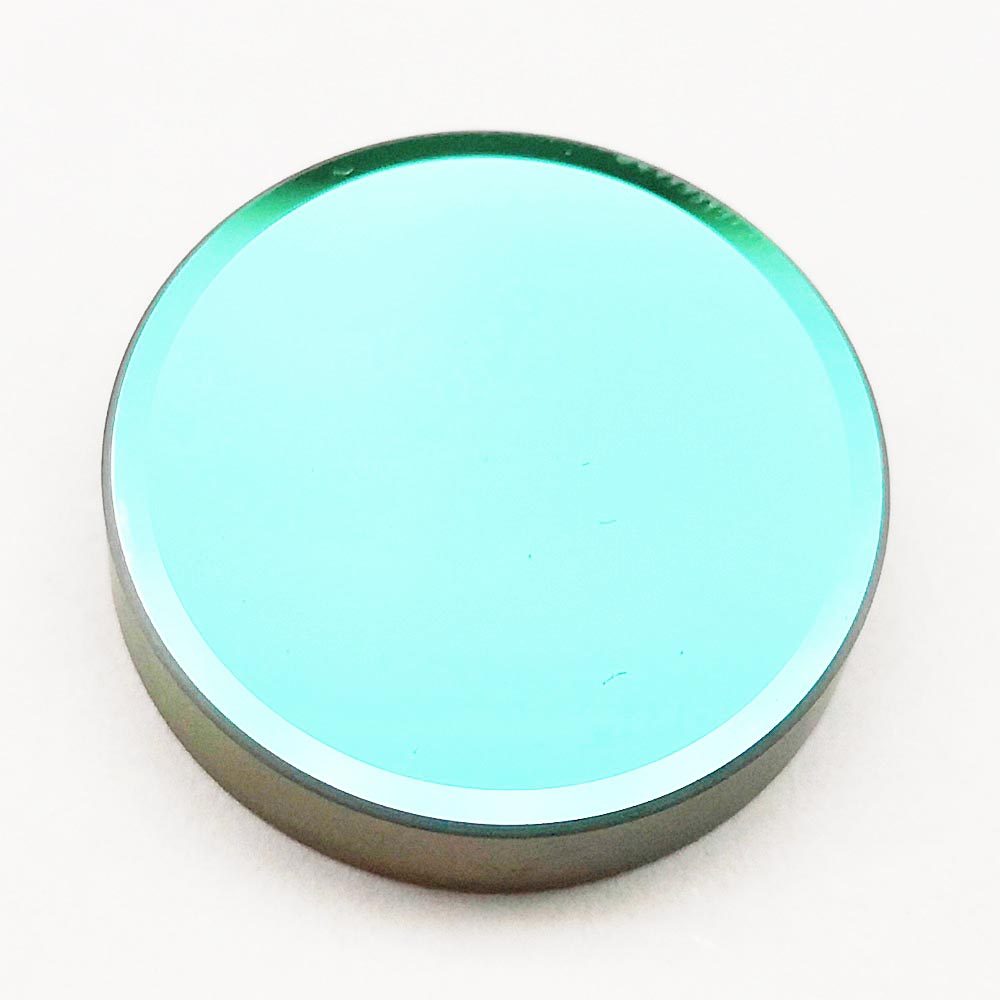

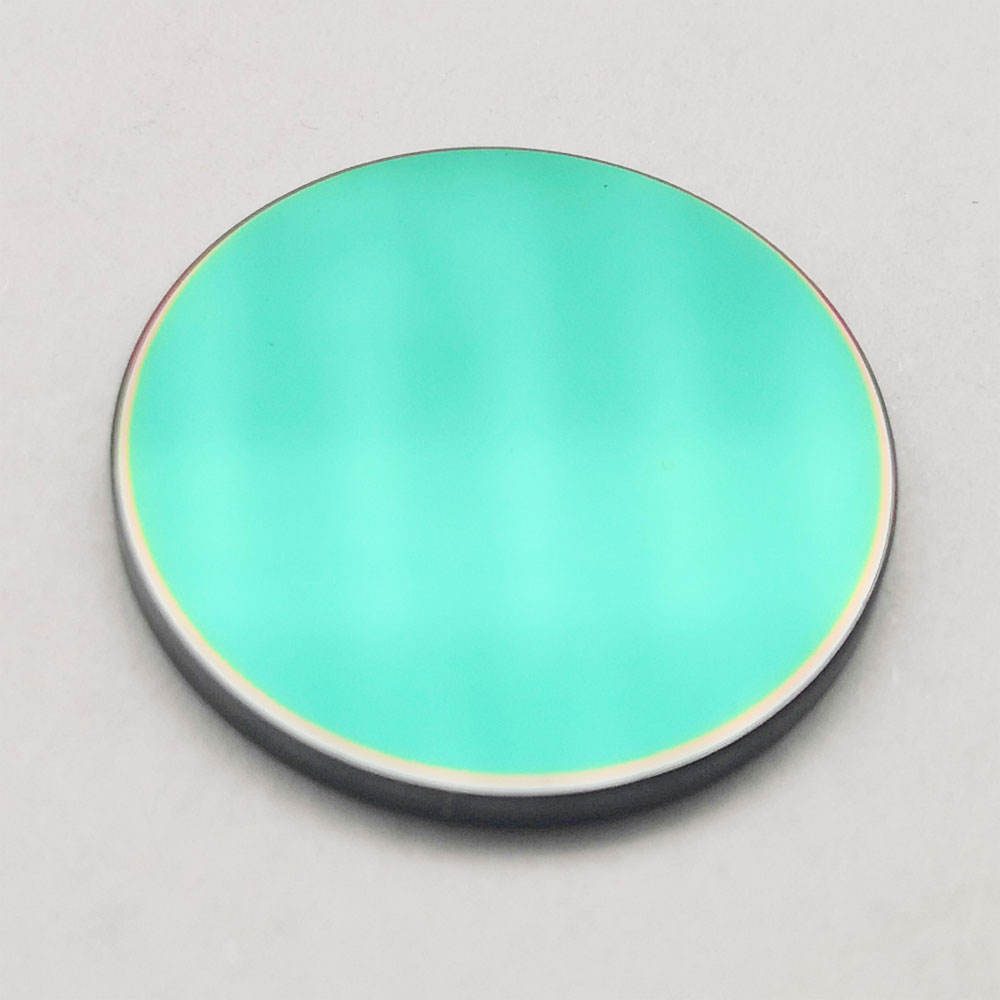

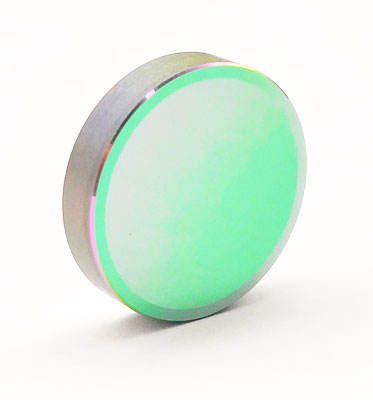

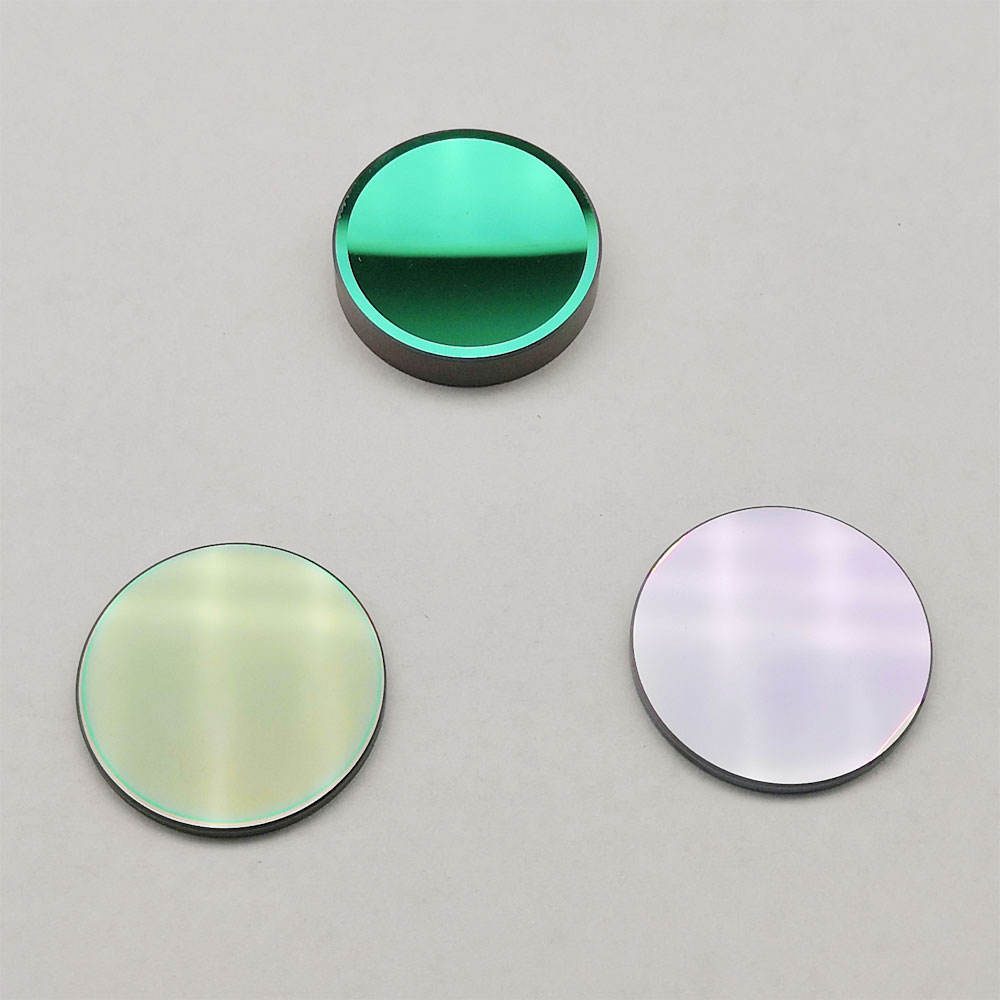

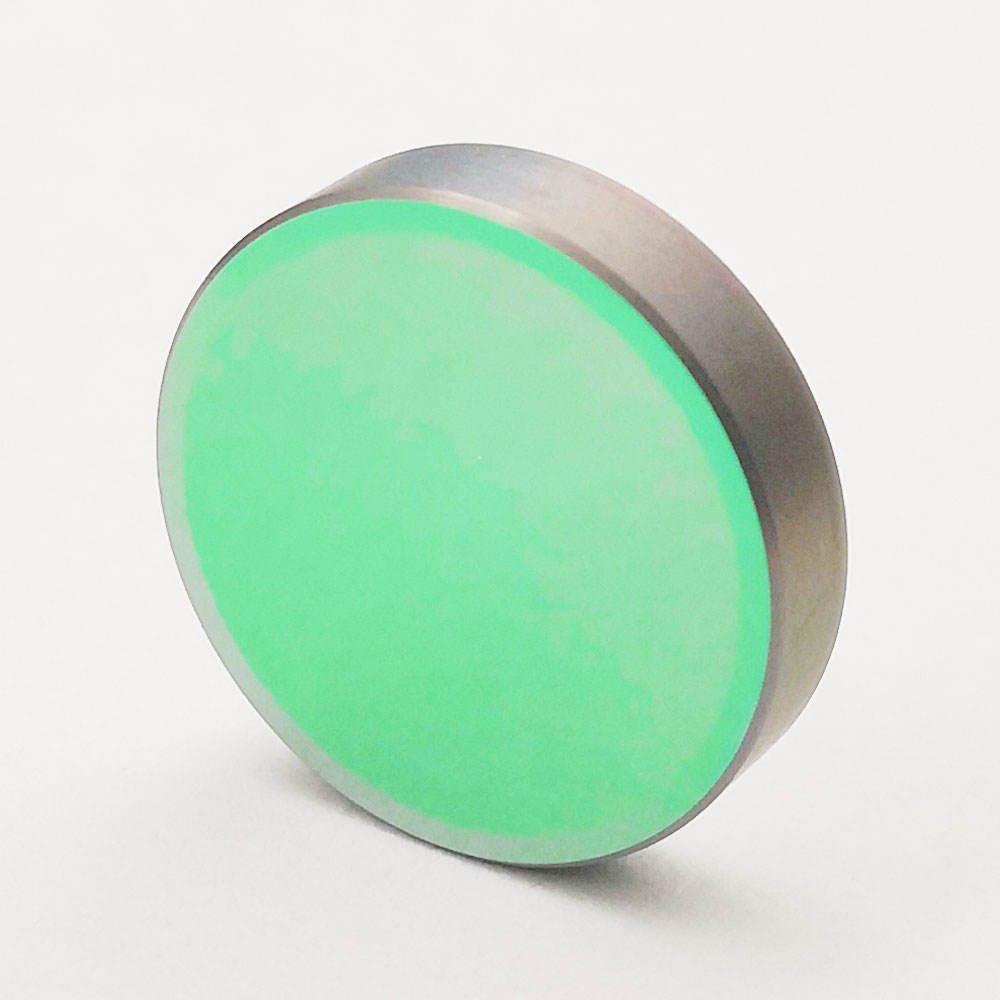

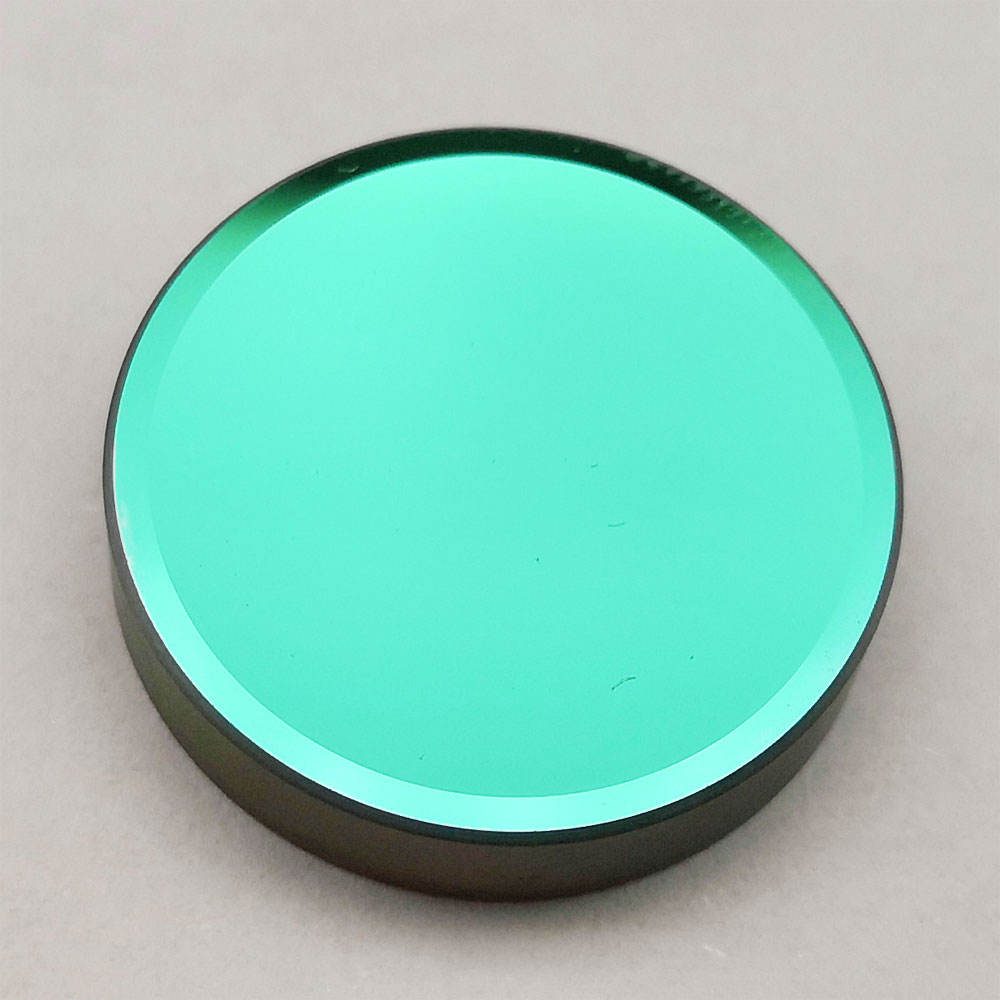

5x0.5 mm Germanium Optical Window, DLC Coated

Product description

Germanium windows and lenses are essential for high-performance infrared imaging systems, particularly in the 8-14 μm and 1.7-3 μm wavelength bands. Their unique properties, including low chromatic aberration and high refractive index, make them ideal for thermal imaging applications. With customizable sizes and coatings such as DLC, AR, and HR, these components ensure optimal performance in demanding environments. Germanium’s mechanical ruggedness and inert nature further enhance its reliability in various applications, including spectrometry and ATR prisms.

Key Features

Wavelength range: 8-14 μm and 1.7-3 μm for versatile applications.
Custom diameters from 5.0 mm to 300.0 mm to fit specific needs.
Thickness options from 0.5 mm to 30.0 mm for tailored designs.
Parallelism tolerance of <3 arcmin ensures precise alignment.
Flatness of 1/4Lambda inch @633nm for superior optical performance.

Available Sizes

Diameter x Thickness (mm)
152.5 x 15.2

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Germanium
Diameter	5 mm
Thickness	0.5 mm
Coating	diamond-like carbon (DLC), anti-reflective (AR), high-reflective (HR)
Transmission bands	LWIR (8-14 μm), SWIR (1.7-3 μm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	1 months
Tolerance	±0.1mm
Parallelism	<3 arcmin
Flatness	1/4Lambda inch @633nm

FAQ

Can I get custom sizes?

Yes, diameters range from 5.0 mm to 300.0 mm, and thicknesses from 0.5 mm to 30.0 mm.

What are the tolerances for this product?

The tolerance is ±0.1mm, with parallelism <3 arcmin and flatness of 1/4Lambda inch @633nm.
