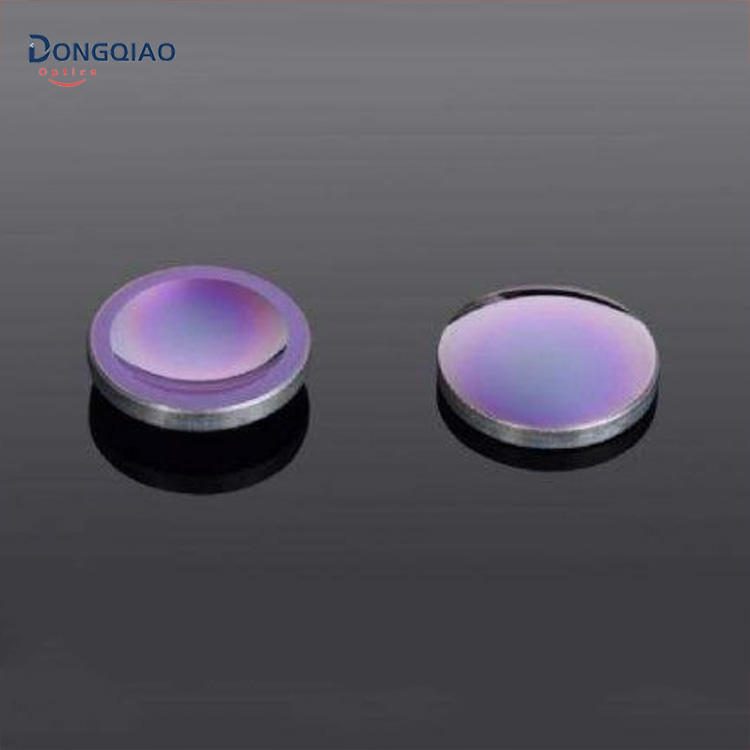

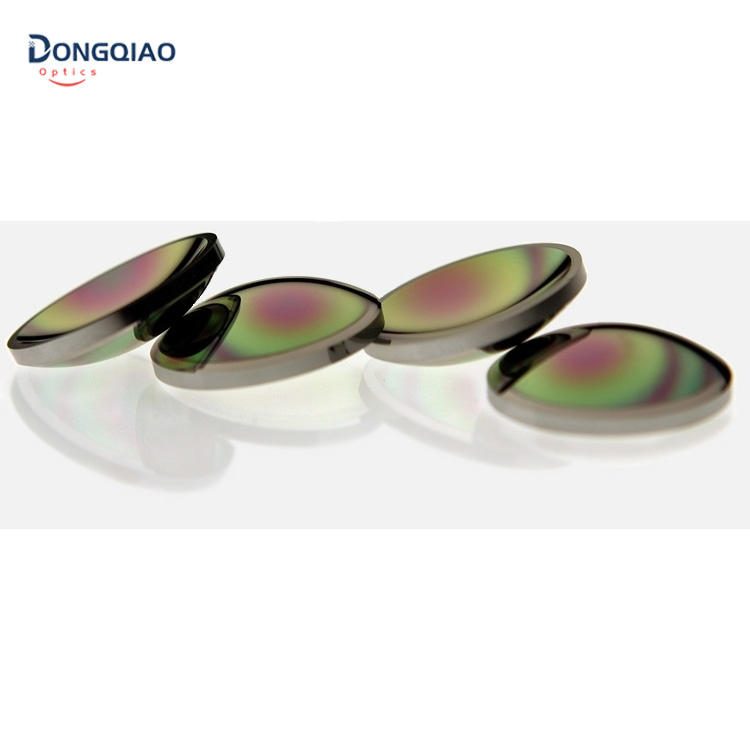

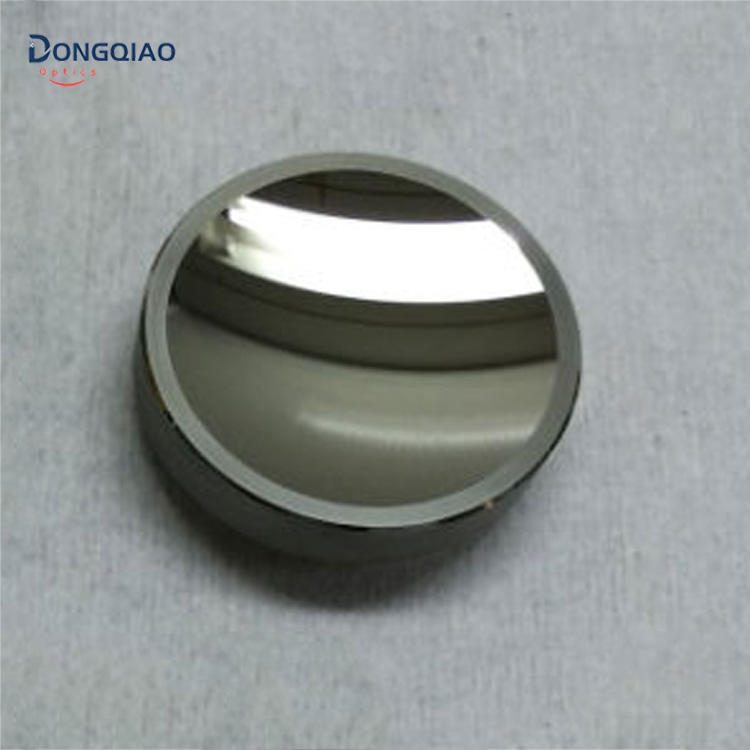

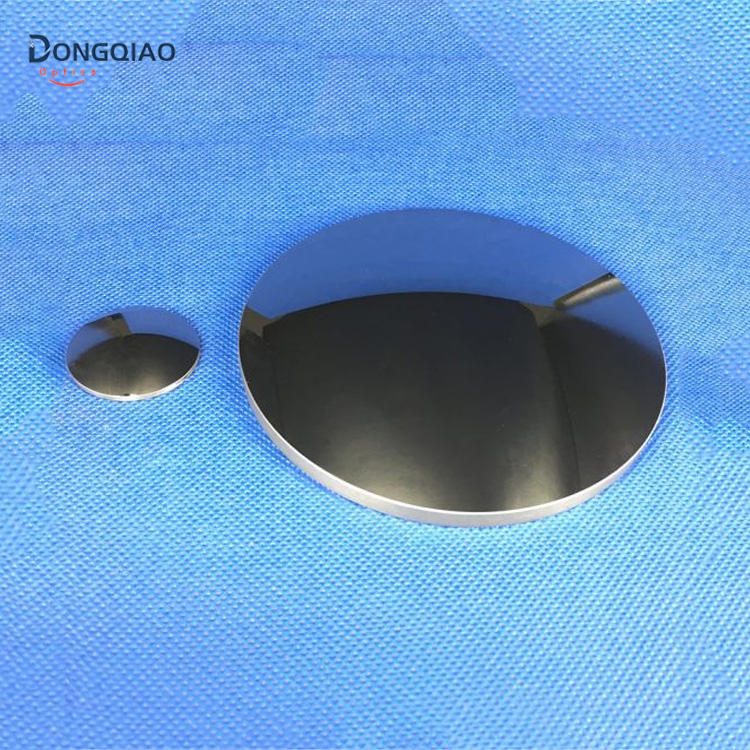

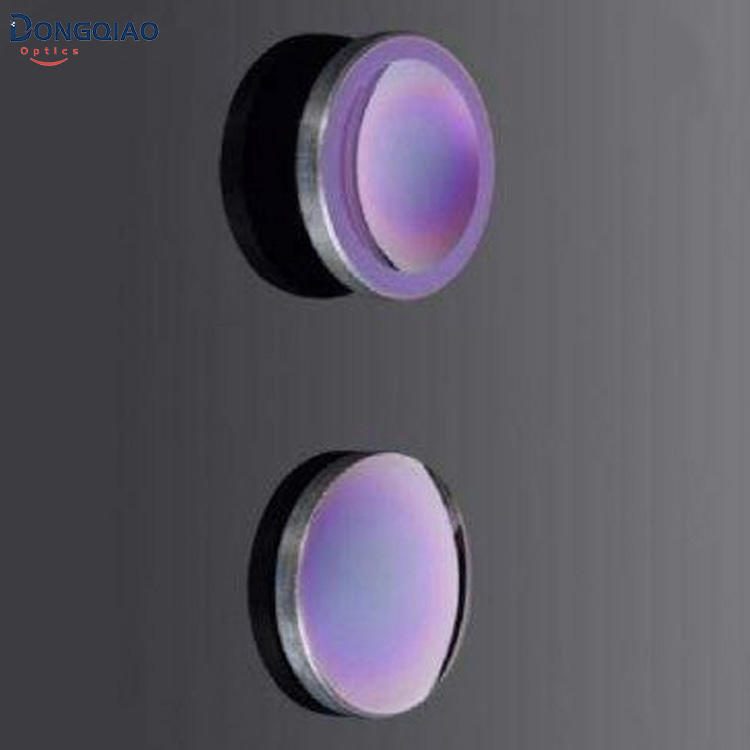

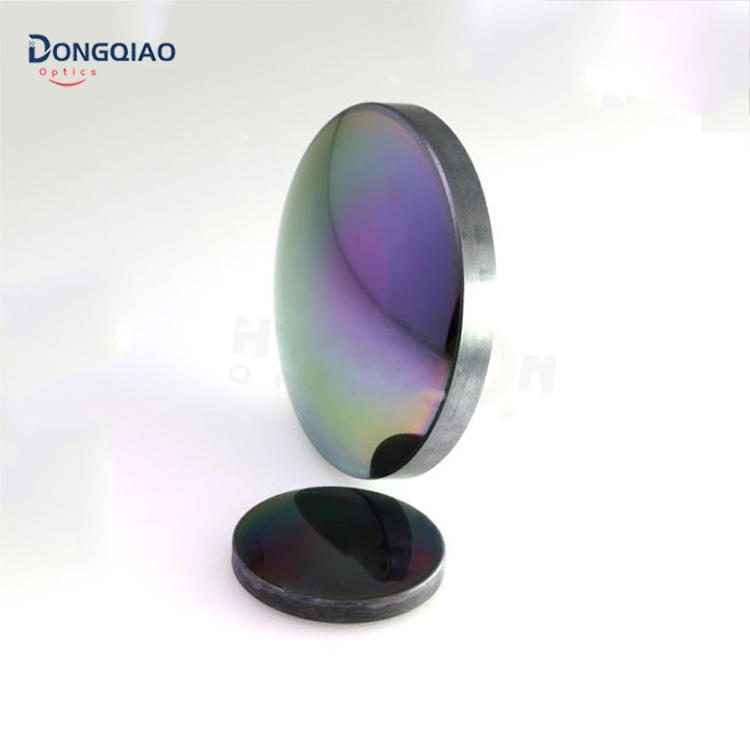

3 mm Germanium Plano-concave Lens, AR Coated
Explore Germanium plano-concave lenses for thermal imaging, featuring high transmission and customizable options.
Core attributes
- Material
- Germanium
- Shape
- Plano-concave
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm)
- MOQ
- 1 piece
Product facts
Key attributes
- Material
- Germanium
- Shape
- Plano-concave
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm)
- MOQ
- 1 piece
Product description
Germanium plano-concave lenses are designed for applications in thermal imaging and other infrared technologies, effectively transmitting wavelengths from 1.7 to 14 μm. With a surface quality of 20/10 and a clear aperture greater than 90%, these lenses ensure high performance in demanding environments. Their rugged construction and resistance to corrosion make them suitable for harsh conditions. Available in a compact 3 mm diameter, they meet the needs of various optical systems while offering flexibility in sourcing.
Key Features
- Transmits wavelengths from 1.7 to 14 μm for versatile application in thermal imaging and IR technologies.
- Surface quality of 20/10 ensures minimal distortion, enhancing image clarity.
- Clear aperture greater than 90% maximizes light transmission for improved imaging performance.
- Custom sizes and coatings available to meet specific application requirements.
- Minimum order quantity of just 1 piece allows for prototyping and low-volume needs.
Applications
Thermal Imaging, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Plano-concave |
| Diameter | 3 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm) |
| MOQ | 1 piece |
Full Specifications
| Parameter | Value |
|---|---|
| Parallelism | 30 arc sec |
| Clear Aperture | >90% |
| Moq | 1 piece |
| Bevelling | 0.1-0.5mm |
FAQ
Can I order custom sizes?
Yes, custom germanium lenses are available in any size and configuration to meet specific application needs.
What is the minimum order quantity?
The minimum order quantity is 1 piece, allowing for prototyping and small-scale projects.
