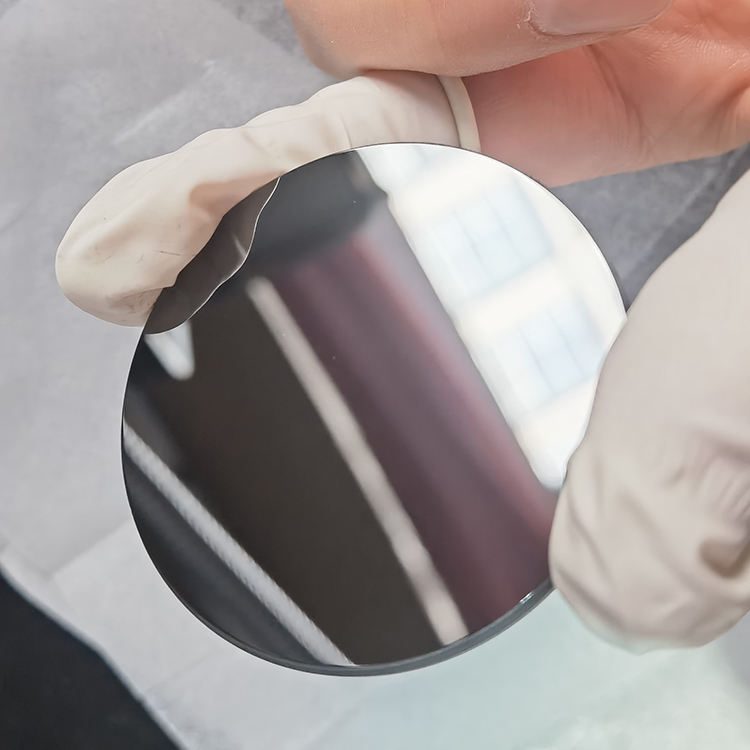

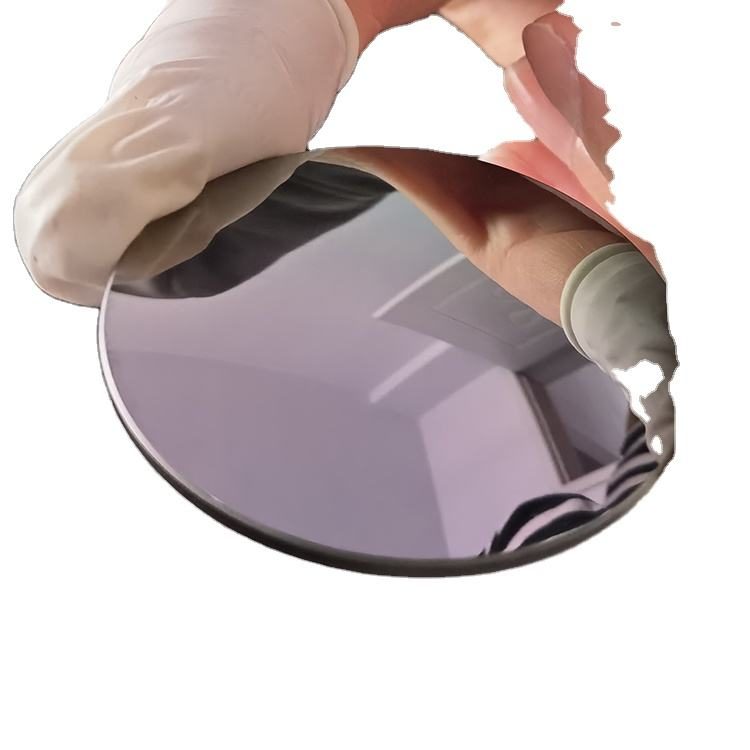

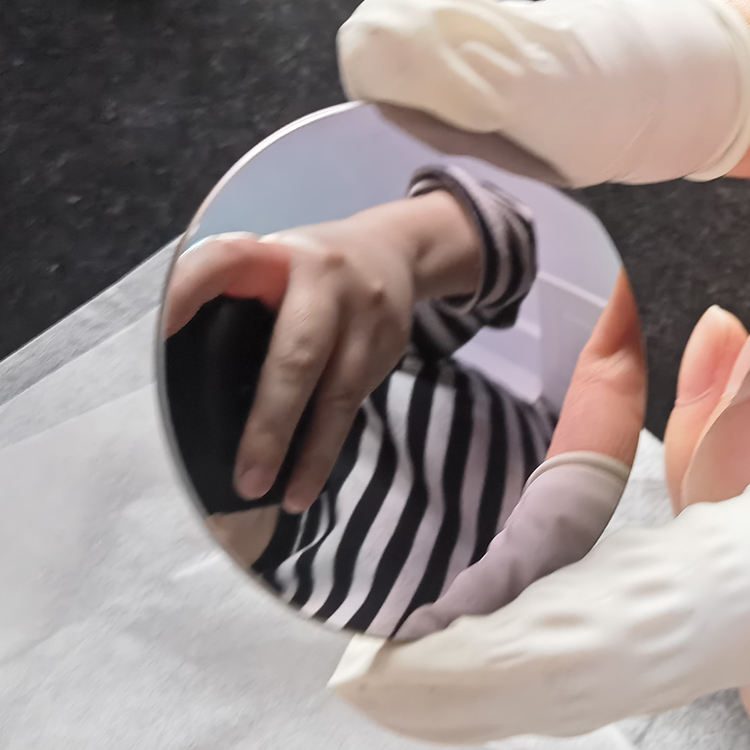

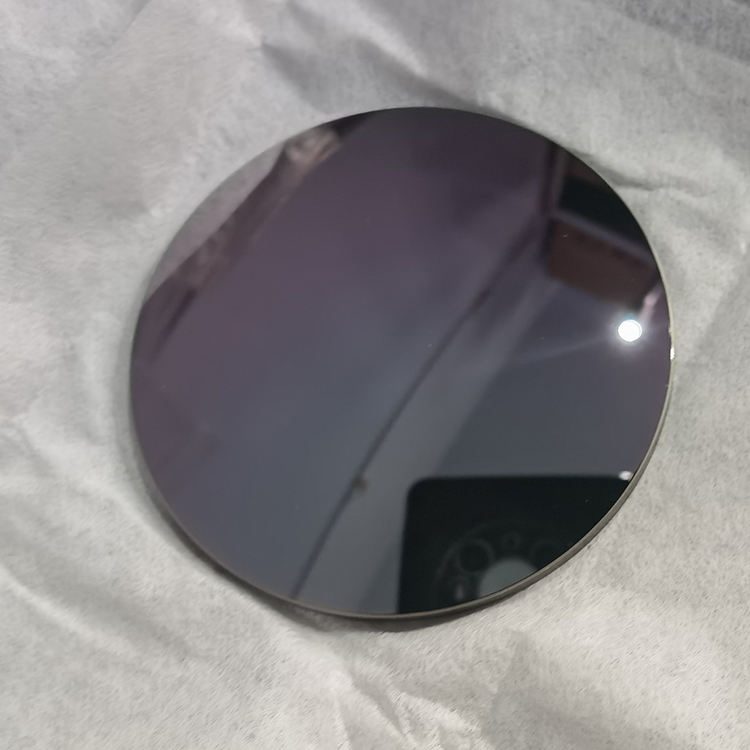

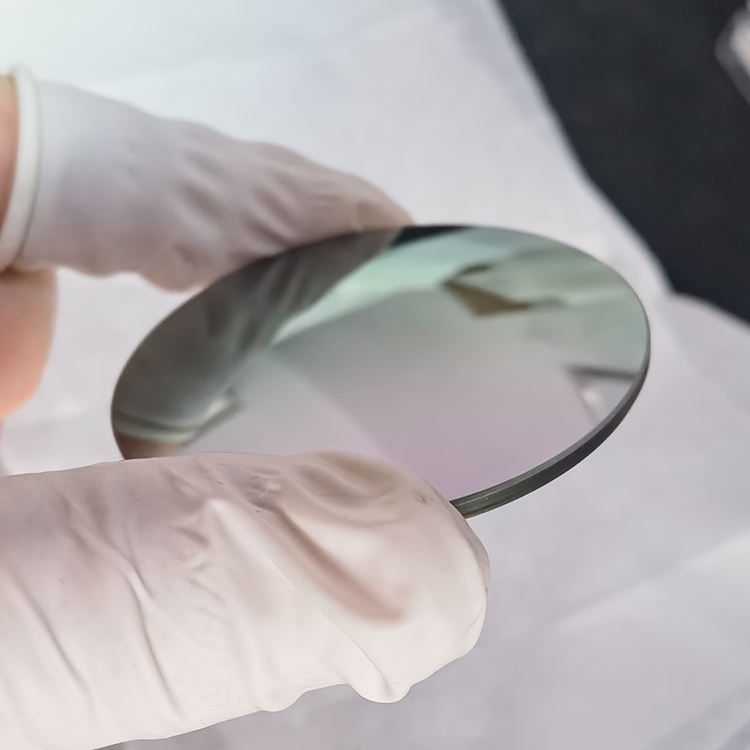

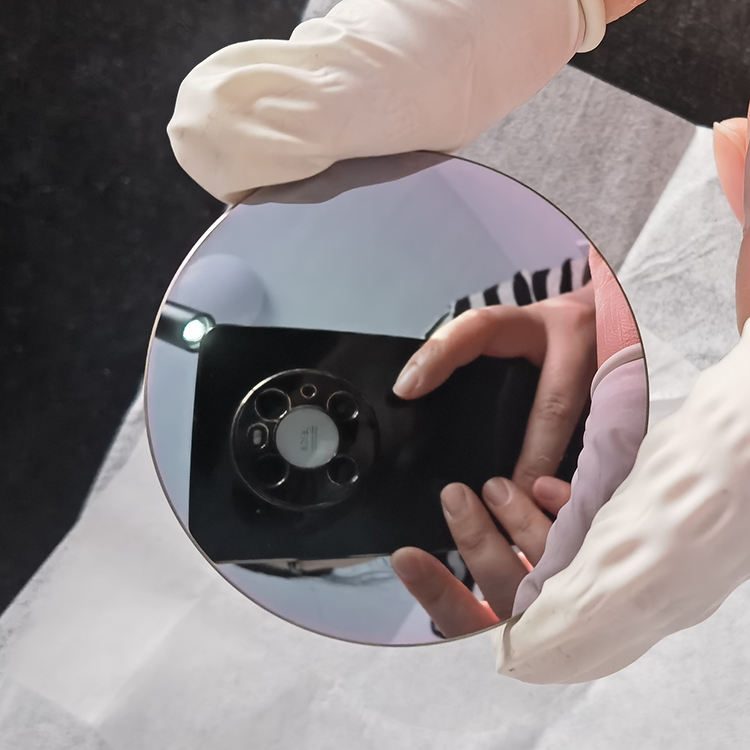

1 mm Germanium Plano-convex Lens, AR Coated
Explore our Silicon Germanium Spherical Lens for IR imaging applications, customizable and reliable for precision optical needs.
Core attributes
- Material
- Germanium
- Shape
- Plano-convex
- Diameter
- 1 mm
- Surface Quality
- 80/50
- Coating
- anti-reflective (AR), diamond-like carbon (DLC), mgf2
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Germanium
- Shape
- Plano-convex
- Diameter
- 1 mm
- Surface Quality
- 80/50
- Coating
- anti-reflective (AR), diamond-like carbon (DLC), mgf2
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
Product description
The Silicon Germanium Spherical Lens is designed for applications in medical imaging and infrared systems, covering a wide range of wavelengths from 0.7 to 14 μm. Its plano-convex shape ensures optimal light transmission and focus, making it ideal for thermal cameras and sensors. With surface quality ratings of 80/50 and customizable coatings, this lens meets stringent performance requirements for precision applications. Sourced from Jilin, it offers reliability and consistency for R&D and procurement engineers.
Key Features
- Wavelength compatibility: 0.7-14 μm for versatile application in IR imaging and medical devices.
- Surface quality: 80/50 ensures minimal distortion and high clarity.
- Standard bevel design for easy integration into existing systems.
- Custom coatings available (AR, DLC, MgF2) for enhanced performance.
- Tolerance of ±0.1 mm for precise fitting in optical assemblies.
Applications
Medical, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Plano-convex |
| Diameter | 1 mm |
| Surface Quality | 80/50 |
| Coating | anti-reflective (AR), diamond-like carbon (DLC), mgf2 |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM |
| Warranty | 2 MONTHS |
| Name | Silicon Germanium Spherical lens |
| Tolerance | +-0.1mm |
| Flatness | 3(0.5) |
| Bevel | standard bevel |
| Key Word | ir spherical lens |
FAQ
Is custom sizing available?
Yes, the lens can be customized in size and shape according to specific requirements.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please contact for details.
