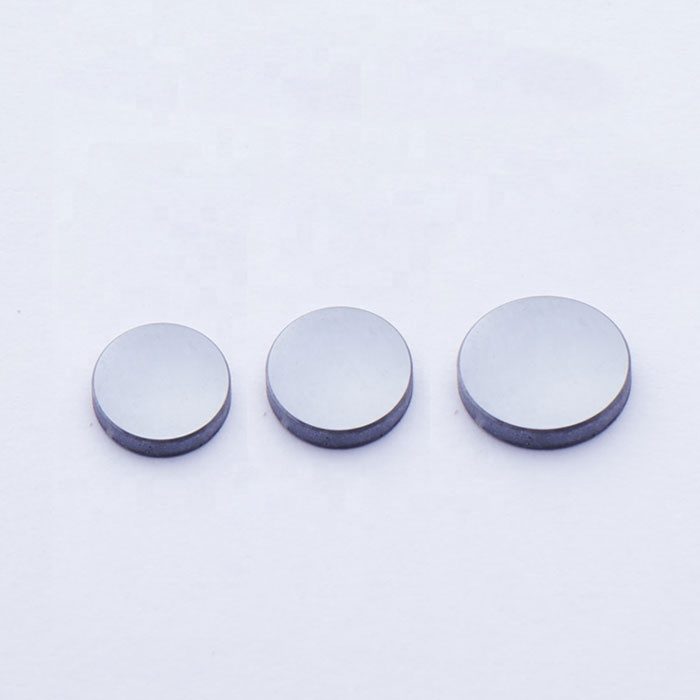

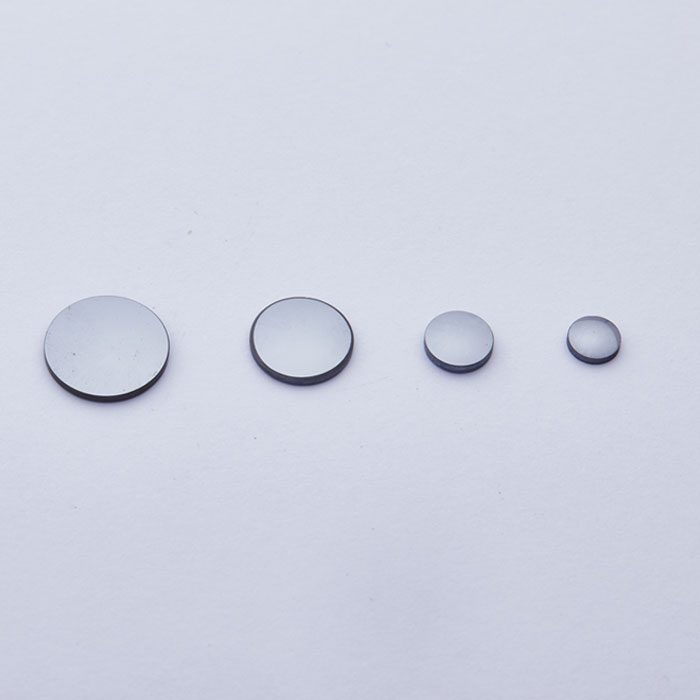

3 mm Germanium Plano-convex Lens, AR Coated

This plano-convex Germanium lens is engineered for optimal performance in thermal imaging and medical applications, particularly within the 8-14 μm and 3-5 μm wavelength bands. With a transmittance of 70%, it effectively enhances image clarity in infrared systems. The lens features a surface quality of 60/40, ensuring reliable performance in demanding environments. Sourced from a reliable manufacturer in Shanghai, this lens is suitable for both standard and specialized applications.

Key Features

• Transmittance of 70% enhances image clarity for thermal imaging and medical applications.
• Surface quality rated at 60/40 ensures minimal distortion in optical performance.
• Available in a compact 3.0 mm diameter, ideal for space-constrained applications.
• Customizable options available for OEM, ODM, and OBM projects.
• High thermal conductivity makes it suitable for IR applications.

Applications

Thermal Imaging, Medical, Imaging

Specification Summary

Full Specifications

FAQ

Can I get custom sizes?

Custom sizes are available, with diameter options ranging from 3-300 mm.

What are the tolerances for diameter and thickness?

Diameter tolerance is ±0.10 mm, and center thickness tolerance is ±1%.
