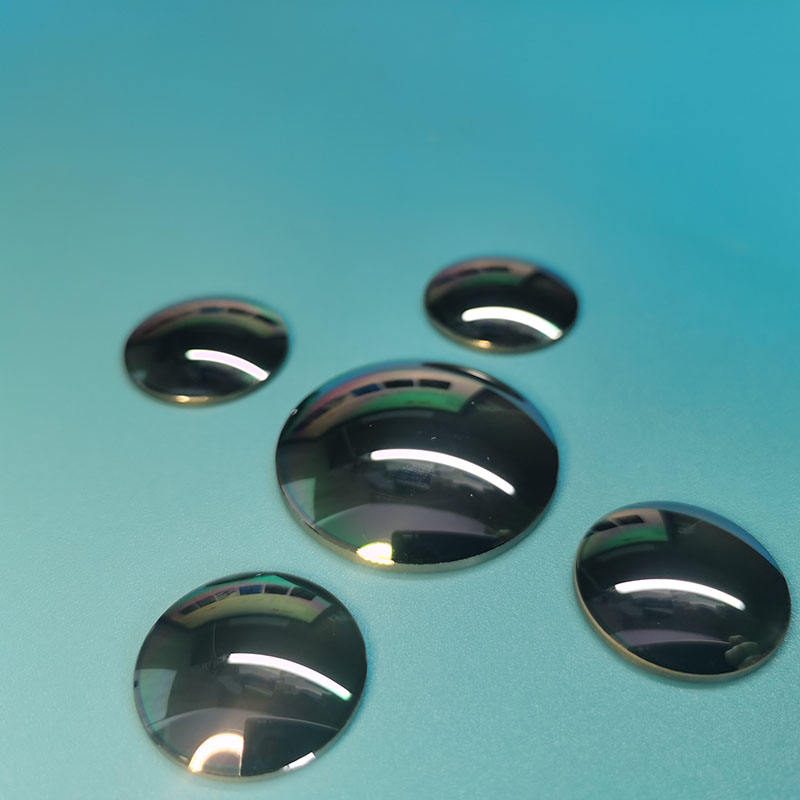

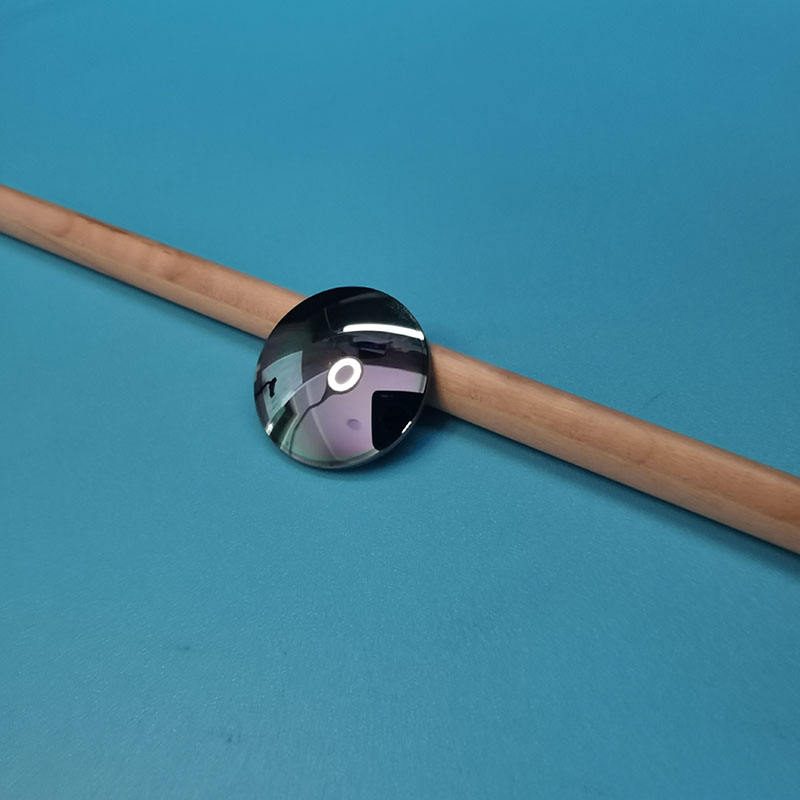

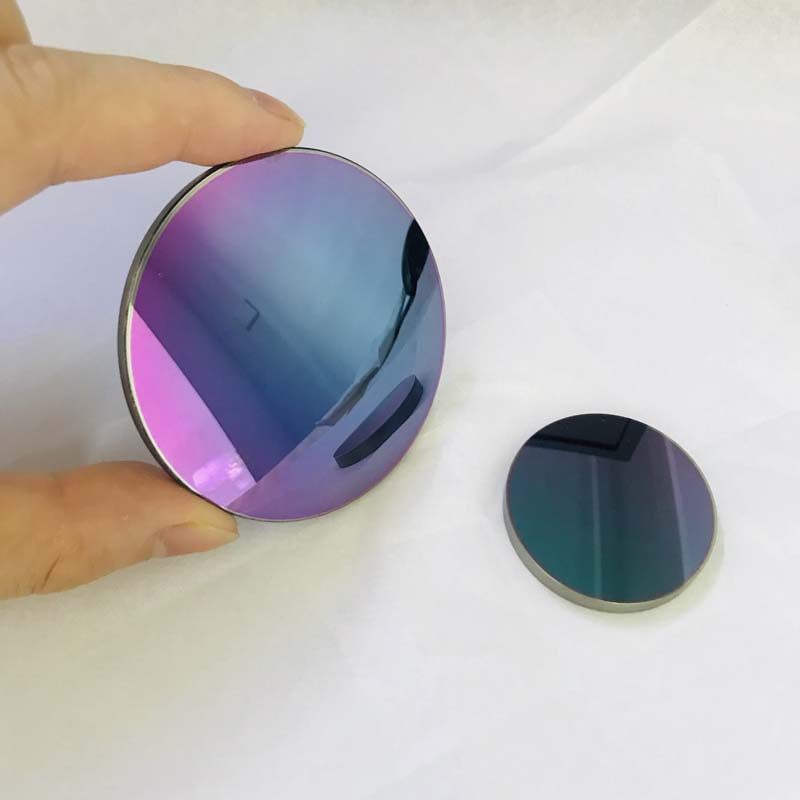

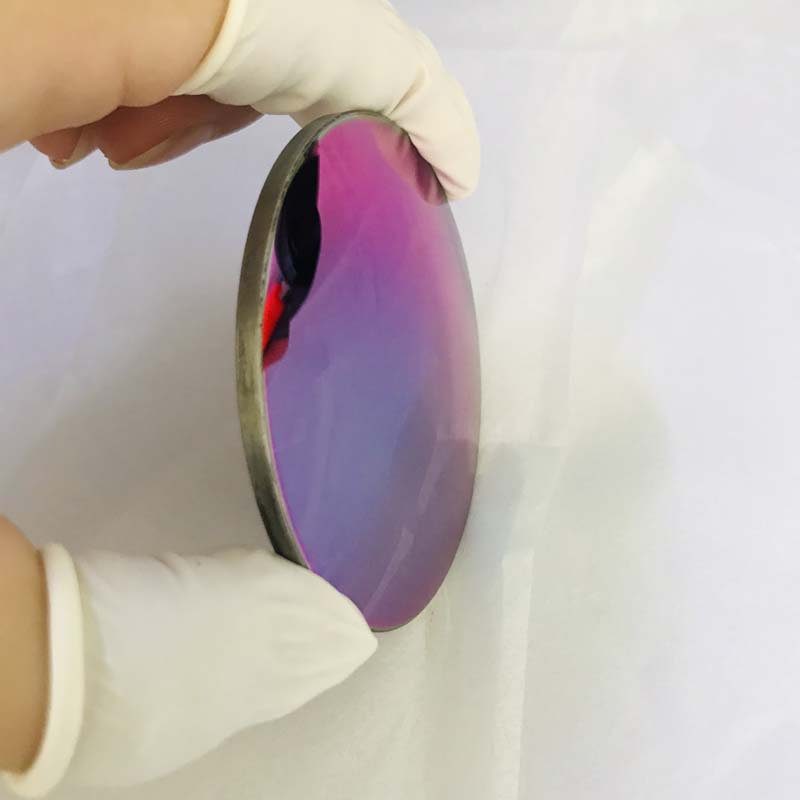

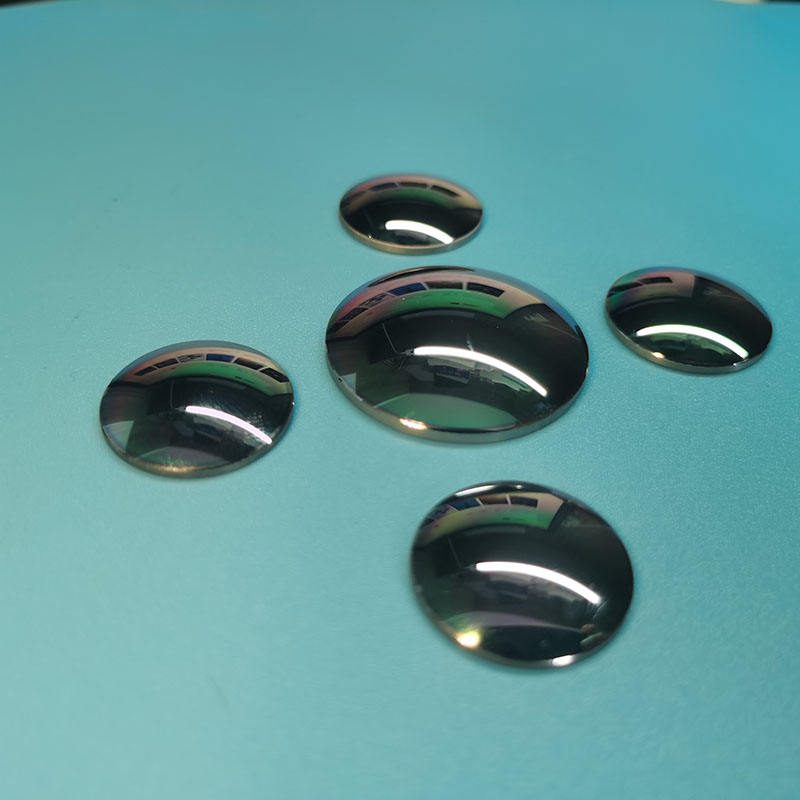

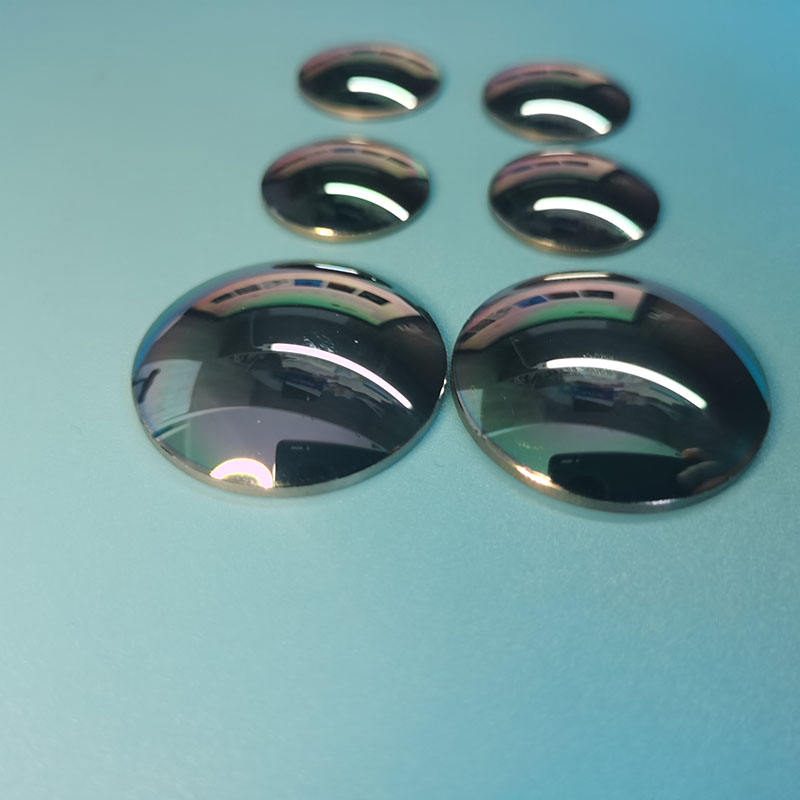

3 mm Germanium Plano-convex Lens, AR Coated
Explore high-performance germanium plano-convex lenses for thermal imaging and infrared applications with customizable options.
Core attributes
- Material
- Germanium
- Shape
- Plano-convex
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm)
- MOQ
- 1 piece
Product facts
Key attributes
- Material
- Germanium
- Shape
- Plano-convex
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm)
- MOQ
- 1 piece
Product description
Germanium plano-convex lenses are designed for applications in thermal imaging and imaging systems, effective across multiple infrared bands (1.7-3 μm, 3-5 μm, and 8-14 μm). With a surface quality rating of 20/10 and a clear aperture exceeding 90%, these lenses ensure high performance in demanding environments. Their rugged construction and anti-reflection coatings enhance durability and optical efficiency, making them ideal for harsh conditions. Sourcing options include low minimum order quantities and customization for specific applications.
Key Features
- Effective in thermal imaging and infrared applications (1.7-14 μm)
- Surface quality rating of 20/10 for superior clarity
- Clear aperture greater than 90% for optimal light transmission
- Low minimum order quantity of 1 piece for flexible sourcing
- Robust construction suitable for harsh environmental conditions
Applications
Thermal Imaging, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Plano-convex |
| Diameter | 3 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm) |
| MOQ | 1 piece |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Fresnel Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano… |
| Weight | 0.1 |
| Parallelism | 30 arc sec |
| Clear Aperture | >90% |
| Moq | 1 piece |
| Bevelling | 0.1-0.5mm |
FAQ
Can I get custom sizes for the lenses?
Custom germanium lenses are available in any size and configuration.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
