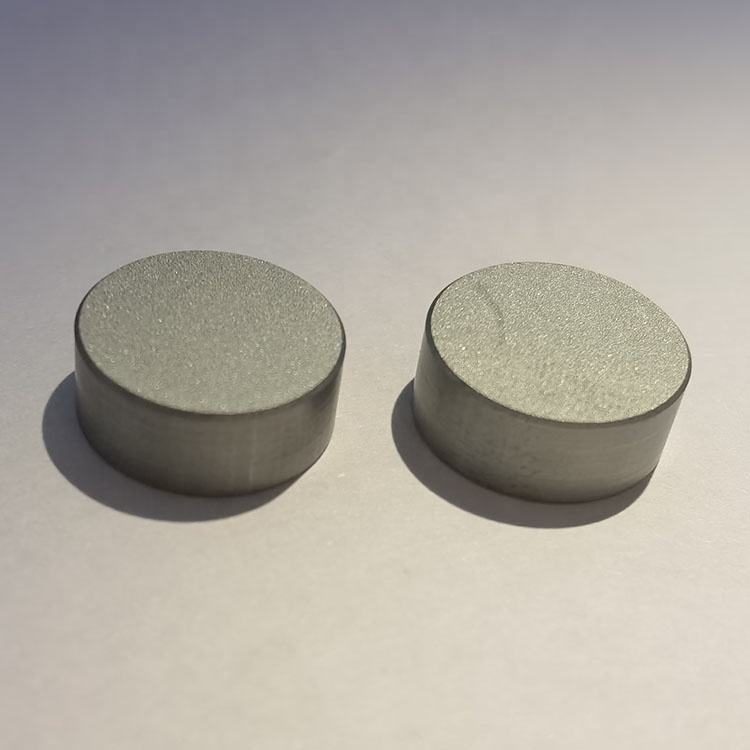

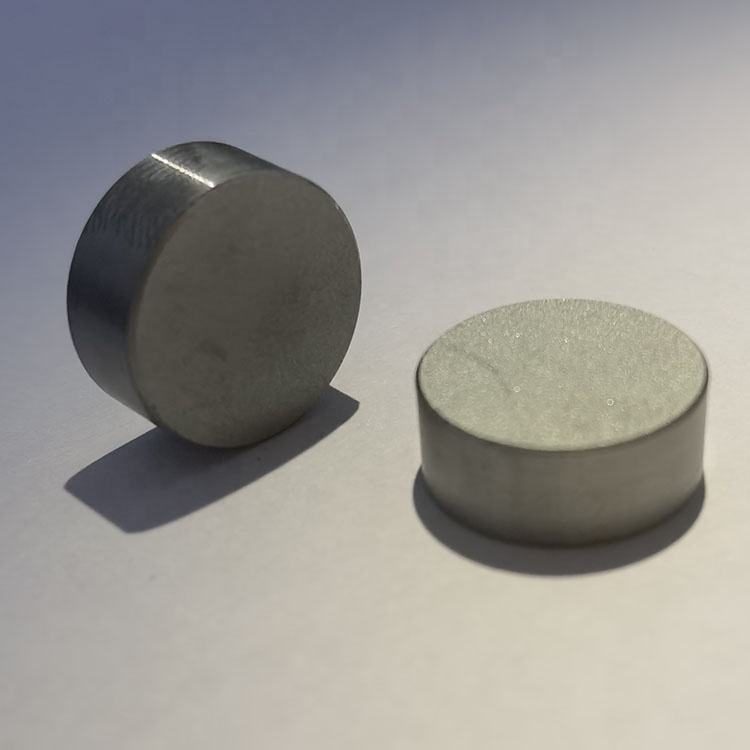

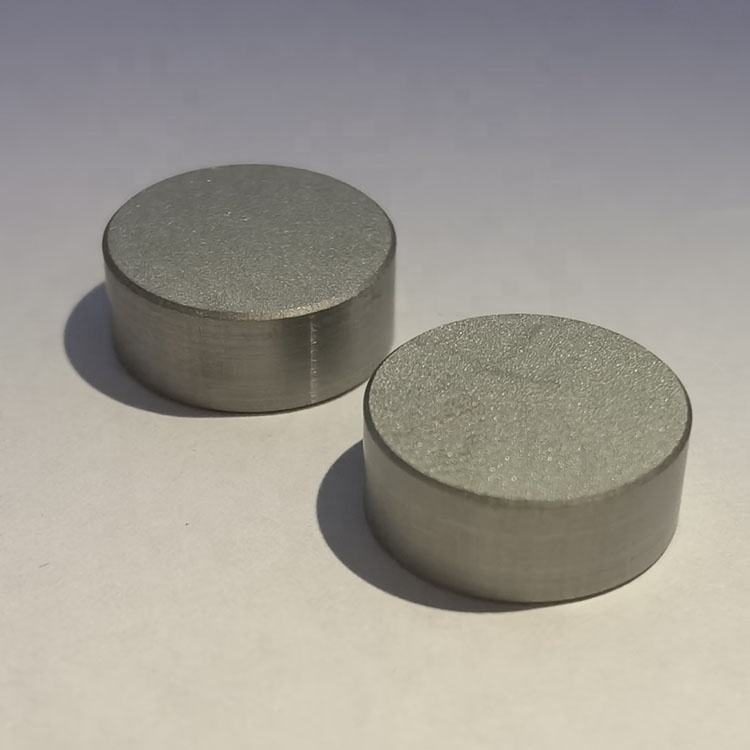

12.7 mm Germanium Round Optical Window
Round Germanium window for thermal imaging and medical applications, 12.7 mm diameter, uncoated, customizable.
Core attributes
- Material
- Germanium
- Shape
- round
- Diameter range
- 12.7 mm
- Coating
- uncoated
Product facts
Key attributes
- Material
- Germanium
- Shape
- round
- Diameter range
- 12.7 mm
- Coating
- uncoated
Product description
This round Germanium window is designed for applications in thermal imaging and medical devices, particularly effective in the 8-14 μm and 400-700 nm bands. Its uncoated surface allows for high transmittance in infrared applications, making it ideal for optical systems requiring minimal interference from visible light. With a diameter of 12.7 mm, it can be integrated into various imaging systems while maintaining high performance. The product is sourced from Jilin and is suitable for OEM customization.
Key Features
- Diameter of 12.7 mm for versatile integration in optical systems.
- Uncoated surface ensures minimal interference in infrared applications.
- High refractive index provides efficiency in thermal imaging.
- Standard bevel for easy installation and compatibility.
- Tolerance of ±0.1 mm ensures precision in manufacturing.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Round |
| Diameter | 12.7 mm |
| Thickness | Custom |
| Coating | uncoated |
| Transmission bands | LWIR (8-14 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Flat window |
| Customized Support | OEM |
| Warranty | 2 month |
| Weight | 0.05kg |
| Name | Fine grinding Germanium blanks |
| Surface | Fine Grinding |
| Tolerance | +-0.1mm |
| Flatness | NONE |
| Bevel | standard bevel |
FAQ
Can this window be customized to different sizes?
Yes, the Germanium window can be cut into any shape as per requirements.
What is the tolerance for this product?
The tolerance for the Germanium window is ±0.1 mm.
