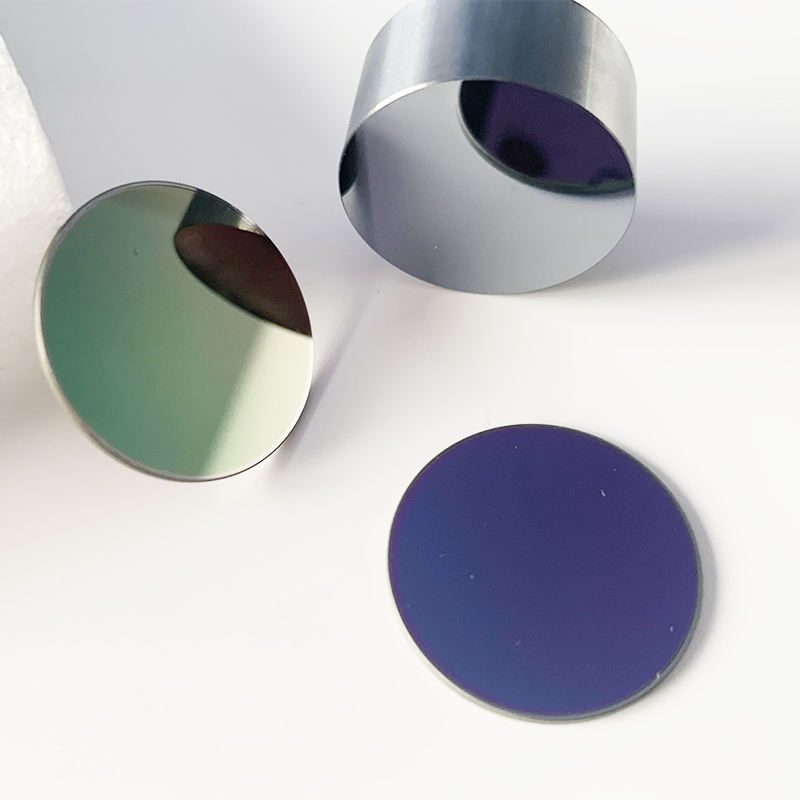

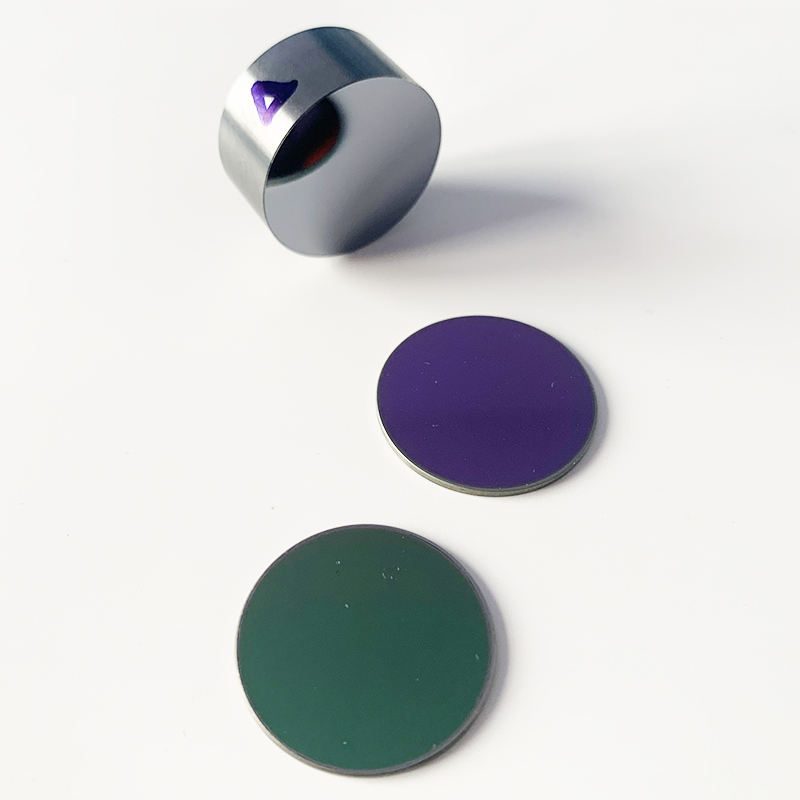

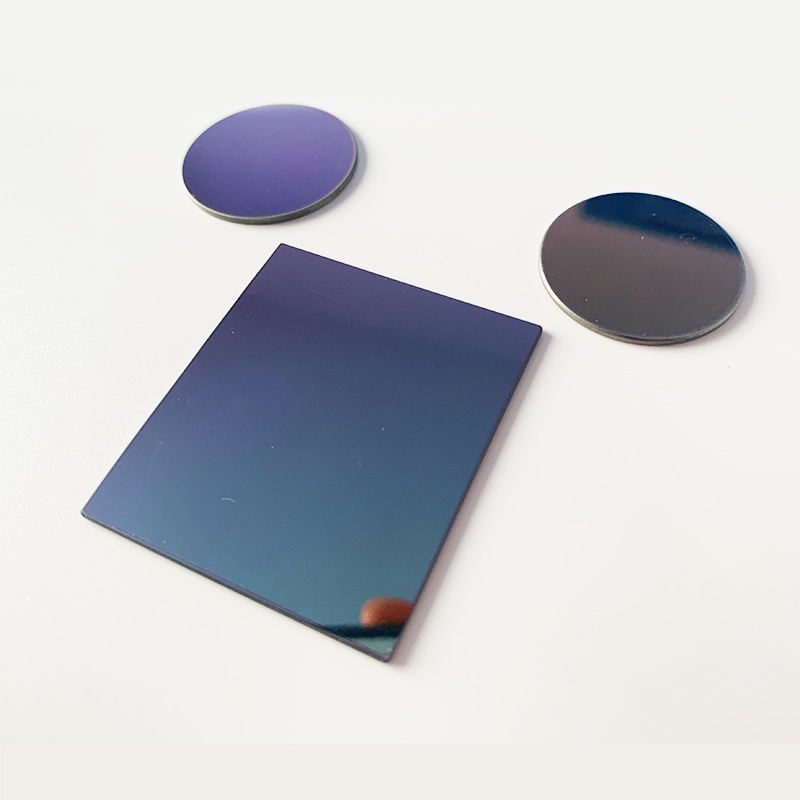

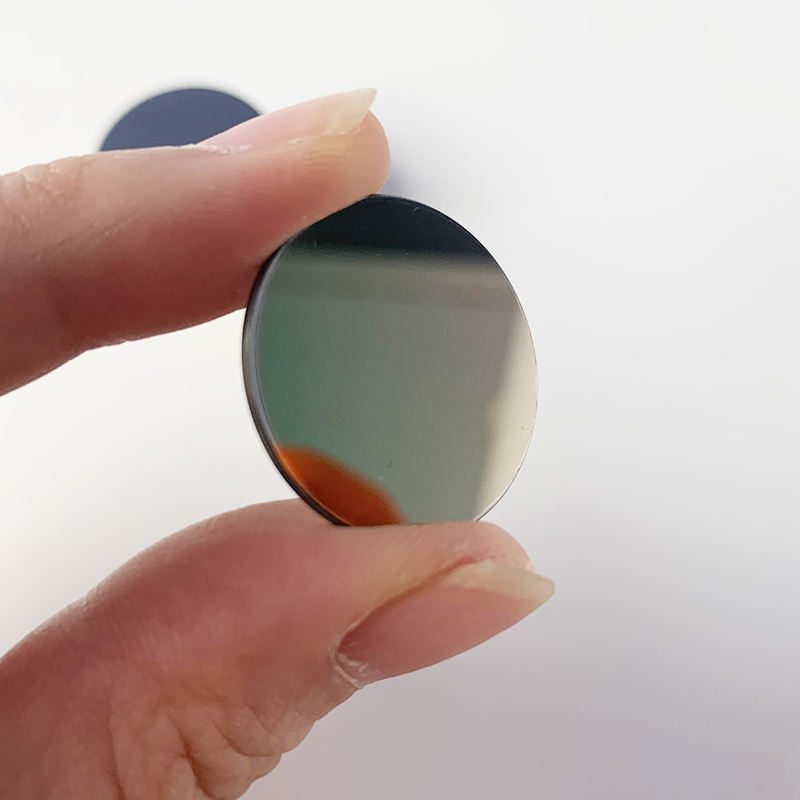

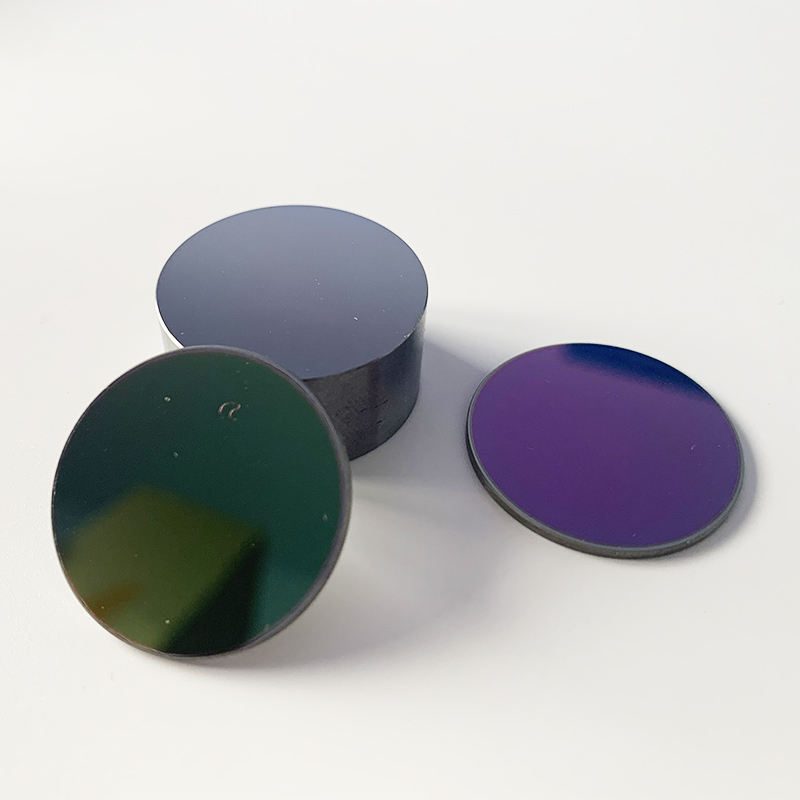

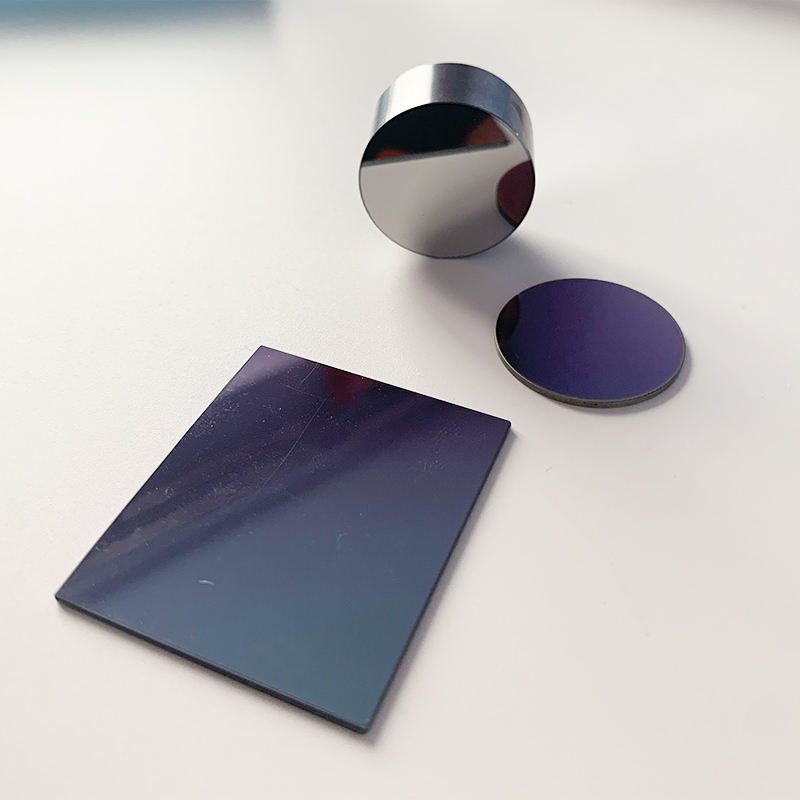

1 mm Germanium Round Optical Window, DLC Coated

Product description

The Germanium IR Windows are designed for optimal performance in the 3-5 μm and 8-14 μm infrared spectrums, making them ideal for applications in thermal imaging and medical systems. With a clear aperture greater than 92% and a surface quality of 60/40, these windows ensure high-quality transmission and minimal distortion. Custom sizes are available to meet specific application needs, providing flexibility for R&D and production environments.

Key Features

Diameter range from 1.0 mm to 150.0 mm for versatile application fit.
Surface quality of 60/40 ensures reliable performance in critical imaging applications.
Parallelism tolerance of 2 arc seconds enhances alignment precision.
Customizable lengths and shapes available to suit unique project requirements.
Clear aperture greater than 92% maximizes light transmission efficiency.

Applications

Thermal Imaging, Medical

Specification Summary

Item	Value
Material	Germanium
Shape	Round
Diameter	1 mm
Thickness	Custom
Surface Quality	60/40
Coating	diamond-like carbon (DLC), anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	3 months
Parallelism	2 arc seconds
Centering	30 arc min
Irregularity	L/4
Clear Aperture	>92%
Length	custom

FAQ

Can I get custom sizes for these IR windows?

Yes, custom sizes and lengths are available to meet specific application needs.

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified, allowing for flexible purchasing options.
