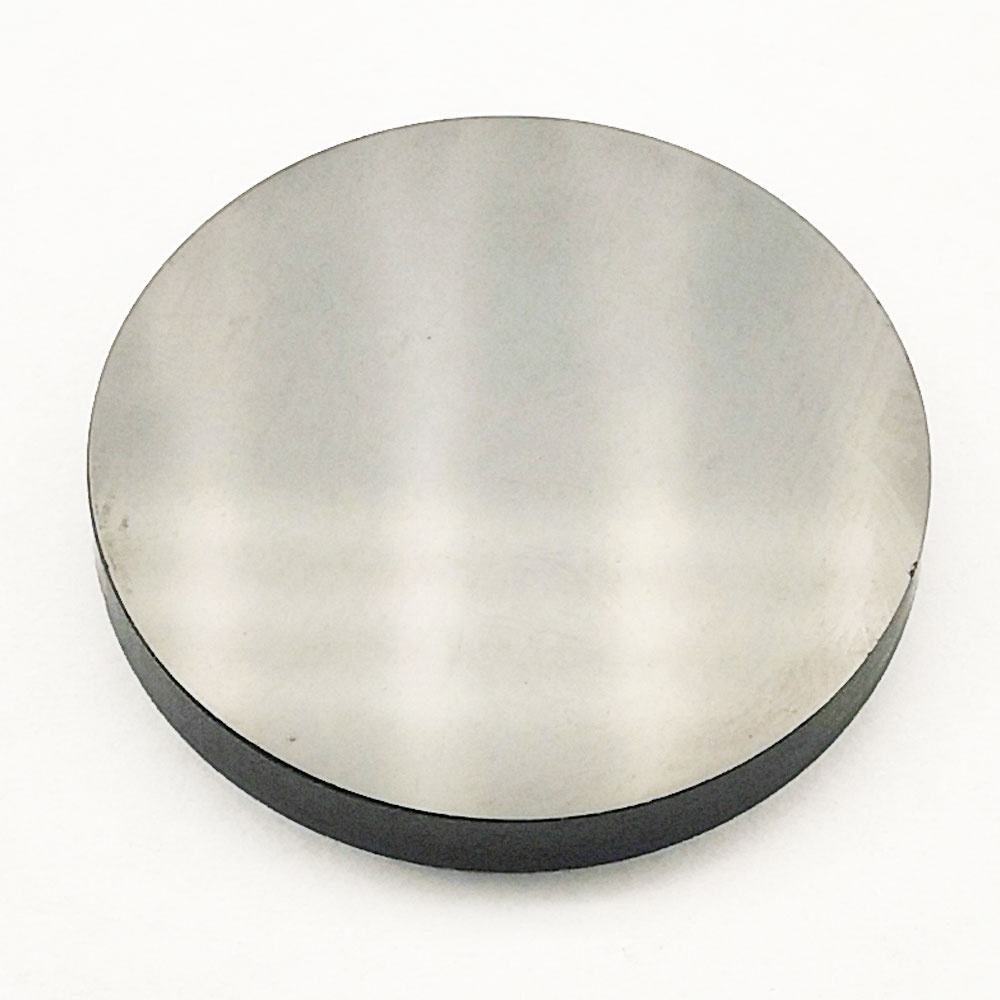

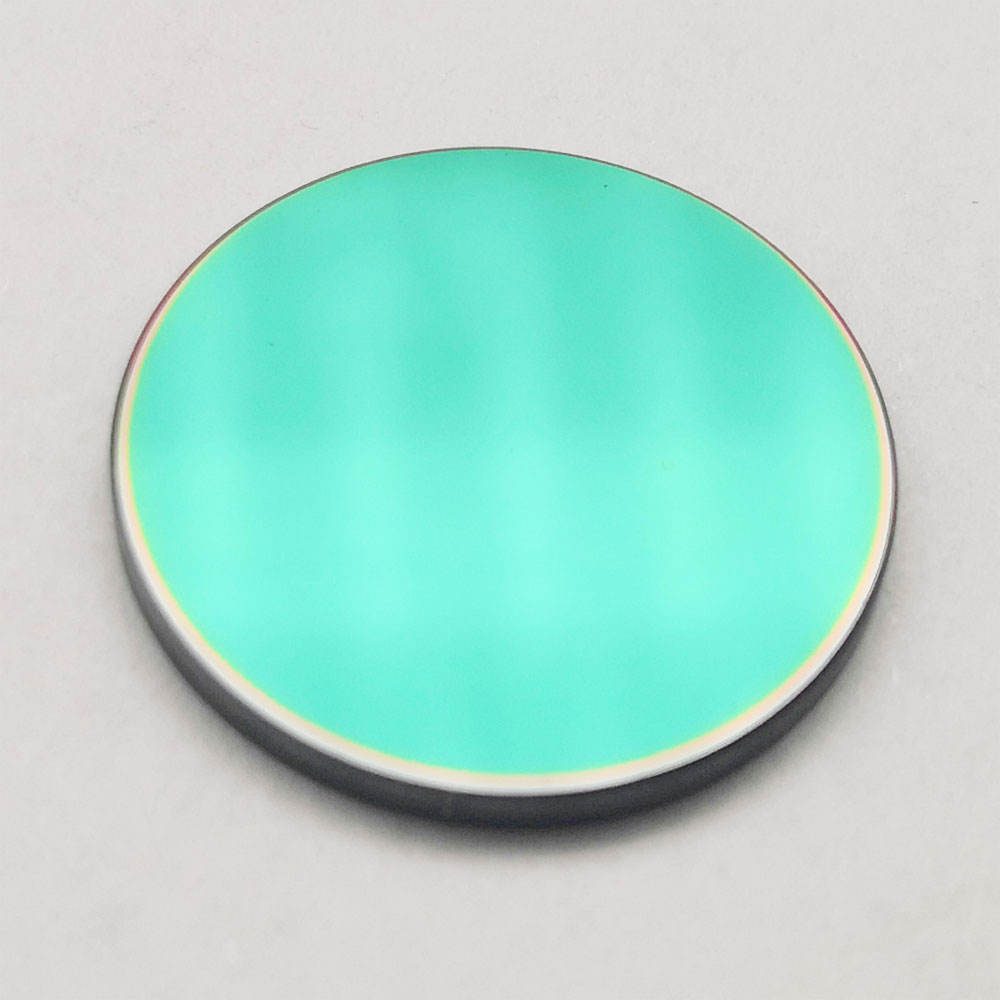

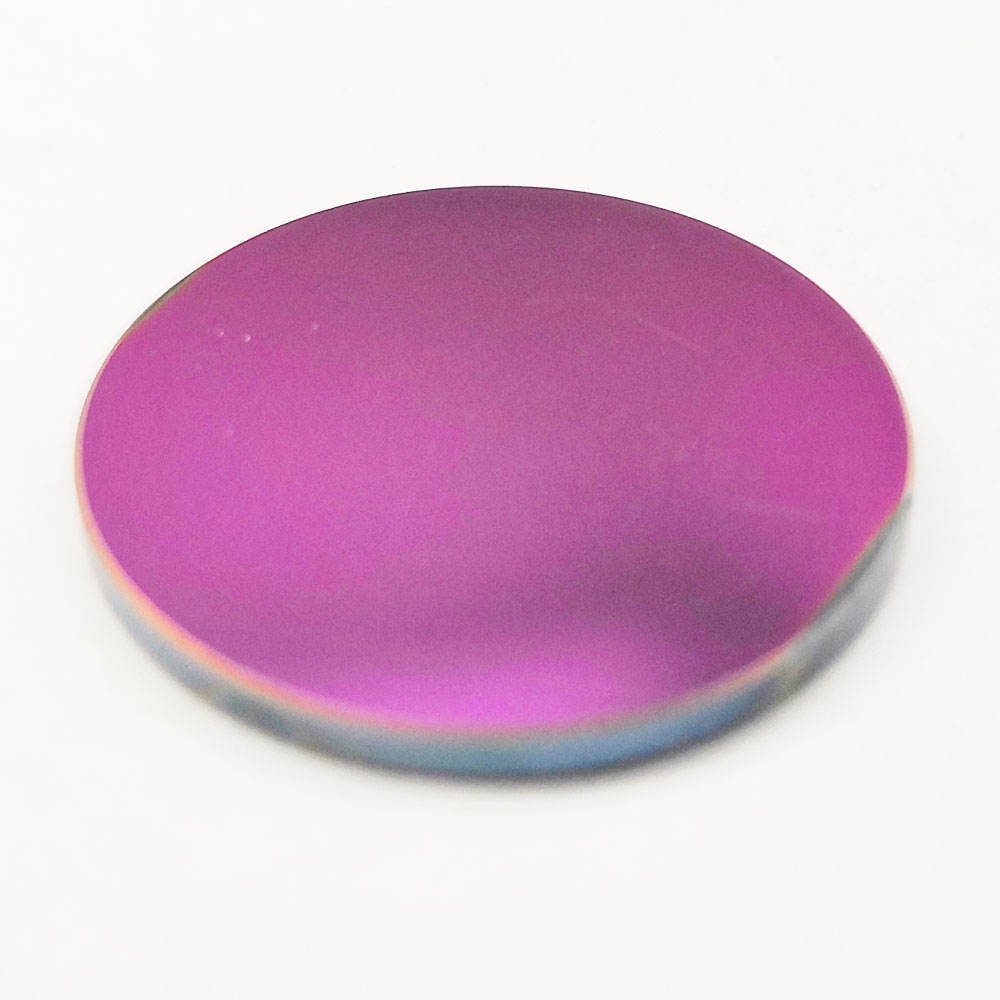

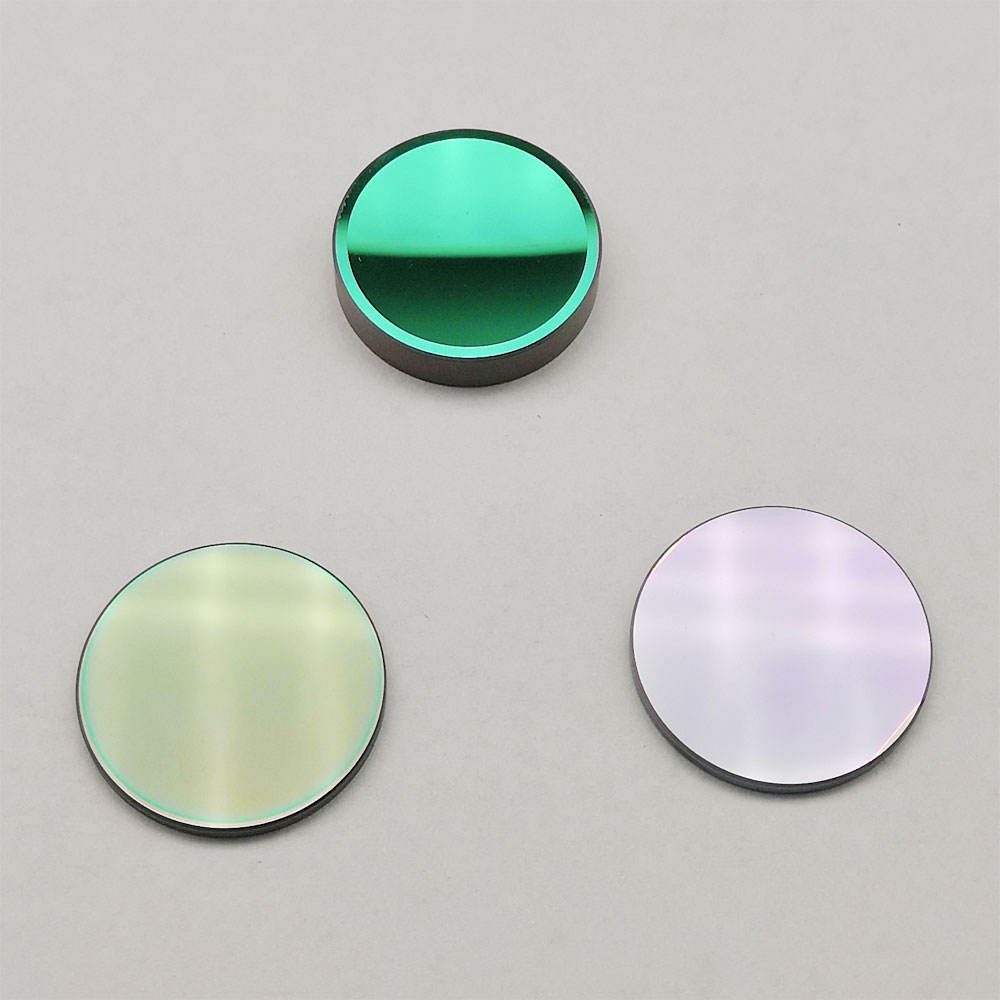

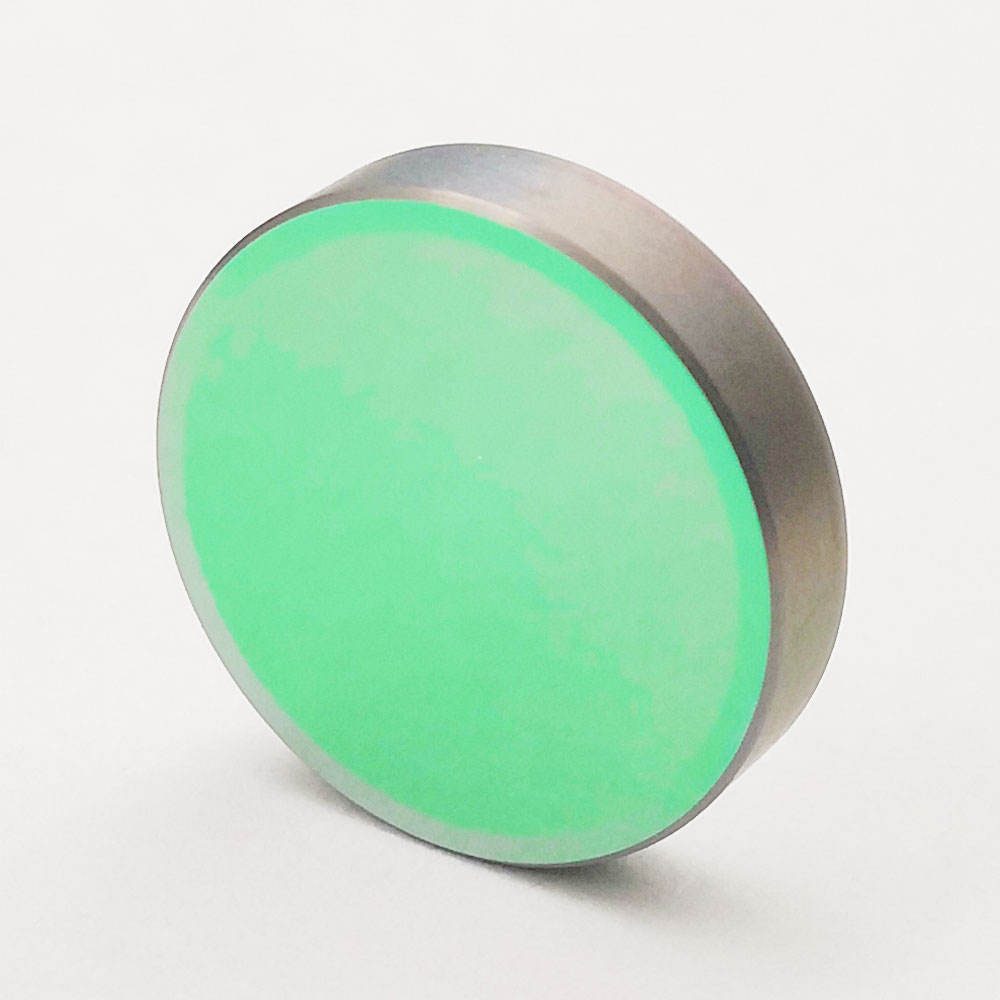

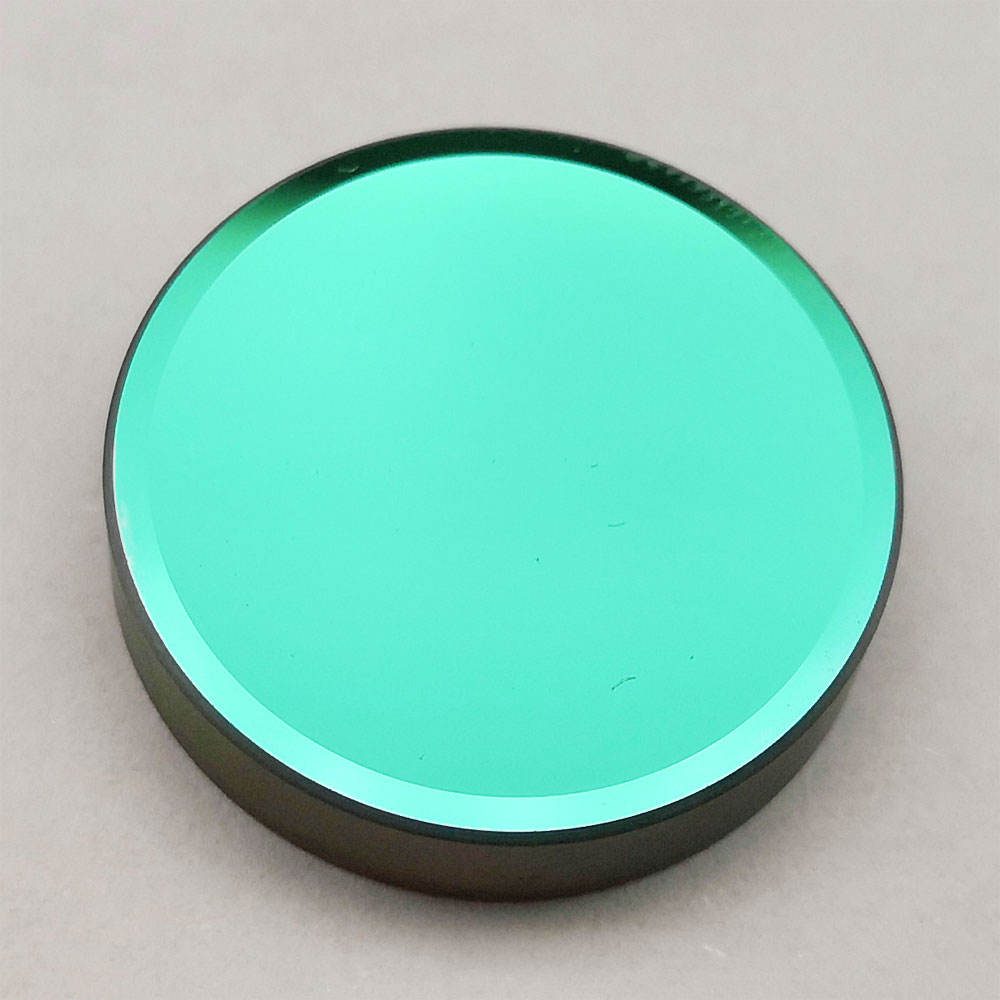

5x0.5 mm Germanium Round Optical Window, AR Coated

Product description

Germanium optical windows are designed for thermal imaging applications, offering excellent transmittance in the 8-14 μm and 400-700 nm bands. With a range of diameters from 5.0 mm to 500.0 mm and thicknesses from 0.5 mm to 20.0 mm, these windows are ideal for infrared applications requiring low dispersion and high opacity in the visible spectrum. The material’s low peak absorption makes it suitable for CO2 laser cavities, ensuring reliability in demanding environments.

Key Features

Diameter range: 5.0 mm to 500.0 mm for versatile applications.
Thickness options: 0.5 mm to 20.0 mm for tailored solutions.
Surface quality of 60/40 ensures clarity and performance.
Tolerance of ±0.1 mm for precise fitting in optical systems.
Clear aperture greater than 90% maximizes light transmission.

Available Sizes

Diameter x Thickness (mm)
252.5 x 10.2

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Germanium
Shape	Round
Diameter	5 mm
Thickness	0.5 mm
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated
Transmission bands	LWIR (8-14 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM, ODM
Warranty	1 months
Tolerance	±0.1mm
Surface Flatness	2ambda~ Lambda/8
Bevel	< 0.5mm x 45°
Clear Aperture	>90%

FAQ

Can I get custom sizes?

Yes, custom sizes are available, including variant sizes like 252.5 mm diameter with 10.2 mm thickness.

What are the tolerances for these optical windows?

The tolerances are ±0.1 mm, ensuring a precise fit for your applications.
