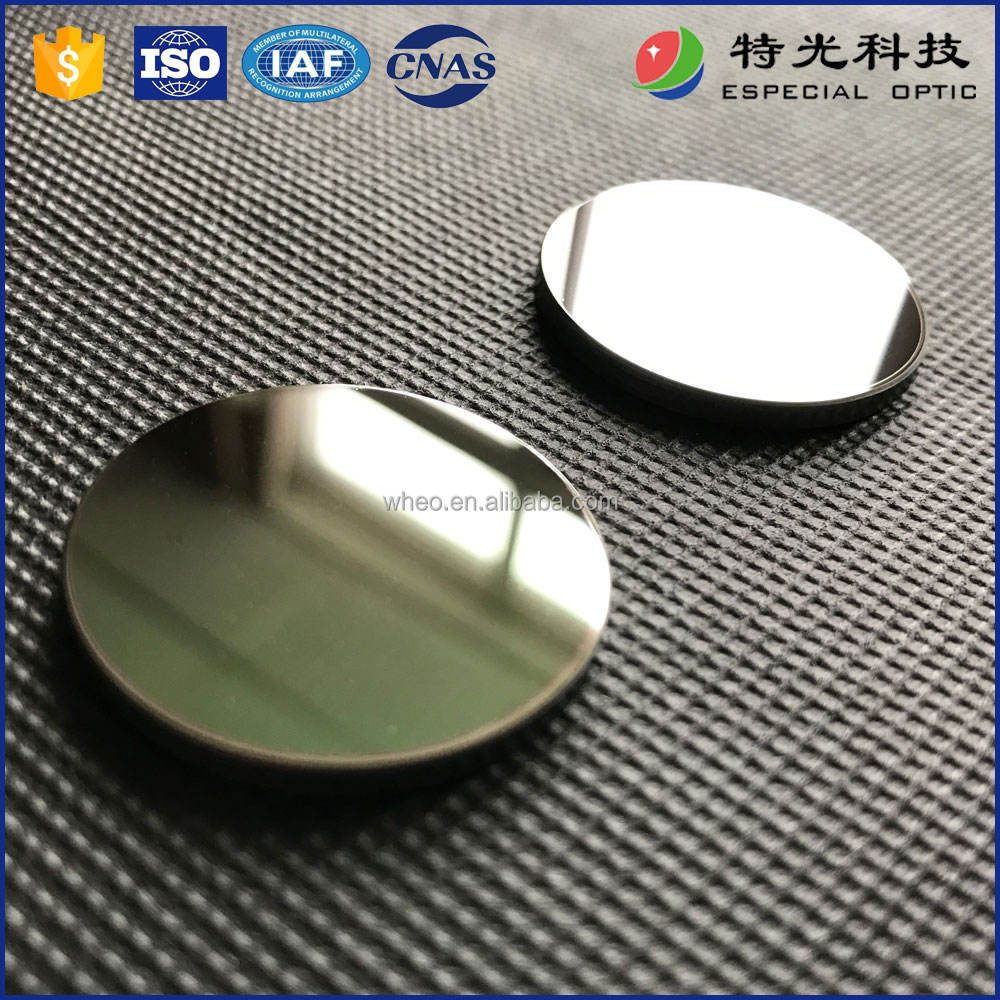

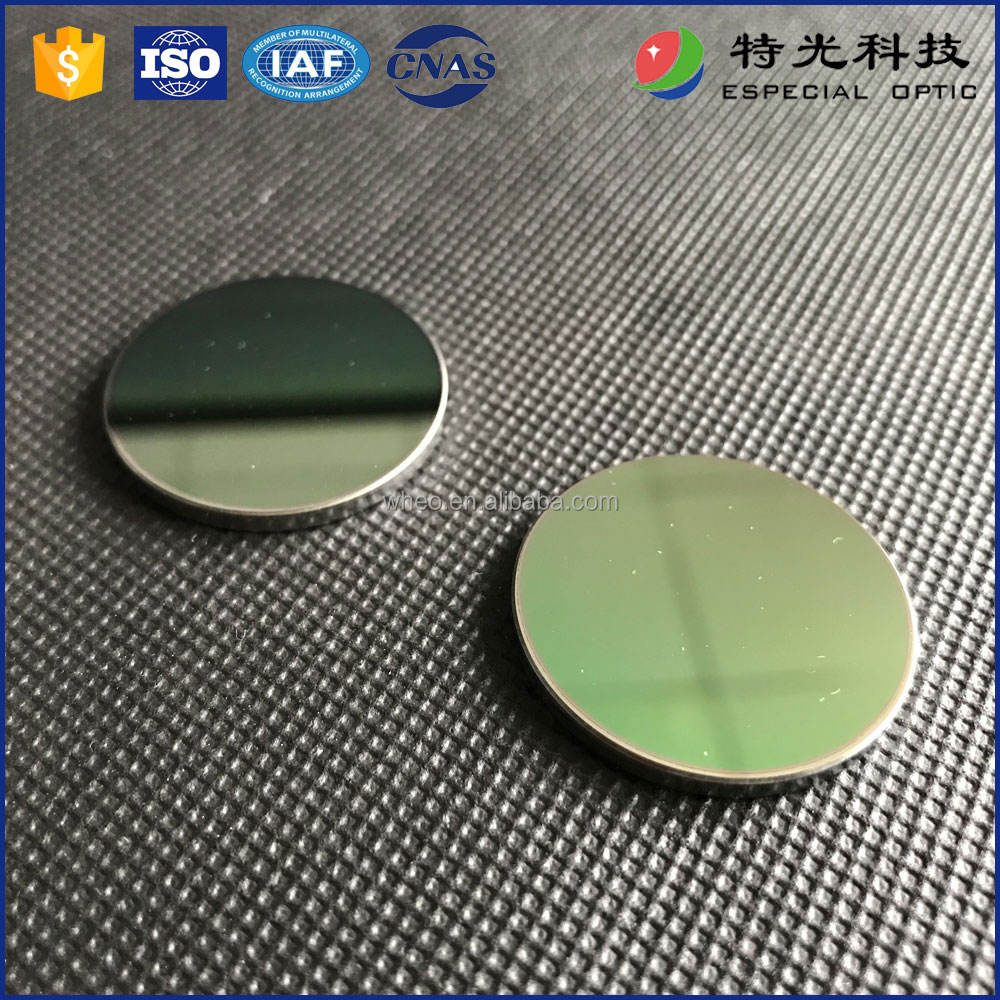

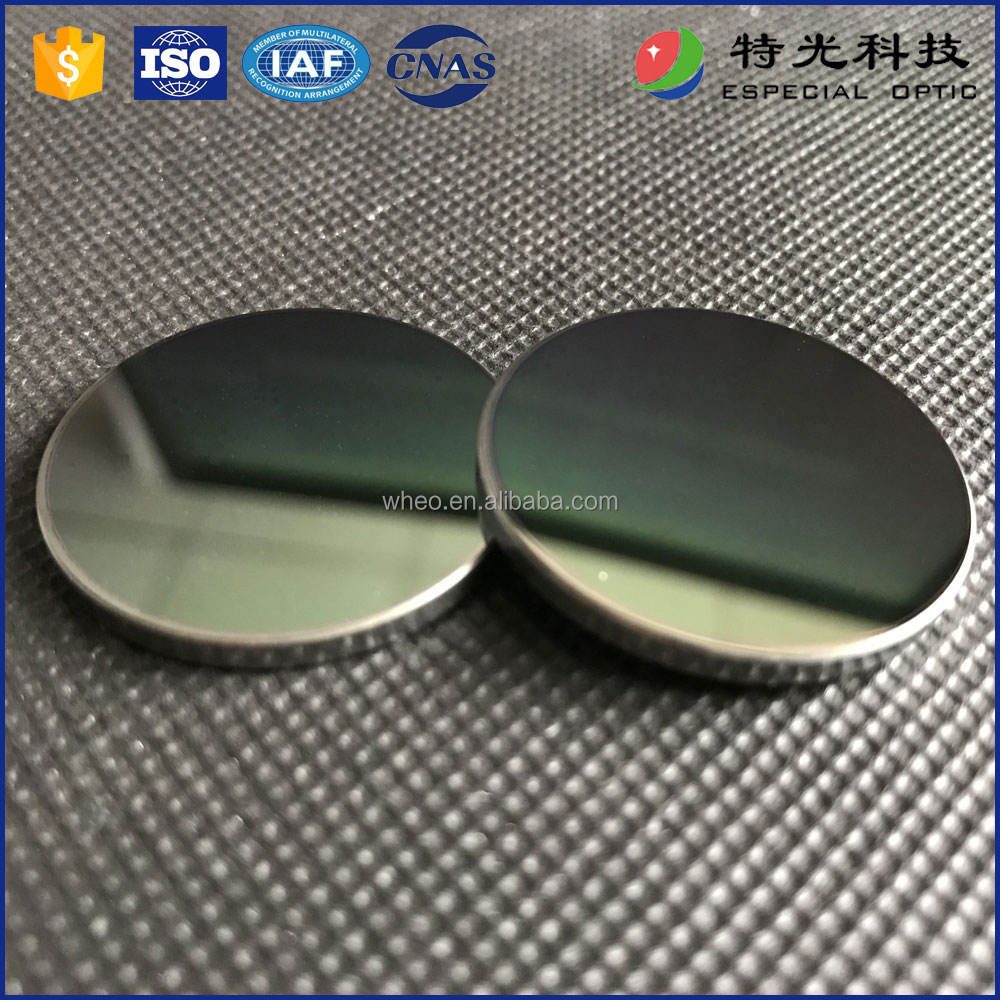

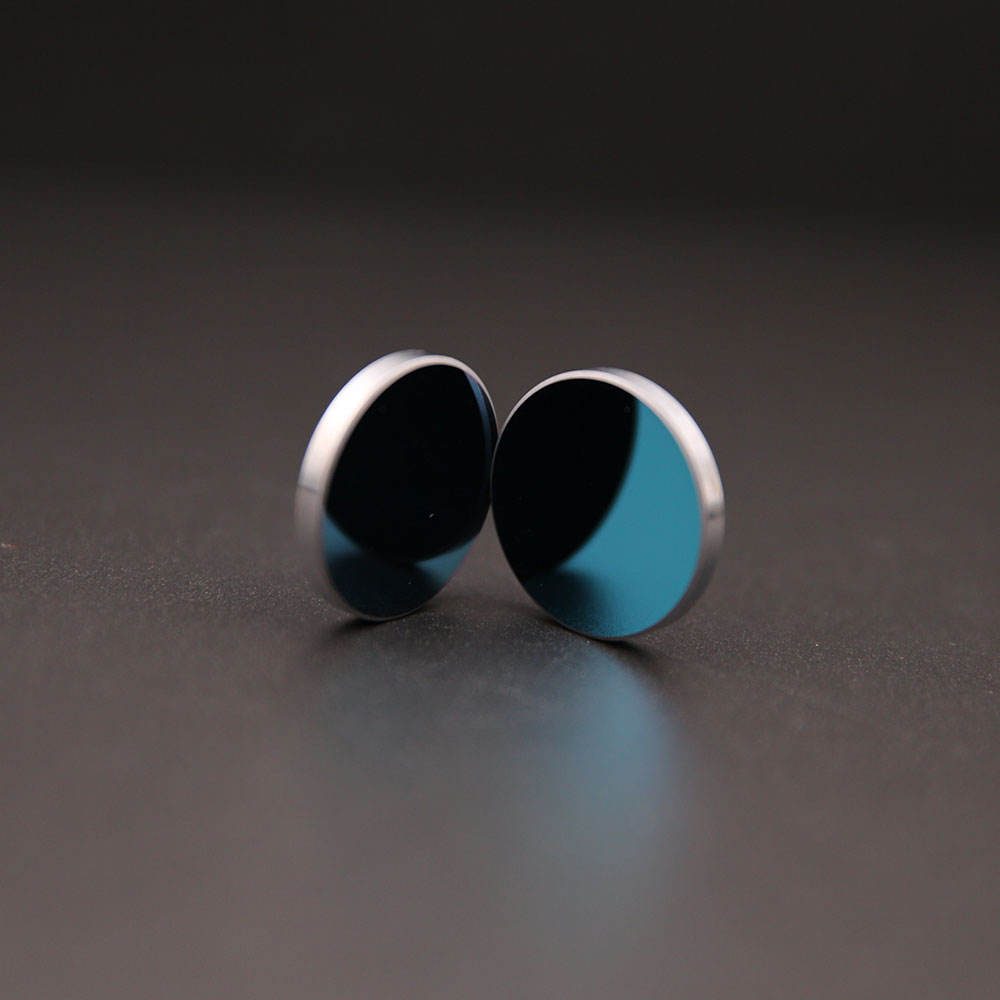

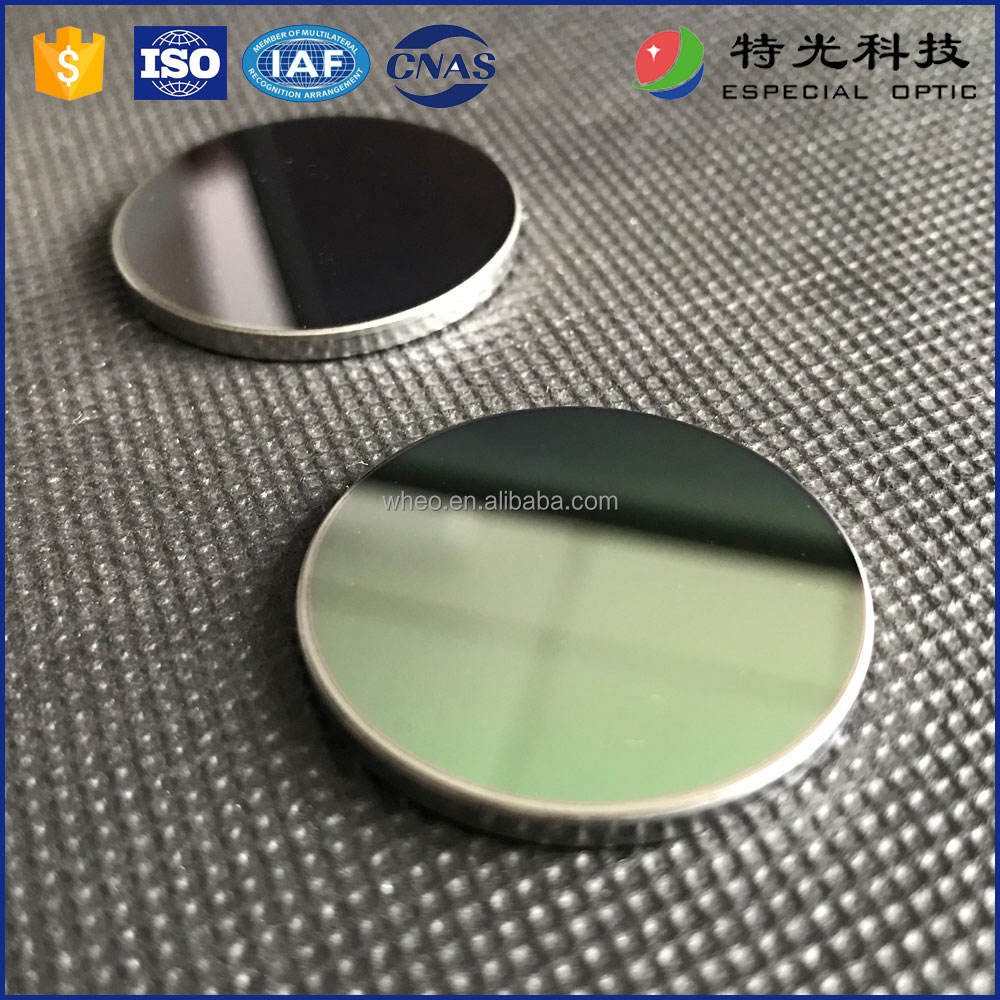

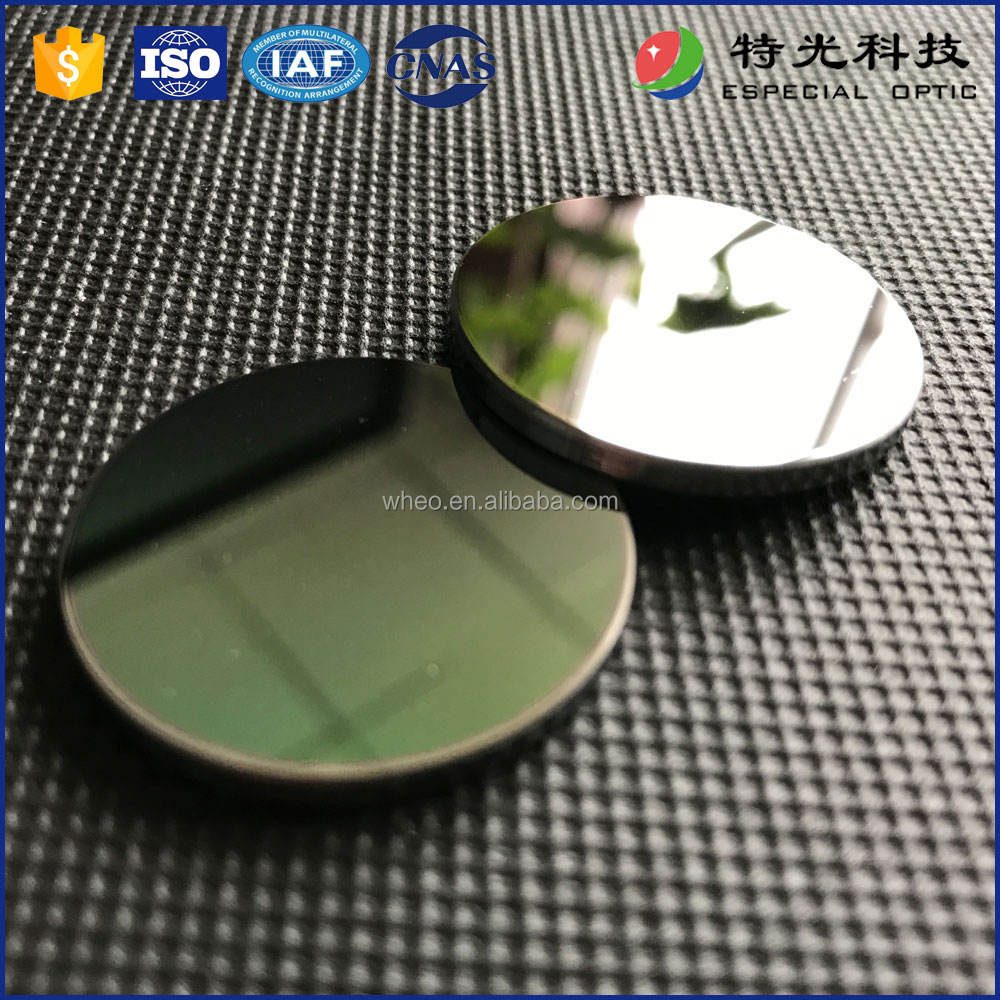

5x0.5 mm Germanium Round Optical Window, AR Coated

Product description

Germanium windows are essential for thermal imaging applications, offering high transmission in the infrared spectrum (1.7-14 μm). With a high index of refraction, these round windows enhance imaging performance while providing robust durability. Available in various sizes, including custom diameters from 5.0 mm to 300.0 mm and thicknesses from 0.5 mm to 20.0 mm, they can be tailored to specific project needs. The coatings, including anti-reflection and diamond-like carbon (DLC), optimize performance across multiple bands.

Key Features

High transmission range of 1.7-14 μm for versatile thermal imaging applications.
Custom sizes available from 5.0 mm to 300.0 mm in diameter and 0.5 mm to 20.0 mm in thickness.
Surface quality of 40/20 ensures clarity and precision in imaging.
Parallelism of <3 arc min for improved optical performance.
DLC and AR coatings enhance durability and transmission efficiency.

Available Sizes

Diameter x Thickness (mm)
152.5 x 10.2

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Germanium
Shape	Round
Diameter	5 mm
Thickness	0.5 mm
Surface Quality	40/20
Coating	anti-reflective (AR), diamond-like carbon (DLC)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Parallelism	<3 arc min
Flatness	Lambda/2

FAQ

Can I get custom sizes for the Germanium windows?

Yes, custom sizes are available, with diameters ranging from 5.0 mm to 300.0 mm.

What are the tolerances for thickness?

The thickness tolerance is ±0.1 mm for standard dimensions.
