1 / 6Optical Windows

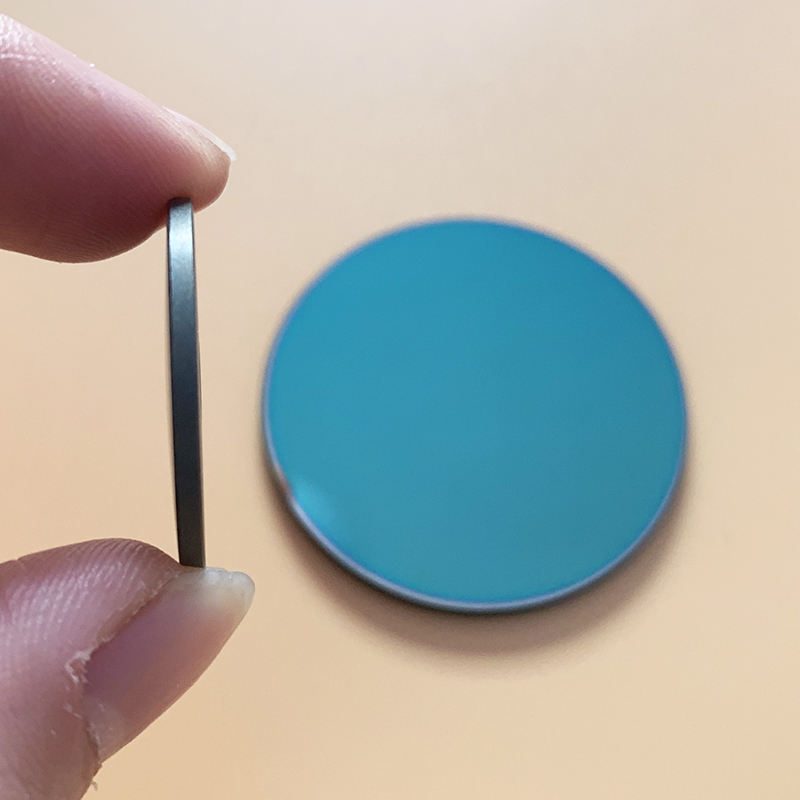

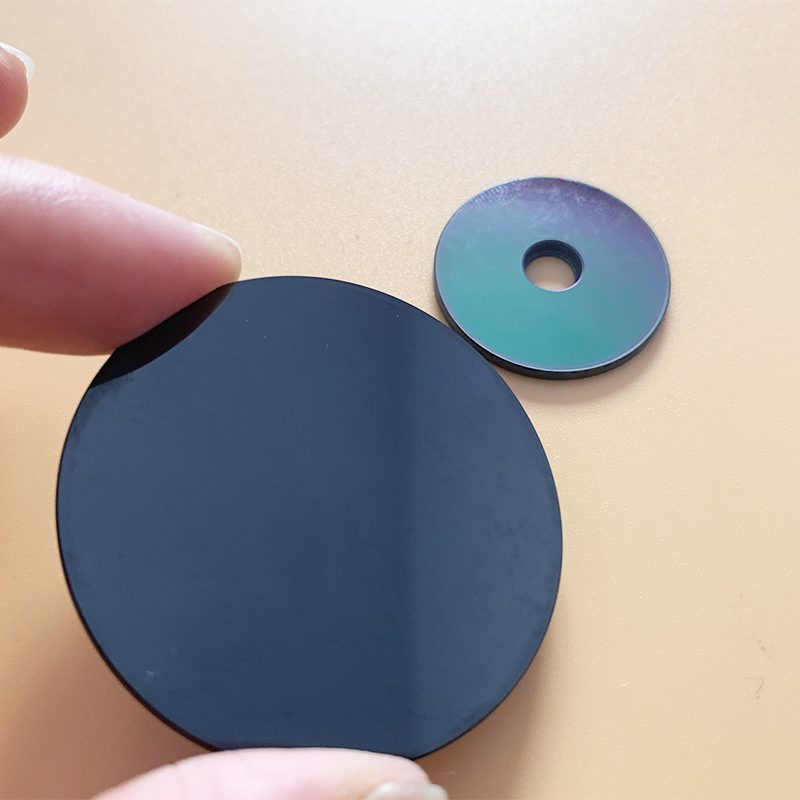

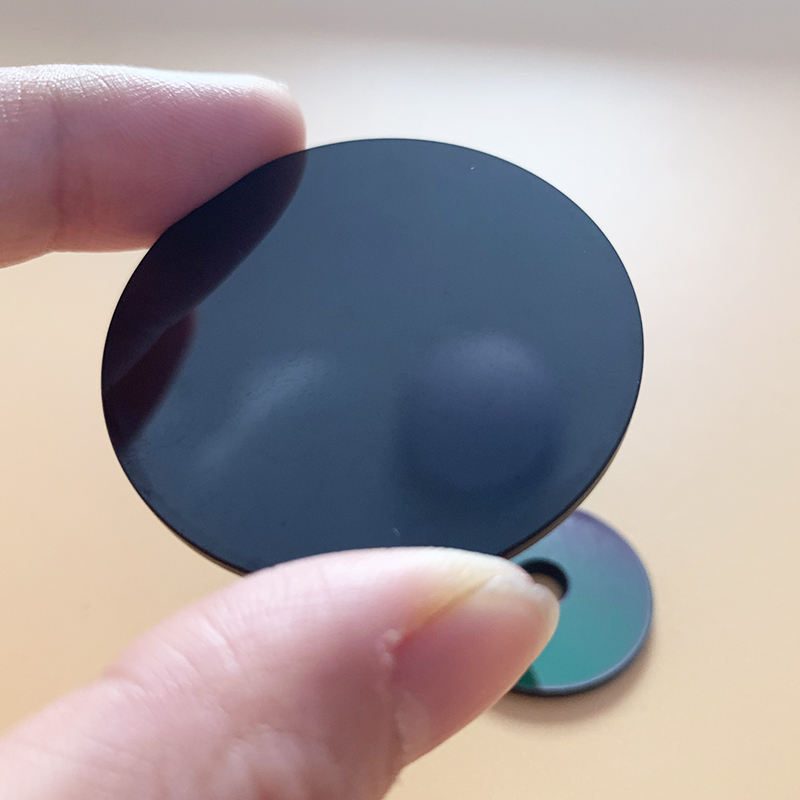

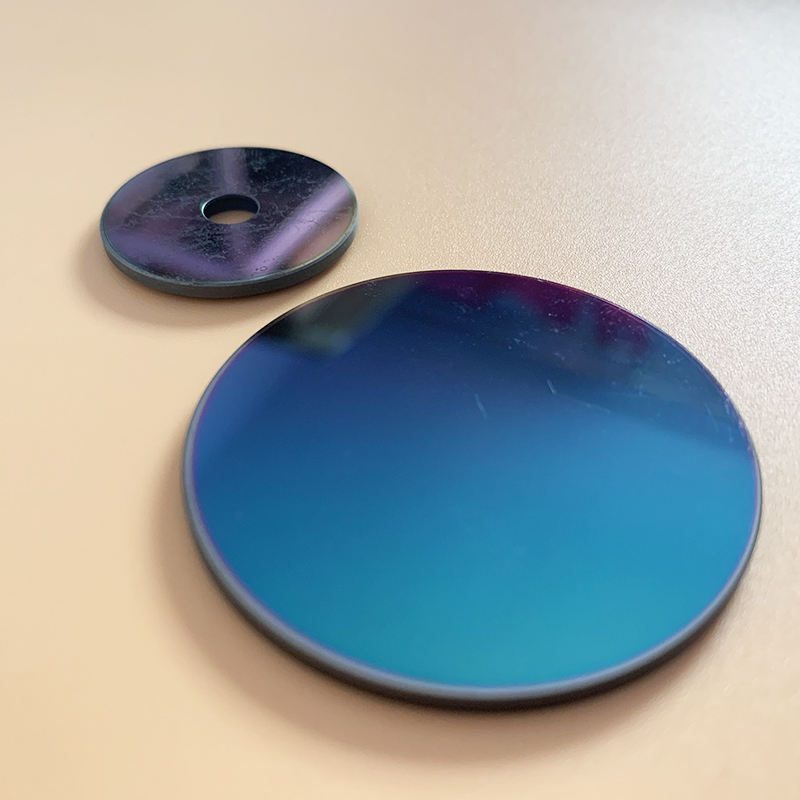

Custom Size Germanium Round Optical Window, AR Coated
Explore large Germanium windows with DLC and AR coatings for thermal imaging and medical applications, optimized for 8-14 μm wavelengths.
Core attributes
- Material
- Germanium
- Shape
- round
- Thickness
- 3–15 mm
- Coating
- ar, dlc
Product facts
Key attributes
- Material
- Germanium
- Shape
- round
- Thickness
- 3–15 mm
- Coating
- ar, dlc
Product description
Large Germanium windows with DLC and AR coatings are designed for thermal imaging and medical applications, operating efficiently in the 8-14 μm wavelength range. These windows provide excellent transmission and low dispersion, making them ideal for infrared applications, including lower power CO2 lasers. Their robust design ensures reliability in demanding environments, while customizable options cater to specific project needs.
Key Features
- Wavelength range: 8-14 μm for optimal thermal imaging and medical use.
- Thickness options: 3.0 to 15.0 mm to suit various application requirements.
- Coatings: AR and DLC for enhanced transmission and durability.
- Shape: Available in round for versatile installation.
- Customized support: OEM options available for tailored solutions.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Germanium |
| Shape | Round |
| Diameter | Custom |
| Thickness | 3 mm |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Window |
| Customized Support | OEM |
| Warranty | 3 months |
| Weight | 1 |
| Name | large germanium windows with DLC&AR coating for |
| S/D | 60/40 |
| Chamfer | 0.25*45degree |
| Wavelength | 8-12um |
FAQ
What thickness options are available?
Thickness options range from 3.0 mm to 15.0 mm.
Can I get custom sizes?
Yes, OEM support is available for customized solutions.
