1 / 6Lenses

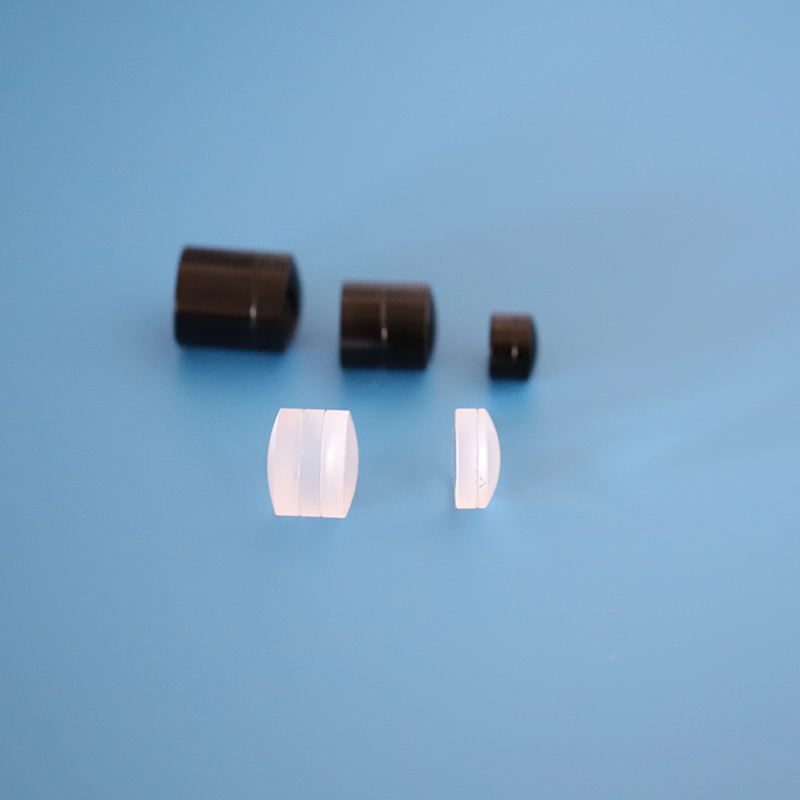

3 mm Glass Achromatic Lens, AR Coated
Explore high-quality achromatic lenses designed for microscopy and spectroscopy with customizable options.
Core attributes
- Material
- Glass
- Shape
- Achromatic
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Glass
- Shape
- Achromatic
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
Achromatic lenses are designed to minimize chromatic aberration and enhance image quality across a range of applications, including microscopy and spectroscopy. With a diameter range from 3.0 mm to 100.0 mm and coatings suitable for the visible and near-infrared bands (400-700 nm and 0.7-1.7 μm), these lenses provide optimal performance for R&D and procurement engineers seeking precision optical components. The doublet design allows for improved performance compared to single lenses, making them ideal for applications requiring high clarity and minimal distortion.
Key Features
- Achromatic design reduces chromatic and spherical aberrations for clearer images.
- Available in diameters from 3.0 mm to 100.0 mm to fit various applications.
- Surface quality rated at 20/10 ensures high optical performance.
- Customizable with OEM support for tailored solutions.
- Centration tolerance of ±1 arc minutes for precise alignment.
Applications
Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | Glass |
| Shape | Achromatic |
| Diameter | 3 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM |
| Warranty | A month |
| Weight | 0.1 |
| Product | Achromatic lens |
| Diameter Tolerance | +0.0, -0.05mm |
| Center Thickness Tolerance | ±0.1mm |
| Centration | ±1 arc minutes |
FAQ
What is the minimum order quantity (MOQ) for these lenses?
The minimum order quantity (MOQ) is not specified.
Can I get custom sizes for the achromatic lenses?
Custom sizes are available with OEM support.
