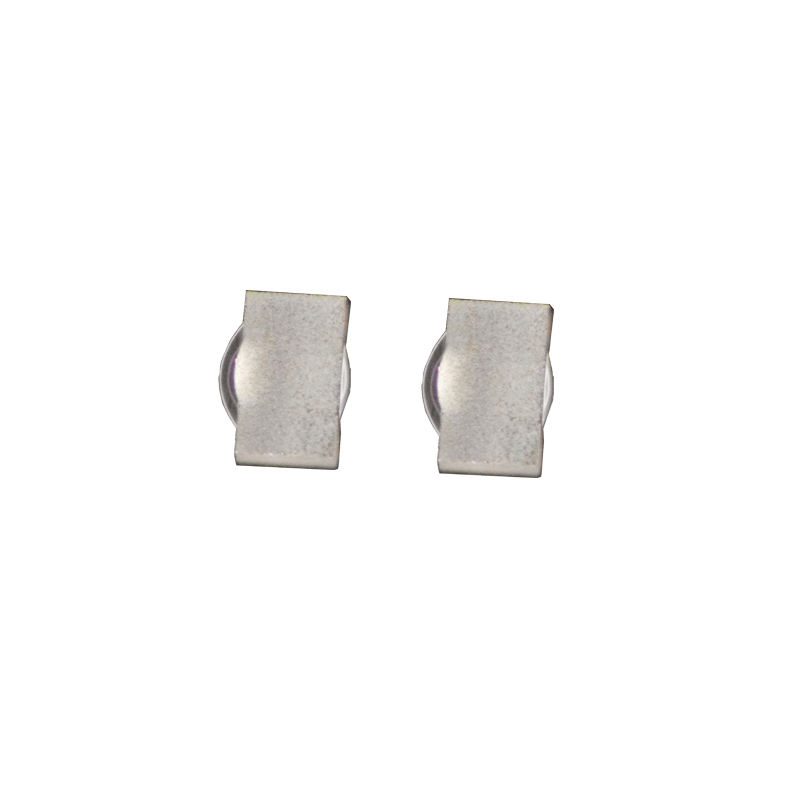

1x0.5 mm Glass Aspheric Lens, AR Coated

Product description

This aspheric lens, made of glass, is designed for applications within the 0.7-1.7 μm wavelength range, making it ideal for compact optical communication devices. With a diameter of 1.0 mm and a focal length of 0.46 mm, it ensures high performance in signal transmission. The default anti-reflection coating enhances transmittance, particularly in the 1200 nm to 1600 nm range, addressing the needs of R&D and procurement engineers seeking reliable optical components.

Key Features

Aspherical design enhances optical performance, reducing spherical aberrations.
Compact 1.0 mm diameter suitable for space-constrained applications.
Focal length of 0.46 mm enables precise focusing capabilities.
Default anti-reflection coating improves signal transmission in critical wavelengths.
Customizable sizes available for tailored solutions.

Available Sizes

Diameter x Focal Length (mm)
1 x 0.5

Specification Summary

Item	Value
Material	Glass
Shape	Aspheric
Diameter	1 mm
Focal Length	0.5 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Type	Aspherical Lens
Customized Support	ODM, OBM
Warranty	no
Weight	0.05

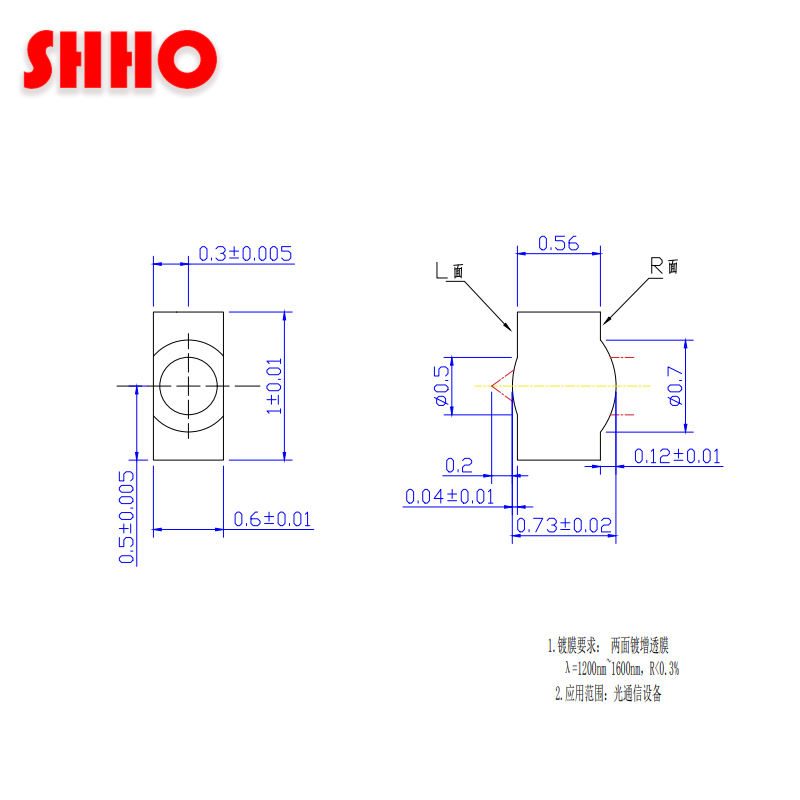

Center Thickness	0.73mm
Surface	Aspherical

FAQ

Is custom sizing available?

Yes, customizable sizes are available, including a variant size of 1.0 mm diameter and 0.5 mm thickness.

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified.
